User Manual for Anchor Audio LIB2-AIR Liberty 2 AIR Wireless Companion Speaker Click to enlarge the picture
Contents of the user manual for the Anchor Audio LIB2-AIR Liberty 2 AIR
- Product category: Portable PA Systems Anchor Audio
- Brand: Anchor Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Anchor Audio Portable PA Systems
 |
User manual for the Anchor Audio LIB2-AIR Liberty 2 AIR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Anchor Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Anchor Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Anchor Audio product will considerably shorten its lifespan!
|

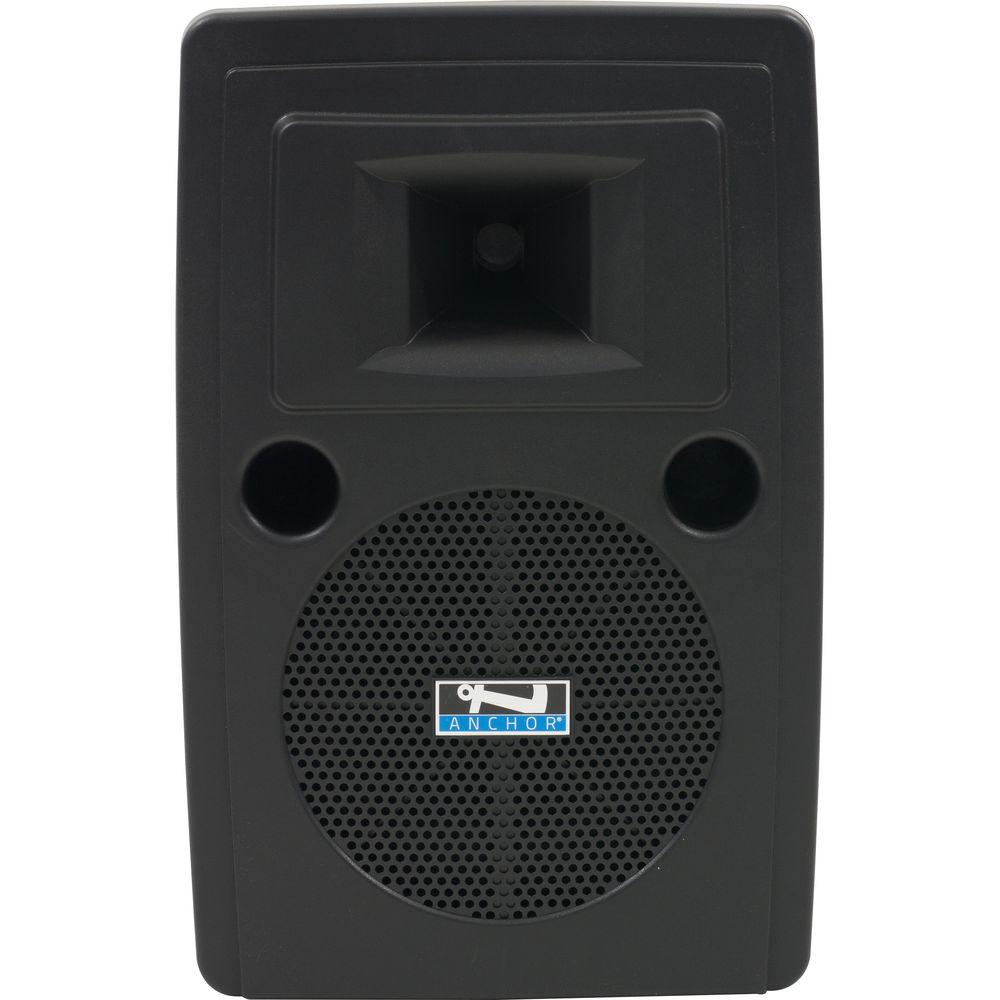

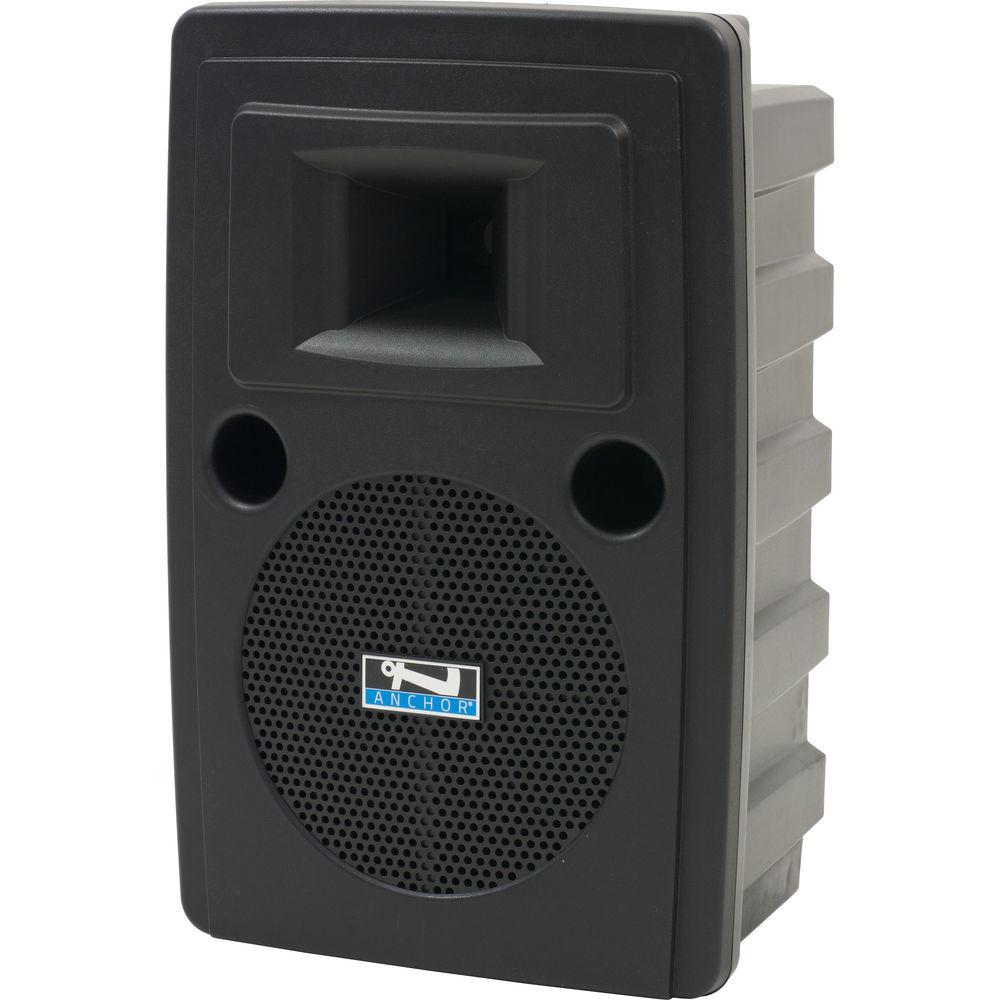

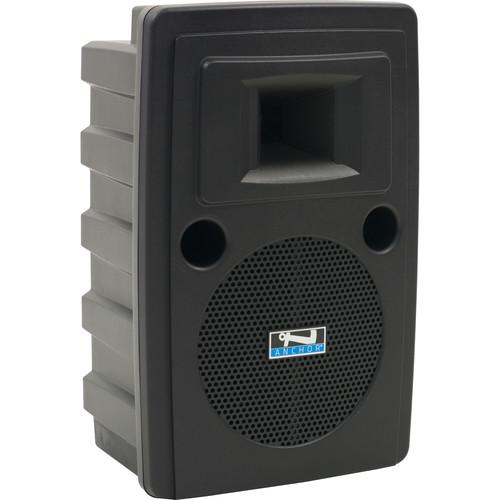

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More Made in the USA, the Anchor Audio LIB2-AIR is a Liberty 2 wireless companion speaker designed to extend the coverage area of your Liberty 2 PA system. Able to handle 125W of power and produce 117 dB SPL through a 10" woofer and a ceramic compression driver, it delivers powerful amplification for crowds of up to 1500 people in sports venues, educational facilities, and various indoor and outdoor events. It features two modes, AIR for active operation with a wireless source, and Wired for passive operation with a wired source. A built-in AIR wireless receiver allows a cord-free signal connection from your Liberty 2 portable PA and offers adjustable volume and 2-band EQ for the wireless signal it receives. Its 4-pole Neutrik speakON input allows a direct connection from the speakON output of your Liberty 2 PA. The LIB2-AIR requires no power source in Wired mode, but can be powered via AC power or the built-in rechargeable batteries in AIR mode. The lithium-ion batteries provide approximately six to eight hours of operating time on a single charge. A 4-stage LED meter indicates battery and charging status. Gig-to-gig transport is made easy with the built-in carry handle, which also simplifies the process of hoisting the LIB2-AIR onto a speaker stand. The integrated pole mount ensures secure placement atop your speaker pole. - Designed to be daisy-chained from Liberty 2 portable PA systems

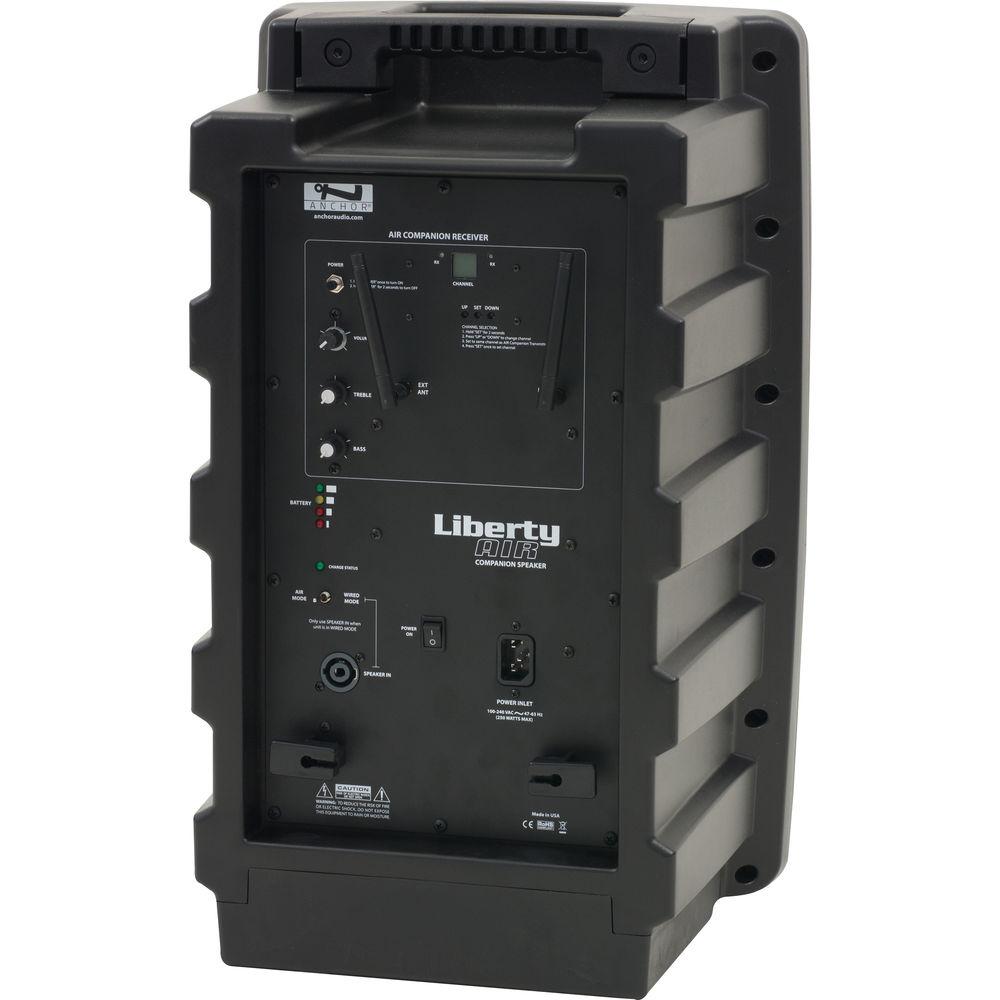

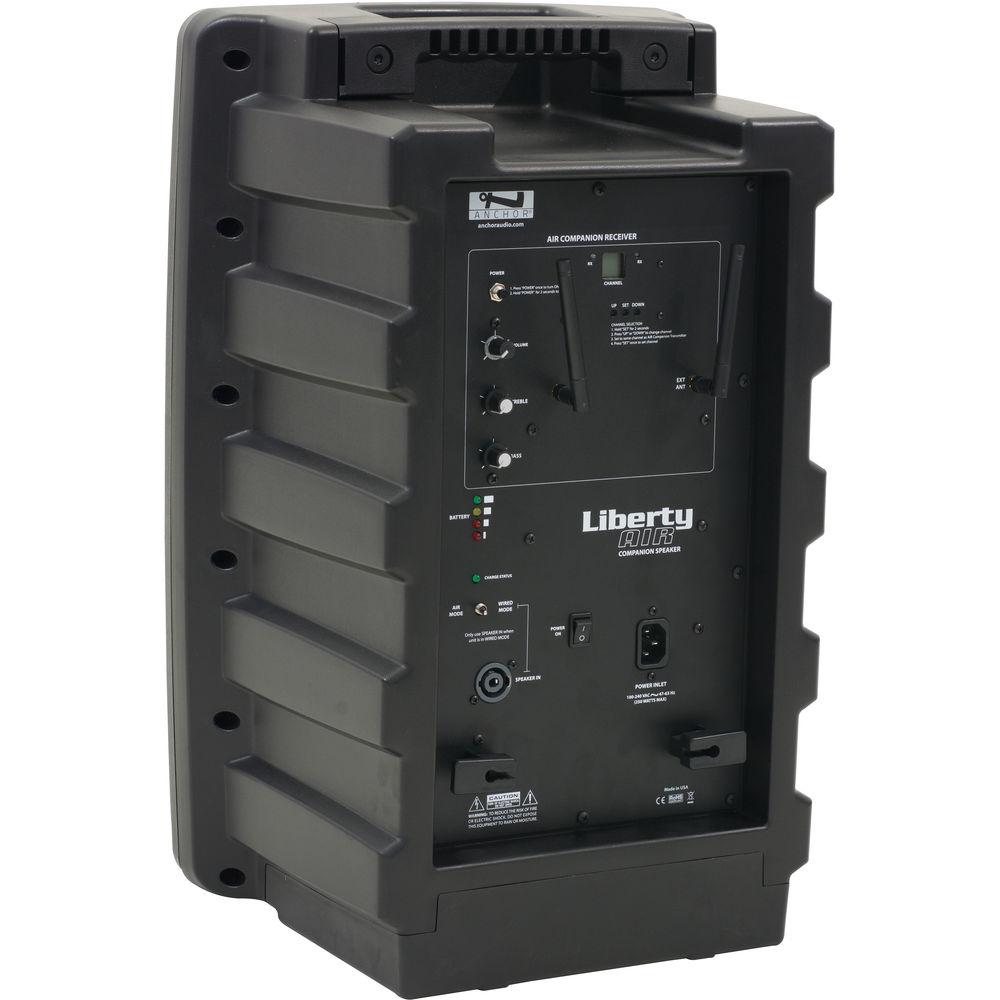

- Built-in AIR wireless receiver for cord-free connection from your Liberty 2 portable PA
- Adjustable volume and 2-band equalization on the AIR wireless receiver
- 4-pole Neutrik speakON input allows a wired connection from your Liberty 2 portable PA
- Toggle switch allows operation in AIR mode (active/wireless) or Wired mode (passive/wired)
- 10" woofer and a ceramic compression driver handle 125W of power
- Built-in rechargeable batteries grant up to eight hours of operating time
- Standard IEC outlet for battery charging or AC operation
- 4-stage LED battery status meter
- Integrated pole mount for easy positioning atop a speaker stand
- Built-in carry handle allows simple transport between gigs
UPC: 819941015772 In the Box Anchor Audio LIB2-AIR Liberty 2 AIR Wireless Companion Speaker Limited 6-Year Warranty on Speaker System Limited 4-Year Warranty on Batteries Table of Contents
|
Upload User Manual
Have you got an user manual for the Anchor Audio LIB2-AIR Liberty 2 AIR Wireless Companion Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnchor Audio Liberty Specs | LF Driver | 1 x 10" / 25.4 cm woofer | | HF Driver | 1 x Ceramic compression driver | | Maximum Power Handling | 125 W | | Maximum SPL | 117 dB at 1 m | | Frequency Response ± 3dB | 60 Hz to 15 kHz | | Input | 1 x 4-pole Neutrik speakON | | Wireless Frequency Range | 902 to 928 MHz | | Wireless Range | Up to 300' / 91.4 m (line of sight) | | Battery | 2 x 12 V LFP rechargeable lithium-ion batteries, 7 Ah | | Battery Life (approx.) | 6 to 8 hours | | Power Requirements | Built-in rechargeable batteries or 100 to 240 VAC, 50/60 Hz, 250 W max | | Dimensions (H x W x D) | 23.0 x 14.0 x 11.5" / 58.4 x 35.6 x 29.2 cm | | Weight | 27 lb / 12.2 kg | | Country of Manufacture | United States of America | | | | Package Weight | 33.5 lb | | Box Dimensions (LxWxH) | 24.0 x 16.0 x 14.0" |
