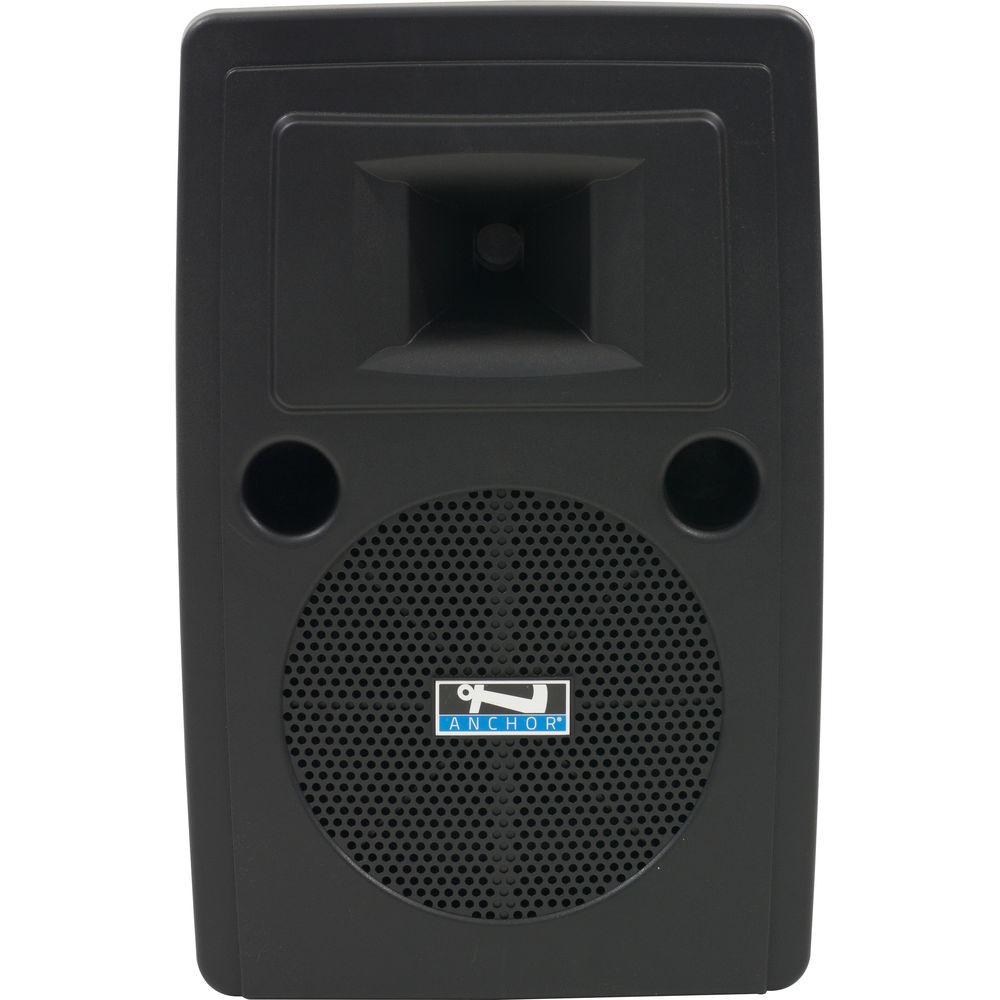

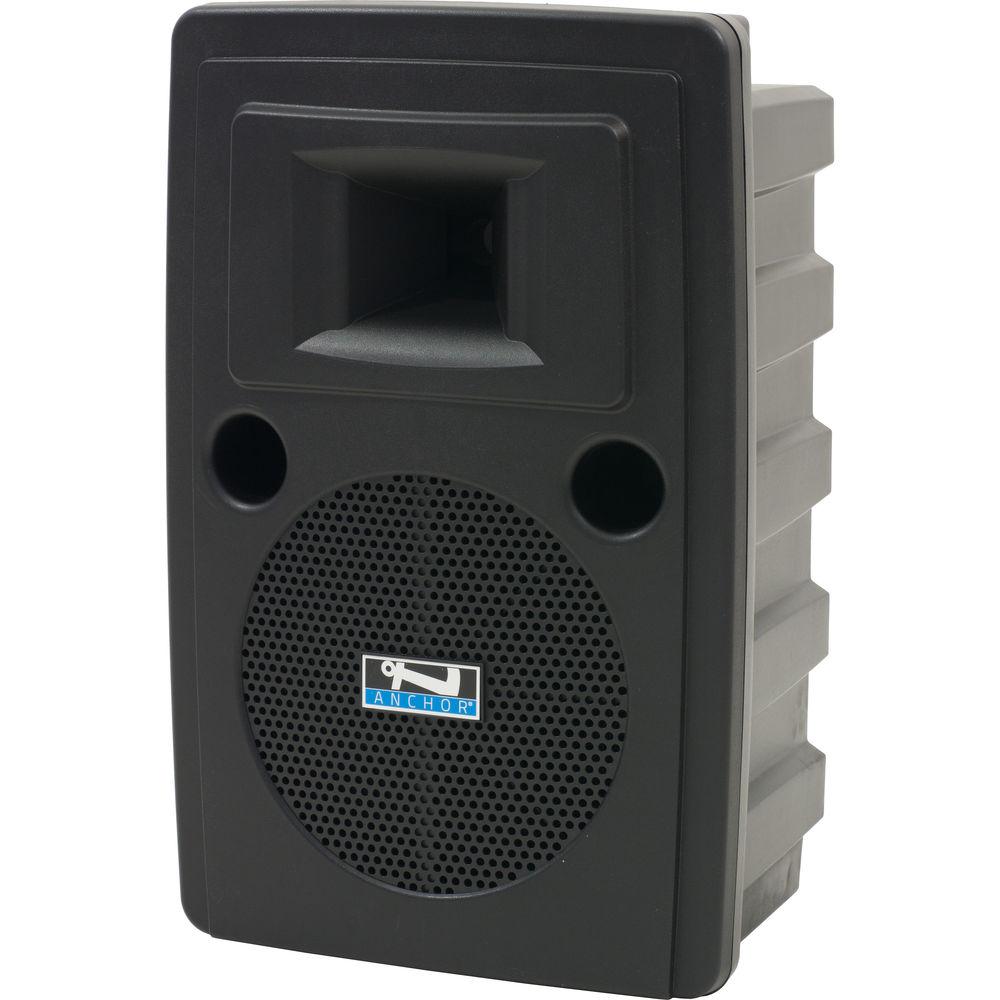

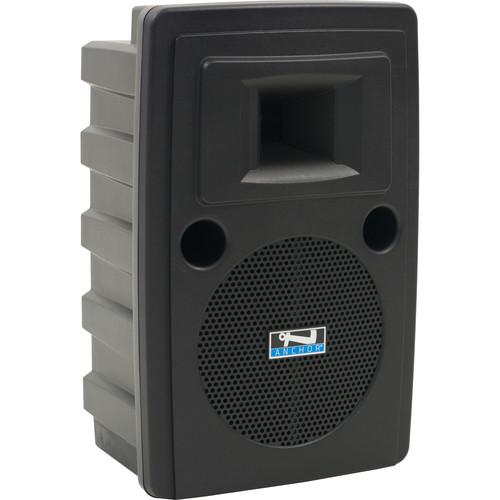

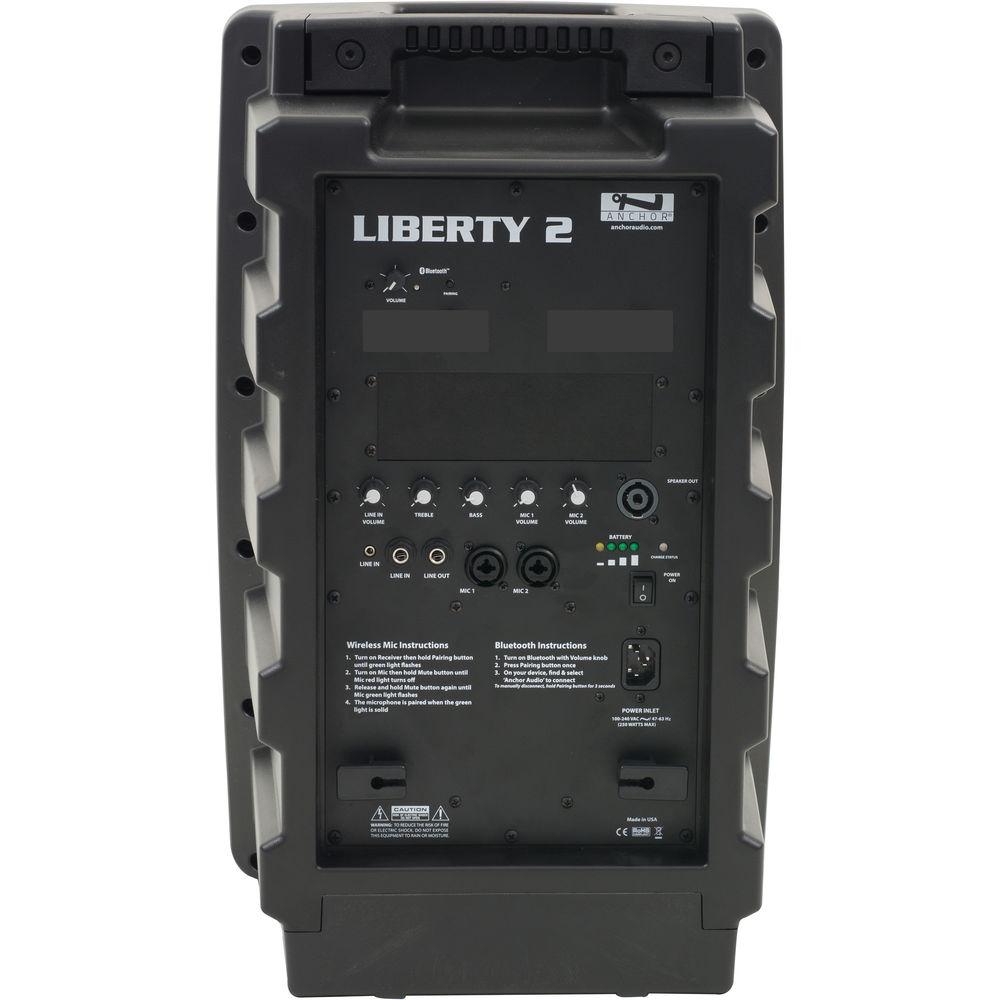

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Anchor Audio LIB2 is a Liberty 2 portable PA system with a built-in Bluetooth receiver. With 125W of rated output power driving a 10" woofer and a ceramic compression driver to produce 117 dB SPL, it is designed to deliver versatile and powerful amplification for crowds of up to 1500 people in sports venues, educational facilities, and various indoor and outdoor events. The built-in Bluetooth receiver allows streaming of music from your smartphone, tablet, or laptop. Two XLR-1/4" combo jacks, a 1/4" line input, and a 3.5mm stereo mini jack provide connectivity for wired mics, instruments, line-level sources, and non-Bluetooth devices. The balanced 1/4" output can be routed to another PA system or an audio recorder, while the 4-pole speakON output can power a Liberty 2 companion speaker (available separately). Integrated mixer functions include volume controls and 2-band equalization. Power the Liberty 2 via AC power or the built-in rechargeable lithium-ion batteries, which offer approximately six to eight hours of operating time on a single charge. The integrated carry handle and pole mount simply physical setup of the system. - 125W of rated output power through a 10" woofer and a ceramic compression driver
- 117 dB maximum SPL reaches crowds of up to 1500 people
- External 4-pole speakON speaker output powers a Liberty 2 companion speaker (available separately)
- Built-in Class-1 Bluetooth for streaming music from a mobile device
- Compatible with dual wireless microphone receivers
- Built-in rechargeable lithium-ion batteries provide approximately six to eight hours of operating time on a single charge
- Integrated pole mount and carry handle
UPC: 819941015758 In the Box Anchor Audio LIB2 Liberty 2 Portable PA System with Bluetooth Limited 6-Year Warranty on Line Array Limited 2-Year Warranty on Battery Table of Contents
|
Upload User Manual
Have you got an user manual for the Anchor Audio LIB2 Liberty 2 Portable PA System with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnchor Audio Liberty Specs | LF Driver | 1 x 10" / 25.4 cm woofer | | HF Driver | 1 x Ceramic compression driver | | Rated Power Output | 125 W (AC mode)
100 W (DC mode) | | Maximum SPL | 117 dB at 1 m | | Inputs | 2 x XLR/1/4" combo (balanced)
1 x 1/4" TRS balanced
1 x 1/8" / 3.5 mm stereo | | Outputs | 1 x 1/4" TRS
1 x 4-pole Neutrik speakON jack | | Frequency Response ± 3dB | 60 Hz to 15 kHz | | Input Sensitivity | Lo-Z Microphone: -52 dBV (2.5 mVrms)
Hi-Z Microphone: -43 dBV (7.5 mVrms)
Auxiliary: -14 dBV (200 mVrms)
Phantom Power: 36 V | | Input Impedance | Lo-Z: 1 kOhm
Hi-Z: 10 kOhms | | Output Impedance | Line: 600 Ohms | | Bluetooth | Class-1 | | Wireless Frequency | Wireless Microphone: 1.9 GHz DECT
AIR Transmitter: 902 to 928 MHz | | Wireless Range | Up to 300' (line of sight) | | Phantom Power | 12 VDC | | Battery | 2 x 12 V LFP rechargeable lithium-ion batteries, 7 Ah | | Battery Life (approx.) | 6 to 8 hours | | Power Requirements | Built-in rechargeable batteries or 100 to 240 VAC, 50/60 Hz, 250 W max | | Dimensions (H x W x D) | 23.0 x 14.0 x 11.5" / 58.4 x 35.6 x 29.2 cm | | Weight | 28 lb / 12.7 kg | | Country of Manufacture | United States of America | | | | Package Weight | 34.25 lb | | Box Dimensions (LxWxH) | 27.5 x 16.2 x 14.0" |
