Anchor Audio LIB2-U2 Liberty 2 Portable

Search your instruction manual in PDF to download

User Manual for Anchor Audio LIB2-U2 Liberty 2 Portable PA System with Bluetooth & Dual Mic Receiver

Click to enlarge the picture
Anchor Audio LIB2-U2 Liberty 2 Portable PA System with Bluetooth & Dual Mic Receiver Contents of the user manual for the Anchor Audio LIB2-U2 Liberty 2 Portable
  • Product category: Portable PA Systems Anchor Audio
  • Brand: Anchor Audio
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Anchor Audio Portable PA Systems

Anchor Audio LIB2-U2 Liberty 2 Portable PA System with Bluetooth & Dual Mic Receiver Anchor Audio LIB2-U2 Liberty 2 Portable PA System with Bluetooth & Dual Mic Receiver Anchor Audio LIB2-U2 Liberty 2 Portable PA System with Bluetooth & Dual Mic Receiver
User manual for the Anchor Audio LIB2-U2 Liberty 2 Portable contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Anchor Audio product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Anchor Audio user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Anchor Audio product will considerably shorten its lifespan!



Product description

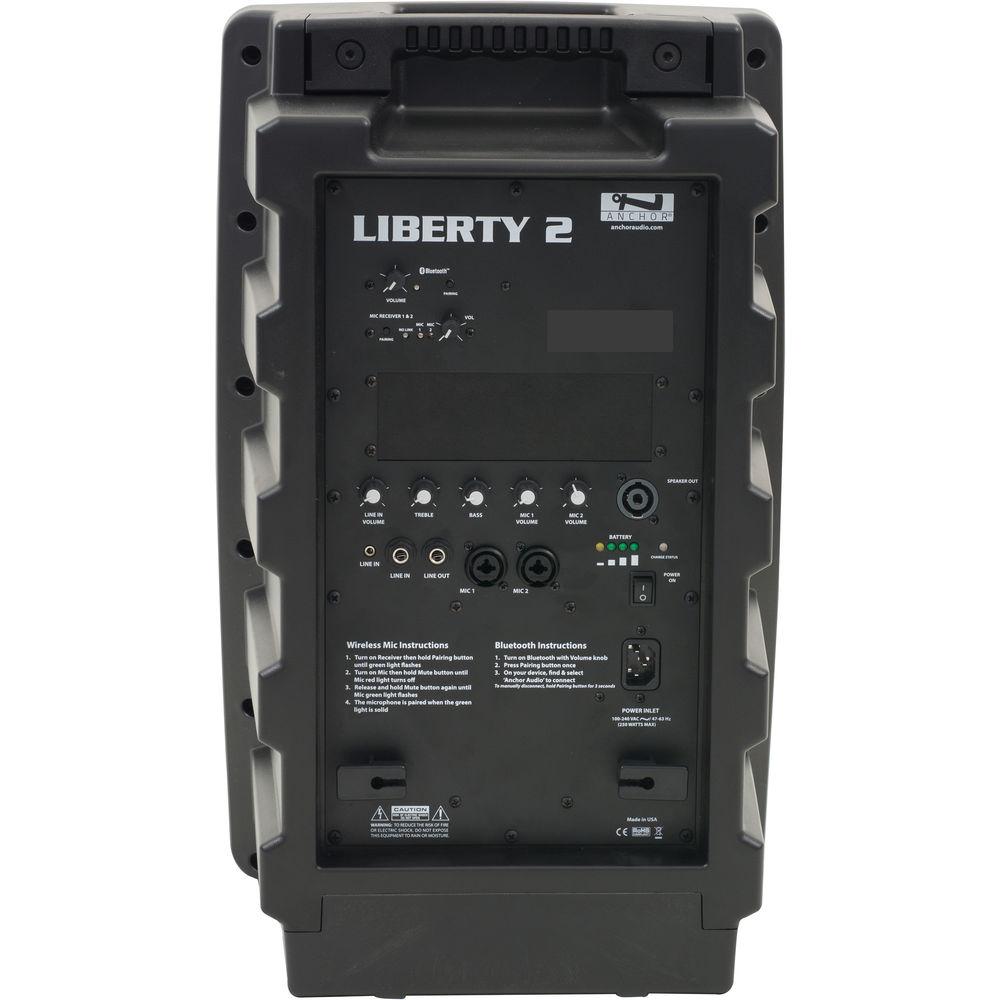

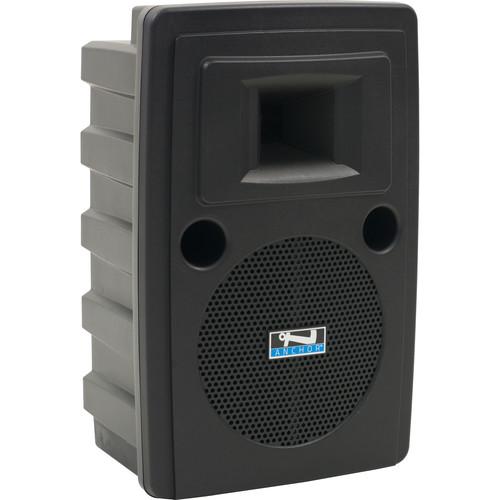

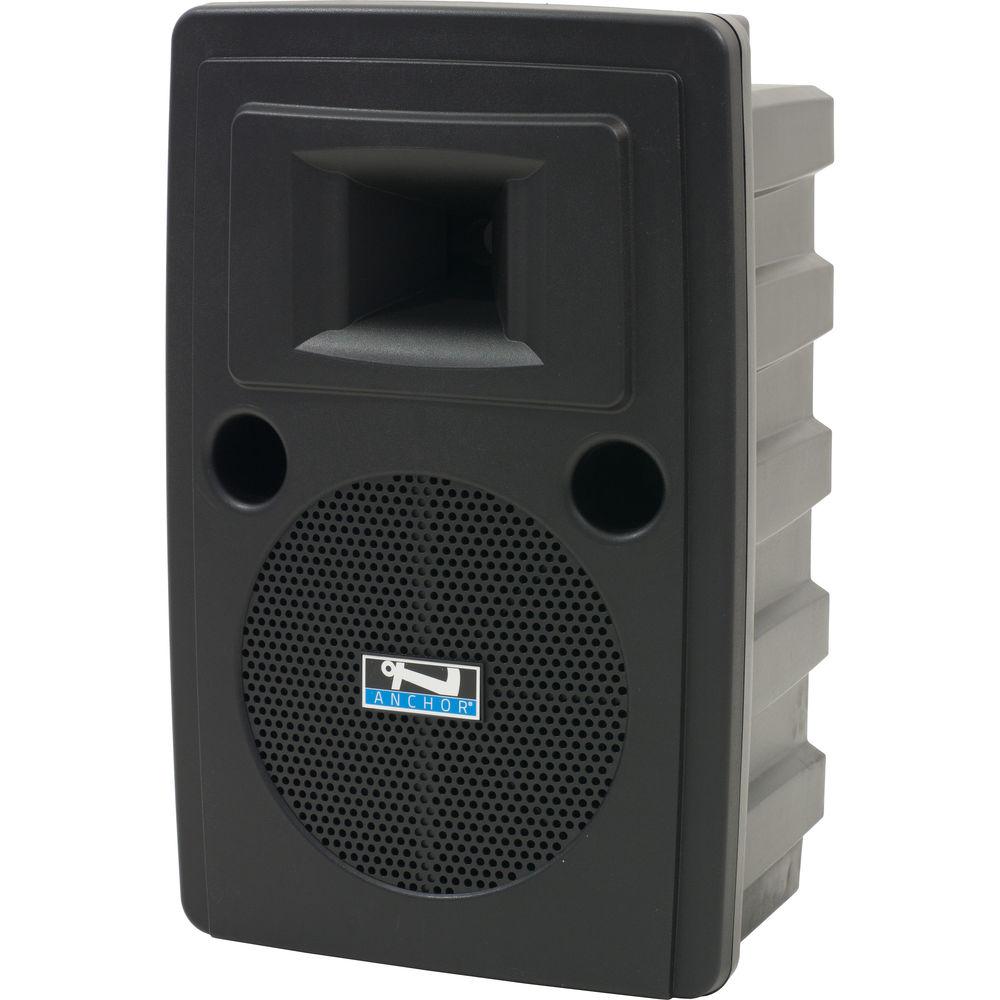

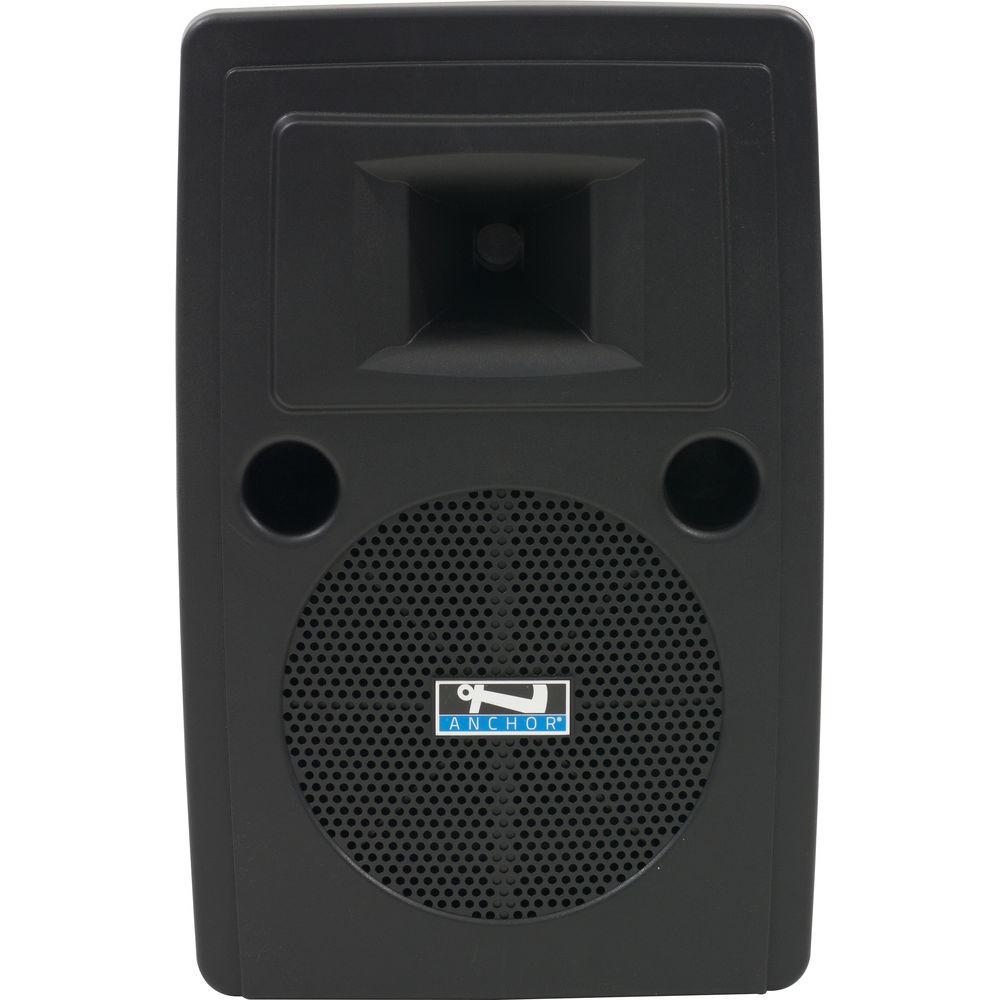

7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Anchor Audio LIB2-U2 is a Liberty 2 portable PA system with Bluetooth and a dual wireless microphone receiver. With 125W of rated output power driving a 10" woofer and a ceramic compression driver to produce 117 dB SPL, it is designed to deliver versatile and powerful amplification for crowds of up to 1500 people in sports venues, educational facilities, and various indoor and outdoor events. The built-in Bluetooth receiver allows streaming of music from your smartphone, tablet, or laptop. Two XLR-1/4" combo jacks, a 1/4" line input, and a 3.5mm stereo mini jack provide connectivity for wired mics, instruments, line-level sources, and non-Bluetooth devices. Connect up to two wireless mics (available separately) via the included dual wireless microphone receiver. The balanced 1/4" output can be routed to another PA system or an audio recorder, while the 4-pole speakON output can power a Liberty 2 companion speaker (available separately). Integrated mixer functions include volume controls and 2-band equalization. Power the Liberty 2 via AC power or the built-in rechargeable lithium-ion batteries, which offer approximately six to eight hours of operating time on a single charge. The integrated carry handle and pole mount simply physical setup of the system.
  • 125W of rated output power through a 10" woofer and a ceramic compression driver
  • 117 dB maximum SPL reaches crowds of up to 1500 people
  • External 4-pole speakON speaker output powers a Liberty 2 companion speaker (available separately)
  • Built-in Class-1 Bluetooth for streaming music from a mobile device
  • Anchor AIR compatible
  • Connect up to two wireless mics (available separately) via the included dual wireless microphone receiver
  • Built-in rechargeable lithium-ion batteries provide approximately six to eight hours of operating time on a single charge
  • Integrated pole mount and carry handle
  • Made in the USA
UPC: 819941015796 In the Box Anchor Audio LIB2-U2 Liberty 2 Portable PA System with Bluetooth & Dual Mic Receiver
  • Limited 6-Year Warranty on Line Array
  • Limited 2-Year Warranty on Battery
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Anchor Audio LIB2-U2 Liberty 2 Portable PA System with Bluetooth & Dual Mic Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Anchor Audio Liberty Specs

    LF Driver 1 x 10" / 25.4 cm woofer
    HF Driver 1 x Ceramic compression driver
    Rated Power Output 125 W (AC mode)
    100 W (DC mode)
    Maximum SPL 117 dB at 1 m
    Inputs 2 x XLR/1/4" combo (balanced)
    1 x 1/4" TRS balanced
    1 x 1/8" / 3.5 mm stereo
    Outputs 1 x 1/4" TRS
    1 x 4-pole Neutrik speakON jack
    Frequency Response ± 3dB 60 Hz to 15 kHz
    Input Sensitivity Lo-Z Microphone: -52 dBV (2.5 mVrms)
    Hi-Z Microphone: -43 dBV (7.5 mVrms)
    Auxiliary: -14 dBV (200 mVrms)
    Phantom Power: 36 V
    Input Impedance Lo-Z: 1 kOhm
    Hi-Z: 10 kOhms
    Output Impedance Line: 600 Ohms
    Bluetooth Class-1
    Wireless Frequency Wireless Microphone: 1.9 GHz DECT
    AIR Transmitter: 902 to 928 MHz
    Wireless Range Up to 300' (line of sight)
    Phantom Power 12 VDC
    Battery 2 x 12 V LFP rechargeable lithium-ion batteries, 7 Ah
    Battery Life (approx.) 6 to 8 hours
    Power Requirements Built-in rechargeable batteries or 100 to 240 VAC, 50/60 Hz, 250 W max
    Dimensions (H x W x D) 23.0 x 14.0 x 11.5" / 58.4 x 35.6 x 29.2 cm
    Weight 28 lb / 12.7 kg
    Country of Manufacture United States of America
    Package Weight 34.25 lb
    Box Dimensions (LxWxH) 27.8 x 16.3 x 14.0"

    Rating

    100% users recommend this product to others. And what about you?
    Rating: 5 of 5

    This product has already been rated by 54 owners. Add your rating and experience with the product.

    Discussion

    Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

    Post new comment to Anchor Audio LIB2-U2 Liberty 2 Portable PA System with Bluetooth & Dual Mic Receiver

    Subject: Feedback
    Date: 30.09.2022 19:58:39Name: Terry Carter
    I am still getting feedback at 150 away from the speakers. How can minimize feedback from a further distance ?
