User manual
Anchor Audio LITE-BP MiniVox Personal Portable

User Manual for Anchor Audio LITE-BP MiniVox Personal Portable PA System Basic Package with Wired Mic and Case

• Product category: Personal PA Systems Anchor Audio
• Brand: Anchor Audio
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Anchor Audio Personal PA Systems

Product description

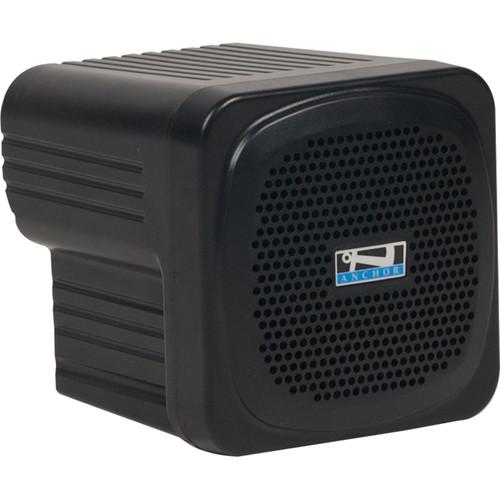

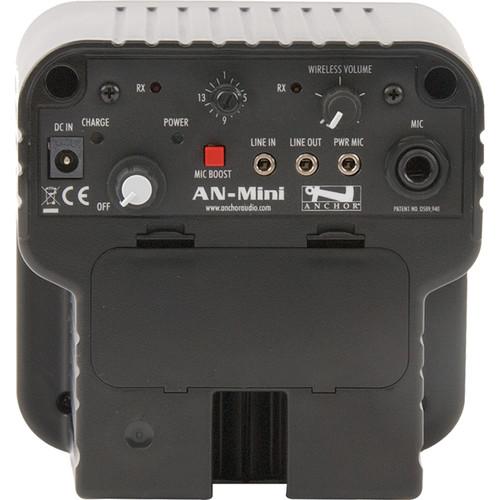

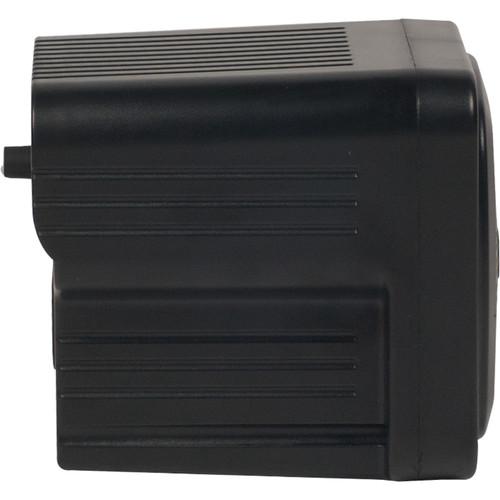

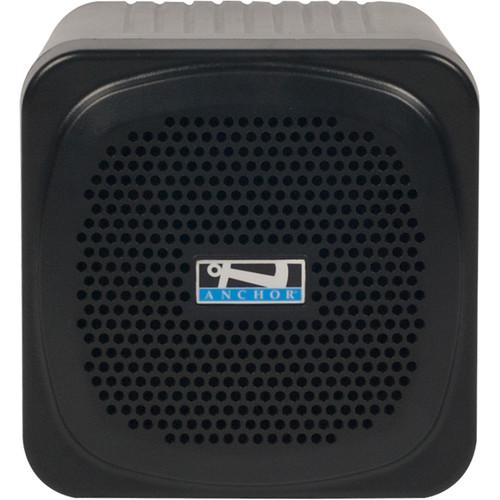

• AN-MINI Personal Portable PA System (Black) The Anchor Audio AN-MINI is a wearable, compact, and lightweight (2.5 lb) public-address system designed to project clear and intelligible speech or to listen to music. It delivers up to 30W of power with 100 dB of clear sound, reaching crowds up to 100 people for public gathering, tour, emergency-preparedness, or field-trip applications, and more. The AN-MINI is equipped with a 1/4" mic jack that lets you connect a traditional handheld microphone (available separately). It also features a 3.5mm line input for connecting a portable player, instrument, or CD player, and a 3.5mm line output lets you connect an external mixer, recorder, or additional speaker. Use the mic boost to help your voice project farther when addressing a large crowd or speaking in a noisy environment. The AN-MINI is powered via ten AA batteries and operates for up to 12 hours on a full charge. If used as a stationary unit, it can also be powered with the Anchor Audio AC-30 AC adapter (available separately).
  Key Features
  • • Portable, public-address system reaches crowds of 100+
    • Wearable, compact, and lightweight
    • 30W of power for 100 dB of clear sound
    • 4.5" woofer with neodymium driver
    • 1/4" input for wired mic (microphone available separately)
    • Mic boost button
    • 3.5mm line input for connecting a CD player, MP3 player, or instrument
    • 3.5mm line output to send a signal to an external recorder or amplification system
    • Listen to an external audio source and microphone simultaneously
    • Powered via ten AA batteries or AC-30 AC adapter (available separately)
    • Operate 10 to 12 hours on fresh batteries
  UPC: 638632141275

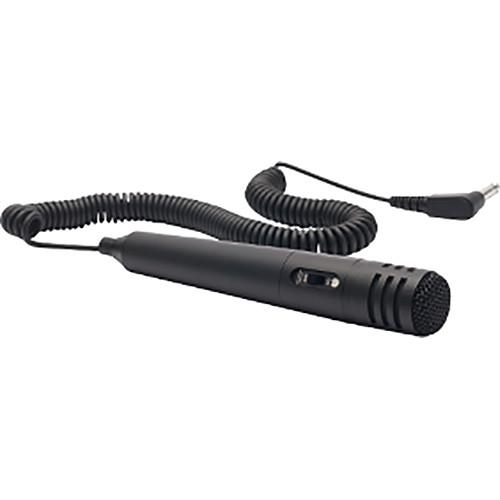

• MIC-50 Handheld Microphone The Anchor Audio Mic-50 is a rugged handheld microphone with a 10-foot coiled cable. The cable is terminated with a 1/4" phone connection and is for use with Anchor Audio P.A. systems such as the MiniVox.

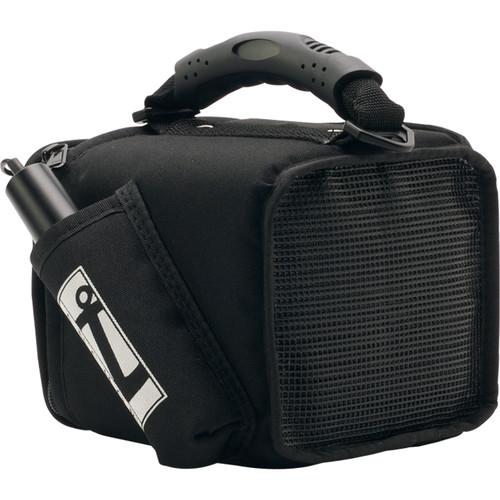

• SOFT-MINI Soft Case for MiniVox Lite and AN-MINI Personal PA Systems The Anchor Audio SOFT-MINI is a soft case for the MiniVox Lite and AN-MINI personal PA systems. It is made of soft nylon material designed to protect against dust, scratches, and abrasion when carrying or storing the speaker. The cover is equipped with a mesh pocket for accessories and a microphone holder on the side. The case can be carried using the padded handle or the included adjustable shoulder strap.
  • • Fits MiniVox Lite and AN-MINI models
    • Carry and protect your speaker
    • Soft nylon material
    • Mesh pocket for accessories
    • Microphone holder on the side
    • Padded handle
    • Includes adjustable shoulder strap

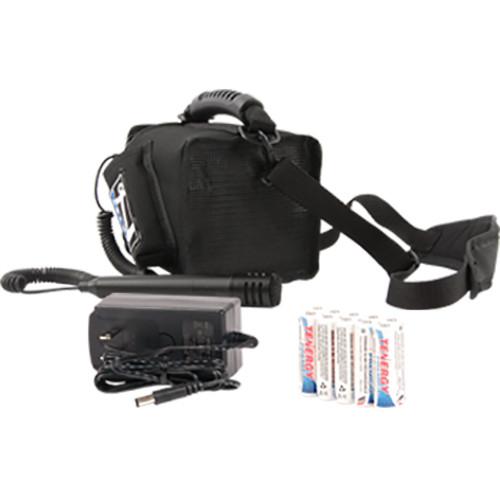

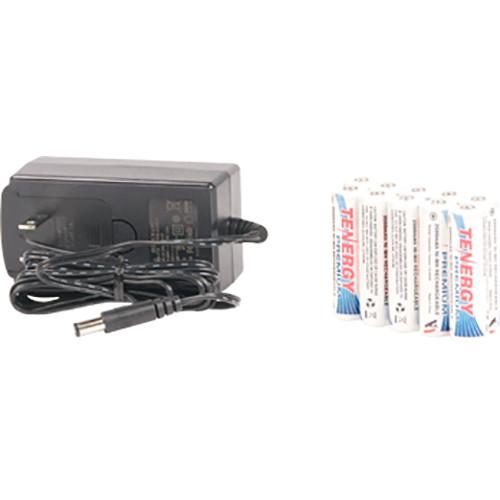

• RC-30 Recharge Kit for AN-Mini The RC-30 from Anchor Audio is a battery charging kit designed for use with the AN-Mini portable speaker as well as RescueMan models. It consists of 10 NiMH rechargeable AA batteries, and an AC adapter. Simply install the batteries into your AN-Mini, and connect the power adapter to the speaker's power input. The speaker can operate for up to 12 hours on a full charge.

• Limited 6-Year Warranty

• 1 Year Warranty

• Shoulder Strap

• Limited 2-Year Warranty

• AC Adapter

• 10 x AA Rechargeable Batteries

• 1-Year Limited Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• AN-MINI Personal Portable PA System (Black)

  Rated Power Output	30 W, AC/DC
  Maximum SPL	100 dB, at 3.3' / 1 m (at rated power)
  Frequency Response	100 Hz to 15 kHz (±3 dB)
  Speaker Type	4.5" / 11.4 cm neodymium woofer
  Inputs	Microphone: 1/4" / 6.3 mm female, Lo-Z Line: 1/8" / 3.5 mm female
  Output	Line: 1/8" / 3.5 mm female
  Batteries	10 x AA alkaline
  Dimensions (H x W x D)	5.5 x 5.5 x 6" / 14.00 x 14.00 x 15.24 cm
  Weight	2.50 lb / 1.13 kg

  Box Dimensions (LxWxH)	9.7 x 9.5 x 8.1"

• MIC-50 Handheld Microphone

  Box Dimensions (LxWxH)	9.6 x 4.4 x 2.9"

• RC-30 Recharge Kit for AN-Mini

  Box Dimensions (LxWxH)	5.2 x 3.7 x 2.5"

• SOFT-MINI Soft Case for MiniVox Lite and AN-MINI Personal PA Systems
