Anchor Audio MEGA-BP2-H MegaVox 2 Basic

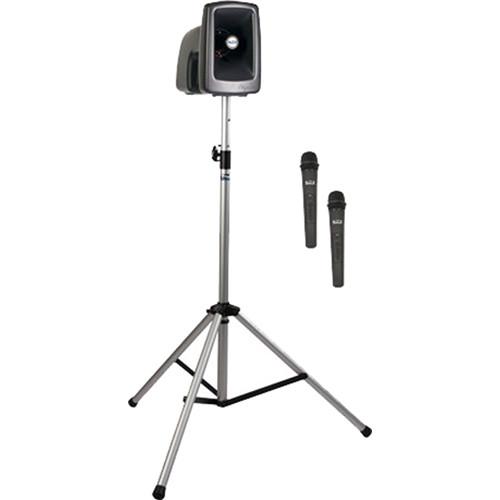

User Manual for Anchor Audio MEGA-BP2-H MegaVox 2 Basic Package with Stand & Two Wireless Handheld Microphones

• Product category: Portable PA Systems Anchor Audio
• Brand: Anchor Audio
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Anchor Audio Portable PA Systems

Product description

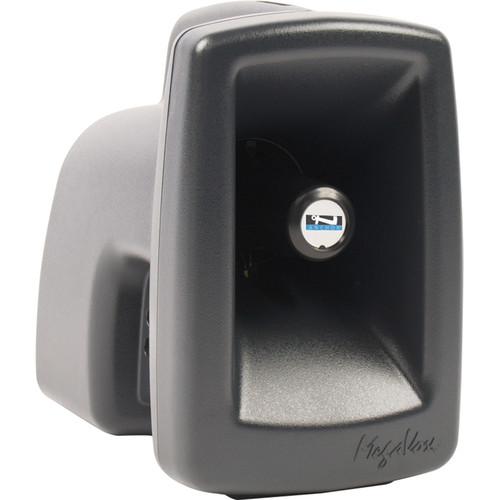

• MEGA2-U2 MegaVox 2 Portable PA System with Bluetooth & Dual Mic Receiver The Anchor Audio MEGA2-U2 is a MegaVox 2 portable PA system with Bluetooth and a dual wireless microphone receiver. With 20W of rated output power driving a high-efficiency, re-entrant horn driver to produce 119 dB SPL, it is designed to deliver powerful amplification in a compact housing for crowds of up to 1000 people in sports venues, public gatherings, and various outdoor events. The built-in Bluetooth receiver allows streaming of music from your smartphone, tablet, or laptop. Two 1/4" mic inputs and a 1/4" line input provide connectivity for wired mics, instruments, and line-level sources. Connect up to two wireless mics (available separately) via the included dual wireless microphone receiver. The 1/4" line output can be routed to an audio recorder, while the 1/4" speaker output can power a MegaVox 2 companion speaker (available separately). Integrated mixer functions include volume controls for each source and a signal alert with adjustable level. Power the MEGA2-U2 via AC power or the built-in rechargeable lithium-ion battery, which offers approximately six to eight hours of operating time on a single charge. The integrated carry handle and pole mount simplify physical setup of the system.

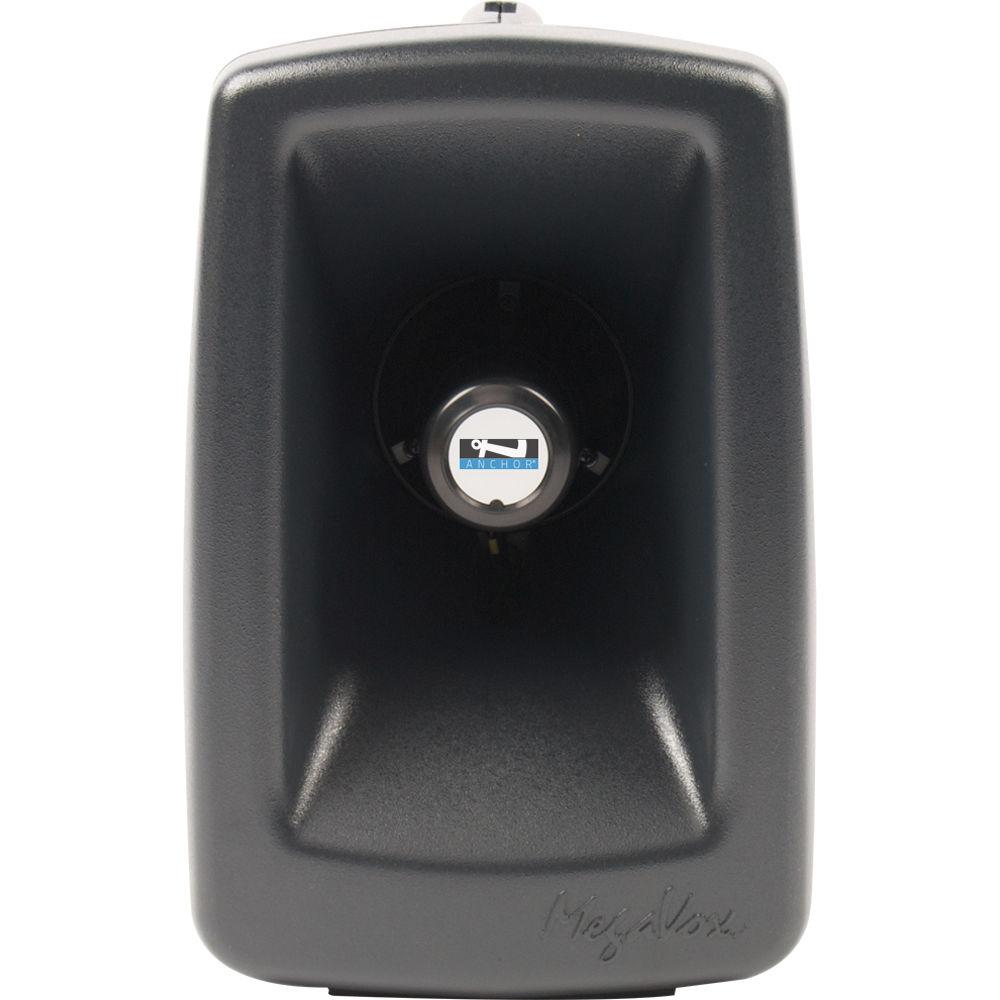

  • 20W of rated output power through a high-efficiency, re-entrant horn driver
  • 119 dB maximum SPL reaches crowds of up to 1000 people
  • 1/4" speaker output powers a MegaVox 2 companion speaker (available separately)

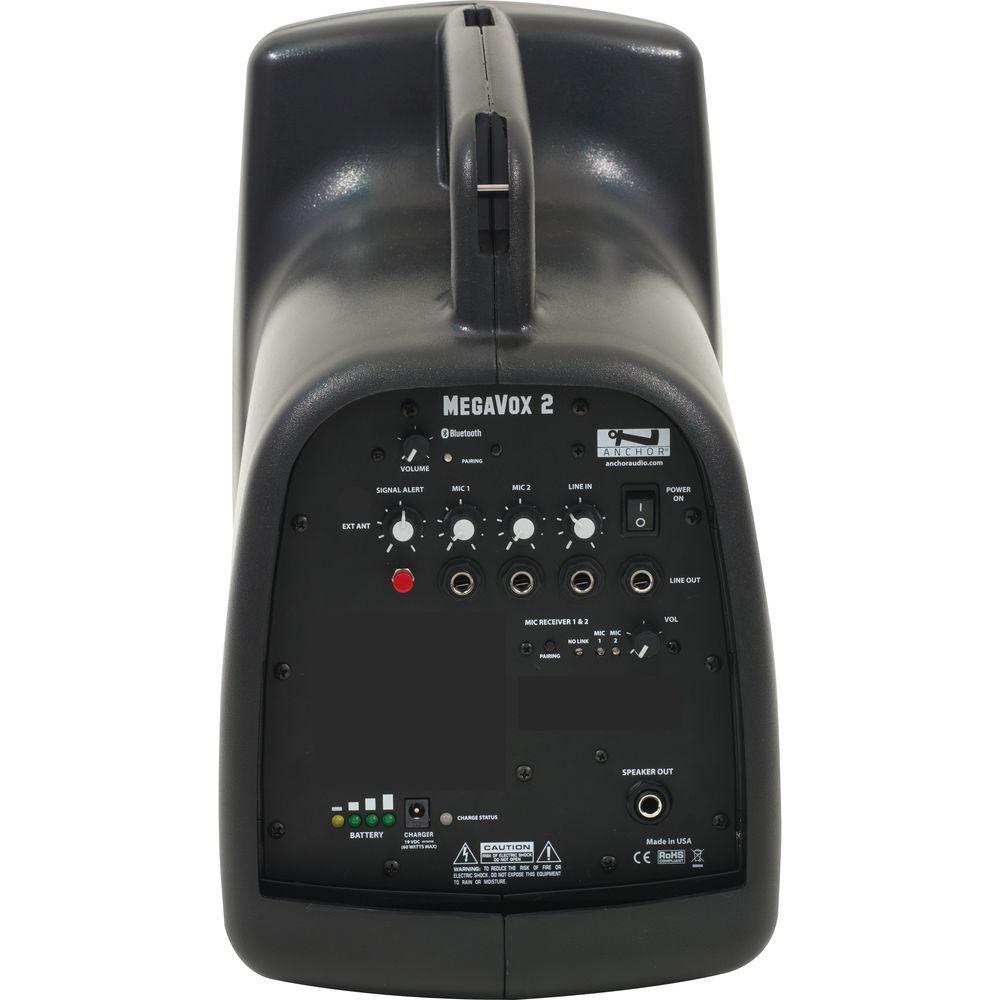

  • Two 1/4" microphone inputs and one 1/4" line input
  • Built-in Class-1 Bluetooth for streaming music from a mobile device
  • Adjustable volume for each source
  • Signal alert with level control
  • Anchor AIR compatible
  • Connect up to two wireless mics (available separately) via the included dual wireless microphone receiver
  • Built-in rechargeable lithium-ion battery provides approximately six to eight hours of operating time on a single charge
  • 19 VDC port for battery charging or operation via AC power
  • 4-stage LED battery status meter
  • Integrated pole mount for easy positioning atop a speaker stand
  • Built-in carry handle allows simple transport between gigs
  • Made in the USA
  UPC: 819941016007
• SS-550 Heavy-Duty Speaker Stand The Anchor SS-550 is a Heavy-Duty Speaker Stand for use with Explorer and Xtreme Sound Systems.
  • Heavy-duty brushed aluminum frame
  UPC: 689466057065

• Limited 6-Year Warranty on Speaker System

• Limited 4-Year Warranty on Battery

• 6 Year Limited Warranty

Also Includes

• 2 x WH-LINK Wireless Handheld Microphones

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MEGA2-U2 MegaVox 2 Portable PA System with Bluetooth & Dual Mic Receiver

  Driver	1 x High-efficiency, re-entrant horn driver
  Rated Power Output	20 W
  Maximum SPL	119 dB at 1 m
  Inputs	2 x 1/4" Lo-Z unbalanced mic inputs 1 x 1/4" Hi-Z unbalanced line input
  Outputs	1 x 1/4" Lo-Z line output 1 x 1/4" 4-Ohm speaker output
  Frequency Response ± 3dB	400 Hz to 10 kHz
  Bluetooth	Class-1
  Wireless Frequency	Wireless Microphone: 1.9 GHz DECT AIR Transmitter: 902 to 928 MHz
  Wireless Range	Up to 300' / 91.4 m (line of sight)
  Battery	1 x 12 V LFP rechargeable lithium-ion battery, 5 Ah
  Battery Life (approx.)	6 to 8 hours
  Power Requirements	Built-in rechargeable battery or 100 to 240 VAC, 50/60 Hz, 60 W max via 19 VDC power supply
  Dimensions (H x W x D)	14.0 x 8.5 x 3.0" / 35.6 x 21.6 x 7.6 cm
  Weight	13 lb / 5.9 kg
  Country of Manufacture	United States of America

  Box Dimensions (LxWxH)	17.8 x 15.5 x 9.5"

• SS-550 Heavy-Duty Speaker Stand

  Type	Speaker Stand
  Load Capacity	75 lb / 34 kg
  Height Adjustment Range	38 to 70" / 96.5 to 177.8 cm

  Box Dimensions (LxWxH)	43.2 x 6.0 x 6.0"
