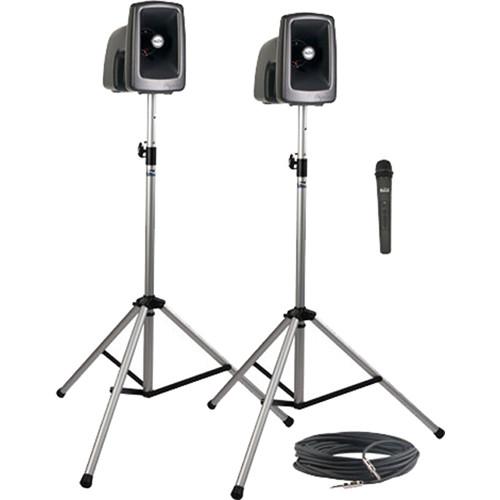

User Manual for Anchor Audio MEGA-DP1-H MegaVox 2 Deluxe Package with Wired Companion Speaker, Two Stands & One Wireless Handheld Microphone

• Product category: Portable PA Systems Anchor Audio
• Brand: Anchor Audio
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Anchor Audio Portable PA Systems

Product description

• MEGA2-U2 MegaVox 2 Portable PA System with Bluetooth & Dual Mic Receiver The Anchor Audio MEGA2-U2 is a MegaVox 2 portable PA system with Bluetooth and a dual wireless microphone receiver. With 20W of rated output power driving a high-efficiency, re-entrant horn driver to produce 119 dB SPL, it is designed to deliver powerful amplification in a compact housing for crowds of up to 1000 people in sports venues, public gatherings, and various outdoor events. The built-in Bluetooth receiver allows streaming of music from your smartphone, tablet, or laptop. Two 1/4" mic inputs and a 1/4" line input provide connectivity for wired mics, instruments, and line-level sources. Connect up to two wireless mics (available separately) via the included dual wireless microphone receiver. The 1/4" line output can be routed to an audio recorder, while the 1/4" speaker output can power a MegaVox 2 companion speaker (available separately). Integrated mixer functions include volume controls for each source and a signal alert with adjustable level. Power the MEGA2-U2 via AC power or the built-in rechargeable lithium-ion battery, which offers approximately six to eight hours of operating time on a single charge. The integrated carry handle and pole mount simplify physical setup of the system.
  • 20W of rated output power through a high-efficiency, re-entrant horn driver
  • 119 dB maximum SPL reaches crowds of up to 1000 people
  • 1/4" speaker output powers a MegaVox 2 companion speaker (available separately)
  • Two 1/4" microphone inputs and one 1/4" line input
  • Built-in Class-1 Bluetooth for streaming music from a mobile device
  • Adjustable volume for each source
  • Signal alert with level control
  • Anchor AIR compatible
  • Connect up to two wireless mics (available separately) via the included dual wireless microphone receiver
  • Built-in rechargeable lithium-ion battery provides approximately six to eight hours of operating time on a single charge
  • 19 VDC port for battery charging or operation via AC power
  • 4-stage LED battery status meter
  • Integrated pole mount for easy positioning atop a speaker stand
  • Built-in carry handle allows simple transport between gigs
  • Made in the USA
  UPC: 819941016007

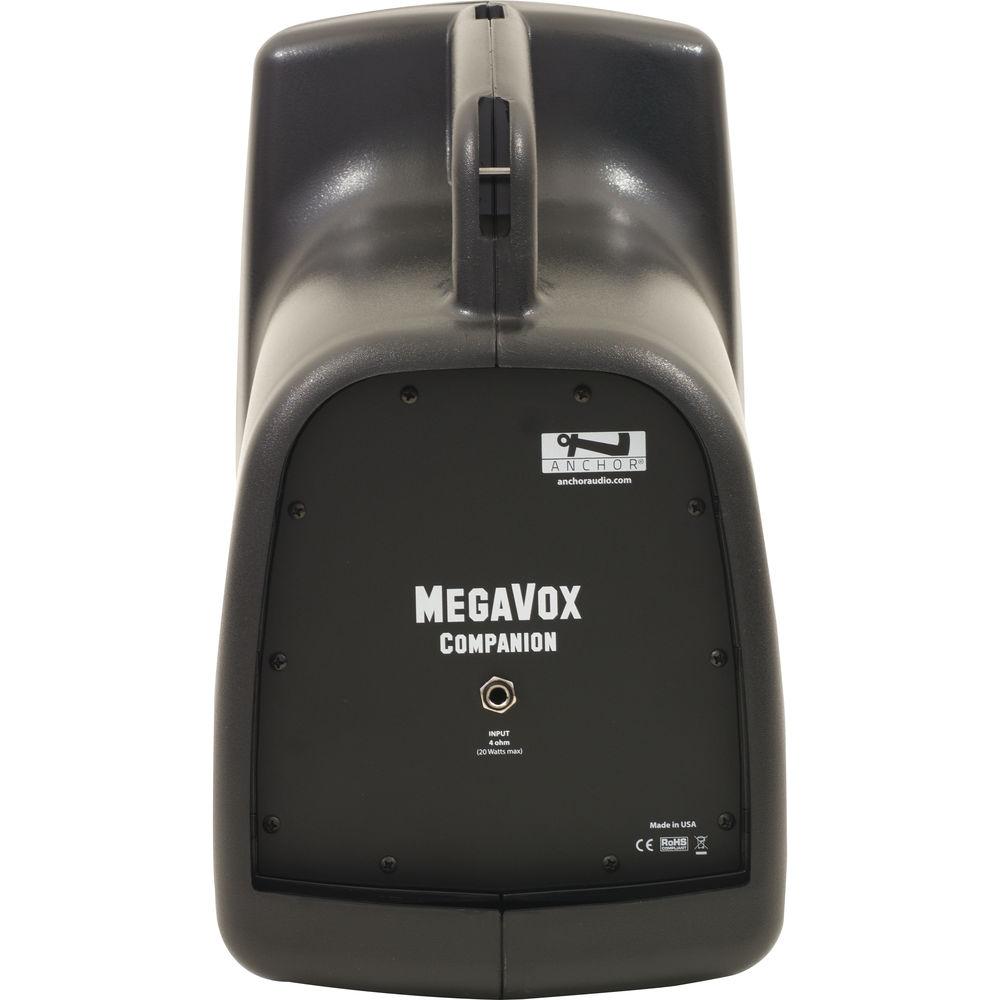

• MEGA2-COMP MegaVox 2 Passive Companion Speaker Made in the USA, the Anchor Audio MEGA2-COMP is a MegaVox 2 passive companion speaker designed to extend the coverage area of your MegaVox 2 PA system. Able to handle 20W of power and produce 119 dB SPL through a high-efficiency, re-entrant horn driver, it delivers powerful voice amplification for crowds of up to 1000 people in sports venues, public gatherings, and various outdoor events. Its 4-Ohm 1/4" TS speaker input allows a direct connection from the 1/4" speaker output of your MegaVox 2 PA. Being passive, the MEGA2-COMP requires no power supply. Gig-to-gig transport is made easy with the built-in carry handle, which also simplifies the process of hoisting the MEGA2-COMP onto a speaker stand. The integrated pole mount ensures secure placement atop your speaker pole.
  • Designed to be daisy-chained from a MegaVox 2 PA system
  • 4-Ohm 1/4" speaker input allows direct connection from your MegaVox 2 PA system
  • High-efficiency, re-entrant horn driver handles up to 20W of power and produces up to 119 dB SPL
  • Integrated pole mount for easy positioning atop a speaker stand
  • Built-in carry handle allows simple transport between gigs
  • Passive design requires no power supply
  • Made in the USA
  UPC: 819941015994
• SS-550 Heavy-Duty Speaker Stand The Anchor SS-550 is a Heavy-Duty Speaker Stand for use with Explorer and Xtreme Sound Systems.
  • Heavy-duty brushed aluminum frame
  UPC: 689466057065
• SC-50 1/4" Male Phone to 1/4" Male Phone Speaker Cable - 50' The Anchor-Audio SC-50 is a 50 foot long speaker cable to cover the span between your mixing board or amp and your monitor speakers with minimal signal or quality loss. UPC: 689466056969

• Limited 6-Year Warranty on Speaker System

• Limited 4-Year Warranty on Battery

• Limited 6-Year Warranty

• 6 Year Limited Warranty

• 1 Year Warranty

Also Includes

• WH-LINK Wireless Handheld Microphone

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MEGA2-U2 MegaVox 2 Portable PA System with Bluetooth & Dual Mic Receiver

  Driver	1 x High-efficiency, re-entrant horn driver
  Rated Power Output	20 W
  Maximum SPL	119 dB at 1 m
  Inputs	2 x 1/4" Lo-Z unbalanced mic inputs 1 x 1/4" Hi-Z unbalanced line input
  Outputs	1 x 1/4" Lo-Z line output 1 x 1/4" 4-Ohm speaker output
  Frequency Response ± 3dB	400 Hz to 10 kHz
  Bluetooth	Class-1
  Wireless Frequency	Wireless Microphone: 1.9 GHz DECT AIR Transmitter: 902 to 928 MHz
  Wireless Range	Up to 300' / 91.4 m (line of sight)
  Battery	1 x 12 V LFP rechargeable lithium-ion battery, 5 Ah
  Battery Life (approx.)	6 to 8 hours
  Power Requirements	Built-in rechargeable battery or 100 to 240 VAC, 50/60 Hz, 60 W max via 19 VDC power supply
  Dimensions (H x W x D)	14.0 x 8.5 x 3.0" / 35.6 x 21.6 x 7.6 cm
  Weight	13 lb / 5.9 kg
  Country of Manufacture	United States of America

  Box Dimensions (LxWxH)	17.8 x 15.5 x 9.5"

• MEGA2-COMP MegaVox 2 Passive Companion Speaker

  Driver	1 x High-efficiency, re-entrant horn driver
  Maximum Power Handling	20 W
  Maximum SPL	119 dB at 1 m
  Frequency Response ± 3dB	400 Hz to 10 kHz
  Input	1 x 1/4" TS speaker jack
  Input Impedance	4 Ohms
  Dimensions (H x W x D)	14.0 x 8.5 x 3.0" / 35.6 x 21.6 x 7.6 cm
  Weight	13 lb / 5.9 kg
  Country of Manufacture	United States of America

• SS-550 Heavy-Duty Speaker Stand

  Type	Speaker Stand
  Load Capacity	75 lb / 34 kg
  Height Adjustment Range	38 to 70" / 96.5 to 177.8 cm

  Box Dimensions (LxWxH)	43.2 x 6.0 x 6.0"

• SC-50 1/4" Male Phone to 1/4" Male Phone Speaker Cable - 50'

  Cable Type	1/4" phono male to 1/4" phono male speaker cable
  Length	50' ( 15.2 m)
  Connector 1	1/4" male
  Connector 2	1/4" male

  Box Dimensions (LxWxH)	13.0 x 10.0 x 2.0"
