Product description

• MEGA2-XU2 MegaVox 2 Portable PA System with Bluetooth, AIR Transmitter & Dual Mic Receiver
  • Anchor Audio MegaVox 2 - Portable PA System

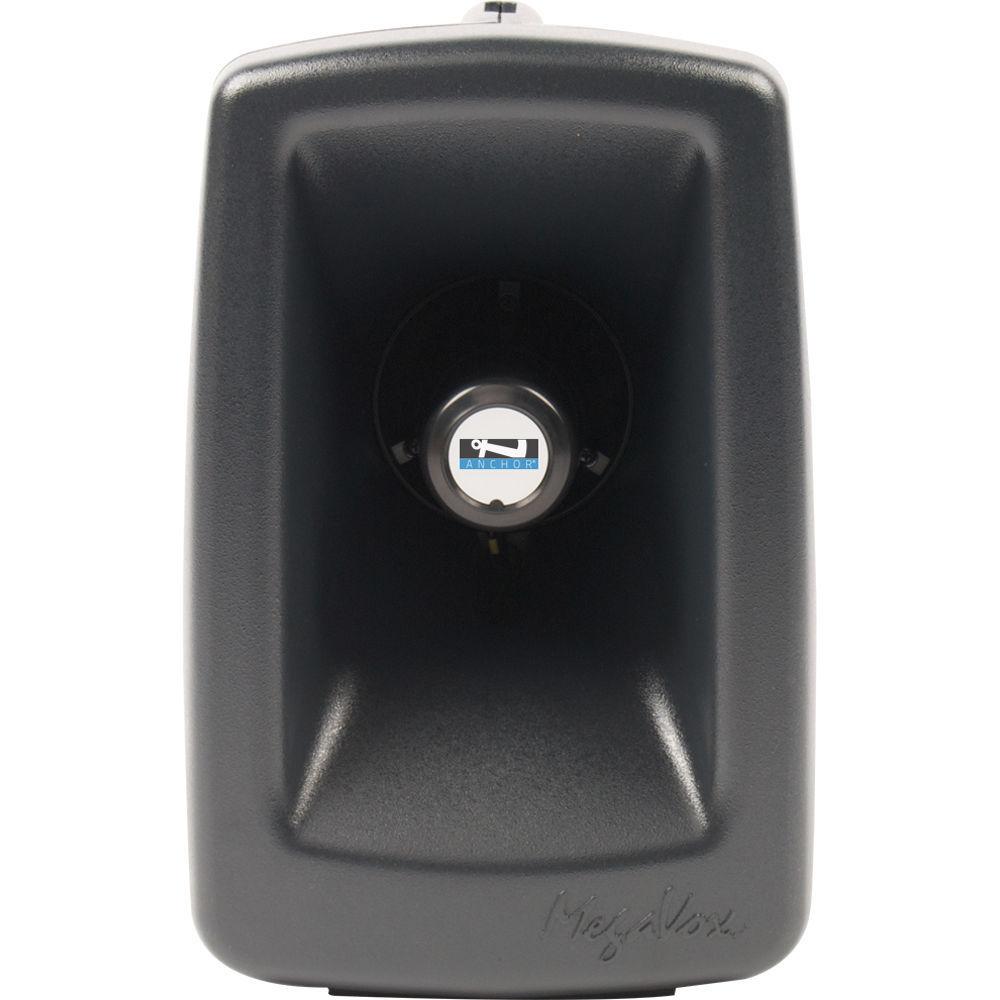

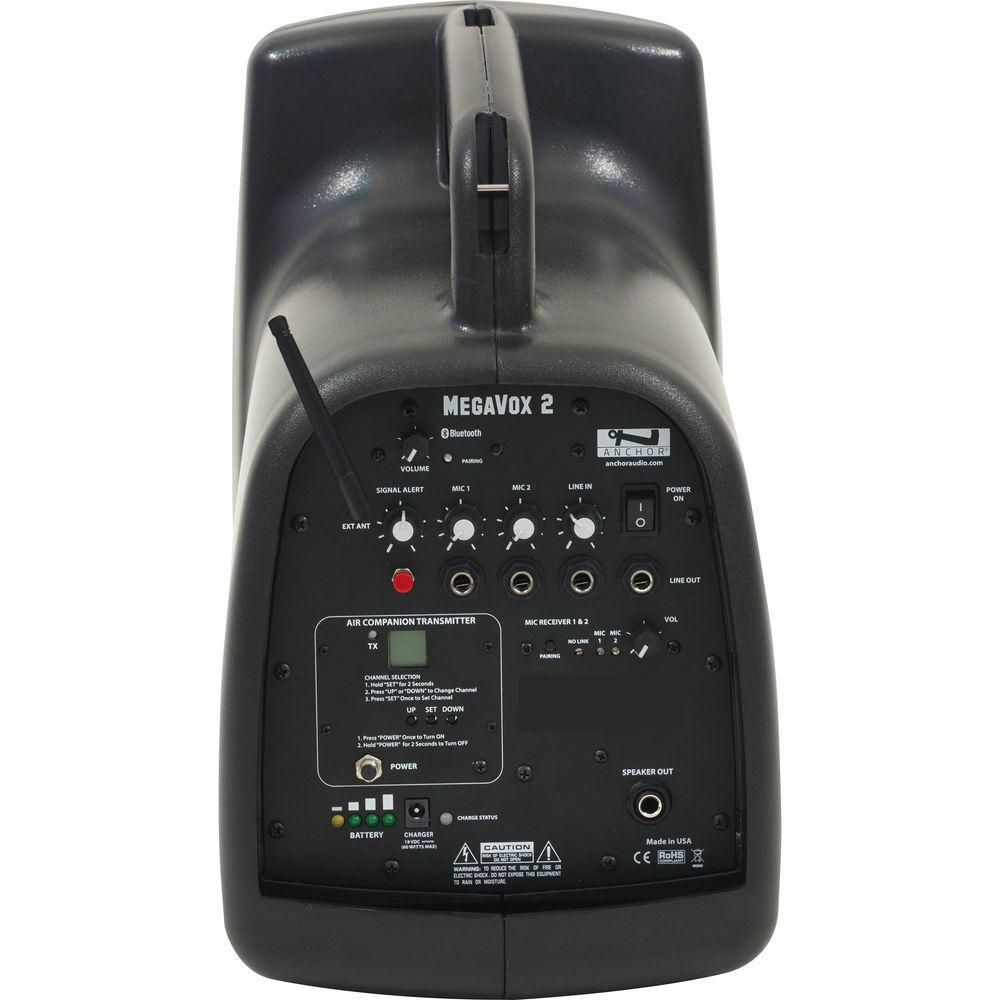

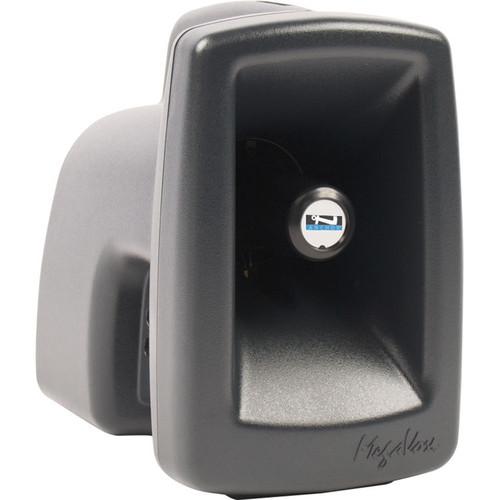

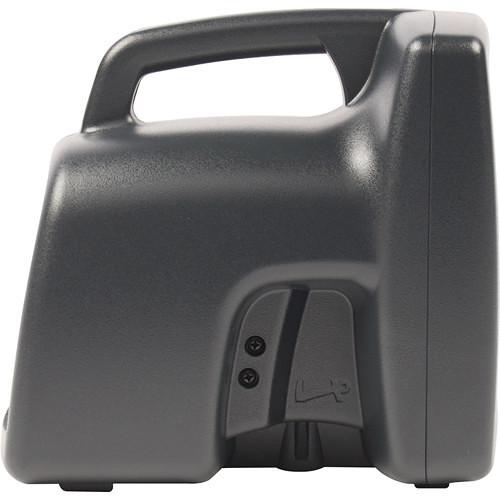

  The Anchor Audio MEGA2-XU2 is a MegaVox 2 portable PA system with Bluetooth, an AIR wireless transmitter, and a dual wireless microphone receiver. With 20W of rated output power driving a high-efficiency, re-entrant horn driver to produce 119 dB SPL, it is designed to deliver powerful amplification in a compact housing for crowds of up to 1000 people in sports venues, public gatherings, and various outdoor events. The built-in Bluetooth receiver allows streaming of music from your smartphone, tablet, or laptop. Two 1/4" mic inputs and a 1/4" line input provide connectivity for wired mics, instruments, and line-level sources. Connect up to two wireless mics (available separately) via the included dual wireless microphone receiver. The 1/4" line output can be routed to an audio recorder, while the 1/4" speaker output can power a MegaVox 2 companion speaker (available separately). Integrated mixer functions include volume controls for each source and a signal alert with adjustable level. The supplied AIR wireless transmitter enables cord-free connection to an AIR-compatible companion speaker. Power the MEGA2-XU2 via AC power or the built-in rechargeable lithium-ion battery, which offers approximately six to eight hours of operating time on a single charge. The integrated carry handle and pole mount simplify physical setup of the system.
  • 20W of rated output power through a high-efficiency, re-entrant horn driver
  • 119 dB maximum SPL reaches crowds of up to 1000 people
  • 1/4" speaker output powers a MegaVox 2 companion speaker (available separately)
  • Two 1/4" microphone inputs and one 1/4" line input
  • Built-in Class-1 Bluetooth for streaming music from a mobile device
  • Adjustable volume for each source
  • Signal alert with level control
  • Includes an AIR wireless transmitter for cord-free connection to an AIR companion speaker (available separately)
  • Connect up to two wireless mics (available separately) via the included dual wireless microphone receiver
  • Built-in rechargeable lithium-ion battery provides approximately six to eight hours of operating time on a single charge
  • 19 VDC port for battery charging or operation via AC power
  • 4-stage LED battery status meter
  • Integrated pole mount for easy positioning atop a speaker stand
  • Built-in carry handle allows simple transport between gigs
  • Made in the USA
  UPC: 819941016038

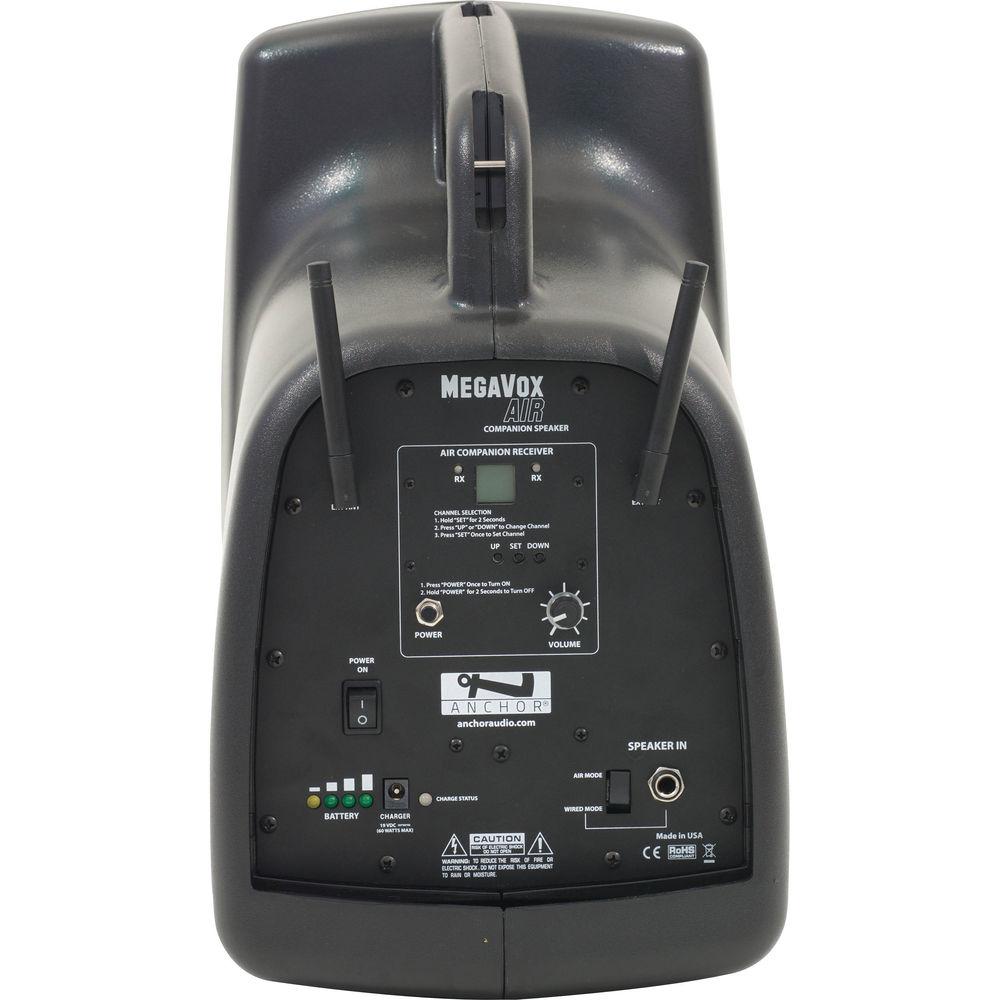

• MEGA2-AIR MegaVox 2 AIR Wireless Companion Speaker Made in the USA, the Anchor Audio MEGA2-AIR is a MegaVox 2 AIR wireless companion speaker designed to extend the coverage area of your MegaVox 2 PA system. Able to handle 20W of power and produce 119 dB SPL through a high-efficiency, re-entrant horn driver, it delivers powerful voice amplification for crowds of up to 1000 people in sports venues, public gatherings, and various outdoor events. It features two modes, AIR for active operation with a wireless source, and Wired for passive operation with a wired source. A built-in AIR wireless receiver allows a cord-free signal connection from your MegaVox 2 portable PA and offers adjustable volume for the wireless signal it receives. The 1/4" TS speaker input allows a direct connection from the 1/4" speaker output of your MegaVox 2 PA. The MEGA2-AIR requires no power source in Wired mode, but can be powered via a 19 VDC power supply or the built-in rechargeable battery in AIR mode. The lithium-ion battery provides approximately six to eight hours of operating time on a single charge. A 4-stage LED meter indicates battery and charging status. Gig-to-gig transport is made easy with the built-in carry handle, which also simplifies the process of hoisting the MEGA2-AIR onto a speaker stand. The integrated pole mount ensures secure placement atop your speaker pole.
  • Designed to be daisy-chained from a MegaVox 2 PA system
  • Built-in AIR wireless receiver for cord-free connection from your MegaVox 2 portable PA system
  • Adjustable volume on the AIR wireless receiver
  • 1/4" speaker input allows direct connection from your MegaVox 2 PA system's 1/4" speaker output
  • Toggle switch allows operation in AIR mode (active/wireless) or Wired mode (passive/wired)
  • High-efficiency, re-entrant horn driver handles up to 20W of power and produces up to 119 dB SPL
  • Built-in rechargeable battery grants up to eight hours of operating time
  • 19 VDC port for battery charging or operation via AC power
  • 4-stage LED battery status meter
  • Integrated pole mount for easy positioning atop a speaker stand
  • Built-in carry handle allows simple transport between gigs
  • Made in the USA
  UPC: 819941015987
• SS-550 Heavy-Duty Speaker Stand The Anchor SS-550 is a Heavy-Duty Speaker Stand for use with Explorer and Xtreme Sound Systems.
  • Heavy-duty brushed aluminum frame
  UPC: 689466057065
• WB-LINK Wireless Bodypack Transmitter (1.9 GHz) The Anchor Audio WB-LINK is a wireless bodypack transmitter compatible with sound and PA systems equipped with AnchorLink Series receivers. It operates in the less-populated 1.9 GHz frequency range with automatic frequency hopping to deliver a clear signal with reduced interference, at a range up to 300'. Pairing the WB-LINK to your sound system is a quick and easy one-time operation done by pressing just two buttons, and doesn't have to be repeated every time you turn on your system. The unit is equipped with a 3.5mm input connector and accepts AnchorLink Series lavalier, headset, earset, and collar mics. The WB-LINK features volume and mute buttons, which enable you to conveniently mute and adjust the volume of your microphone without having to go to your speaker. The transmitter can operate up to eight hours on two AA batteries.
  Key Features
  • • 1.9 GHz wireless frequency range—a less-populated frequency band for reduced signal interference
    • Automatic frequency hopping ensures a clear transmission without having to manually change the channel
    • 300’ line-of-sight wireless range
    • 3.5mm microphone input connector
    • Volume and mute control on the microphone
    • One-time pair function allows you to pair your mic with your system once without having to repeat the operation
    • Runs up to eight hours on two AA batteries
  Compatible PA Systems
  • Compatible with the following systems equipped with AnchorLink Series receivers
    • Bigfoot
    • Beacon
    • Liberty
    • Go Getter
    • MegaVox
    • MiniVox
    • AN-Mini
    • AN-1000X+
    • AN-130+
    • CouncilMAN
    • Acclaim
  Compatible Microphones (with 3.5mm Connectors)
  • • CM-LINK collar mic
    • EM-LINK Ultralite earset mic
    • HBM-LINK headset mic
    • LM-LINK lavalier mic
  UPC: 819941016212

• Limited 6-Year Warranty on Speaker System

• Limited 4-Year Warranty on Battery

• Limited 6-Year Warranty on Speaker System

• Limited 4-Year Warranty on Battery

• 6 Year Limited Warranty

• Belt Clip

• Limited 2-Year Warranty

Also Includes

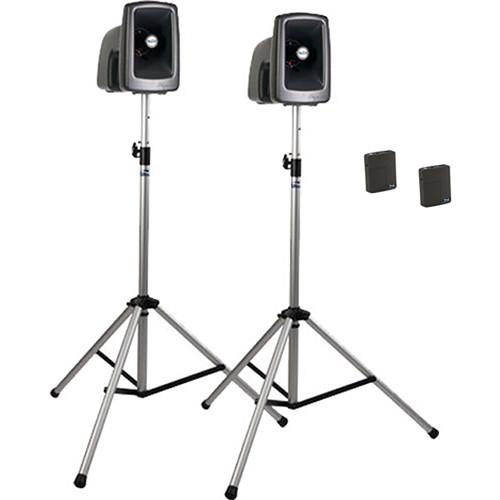

• 2 x Wireless Lapel Microphones
• 2 x Wireless Headband Microphones

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• MEGA2-XU2 MegaVox 2 Portable PA System with Bluetooth, AIR Transmitter & Dual Mic Receiver

  Driver	1 x High-efficiency, re-entrant horn driver
  Rated Power Output	20 W
  Maximum SPL	119 dB at 1 m
  Inputs	2 x 1/4" Lo-Z unbalanced mic inputs 1 x 1/4" Hi-Z unbalanced line input
  Outputs	1 x 1/4" Lo-Z line output 1 x 1/4" 4-Ohm speaker output
  Frequency Response ± 3dB	400 Hz to 10 kHz
  Bluetooth	Class-1
  Wireless Frequency	Wireless Microphone: 1.9 GHz DECT AIR Transmitter: 902 to 928 MHz
  Wireless Range	Up to 300' / 91.4 m (line of sight)
  Battery	1 x 12 V LFP rechargeable lithium-ion battery, 5 Ah
  Battery Life (approx.)	6 to 8 hours
  Power Requirements	Built-in rechargeable battery or 100 to 240 VAC, 50/60 Hz, 60 W max via 19 VDC power supply
  Dimensions (H x W x D)	14.0 x 8.5 x 3.0" / 35.6 x 21.6 x 7.6 cm
  Weight	13 lb / 5.9 kg
  Country of Manufacture	United States of America

• MEGA2-AIR MegaVox 2 AIR Wireless Companion Speaker

  Driver	1 x High-efficiency, re-entrant horn driver
  Maximum Power Handling	20 W
  Maximum SPL	119 dB at 1 m
  Frequency Response ± 3dB	400 Hz to 10 kHz
  Input	1 x 1/4" TS speaker jack
  Wireless Frequency Range	902 to 928 MHz
  Wireless Range	Up to 300' / 91.4 m (line of sight)
  Battery	1 x 12 V LFP rechargeable lithium-ion battery, 5 Ah
  Battery Life (approx.)	6 to 8 hours
  Power Requirements	Built-in rechargeable battery or 100 to 240 VAC, 50/60 Hz, 60 W max via 19 VDC power supply
  Dimensions (H x W x D)	14.0 x 8.5 x 3.0" / 35.6 x 21.6 x 7.6 cm
  Weight	13 lb / 5.9 kg
  Country of Manufacture	United States of America

• SS-550 Heavy-Duty Speaker Stand

  Type	Speaker Stand
  Load Capacity	75 lb / 34 kg
  Height Adjustment Range	38 to 70" / 96.5 to 177.8 cm

  Box Dimensions (LxWxH)	43.2 x 6.0 x 6.0"

• WB-LINK Wireless Bodypack Transmitter (1.9 GHz)

  Frequency Band	1.9 GHz
  Wireless Range	300' / 91 m, line of sight
  Input Connector	1/8" / 3.5 mm
  Controls	Volume Mute
  Power	2 x AA batteries Operates up to 8 hours

  Box Dimensions (LxWxH)	5.7 x 4.0 x 1.3"
