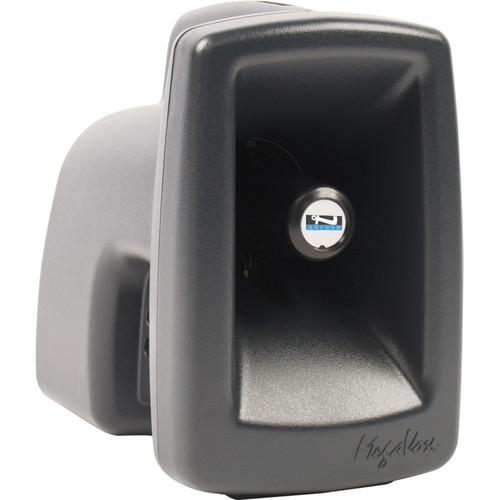

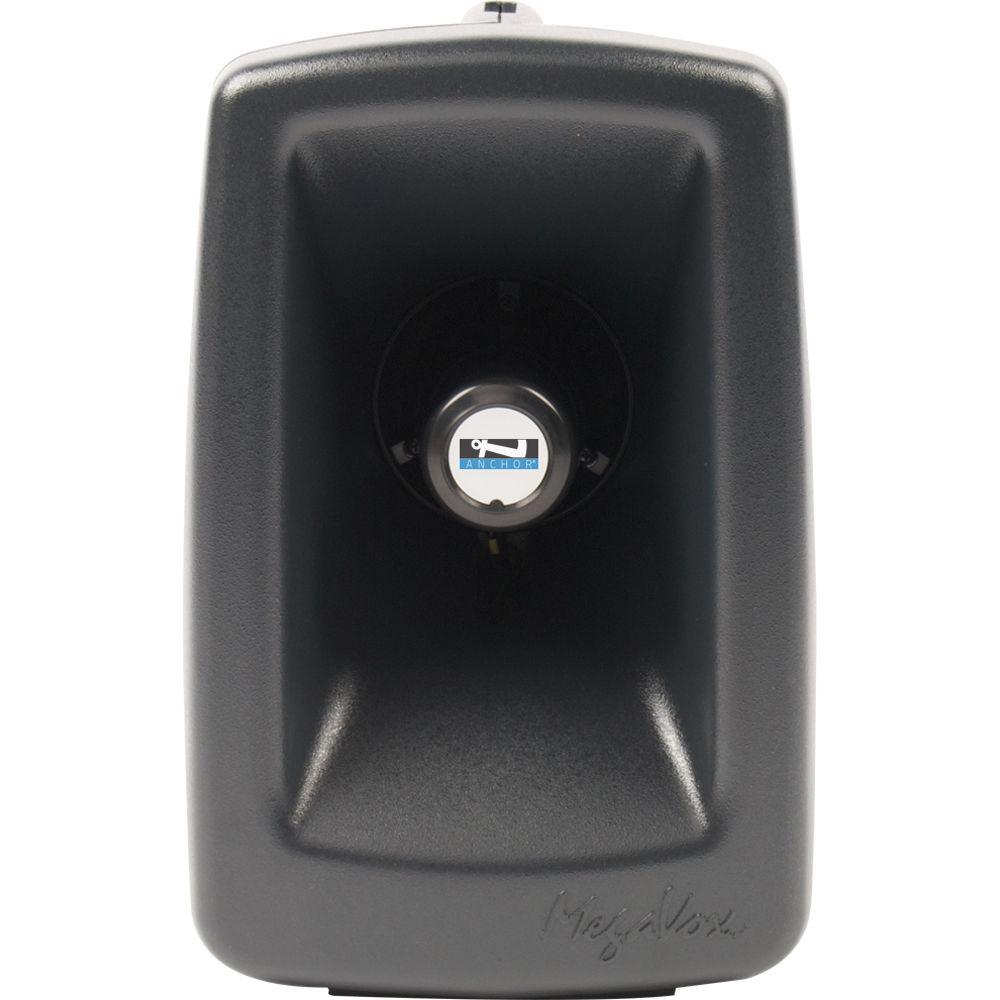

Product description 7 All-In-One Portable Speaker Systems for Special Events and Parties Read More The Anchor Audio MEGA2-X is a MegaVox 2 portable PA system with Bluetooth and an AIR wireless transmitter. With 20W of rated output power driving a high-efficiency, re-entrant horn driver to produce 119 dB SPL, it is designed to deliver powerful amplification in a compact housing for crowds of up to 1000 people in sports venues, public gatherings, and various outdoor events. The built-in Bluetooth receiver allows streaming of music from your smartphone, tablet, or laptop. Two 1/4" mic inputs and a 1/4" line input provide connectivity for wired mics, instruments, and line-level sources. The 1/4" line output can be routed to an audio recorder, while the 1/4" speaker output can power a MegaVox 2 companion speaker (available separately). Integrated mixer functions include volume controls for each source and a signal alert with adjustable level. The supplied AIR wireless transmitter enables cord-free connection to an AIR-compatible companion speaker. Power the MEGA2-X via AC power or the built-in rechargeable lithium-ion battery, which offers approximately six to eight hours of operating time on a single charge. The integrated carry handle and pole mount simplify physical setup of the system. - 20W of rated output power through a high-efficiency, re-entrant horn driver
- 119 dB maximum SPL reaches crowds of up to 1000 people
- 1/4" speaker output powers a MegaVox 2 companion speaker (available separately)

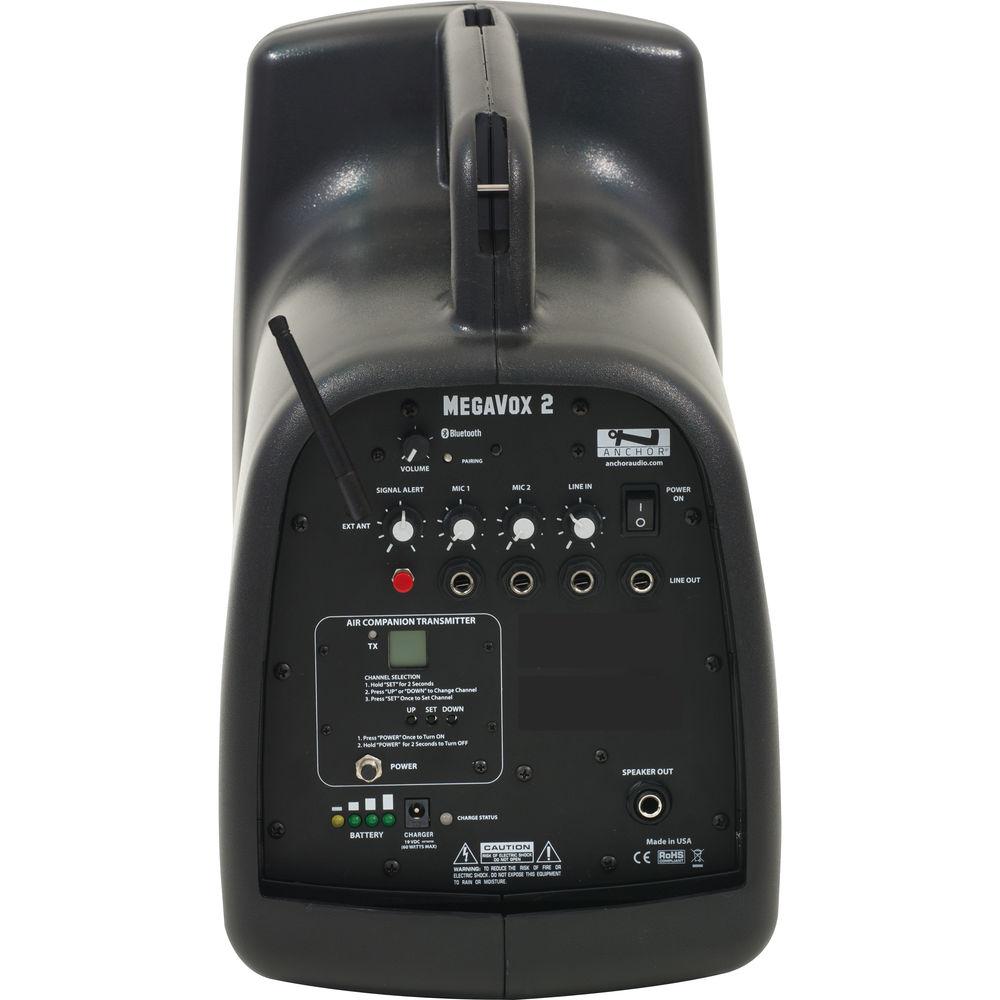

- Two 1/4" microphone inputs and one 1/4" line input
- Built-in Class-1 Bluetooth for streaming music from a mobile device
- Adjustable volume for each source
- Signal alert with level control
- Includes an AIR wireless transmitter for cord-free connection to an AIR companion speaker (available separately)
- Compatible with dual wireless microphone receivers
- Built-in rechargeable lithium-ion battery provides approximately six to eight hours of operating time on a single charge
- 19 VDC port for battery charging or operation via AC power
- 4-stage LED battery status meter
- Integrated pole mount for easy positioning atop a speaker stand

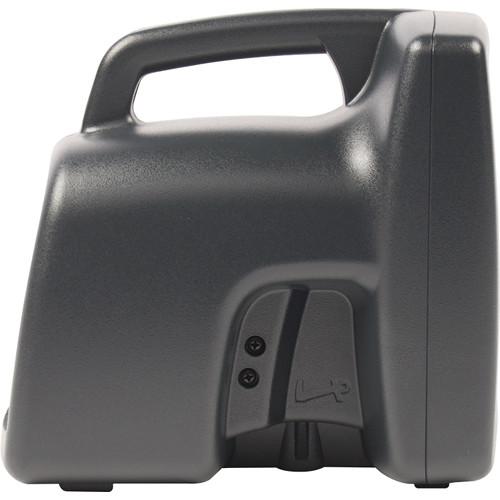

- Built-in carry handle allows simple transport between gigs
UPC: 819941016021 In the Box Anchor Audio MEGA2-X MegaVox 2 Portable PA System with Bluetooth & AIR Transmitter Limited 6-Year Warranty on Speaker System Limited 4-Year Warranty on Battery Table of Contents
|
Upload User Manual
Have you got an user manual for the Anchor Audio MEGA2-X MegaVox 2 Portable PA System with Bluetooth & AIR Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnchor Audio MegaVox Specs | Driver | 1 x High-efficiency, re-entrant horn driver | | Rated Power Output | 20 W | | Maximum SPL | 119 dB at 1 m | | Inputs | 2 x 1/4" Lo-Z unbalanced mic inputs
1 x 1/4" Hi-Z unbalanced line input | | Outputs | 1 x 1/4" Lo-Z line output
1 x 1/4" 4-Ohm speaker output | | Frequency Response ± 3dB | 400 Hz to 10 kHz | | Bluetooth | Class-1 | | Wireless Frequency | Wireless Microphone: 1.9 GHz DECT
AIR Transmitter: 902 to 928 MHz | | Wireless Range | Up to 300' / 91.4 m (line of sight) | | Battery | 1 x 12 V LFP rechargeable lithium-ion battery, 5 Ah | | Battery Life (approx.) | 6 to 8 hours | | Power Requirements | Built-in rechargeable battery or 100 to 240 VAC, 50/60 Hz, 60 W max via 19 VDC power supply | | Dimensions (H x W x D) | 14.0 x 8.5 x 3.0" / 35.6 x 21.6 x 7.6 cm | | Weight | 13 lb / 5.9 kg | | Country of Manufacture | United States of America |
