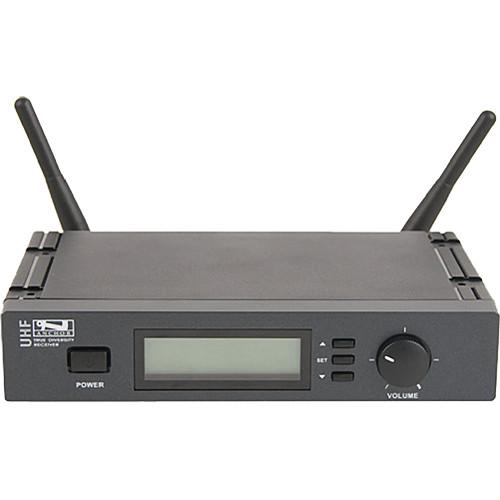

User Manual for Anchor Audio WR-7000 Wireless Microphone Receiver Click to enlarge the picture
Contents of the user manual for the Anchor Audio WR-7000 Wireless Microphone Receiver
- Product category: Wireless Receivers Anchor Audio
- Brand: Anchor Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Anchor Audio Wireless Receivers
|
User manual for the Anchor Audio WR-7000 Wireless Microphone Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Anchor Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Anchor Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Anchor Audio product will considerably shorten its lifespan!
|
Product description The Anchor Audio WR-7000 Wireless Microphone Receiver is designed for use with UHF beltpack or handheld microphone transmitters and the company's sound system's (except the Little Big Horn, CouncilMan, and intercoms).
The microphone system operates in the UHF band (540 to 570 MHz), with 700 selectable frequencies (depending on local regulations). It features phase locked loop (PLL circuitry) to minimize interference while selecting channels. An auto-scan function can be programmed to set an interference-free channel.
The detachable antenna is highly recommended for long-distance purpose, such as in stadiums or auditoriums. The antenna booster is suitable for long distance receiving applications (for distance more than 98.4’ (30 m)). The antenna holder makes it easy to fix the antenna and booster. It can be assembled on the microphone stand or wall. Note: The number of frequency channels depends on local regulations. - Application
- Designed for stages, places of worship, and professional sound installations
- 700 Selectable UHF Frequencies with Phase Locked Loop Circuitry
- Makes it easy to select channels that are free of interfence
- Auto-Scan
- Makes it easy to locate channels with minimal interference
- SMT Assembled PCB Module
- Ensures quality and stability
UPC: 643906939915 In the Box Anchor Audio WR-7000 Wireless Microphone Receiver Detachable Antenna Limited 6-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Anchor Audio WR-7000 Wireless Microphone Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAnchor Audio WR-7000US Specs | Carrier Frequency Range | 540 to 570 MHz operating Range | | Case | Half 19.0" (48.3 cm) EIA-Rack case | | Oscillator | PLL synthesized | | Modulation | FM | | Frequency Stability | ±0.005% | | S/N Ratio | >94 dB at 20 KHz deviation and 60 dBµV antenna input | | Image and Spurious Rejection | 80 dB minimum | | Receiving Sensitivity | At 10 uV over 80 dB S/N ratio | | Selectivity | >50 dB | | AF Response | 80 Hz to 16 KHz | | THD | <1% (at 1 KHz) | | IF Frequency | 1st: 243.95 MHz
2nd: 10.7 MHz | | Dynamic Range | >100 dB | | Tone Signal | 32.768 KHz | | Audio Output | Balanced & unbalanced | | Power Supply | 12 VDC | | Current Consumption | 260 mA (Maximum) | | Dimensions (W x H x D) | 7.9 x 1.6 x 4.8" (200.0 x 42.0 x 123.0 mm) | | Weight | 1.00 lb (0.45 kg) | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 13.0 x 11.7 x 2.1" |
