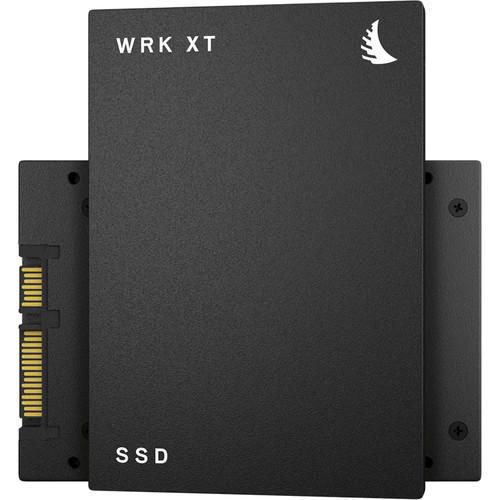

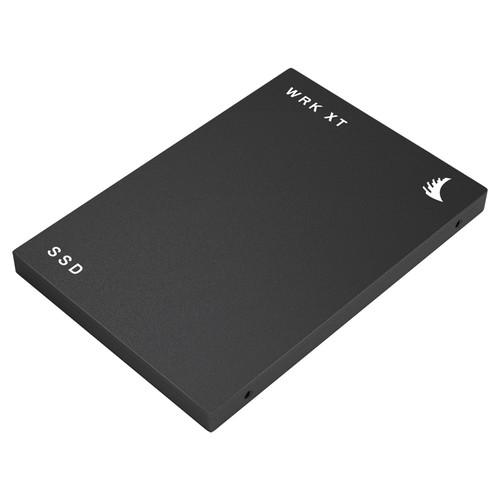

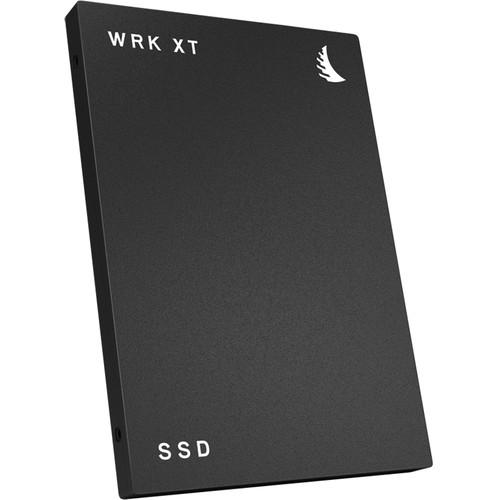

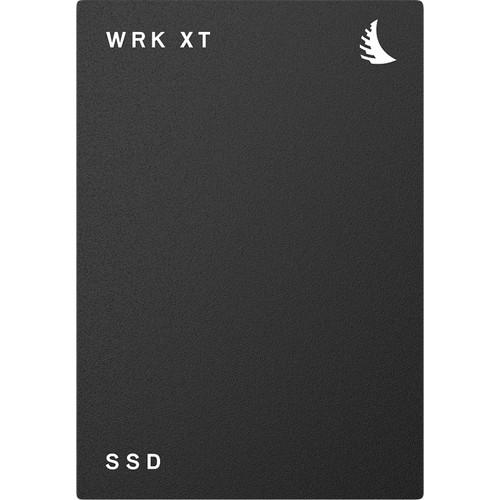

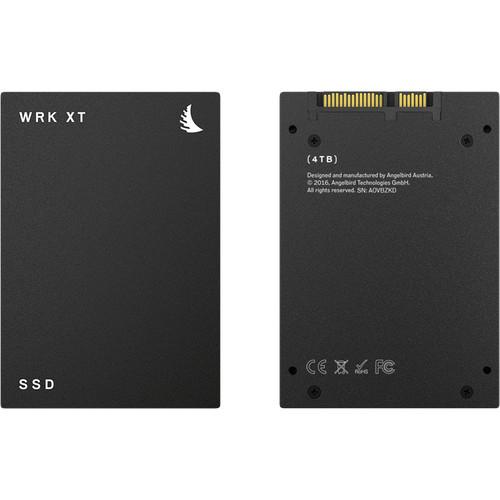

User Manual for Angelbird 4TB WRK XT SATA 3.1 Internal SSD Click to enlarge the picture
Contents of the user manual for the Angelbird 4TB WRK XT SATA 3.1
- Product category: Internal Drives Angelbird
- Brand: Angelbird
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Angelbird Internal Drives
 |
User manual for the Angelbird 4TB WRK XT SATA 3.1 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Angelbird product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Angelbird user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Angelbird product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More With sustained read speeds of up to 550 MB/s and sustained write speeds of up to 520 MB/s, the 4TB WRK XT SATA 3.1 Internal SSD from Angelbird allows you to transfer important files to and from the drive quickly. If that's not enough, this drive features Stable Stream technology, TRIM support, ESD and overload protection, and host power loss protection for added peace of mind. The drive comes equipped with a SATA 3.1, 6 Gb/s drive interface for easy installation into nearly any computer configuration as it comes compatible with Mac, Windows, and Linux systems. -
- Up to 550 MB/s sustained read speeds
- Up to 86,000 IOPS
- ESD & overload protection
- Host power loss protection
- Stable Stream technology
- Mac, Windows, and Linux compatible
- TRIM support
- SATA 3.1, 6 Gb/s connectivity
- Temperature sensor
- ECC support
- EMS protection
- Built-in cache buffer
- SMART support
- Adaptive thermal protection
- 3-year limited warranty
UPC: 812937022013 In the Box Angelbird 4TB WRK XT SATA 3.1 Internal SSD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Angelbird 4TB WRK XT SATA 3.1 Internal SSD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAngelbird WRK XT Specs | Capacity | 4 TB | | Form Factor | 2.5" slim (7 mm) | | Interface | SATA 6 Gb/s, 3 Gb/s and 1.5 Gb/s supported
SATA 3.0 compliant | | Over Provisioning | ~9 % | | Flash | Grade A Synchronous MLC | | Read / Write Speeds | Sustained Read Speed
Up to 550 MB/s
Sustained Write Speed
Up to 520 MB/s | | IOPS | Up to 86,000 | | Access Time (R/W) | ~65 μs / 40 μs | | MTBF | 2,400,000 hours | | Data Reliability | Built-in EDC
ECC function | | Data Retention | 10 years at 77°F (25°C) | | Endurance | 2400 TBW | | Certifications | RoHS, FCC, and CE compliant, REACH | | Power Specifications | DC Input Voltage
5 V ± 10%
Power Usage (Idle / Max.)
1.35 W / 5.4 W | | Environmental Specifications | Shock Resistance (Operating)
1000 G/0.5 ms
Vibration Resistance (Operating)
2.17 GRMS
Operating Temperature
32 to 158°F / 0 to 70°C
Storage Temperature
-40 to 185°F / -40 to 85°C
Operating Humidity
5 to 95% non-condensing | | Dimensions | Not specified by manufacturer | | Weight | 4.3 oz / 121 g |
