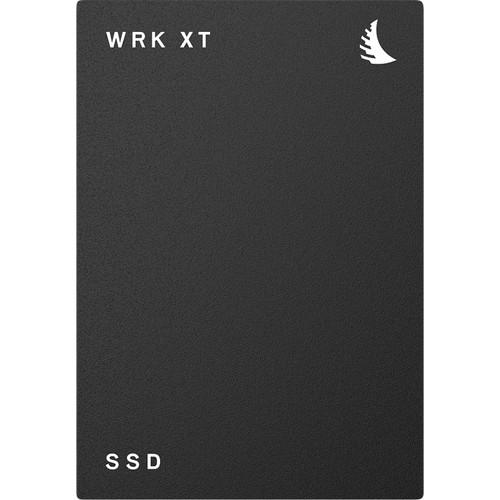

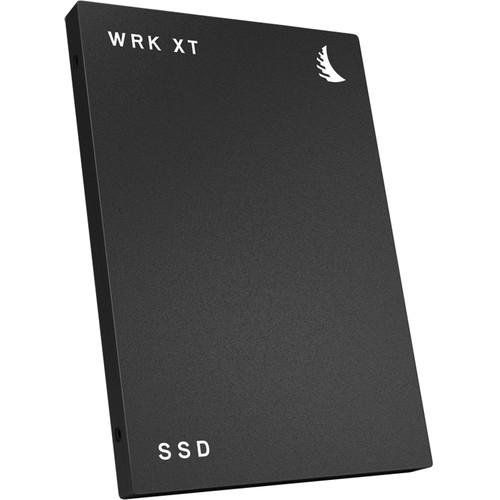

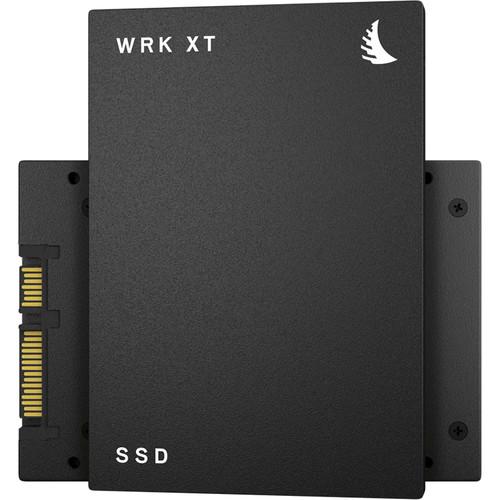

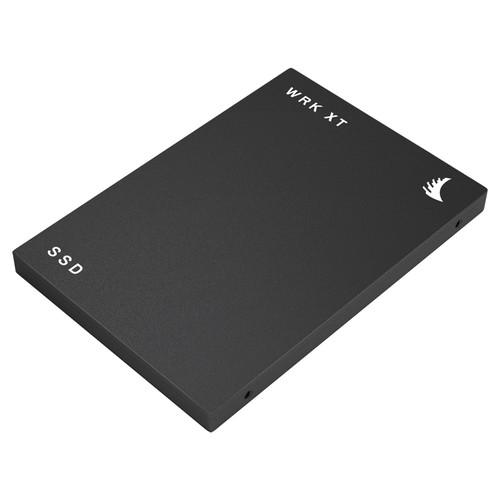

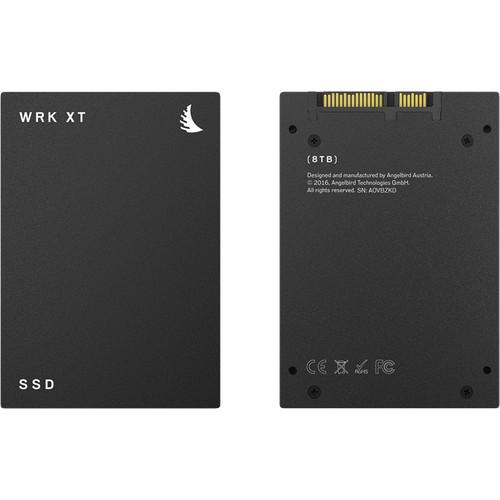

User Manual for Angelbird 8TB WRK XT 2.5" SSD for Mac Click to enlarge the picture
Contents of the user manual for the Angelbird 8TB WRK XT 2.5" SSD
- Product category: Internal Drives Angelbird
- Brand: Angelbird
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Angelbird Internal Drives
 |
User manual for the Angelbird 8TB WRK XT 2.5" SSD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Angelbird product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Angelbird user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Angelbird product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More Quickly store and access videos, photos, and other files on your notebook, desktop, or external storage system with the 8TB WRK XT 2.5" SSD for Mac from Angelbird. This SSD features built-in MLC flash technology to provide 550 MB/s read and 520 MB/s write speeds. Furthermore, this drive comes with a SATA III (6 Gb/s) interface and occupies an available 2.5" drive bay inside your system. -
- Data transfer rates up to 550 MB/s
- Up to 86.000 IOPS
- Host power loss protection
- 8TB storage capacity
- ESD & overload protection
- Stable Stream
- Rock-solid build
- TRIM support
- SATA 3.1, 6 Gb/s connectivity
- Mac / Windows / Linux compatible
UPC: 812937022266 In the Box Angelbird 8TB WRK XT 2.5" SSD for Mac Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Angelbird 8TB WRK XT 2.5" SSD for Mac in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAngelbird WRK XT Specs | Capacity | 8 TB | | Form Factor | 2.5" / 9 mm | | Interface | SATA III (6 Gb/s) | | Over Provisioning | ~ 9% | | Flash | Grade A Synchronous MLC | | Sustained Read Speed | 550 MB/s | | Sustained Write Speed | 520 MB/s | | IOPS | Up to 86,000 | | Access Time | Read: 65 μs
Write: 40 μs | | MTBF | 2,400,000 hours | | Data Retention | 10 years at 77°F / 25°C | | Endurance | 4800 TBW | | DC Input Voltage | 5 V ±10% | | Power | Power Usage (idle / max)
1.35 W | 6.4 W | | Shock Resistance | 1000 g/0.5 ms | | Vibration Resistance | 2.17 GRMS | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Storage Temperature | -40 to 185°F / -40 to 85°C | | Operating Humidity | 5 to 95% (non-condensing) | | Supported Operating Systems | Windows, Mac, and Linux | | Certifications | RoHS, FCC and CE compliant, REACH | | Dimensions | 3.9 x 2.8 x 0.3" / 100.2 x 69.9 x 7 mm | | Weight | 2.6 oz / 75 g | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 4.0 x 4.0 x 1.0" |
