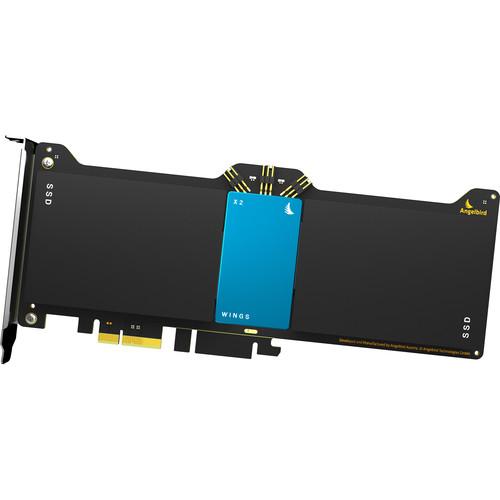

User Manual for Angelbird Wings X2 PCIe Gen2 x2 Hardware RAID Adapter Click to enlarge the picture
Contents of the user manual for the Angelbird Wings X2 PCIe Gen2 x2
- Product category: Internal Drives Angelbird
- Brand: Angelbird
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Angelbird Internal Drives
|
User manual for the Angelbird Wings X2 PCIe Gen2 x2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Angelbird product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Angelbird user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Angelbird product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More The blue Wings X2 PCIe Gen2 x2 Hardware RAID Adapter from Angelbird is BIOS, EFI, and UEFI bootable and compatible with the Thunderbolt chassis. It features 2 SATA 3 interfaces and offers user configurable RAID 0, RAID 1, HBA, and SPAN RAID levels. In addition, the adapter offers read and write speeds of up to 950 Mb/s. - 2 SATA 3, 6 Gb/s connectivity
- Full signal integrity with length and phase-matched data traces
- User configurable RAID 0, RAID 1, HBA, and SPAN RAID levels
- Security Erase, NCQ, AHCI 1.3.1, and SATA 3.2
- Contains copper for optimal thermal dissipation
- BIOS, EFI, and UEFI bootable
- Mac / Windows / Linux compatible
- CNC-worked aluminum heat sink
- Status, configurable activity, and configurable background LEDs
UPC: 812937021290 In the Box Angelbird Wings X2 PCIe Gen2 x2 Hardware RAID Adapter (Blue) Drive Mounting Screws Activation Code for Additional Free Software Licenses and Content Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Angelbird Wings X2 PCIe Gen2 x2 Hardware RAID Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAngelbird WX2-HBA-B Specs | Capacity | 2 x 2.5" SSD or HDD | | Connectivity | PCIe Gen2 x2, backwards compatible with PCIe Gen1 x2
Full-height and full-length card
2 x SATA3 6 Gb/s, backwards compatible with SATA 2 and SATA 1 | | Sustained Read Speed | Up to 950 Mb/s | | Sustained Write Speed | Up to 950 Mb/s | | Data Reliability | High performance off-line rebuild
Background rebuild | | Certifications | RoHS, CE and FCC compliant | | Operating Temperature | 32 to 158°F (0 to 70°C) | | Storage Temperature | -40 to 185°F (-40 to +85°C) | | Operating Humidity | 5 to 95 % non-condensing | | Dimensions | 10.59 x 4.72" (269 x 120 mm) | | Weight | 5.63 oz (160 g) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 13.6 x 7.1 x 2.3" |
