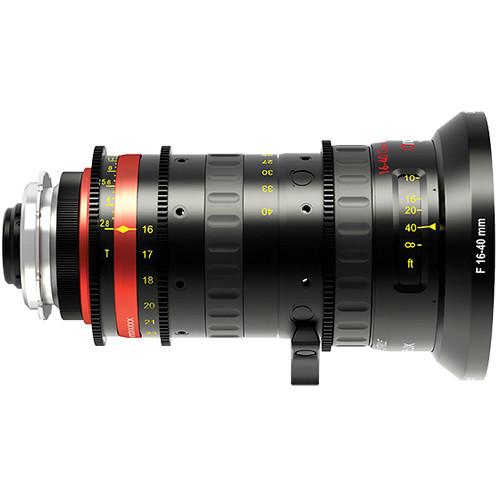

User Manual for Angenieux 16-40mm Optimo Style Zoom Lens with PL Mount Click to enlarge the picture
Contents of the user manual for the Angenieux 16-40mm Optimo Style Zoom Lens
- Product category: Digital Cine Lenses Angenieux
- Brand: Angenieux
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Angenieux Digital Cine Lenses
|
User manual for the Angenieux 16-40mm Optimo Style Zoom Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Angenieux product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Angenieux user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Angenieux product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More Supporting 4K resolution on Super 35mm sized sensors, the Angenieux 16 to 40mm Optimo Style Zoom Lens with PL Mount is patterned after the Angenieux Optimo DP series of zoom lenses and features a 2.5x zoom range of 16 to 40mm. The lens features internal focus design for a constant length as focus is changed and exhibits no signs of breathing during focus pulls.
The focus ring rotates through 320° of rotation, providing room for over 20 precise witness marks. The lens is lightweight for its zoom range at only 4.2 pounds and features a 114mm front outside diameter, which fits many optional production matte boxes. The lens comes standard with an ARRI PL mount, but optional lens mounts are available. The lens incorporates industry standard zoom and focus gears for interfacing with optional zoom motors, follow focus units, and Angenieux optional ASU servo unit. -
- Fast aperture of T2.8 with no ramping as you change focal length
- 320° focus rotation with over 20 precise focus witness marks and no breathing
- Optical design optimized for large format single sensor cameras
- Calibrated focus marks in feet or meters
- Standard PL mount lens; Panavision, Canon EF, or Nikon F mounts optional
- Expanded capabilities with optional Optimo 2x and 1.4x range extenders
Table of Contents
|
Upload User Manual
Have you got an user manual for the Angenieux 16-40mm Optimo Style Zoom Lens with PL Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAngenieux Optimo Style 16-40mm Specs | Focal Length | 16 to 40mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Image Circle | 31.4 mm | | Maximum T-Stop | T2.8 | | Maximum F-Stop | f/2.6 | | Horizontal Angle of View | Super35: 69 to 31.2° | | Minimum Focus Distance from Image Plane | 2' / 0.6 m | | Front Diameter | 114 mm | | Zoom Ratio | 2.5x | | Length | 7.3" / 186 mm | | Weight | 4.2 lb / 1.9 kg | | | | Package Weight | 9.0 lb | | Box Dimensions (LxWxH) | 17.0 x 11.2 x 10.7" |
