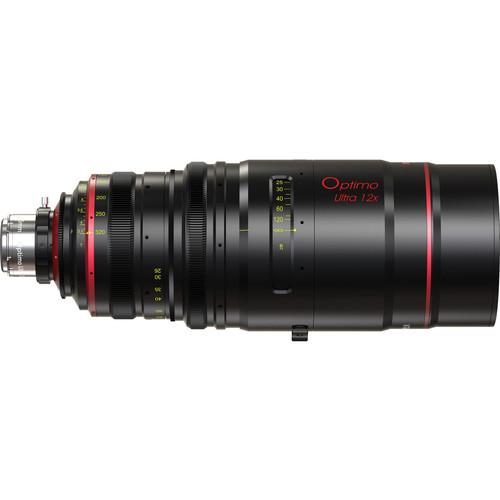

User Manual for Angenieux 26 - 320mm Optimo Ultra 12x U35 Long-Range Zoom Lens Click to enlarge the picture
Contents of the user manual for the Angenieux 26 - 320mm Optimo Ultra
- Product category: Digital Cine Lenses Angenieux
- Brand: Angenieux
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Angenieux Digital Cine Lenses
|
User manual for the Angenieux 26 - 320mm Optimo Ultra contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Angenieux product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Angenieux user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Angenieux product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More yystzsedbzedewautr The Optimo 26 - 320mm Ultra 12x U35 Long-Range Zoom Lens from Angenieux is suitable for use in feature films, TV series, live stage, commercials, music videos. The lens features an optical & mechanical design, offering better optical performance, and improved mechanical stability and serviceability over previous models. It has well controlled optical performances at each focal length and focus distance by having a good balance between contrast and resolution. It reduces dust inhale by improving air flow and adding dust traps. The lens is adapted to extreme shooting environments with passive athermalization from -4 to 104°F (-20 to 40°C). Thanks to the IRO technology, the lens can be configured in three different versions: S35 (Ø31.1mm), U35 (Ø34.6mm), and FF/VV (Ø46.3mm) with sets of rear and rings. - Controlled optical performances at each focal length and focus distance by having a good balance between contrast and resolution
- Open aperture, considered as variable primes
- No ramping, minimal breathing, quick for 12x zoom ratios
- Uses aspherical elements to minimize color fringing
- Short MOD - S35 4'1" (1.22m) in Ultra S35 - lower or equal to 5' (1.5m) in FF/VV
- Improved mechanical stability, and serviceability over previous models
- Weight reduction of moving components
- Reduces dust inhale by improving air flow and adding dust traps
- Precise and ergonomic focus ring with scale rotation of 321° with over 70 focus marks
- User changeable focus marking rings
- Mechanical components based on light-weight material with anti-abrasion coating
- Adapted to extreme shooting environments
- Angular Field of View:
35mm Film
26mm: 43.7°
320mm: 4.0°
S35mm Film
26mm: 49.1°
320mm: 4.5° - Object Dimensions at MOD:
35mm Film
26mm: 478 x 666
320mm: 42 x 58
S35mm Film
26mm: 560 x 760
320mm: 49 x 65 In the Box Angenieux 26 - 320mm Optimo Ultra 12x U35 Long-Range Zoom Lens Carrying Handle Front Protective Glass Extenders Table of Contents
|
Upload User Manual
Have you got an user manual for the Angenieux 26 - 320mm Optimo Ultra 12x U35 Long-Range Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAngenieux Optimo Ultra 26-320mm U35 Specs | Focal Length | 26 to 320mm | | Lens Mount | ARRI PL | | Image Circle | 34.6 mm | | Minimum T-Stop | T3.1 | | Minimum Focus Distance from Image Plane | 4' / 1.22 m | | Front Diameter | 162 mm | | Filter Thread | None | | Focus Scales | None | | Zoom Ratio | 12x | | Tripod Mounting Thread | None | | Length | 18.9" / 480.06 mm | | Weight | 28.1 lb / 12.7 kg |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
