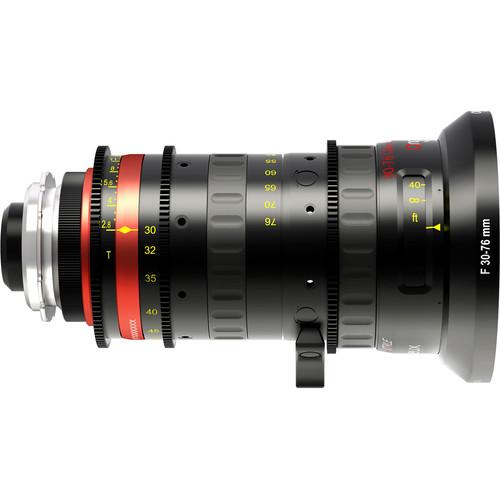

User Manual for Angenieux 30-76mm Optimo Style Zoom Lens Click to enlarge the picture
Contents of the user manual for the Angenieux 30-76mm Optimo Style Zoom Lens
- Product category: Digital Cine Lenses Angenieux
- Brand: Angenieux
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Angenieux Digital Cine Lenses
|
User manual for the Angenieux 30-76mm Optimo Style Zoom Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Angenieux product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Angenieux user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Angenieux product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More raxarfqwyxtrutrqraysxtsfxe Offering 4K+ resolution on sensor sizes up to Super 35, the Angenieux 30-76mm Optimo Style Zoom Lens (PL Mount) features a 2.5x zoom range. This lightweight, compact, mid-range lens is one of several zoom options in the Optimo Style series, Angenieux's line positioned between the classic Optimo Cine lenses and the ENG-oriented EZ series. The Optimo Style lenses build upon the earlier Optimo DP Rouge line, offering interchangeable mounts, color-matching with the Optimo line, and compatibility with both the ASU servo control, and the Optimo 1.4x and 2x extenders. The focus ring of the 30-76mm Optimo Style features 320° of rotation, providing room for over 20 precise witness marks. An internal focus design means the lens length stays constant as the focus is changed, displaying no signs of breathing during focus pulls. The lens features a 114mm front outside diameter, fitting many standard production matte boxes. The 30-76mm Optimo Style comes standard with an ARRI PL mount, with Panavision and Canon EF lens mounts available separately. This zoom lens incorporates industry standard 0.8-MOD gears for interfacing with the optional Angenieux ASU servo unit, zoom motors, follow focus units, or wireless F/I/Z systems. -
- Fast aperture of T2.8 across entire focal length range
- Minimal distortion with no breathing as you focus
- Compact, lightweight design is suited for handheld, gimbal, or stabilizer use
- Image quality extends across the entire T2.8-T22 aperture range
- Color reproduction is matched to the classic Optimo series
- Internal focus and zoom movement
- 320° of focus rotation with over 20 focus marks calibrated in feet
- Expanded range with optional Optimo extenders of 42-110mm with 1.4x, and 60-152mm with 2x extender
- Withstands wide temperature range of -4 to 104°F (-20 to 40°C)
- Standard PL mount lens; optional Panavision (PV), or Canon EF mounts available separately
In the Box Angenieux 30-76mm Optimo Style Zoom Lens (PL Mount) Front & Rear Caps Zoom Stick Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Angenieux 30-76mm Optimo Style Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAngenieux Optimo Style 30-76mm Specs | Focal Length | 30 to 76mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C 31.4mm diagonal | | Maximum T-Stop | T2.8 | | Maximum F-Stop | f/2.6 | | Minimum T-Stop | T22 | | Horizontal Angle of View | Super35: 40.2 to 16.4° 22 x 16mm | | Minimum Focus Distance from Image Plane | 2' / 0.6 m | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch | | Front Diameter | 114 mm | | Filter Thread | None | | Focus Scales | Imperial | | Focus Rotation | 320° | | Iris Rotation | 85° | | Zoom Rotation | 155° | | Zoom Ratio | 2.5x | | Electronic Communication | No | | Tripod Mounting Thread | 1/4"-20 Removable | | Length | 7.32" / 186 mm | | Weight | 4.2 lb / 1.9 kg | | | | Package Weight | 9.6 lb | | Box Dimensions (LxWxH) | 19.5 x 12.5 x 12.2" |
