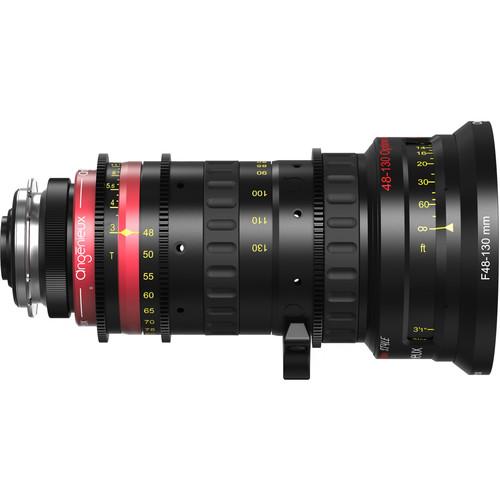

User Manual for Angenieux 48-130mm T3 Optimo Style Zoom Lens Click to enlarge the picture
Contents of the user manual for the Angenieux 48-130mm T3 Optimo Style Zoom
- Product category: Digital Cine Lenses Angenieux
- Brand: Angenieux
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Angenieux Digital Cine Lenses
|
User manual for the Angenieux 48-130mm T3 Optimo Style Zoom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Angenieux product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Angenieux user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Angenieux product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More Complementing the 16-40 T2.8 and 30-76 T2.8, the Angenieux 48-130mm T3 Optimo Style Zoom Lens offers a 2.7x zoom range inside a compact lens while maintaining a relatively fast aperture.Optically, this lens natively covers Super 35 formats, up to 34.6mm diagonal, including the RED Helium 8K sensor. Its light weight ensures that it can be used in payload-conscious situations, including scenarios with gimbals, remote heads, and steadicams. Coatings applied to the glass elements reduce flare and ensure that the lens will color-match with other Optimo and Optimo Style lenses. Precise focus mechanisms inside the lens reduce breathing and space.Mechanically, the native PL mount interfaces with digital cinema cameras that use a standard ARRI PL mount. Other mount options, such as Canon EF or Panavision PV are available separately. The focus, zoom, and iris rings all feature 0.8 MOD cinema-standard gearing for lens control accessories, and the focus ring has a long 320° throw with 20 witness marks for precise focus pulls. A 114mm front diameter ensures compatibility with standard matte boxes and filters.Whether you're shooting a feature film or a cinéma vérité documentary, cinematographers of all types can benefit from having a longer focal length lens that can be easily deployed and transport. - 2.7x zoom range with a telephoto position of 130mm in a compact form factor
- Constant T3 aperture throughout the entire zoom range
- Image circle covers S35 with a diagonal up to 34.6mm (fully covers RED 8K Helium sensor)
- Compact design allows for gimbal, steadicam, and remote head operation
- Color-matched with renowned Optimo lenses
- Internal focus, minimal breathing
- Precise and ergonomic focus ring with scale rotation of 320 degrees with over 20 focus witness marks
|
Upload User Manual
Have you got an user manual for the Angenieux 48-130mm T3 Optimo Style Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAngenieux Optimo Style 48-130mm Specs | Focal Length | 48 to 130mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Image Circle | 34.6 mm | | Maximum T-Stop | T3 | | Horizontal Angle of View | Super35: 25.6 to 9.8° | | Minimum Focus Distance from Image Plane | 3.08' / 0.94 m | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 114 mm | | Filter Thread | None | | Focus Scales | Imperial | | Focus Rotation | 320° | | Zoom Ratio | 2.7x | | Electronic Communication | No | | Tripod Mounting Thread | None | | Length | 8.11" / 206 mm | | Weight | 4.3 lb / 2.0 kg | | | | Package Weight | 12.4 lb | | Box Dimensions (LxWxH) | 19.5 x 12.2 x 12.1" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
