User Manual for Angenieux Full Frame & Super 35 EZ-1 & EZ-2 Lens Kit with Case Click to enlarge the picture
Contents of the user manual for the Angenieux Full Frame & Super 35
- Product category: Digital Cine Lenses Angenieux
- Brand: Angenieux
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Angenieux Digital Cine Lenses
|
User manual for the Angenieux Full Frame & Super 35 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Angenieux product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Angenieux user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Angenieux product will considerably shorten its lifespan!
|

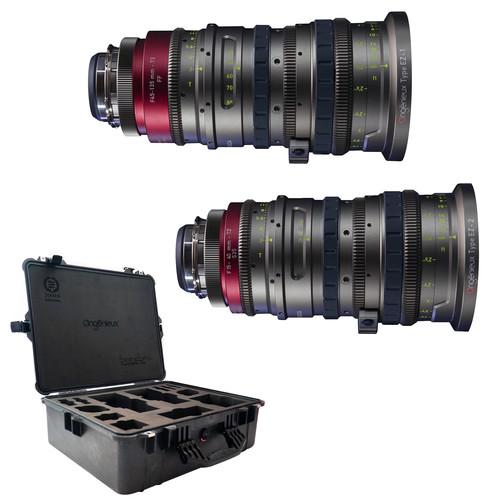

Product description Cinema Lens Care and Maintenance Read More This Full Frame & Super 35 Angenieux EZ-1 & EZ-2 Lens Kit from B&H includes both the standard 30 to 90mm EZ-1 and the wide 15 to 40mm Angenieux EZ-2 cinema zoom lenses, each with full frame and Super 35 rear optical assemblies. This kit provides a wide range of coverage with only two lenses, with rear assemblies that can be swapped out to suit your shooting format. When used in Full Frame mode, the 30-90mm zoom becomes a 45-135mm lens, and the 15-40mm zoom becomes a 22 to 60mm lens. Each of these modular lenses is PL-mount, with optional Canon EF and Sony E-mounts available separately.Both Angenieux EZ zoom lenses feature a fast T2.0 maximum aperture in Super 35, with a maximum T3.0 in Full Frame mode. Additional features include a 2' close-focus distance, and a common 114mm lens front that is compatible with many cine-style matte boxes. Safely transport both zoom lenses in the included hard case with a folding top handle. - Angenieux EZ-1 30 to 90mm Cinema Lens Pack (Super35 and Full-Frame) The EZ-1 30 to 90mm Cinema Lens Pack from Angenieux includes the PL mount version of of the 30 to 90mm EZ-1 zoom lens, with both the Super35 and FF/VistaVision rear lens-groups. The lens is fast, T2.0 in Super35 and T3.0 in full-frame/VistaVision. Swapping between the rear lens groups doesn't affect the physical length of the lens, minimum focus distance, or 3x zoom ratio. However, the full-frame rear lens group does change the lens from a 30 to 90mm zoom that covers Super35 to a 45 to 135mm zoom that covers the full-frame/VistaVision aperture.
The lens itself has 3 manual lens control rings: focus, iris, and zoom. Each ring features cine-style 0.8 MOD gear teeth, for compatibility with follow focus units and lens control motors. The 114mm front diameter allows you to work with a wide variety of rod supported matte boxes. - Angenieux EZ-2 15 to 40mm Cinema Lens Pack (Super35 and Full-Frame) The EZ-2 15-40mm Cinema Lens Pack from Angenieux includes the PL mount version of the 15 to 40mm EZ-2 zoom lens with both the Super35 and FF/VistaVision rear lens-groups. The lens is fast, T2.0 in Super35 and T3.0 in full-frame/VistaVision. Swapping between the rear lens groups doesn't affect the physical length of the lens, minimum focus distance, or 2.7x zoom ratio. However, the full-frame rear lens group does change the lens from a 15 to 40mm zoom that covers Super35 to a 22 to 60mm zoom that covers the full-frame/VistaVision aperture.
The lens itself has 3 manual lens control rings: focus, iris, and zoom. Each ring features cine-style 0.8 MOD gear teeth, for compatibility with follow focus units and lens control motors. The 114mm front diameter allows you to work with a wide variety of rod supported matte boxes. In the Box - EZ-1 30 to 90mm Cinema Lens Pack (Super35 and Full-Frame)
- EZ-1 30-90mm S35 Cinema Lens with PL Mount
- EZ-1 Zoom Full-Frame Rear Lens-Group
- EZ-2 15 to 40mm Cinema Lens Pack (Super35 and Full-Frame)
- Hard Protective Pelican Case for EZ Series Lens
Table of Contents
|
Upload User Manual
Have you got an user manual for the Angenieux Full Frame & Super 35 EZ-1 & EZ-2 Lens Kit with Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Angenieux EZ-1 30-90mm S35 Cinema Lens with PL Mount
| Focal Length | 30 to 90mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Image Circle | 30.0 mm | | Maximum T-Stop | T2.0 | | Maximum F-Stop | f/1.9 | | Diagonal Angle of View | Super35: 50.31 to 17.6° | | Minimum Focus Distance from Image Plane | 2' / 0.6 m | | Front Diameter | 114 mm | | Zoom Ratio | 3x | | Length | 8.9" / 226 mm | | Weight | 4.7 lb / 2.2 kg | | | | Box Dimensions (LxWxH) | 25.5 x 14.2 x 13.8" | - Angenieux EZ-1 Zoom Full-Frame Rear Lens-Group
| Supported Image Size | Up to 46mm | | Focal Length | 45-135mm | | Field of View (H x V) | 45.6-15.9° x 30.8 - 10.7° | | Field of View at M.O.D | At Focal Minimum:
351 x 228 mm
At Focal Maximum:
115 x 77 mm | - Angenieux EZ-2 15-40mm S35 Cinema Lens with PL Mount
| Focal Length | 15 to 40mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Image Circle | 30.0 mm | | Maximum T-Stop | T2.0 | | Maximum F-Stop | f/1.9 | | Diagonal Angle of View | Super35: 89.5 to 39.0° | | Minimum Focus Distance from Image Plane | 2' / 0.6 m | | Front Diameter | 114 mm | | Zoom Ratio | 2.7x | | Length | 8.3" / 210 mm | | Weight | 4.7 lb / 2.1 kg | | | | Box Dimensions (LxWxH) | 25.0 x 14.0 x 14.0" | - Angenieux EZ-2 Zoom Full-Frame Rear Lens-Group
| Supported Image Size | Up to 46mm | | Focal Length | 22-60 | | Field of View (H x V) | 80.2-35° x 57.4-24° | | Field of View at M.O.D | At Focal Minimum:
658 x 426 mm
At Focal Maximum:
245 x 165 mm | - Angenieux Hard Protective Pelican Case for EZ Series Lens
| | | Box Dimensions (LxWxH) | 24.0 x 19.0 x 9.0" |
