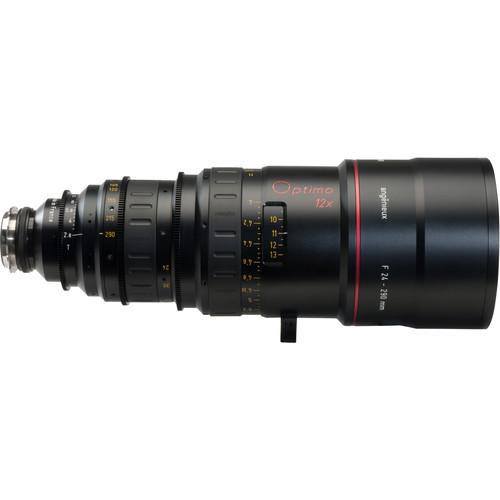

User Manual for Angenieux Optimo 24-290mm 12x Zoom Click to enlarge the picture
Contents of the user manual for the Angenieux Optimo 24-290mm 12x Zoom
- Product category: Digital Cine Lenses Angenieux
- Brand: Angenieux
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Angenieux Digital Cine Lenses
|
User manual for the Angenieux Optimo 24-290mm 12x Zoom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Angenieux product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Angenieux user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Angenieux product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More ayayzbsuatsfrwtawccx Supporting 4K+ resolution on a 35mm Academy-sized sensor, the Angenieux 24-290mm Optimo Zoom Lens (PL Mount) features a 12x zoom range. Use a separately available 1.4x or 2x Optimo extender to increase the zoom's sensor coverage to include Super 35. Consistent image quality across the zoom range enables you to use this zoom as a de facto set of variable primes. The 24-290mm Optimo zoom features internal focus design for a constant length as focus is changed and exhibits no signs of breathing during focus pulls.
The focus ring rotates 327°, providing room for over 70 precise witness marks. The lens features a 162mm front outside diameter, which fits many standard production matte boxes. The 24-290mm Optimo zoom comes standard with an ARRI PL mount, with a Canon EF lens mount available separately. This zoom lens incorporates industry standard zoom and focus gears for interfacing with optional zoom motors, follow focus units, and the optional Angenieux ASU servo unit. A wide operating-temperature range of -4 to 113°F suits the 24-290 Optimo Zoom to a variety of production settings. -
- Fast aperture of T2.8 with no ramping as the focal length is changed
- Provides Academy 35mm sensor coverage
- Sensor coverage is increased to Super 35 with optional Optimo 2x and 1.4x extenders
- 327° of focus rotation with over 70 focus marks; no breathing
- High image quality enables the zoom to be used as variable primes
- Interchangeable focus ring is marked in feet and meters
- Standard PL mount lens; optional Canon EF mount
- Wide operating-temperature range of -4 to 113°F
In the Box Angenieux Optimo 24-290mm 12x Zoom (PL Mount) Front & Rear Caps Zoom Stick Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Angenieux Optimo 24-290mm 12x Zoom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAngenieux Optimo 24-290mm Specs | Focal Length | 28 to 290mm | | Lens Mount | ARRI PL | | Format | Academy 35mm | | Maximum T-Stop | T2.8 | | Maximum F-Stop | f/2.5 | | Minimum T-Stop | T22 | | Horizontal Angle of View | Super35: 49.2 to 4.2° | | Minimum Focus Distance from Image Plane | 4' / 1.22 m | | Front Diameter | 162 mm | | Filter Thread | None | | Focus Scales | Metric, Imperial Interchangeable | | Focus Rotation | 327° | | Zoom Ratio | 12x | | Electronic Communication | No | | Tripod Mounting Thread | 1/4"-20 | | Length | 17.32" / 440 mm | | Weight | 24.3 lb / 11.0 kg |
