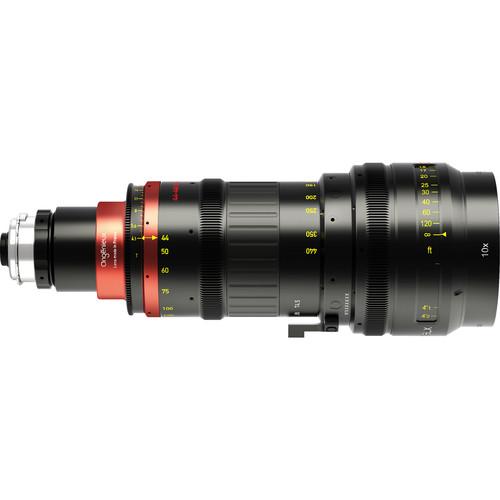

User Manual for Angenieux Optimo Anamorphic 44-440mm Zoom Lens Click to enlarge the picture
Contents of the user manual for the Angenieux Optimo Anamorphic 44-440mm Zoom Lens
- Product category: Digital Cine Lenses Angenieux
- Brand: Angenieux
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Angenieux Digital Cine Lenses
|
User manual for the Angenieux Optimo Anamorphic 44-440mm Zoom Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Angenieux product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Angenieux user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Angenieux product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More Covering sensor sizes up to 35mm 4-perf, the Optimo Anamorphic 44-440mm Zoom Lens (PL, Feet) features a 2x squeeze, and a 10x zoom ratio. This relatively lightweight, compact, long-range lens is one of several zoom options in the Optimo Anamorphic series, each producing the signature organic Angenieux look, and blending with other Angenieux glass. This zoom has integrated encoders that provide metadata using Cooke /i technology. This PL mount lens can be quickly switched by a technician to an optional Panavision mount, and is compatible with both the 1.4x and 2x extenders, and the ASU servo control. Features include a close focus distance of 49", very low distortion throughout the focal length range, and rugged construction suitable for a wide temperature range. The focus ring of the Optimo Anamorphic 44-440mm features 320° of rotation, providing room for over 40 precise witness marks. Marked in feet, the focus scale can be interchanged with marks in meters. An internal focus design means the lens length stays constant as the focus is changed, displaying no signs of breathing during focus pulls. The lens features a 136mm front outside diameter, threaded to accept an optional protective glass element. This zoom lens incorporates industry standard 0.8-MOD gears for interfacing with the optional ASU servo unit, zoom motors, follow focus units, or wireless F/I/Z systems. -
- 2x anamorphic squeeze with coverage up to 35mm 4-perf scope (28.8mm diagonal)
- Integrated Cooke /i technology transmits lens metadata
- Fast aperture of T4.5 across entire focal length range
- Standard PL mount lens; optional Panavision (PV) mount available separately
- Compatible with both the 1.4x and 2x extenders, and the ASU servo control
- Minimal distortion with no breathing as you focus
- Compact, relatively lightweight, and rugged design
- Image quality extends across the entire T4.5-T22 aperture range
- Matches with other Angenieux lens series
- Internal focus and zoom movement
- 320° of focus rotation with over 40 focus marks calibrated in feet
- Focus scale is interchangeable from feet to meters
- Withstands wide temperature range of -4 to 104°F (-20 to 40°C)
In the Box Angenieux Optimo Anamorphic 44-440mm Zoom Lens (PL, Feet) Front & Rear Caps Zoom Stick Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Angenieux Optimo Anamorphic 44-440mm Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAngenieux Optimo Anamorphic 44-440mm A2S Specs | Focal Length | 44 to 440mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Maximum T-Stop | T4.5 | | Maximum F-Stop | f/4 | | Minimum T-Stop | T22 | | Horizontal Angle of View | Super35: 53.6 to 5.7° | | Minimum Focus Distance from Image Plane | 49" / 1.24 m | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch | | Front Diameter | 136 mm | | Focus Scales | Imperial | | Focus Rotation | 320° | | Zoom Ratio | 10x | | Electronic Communication | Yes | | Horizontal Squeeze (Anamorphic) | 2x | | Tripod Mounting Thread | 1/4"-20 | | Length | 16.30" / 414 mm | | Weight | 16.5 lb / 7.5 kg |
