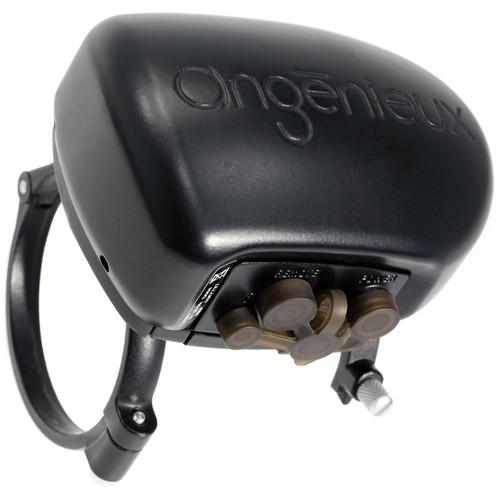

User Manual for Angenieux Servo Unit - ASU Click to enlarge the picture
Contents of the user manual for the Angenieux Servo Unit - ASU
- Product category: Zoom & Focus Controls Angenieux
- Brand: Angenieux
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Angenieux Zoom & Focus Controls
|
User manual for the Angenieux Servo Unit - ASU contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Angenieux product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Angenieux user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Angenieux product will considerably shorten its lifespan!
|
Product description The Angenieux Servo Unit - ASU provides ENG-style focus, iris, and zoom servo-control for your Angenieux lightweight zoom lens. The ASU bolts directly onto the lens, and has a minimum of cables for a fast setup time.
The ASU is compatible with select wired and wireless lens control systems, and generates Cooke /i metadata. Use the ASU with an optional PL lens mount /i Cooke interface to record the metadata to your camera. Depending on your remote control configuration, the ASU's focus, iris, and zoom motors can be turned off independently to avoid unintended adjustments. - Features
-
- Can be used to control focus, iris, and zoom
- Handgrip-style servo control motor attaches directly to Angenieux zooms
- Offers wired/wireless remote FIZ control with select devices
- Generates lens metadata in Cooke /i format
- Integrates with motion control systems, monitors, etc. via /i output port
- Use with optional lens mount to record metadata to camera
- Independently shut off focus, iris, and zoom motors depending on your remote setup
- Lens Compatibility
- Optimo 15-40, 28-76, 45-120
Optimo Style 16-40, 30-76
Optimo Anamorphic 56-152 2S, 30-72 2S
Optimo DP 16-42, 30-80 - Lens Controller Compatibility
- Angenieux
ARRI
Chrosziel
cmotion
Preston In the Box Angenieux Servo Unit - ASU Limited 1-Year Warranty Table of Contents
|
