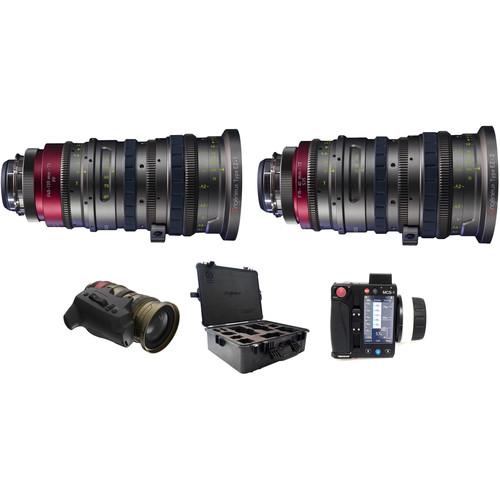

Product description Cinema Lens Care and Maintenance Read More The Angenieux EZ-1 & EZ-2 Lens Kit with Servo & Movcam MCS-1 kit from B&H combines the 30 to 90mm Angenieux EZ-1 and 15 to 40mm Angenieux EZ-2 cine zoom lenses with both a servo motor and a wireless FIZ control system. Use the Angenieux MSU-1 Cine Servo and the Movcam MCS-1 Hand Control Unit to remotely adjust either zoom's focus, iris, and/or zoom settings. The MCS-1 also provides a REC start/stop function for select cameras. - Angenieux EZ-1 30 to 90mm Cinema Lens Pack (Super35 and Full-Frame) The EZ-1 30 to 90mm Cinema Lens Pack from Angenieux includes the PL mount version of of the 30 to 90mm EZ-1 zoom lens, with both the Super35 and FF/VistaVision rear lens-groups. The lens is fast, T2.0 in Super35 and T3.0 in full-frame/VistaVision. Swapping between the rear lens groups doesn't affect the physical length of the lens, minimum focus distance, or 3x zoom ratio. However, the full-frame rear lens group does change the lens from a 30 to 90mm zoom that covers Super35 to a 45 to 135mm zoom that covers the full-frame/VistaVision aperture.
The lens itself has 3 manual lens control rings: focus, iris, and zoom. Each ring features cine-style 0.8 MOD gear teeth, for compatibility with follow focus units and lens control motors. The 114mm front diameter allows you to work with a wide variety of rod supported matte boxes. - Angenieux EZ-2 15 to 40mm Cinema Lens Pack (Super35 and Full-Frame) The EZ-2 15-40mm Cinema Lens Pack from Angenieux includes the PL mount version of the 15 to 40mm EZ-2 zoom lens with both the Super35 and FF/VistaVision rear lens-groups. The lens is fast, T2.0 in Super35 and T3.0 in full-frame/VistaVision. Swapping between the rear lens groups doesn't affect the physical length of the lens, minimum focus distance, or 2.7x zoom ratio. However, the full-frame rear lens group does change the lens from a 15 to 40mm zoom that covers Super35 to a 22 to 60mm zoom that covers the full-frame/VistaVision aperture.
The lens itself has 3 manual lens control rings: focus, iris, and zoom. Each ring features cine-style 0.8 MOD gear teeth, for compatibility with follow focus units and lens control motors. The 114mm front diameter allows you to work with a wide variety of rod supported matte boxes. - Angenieux MSU-1 Universal Cine Servo with 3 Motors & Wireless Module for EZ-1/EZ-2 Lenses Built specifically for use with the Angenieux EZ-1 and EZ-2 lenses, the MSU-1 Universal Cine Servo with 3 Motors and Wireless Module from Angenieux is a removable lens drive unit that provides ENG-style control to the EZ-1 and EZ-2 cinema-style lenses. Built-in features you would expect to find on an ENG-style lens control grip, as well as a few extras, create a powerful combination when paired with your lens. The three lens drive gears are positioned to perfectly interface with your lens, and are 0.8 MOD to match the cine-style gearing. A run/stop button on the handle controls the camera, while the traditional zoom rocker is augmented by an adjustable speed control.
Further compatibility is ensured by the inclusion of Hirose and LEMO connectors. A built-in wireless module enables controlling the servo drive without a hard-wired connection. Those who wish to may control the servo with Canon or Fujinon standard ENG lens pan handles. - Mounting
- The MSU is self-aligning, mounting with three screws and a guide pin
- Basic Functions
-
- Auto Iris: on/off
- Rec: on/off
- Return video
- QZ (quick zoom)
- Iris: momentary
- Screen display
- Menu display
- Menu Display
-
- System modes: analog demand, digital demand, wireless, local
- Iris control mode: auto/remote
- Wireless frequency select
- Firmware upgrade
- Trigger automatic calibration
- Lens data selection
- Compatibility
- Compatible with Canon & Fujinon standard ENG lens pan handles:
- 20-pin Hirose - analog and remote control
- 12 Pin Hirose - direct to lens port on camera
- 4-pin LEMO - "I" protocol communication
- 6-pin LEMO - MBUS port
- Cooke I System - real-time data transfer, no storage
- Wireless Control
- A built-in wireless module permits interfacing with Movcam wireless lens controllers, selectable for iris, zoom, and focus
- Zoom/Focus Demand and Compatibility
- Via a 20-pin adapter cable (not included):
- Remote Controller Compatibility
- Via the 20-pin interface:
- Speed and Sensitivity
- The motors have been optimized to provide high-speed motor drive while maintaining sensitivity and precision operation
- ENG Style Operation
-
- Zoom speed
- Q-Z switch
- information display
- VTR switch
- Function selector
- Display on/off
- Return switch
- Zoom operation switch
- Iris operation changeover switch
- Momentary iris auto switch
- Movcam MCS-1 Hand Control Unit for 3-Axis System At the heart of the Movcam 3-Axis System sits the MCS-1 Hand Control Unit. Focus, iris, and zoom can be controlled independently with the handwheel, slider, and pressure-sensitive rocker. Using the license-free 2.4 GHz band, the hand unit can communicate with the receiver from up to 660' away in ideal line-of-sight situations. Dominating the front surface of the unit is a 3.7" touchscreen which shows real-time lens data and is also used for lens data entry and menu settings. Lens data for popular lenses is already programmed into the unit. Information for lenses not already built-in can be manually programmed into the unit by the user using the touchscreen and stored on an SD card for instant recall on any compatible device.
- Daylight-viewable 3.7" OLED touchscreen for data entry and real-time display of lens and system data
- Wireless start/stop control for ARRI, Sony, and RED, as well as cameras compatible with the LANC protocol
- EF lens control with RED cameras using an electronic EF mount
- Pre-programmed lens data and custom lens mapping, store lens data on an SD card for instant recall
- Hardware remote cable connection for wired operation
- Pressure-sensitive zoom control
- Programmable lens end-stops
- Backlit handwheel and function buttons
- Operates on separately available Sony NP-F550 or NP-F570 batteries
In the Box - EZ-1 30 to 90mm Cinema Lens Pack (Super35 and Full-Frame) csxestqucrxyyy
- EZ-1 30-90mm S35 Cinema Lens with PL Mount
- EZ-1 Zoom Full-Frame Rear Lens-Group
- EZ-2 15 to 40mm Cinema Lens Pack (Super35 and Full-Frame)
- MSU-1 Universal Cine Servo with 3 Motors & Wireless Module for EZ-1/EZ-2 Lenses
- Hard Protective Pelican Case for EZ Series Lens
- Movcam - MCS-1 Hand Control Unit for 3-Axis System
Table of Contents
|
Upload User Manual
Have you got an user manual for the Angenieux Super 35 EZ-1 & EZ-2 Lens Kit with Servo, Movcam MCS-1 Control & Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Angenieux EZ-1 30-90mm S35 Cinema Lens with PL Mount
| Focal Length | 30 to 90mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Image Circle | 30.0 mm | | Maximum T-Stop | T2.0 | | Maximum F-Stop | f/1.9 | | Diagonal Angle of View | Super35: 50.31 to 17.6° | | Minimum Focus Distance from Image Plane | 2' / 0.6 m | | Front Diameter | 114 mm | | Zoom Ratio | 3x | | Length | 8.9" / 226 mm | | Weight | 4.7 lb / 2.2 kg | | | | Box Dimensions (LxWxH) | 25.5 x 14.2 x 13.8" | - Angenieux EZ-1 Zoom Full-Frame Rear Lens-Group
| Supported Image Size | Up to 46mm | | Focal Length | 45-135mm | | Field of View (H x V) | 45.6-15.9° x 30.8 - 10.7° | | Field of View at M.O.D | At Focal Minimum:
351 x 228 mm
At Focal Maximum:
115 x 77 mm | - Angenieux EZ-2 15-40mm S35 Cinema Lens with PL Mount
| Focal Length | 15 to 40mm | | Lens Mount | ARRI PL | | Format | Super35/APS-C | | Image Circle | 30.0 mm | | Maximum T-Stop | T2.0 | | Maximum F-Stop | f/1.9 | | Diagonal Angle of View | Super35: 89.5 to 39.0° | | Minimum Focus Distance from Image Plane | 2' / 0.6 m | | Front Diameter | 114 mm | | Zoom Ratio | 2.7x | | Length | 8.3" / 210 mm | | Weight | 4.7 lb / 2.1 kg | | | | Box Dimensions (LxWxH) | 25.0 x 14.0 x 14.0" | - Angenieux EZ-2 Zoom Full-Frame Rear Lens-Group
| Supported Image Size | Up to 46mm | | Focal Length | 22-60 | | Field of View (H x V) | 80.2-35° x 57.4-24° | | Field of View at M.O.D | At Focal Minimum:
658 x 426 mm
At Focal Maximum:
245 x 165 mm | - Angenieux MSU-1 Universal Cine Servo with 3 Motors & Wireless Module for EZ-1/EZ-2 Lenses
| Drive Gear | 3 x 0.8 MOD gears | | Material of Construction | Housing: Magnesium alloy with Teflon coating
Hand Strap: Nylon with leather pad
Strap Latch: Nylon buckle | | Connectors | 12-pin Hirose
20-pin Hirose
6-pin LEMO
4-pin LEMO | | Power Consumption | Standby: Approximately 1.5 W (15 V, 0.1 A)
Max: 35 W | | Temperature | Operating: -4 to 131°F / -20 to 55°C
Storage: -22 to 158°F / -30 to 70°C | | Dimensions | Approximate: 6.33 x 4.25 x 5" / 16.08 x 10.8 x 12.7 cm | | Weight | 25.4 oz / 720 g | | | | Box Dimensions (LxWxH) | 9.05 x 7.1 x 6.8" | - Angenieux Hard Protective Pelican Case for EZ Series Lens
| | | Box Dimensions (LxWxH) | 24.0 x 19.0 x 9.0" | - Movcam MCS-1 Hand Control Unit for 3-Axis System
| Screen Size | 3.7" / 9.4 cm | | Battery Mount | Sony NP-F (L-series) | | Operating Frequency | 2.4 GHz | | Operating Range | Up to 660' / 200 m (line-of-sight) | | | | Box Dimensions (LxWxH) | 10.35 x 8.45 x 6.9" |
