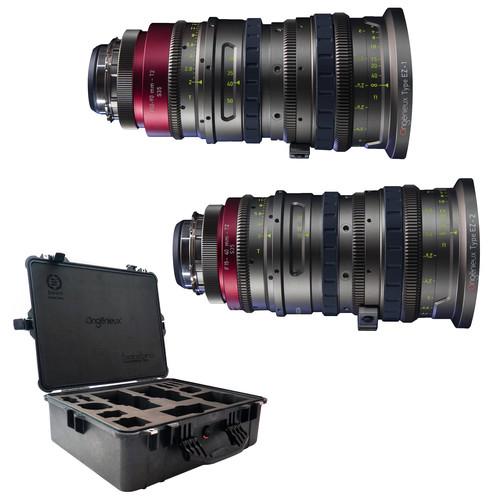

User Manual for Angenieux Super 35 EZ-1 & EZ-2 PL Lens Kit with Hard Case

• Product category: Digital Cine Lenses Angenieux
• Brand: Angenieux
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Angenieux Digital Cine Lenses

Product description

• Angenieux EZ-2 15-40mm S35 Cinema Lens with PL Mount Angenieux's EZ-2 15-40mm S35 Cinema Lens with PL Mount is a fast zoom for 3-perf Super 35mm sized sensors that has been designed from the ground up to utilize interchangeable rear optical assemblies. This allows you to use the same lens to cover Super 35 or Full-Frame/VistaVision-sized sensors by swapping out the rear optical assembly. In addition, the rear assemblies allow you to swap the lens mount from PL to Sony E or Canon EF.

  The version of the lens ships with a PL mount and the Super 35 rear optical assembly. Set up as such it features a T2.0 aperture and focuses down to 2' in front of the image plane, while weighing in at only 4.7 pounds. The 114mm front diameter of the lens is a common diameter compatible with cinema-style matte boxes. The lens features independent focus, iris, and zoom control rings with cinema standard gear teeth. A removable support foot can be repositioned for when you need to rotate your lens off of a standard mounting orientation.
  Interchangeable Rear Optical Assembly
  • The EZ-2 15-40mm is designed with swappable rear optical elements so you can easily convert the lens from covering 3-perf Super 35 to full-frame/VistaVision. This design has many advantages over adding additional optical elements such as 2x extenders, as swapping the rear assembly allows the lens to maintain the same physical size and minimum operating distance, while losing only slightly more than a stop when going from Super 35 to full-frame coverage. Additionally, as the optics are designed to be part of the lens, and not just additional elements that blow up the image resolved by the lens, they match the optical quality of the lens and your image does not suffer from having to go through additional glass/air surfaces, which can degrade your image.
  Interchangeable Lens Mounts
  • This lens ships with a PL mount; however, that mount can be swapped with available (not included) E or EF lens mounts.
  • Losing only 1/10 of a stop within the lens, the EZ-2 is extremely efficient. The fast T2.0 maximum aperture in Super 35mm matches the maximum aperture of many standard prime lenses for Super 35mm. This allows you to light to a lower illumination level than would normally be required for many zooms, making for more consistent images as you may not have to relight the scene as is often the case when moving from primes to slower zoom lenses.
  Manual Lens Control Rings
  • Featuring independent manual control rings for focus, iris, and zoom. Each control ring incorporates industry standard 0.8 lens gear teeth.
  114mm Front Diameter
  • The EZ-2 shares the same 114mm front common to the Angenieux OPTIMO lens series, allowing you to easily share matte boxes between the EZ-2 and the OPTIMO lenses.
  Temperature Stability
  • The EZ series of lenses are designed and built to compensate for temperature drifts, which helps reduce the need to recollimate the lens.
• Angenieux EZ-1 30-90mm S35 Cinema Lens with PL Mount Angenieux's EZ-1 30-90mm S35 Cinema Lens with PL Mount is a fast zoom for 3-perf Super 35mm sized sensors that has been designed from the ground up to utilize interchangeable rear optical assemblies. This allows you to use the same lens to cover Super 35 or Full-Frame/VistaVision-sized sensors by swapping out the rear optical assembly. In addition, the rear assemblies allow you to swap the lens mount from PL to Sony E or Canon EF.

  The version of the lens ships with a PL mount and the Super 35 rear optical assembly. Set up as such it features a T2.0 aperture and focuses down to 2' in front of the image plane, while weighing in at only 4.7 pounds. The 114mm front diameter of the lens is a common diameter compatible with cinema-style matte boxes. The lens features independent focus, iris, and zoom control rings with cinema standard gear teeth. A removable support foot can be repositioned for when you need to rotate your lens off of a standard mounting orientation.
  Interchangeable Rear Optical Assembly
  • The EZ-1 30-90mm is designed with swappable rear optical elements so you can easily convert the lens from covering 3-perf Super 35 to full-frame/VistaVision. This design has many advantages over adding additional optical elements such as 2x extenders, as swapping the rear assembly allows the lens to maintain the same physical size and minimum operating distance, while losing only slightly more than a stop when going from Super 35 to full-frame coverage. Additionally, as the optics are designed to be part of the lens, and not just additional elements that blow up the image resolved by the lens, they match the optical quality of the lens and your image does not suffer from having to go through additional glass/air surfaces, which can degrade your image.
  Interchangeable Lens Mounts
  • This lens ships with a PL mount; however, that mount can be swapped with available (not included) E or EF lens mounts.
  • Losing only 1/10 of a stop within the lens, the EZ-2 is extremely efficient. The fast T2.0 maximum aperture in Super 35mm matches the maximum aperture of many standard prime lenses for Super 35mm. This allows you to light to a lower illumination level than would normally be required for many zooms, making for more consistent images as you may not have to relight the scene as is often the case when moving from primes to slower zoom lenses.
  Manual Lens Control Rings
  • Featuring independent manual control rings for focus, iris, and zoom. Each control ring incorporates industry standard 0.8 lens gear teeth.
  114mm Front Diameter
  • The EZ-1 shares the same 114mm front common to the Angenieux OPTIMO lens series, allowing you to easily share matte boxes between the EZ-1 and the OPTIMO lenses.
  Temperature Stability
  • The EZ series of lenses are designed and built to compensate for temperature drifts, which helps reduce the need to recollimate the lens.

• EZ-2 15-40mm S35 Cinema Lens with PL Mount zbxrsdeffxqwaazazuzdufyvzzbuz
• Limited 1-Year Warranty

• EZ-1 30-90mm S35 Cinema Lens with PL Mount

• Hard Protective Pelican Case for EZ Series Lens

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Angenieux EZ-2 15-40mm S35 Cinema Lens with PL Mount

  Focal Length	15 to 40mm
  Lens Mount	ARRI PL
  Format	Super35/APS-C
  Image Circle	30.0 mm
  Maximum T-Stop	T2.0
  Maximum F-Stop	f/1.9
  Diagonal Angle of View	Super35: 89.5 to 39.0°
  Minimum Focus Distance from Image Plane	2' / 0.6 m
  Front Diameter	114 mm
  Zoom Ratio	2.7x
  Length	8.3" / 210 mm
  Weight	4.7 lb / 2.1 kg

  Box Dimensions (LxWxH)	25.0 x 14.0 x 14.0"

• Angenieux EZ-1 30-90mm S35 Cinema Lens with PL Mount

  Focal Length	30 to 90mm
  Lens Mount	ARRI PL
  Format	Super35/APS-C
  Image Circle	30.0 mm
  Maximum T-Stop	T2.0
  Maximum F-Stop	f/1.9
  Diagonal Angle of View	Super35: 50.31 to 17.6°
  Minimum Focus Distance from Image Plane	2' / 0.6 m
  Front Diameter	114 mm
  Zoom Ratio	3x
  Length	8.9" / 226 mm
  Weight	4.7 lb / 2.2 kg

  Box Dimensions (LxWxH)	25.5 x 14.2 x 13.8"

• Angenieux Hard Protective Pelican Case for EZ Series Lens

  Box Dimensions (LxWxH)	24.0 x 19.0 x 9.0"
