User manual

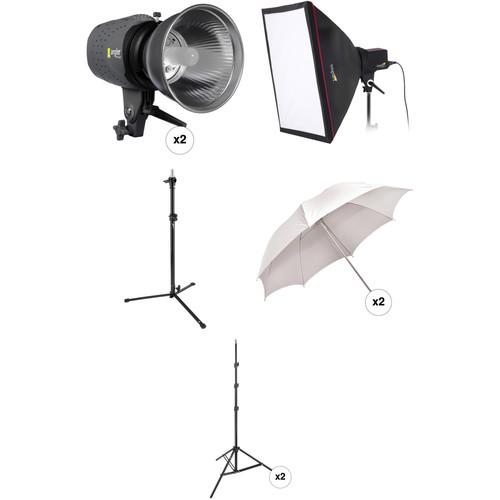

Angler 3-Monolight Portrait Backlight Kit

User Manual for Angler 3-Monolight Portrait Backlight Kit

• Product category: Monolights Angler
• Brand: Angler
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Angler Monolights

Product description

• 2 x Angler Glamour Flash 300Ws Monolight The Glamour Flash 300Ws Monolight from Angler combines affordability with dependable basic functionality. Power is adjustable from 1/16 to Full power over four stops via touchpad buttons. Settings are displayed on the large LED screen. The 100W modeling lamp can be set from full power for maximum visibility to Proportional to simulate power adjustments to enable previewing of your shot. Recycling is a fast 2 seconds and far shorter at reduced power settings. The Glamour Flash has an industry standard 5/8" receiver that mounts to a wide variety of light stands while the housing is rubber-coated to provide a grippy surface and protection from impact damage. The flash head can be triggered with the head's test button, a built-in wireless optical slave or with the included sync cord. The Glamour Flash comes with a user-replaceable flash tube, power cord, 100W modeling lamp, 7" grid reflector and a protective cap.
  LED Screen
  • Highly visible LED screen makes the power setting adjustment easy even in dim light
  Adjustable Power
  • Power is adjustable from over 4 stops from 1/16 to Full power
  Touchpad Control
  • Easy to use touch pad instead of switches
  Modeling Lamp
  • Full on mode can be adjusted to proportional mode that automatically matches the flash power so you can preview your lighting
  Auto Dump
  • Flash automatically drains capacitors for accurate exposures when lowering the power
  Rubber Coating
  • Provides a grippy surface and helps protect the flash from impact damage
  Optical Slave
  • Good for multi-light setups, the built-in slave allows the flash to be wirelessly triggered from another flash
  Included Sync Cord
  • The 1/8" (3.5mm) mini-plug sync cord connects camera to flash or optional radio receiver
  UPC: 847628589247
• Impact One-Monolight Kit (120 VAC) The Impact One-Monolight Kit (120 VAC) is an economical 100-watt/second monolight with modeling light and power variator. This kit includes a softbox with mounting ring, to soften the light output.
  • The included 24 x 24" softbox has a silver interior for crisper highlights.
  • PC sync cord with monoplug is included.
  • Line sync voltage is only 4.3 VDC (safe for any camera's circuitry).
  UPC: 847628011243
• Impact Two Section Back Light Stand (3') This 3' Impact Back Light Stand consists of a base and riser. Use the lower part as a base to place a mounted light at floor or table level, as low as 5.5". Add the extension to the base to raise the height of the light from 22.8" (57.9 cm) to a maximum of 3' (90 cm). The stand is constructed of black anodized aluminum.
  Quick Set Up
  • Sets up easily in the matter of seconds
  Very Stable
  • Stable under recommended loads
  5/8" Reversible Stand Mount
  • Fitted with a reversible 5/8" top stud, with 1/4"-20 and 3/8" threads
  UPC: 847628011939
• 2 x Impact White Translucent Umbrella (43") Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.This Impact 43" White Translucent Umbrella is suggested for use in mid-length portraits for one or two persons. UPC: 847628013292
• 2 x Impact Air-Cushioned Light Stand (Black, 8') This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
  Air Cushioned
  • Protects equipment from impact damage.
  Compact Design
  • Will fit easily into most location cases.
  Accepts Casters
  • Eases positioning of heavy lights.
  • Available as accessories.
  UPC: 847628012349

• 2 x Glamour Flash 300Ws Monolight fvbdfevy
• Modeling Light (100W)
• Grid Reflector (7")
• Mini to PC Sync Cord
• Protective Cap
• User Manual
• Limited 1-Year Warranty

• Impact - One-Monolight Kit (120 VAC) fvbdfevy

• Impact - Two Section Back Light Stand (3')

• 2 x Impact - Umbrella - White Translucent (43")

• 2 x Impact - Air-Cushioned Light Stand (Black, 8')

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Angler Glamour Flash 300Ws Monolight

  Maximum Power	300 Ws
  Power Control	4 Stops in 1/10-Stop Increments
  Guide Number	180.4' / 55 m at 6.56' / 2 m, ISO100 with Reflector
  Flash Duration	1/1800 to 1/800 Sec
  Recycle Time	2 Sec (Full Power)
  Color Temperature	5600K ± 200K
  Flash Ready Indicator	Audio, Visual
  Reflector	Changeable
  Accessory Fitting Type	Bowens S Type

  Type	Tungsten
  Wattage	100 W
  Control Modes	Full On, Proportional

  Sync Type	Button, Cable, Optical
  Sync Voltage	4.3 V

  AC Input Voltage	110to120 VAC, 60 Hz
  Circuit Protection	Fuse
  Fuse	6 A

  Display	None
  Mount	5/8" / 16 mm Receptacle
  Auto Dump	Yes
  Fan Cooled	No
  Dimensions	H: 8.4 x W: 6.1 x L: 11.6" / H: 21.3 x W: 15.5 x L: 29.5 cm, Including Reflector H: 8.4 x W: 5.2 x L: 11.6" / H: 21.3 x W: 13.2 x L: 29.5 cm, Including Cap
  Weight	3.5 lb / 1.58 kg

  Box Dimensions (LxWxH)	21.5 x 10.5 x 6.5"

• Impact One-Monolight Kit (120 VAC)

  Maximum Power	100 Ws
  Flash Duration	1/1500 to 1/1000 Sec
  Recycle Time	3 Sec (Full Power)
  Flash Ready Indicator	Visual
  Reflector	Changeable
  Accessory Fitting Type	Elinchrom Umbrella Shaft

  Type	Tungsten
  Wattage	60 W

  Sync Type	Optical

  AC Input Voltage	120 VAC, 60 Hz
  Circuit Protection	Fuse

  Display	None
  Auto Dump	No
  Fan Cooled	No
  Dimensions	H: 7.8 x W: 5.0 x L: 9.5" / H: 19.7 x W: 12.7 x L: 24.1 cm
  Weight	2.6 lb / 1.2 kg

  Box Dimensions (LxWxH)	23.2 x 9.5 x 7.3"

• Impact Two Section Back Light Stand (3')

  Load Capacity	7 lb / 3.2 kg
  Mounting Options	1/4"-20 Male Thread 3/8"-16 Male Thread 5/8" Receiver 5/8" Stud
  Number of Sections	2
  Maximum Working Height	3' / 0.9 m
  Minimum Working Height	5.5" / 14 cm
  Collapsed Height	20" / 51 cm
  Footprint Diameter	23.6" / 60 cm
  Accepts Wheels	No
  Air Cushioned	No
  Detachable Base	Yes
  Leveling Leg	No
  Reverse Legs	No
  Finish	Black
  Material	Aluminum
  Weight	2.9 lb / 1.3 kg
  Warranty Length	Limited 1-Year Warranty

  Box Dimensions (LxWxH)	20.55 x 3.3 x 3.25"

• 2 x Impact White Translucent Umbrella (43")

  Size	43.0" / 109.2 cm
  Interior	White (Translucent)
  Shaft Diameter	8 mm
  Folded Size	L: 28.3" / L: 71.8 cm

  Box Dimensions (LxWxH)	29.0 x 2.7 x 1.65"

• 2 x Impact Air-Cushioned Light Stand (Black, 8')

  Maximum Load	8 lb (3.6 kg)
  Leg Tip	20 mm
  Attachment Size	5/8" Stud with 1/4"-20 in threaded tip
  Accepts Wheels	Yes
  Air Cushioned	Yes
  Maximum Height	96" (243.8 cm)
  Minimum Height	34" (86.3 cm)
  Folded Height	29.6 (75.2 cm)
  Footprint Diameter	36" (91.4 cm)
  Weight	2.05 lb (1 kg)

  Box Dimensions (LxWxH)	29.75 x 3.2 x 3.15"
