User Manual for Angler Glamour Flash 160Ws 2-Light Kit with Softboxes and Stands Click to enlarge the picture
Contents of the user manual for the Angler Glamour Flash 160Ws 2-Light Kit
- Product category: Monolights Angler
- Brand: Angler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Angler Monolights
|
User manual for the Angler Glamour Flash 160Ws 2-Light Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Angler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Angler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Angler product will considerably shorten its lifespan!
|

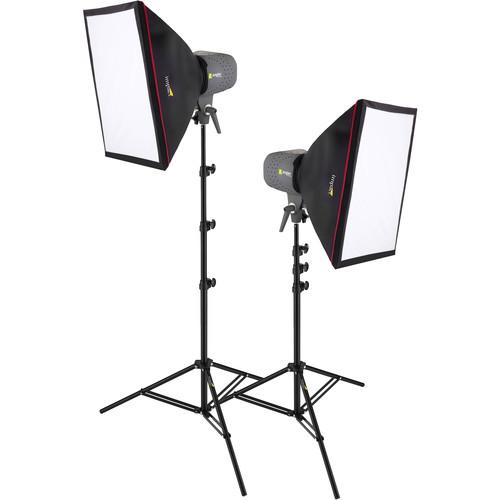

Product description combines affordability with functionality with the Glamour Flash 160Ws 2-Light Kit with Softboxes and Stands. Compatible with almost any type of photography, the kit includes 2 Angler 160Ws Glamour monolights with 7" grid reflectors, PC cords, modeling lamps, and protective caps. Each head comes with a 24 x 32" softbox for flattering light and an 8' air-cushioned light stand that keeps your gear safe when making height adjustments. - 2 x Angler Glamour Flash 160Ws Monolight The Glamour Flash 160Ws Monolight from Angler combines affordability with dependable basic functionality. Power is adjustable from 1/16 to Full power over four stops via touchpad buttons. Settings are displayed on the large LED screen. The 60W modeling lamp can be set from full power for maximum visibility to Proportional to simulate power adjustments to enable previewing of your shot. Recycling is a fast 2 seconds and far shorter at reduced power settings. The Glamour Flash has an industry standard 5/8" receiver that mounts to a wide variety of light stands while the housing is rubber-coated to provide a grippy surface and protection from impact damage. The flash head can be triggered with the head's test button, a built-in wireless optical slave or with the included sync cord. The Glamour Flash comes with a user-replaceable flash tube, power cord, 60W modeling lamp, 7" grid reflector and a protective cap.
- LED Screen
- Highly visible LED screen makes the power setting adjustment easy even in dim light
- Adjustable Power
- Power is adjustable from over 4 stops from 1/16 to Full power
- Touchpad Control
- Easy to use touch pad instead of switches
- Modeling Lamp
- Full on mode can be adjusted to proportional mode that automatically matches the flash power so you can preview your lighting
- Auto Dump
- Flash automatically drains capacitors for accurate exposures when lowering the power
- Rubber Coating
- Provides a grippy surface and helps protect the flash from impact damage
- Optical Slave
- Good for multi-light setups, the built-in slave allows the flash to be wirelessly triggered from another flash
- Included Sync Cord
- The 1/8" (3.5mm) mini-plug sync cord connects camera to flash or optional radio receiver
UPC: 847628589230 - 2 x Impact Softbox 24 x 32" (61 x 80cm) The Impact 24 x 32" Softbox includes a Bowens-type speed ring, so that it is directly compatible with current Bowens and Impact monolights (except the 100EX). When compared to larger softboxes, this size will provide a light quality which is more spectral, with a faster gradation from highlight to shadow areas. 24 x 32" is best-suited for a 1/2 length portrait of 1 or 2 people, or a product shot of 2 or 3 smaller-than-a-breadbox items. The softbox features a beaded silver interior, and its front face can be removed for easy access to the light and the interior baffle from the front. Also, it provides the option of shooting without the front face for an increased output and more specular quality of light.
- Adapter ring makes it compatible with current Bowens and Impact (except the 100EX) monolights.
UPC: 847628012950 - 2 x Impact Air-Cushioned Light Stand (Black, 8') This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
- Air Cushioned
- Protects equipment from impact damage.
- Compact Design
- Will fit easily into most location cases.
- Accepts Casters
-
- Eases positioning of heavy lights.
- Available as accessories.
UPC: 847628012349 In the Box - 2 x Glamour Flash 160Ws Monolight srbayuexysxqztyc
- Modeling Light (60W)
- Grid Reflector (7")
- Mini to PC Sync Cord
- Protective Cap
- User Manual
- Limited 1-Year Warranty
- 2 x Impact - Softbox 24 x 32" (61 x 80cm)
- 2 x Impact - Air-Cushioned Light Stand (Black, 8')
Table of Contents
|
Upload User Manual
Have you got an user manual for the Angler Glamour Flash 160Ws 2-Light Kit with Softboxes and Stands in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Angler Glamour Flash 160Ws Monolight
| | | Maximum Power | 160 Ws | | Power Control | 4 Stops in 1/10-Stop Increments | | Guide Number | 131.2' / 40 m at 6.56' / 2 m, ISO100 with Reflector | | Flash Duration | 1/2000 to 1/1000 Sec | | Recycle Time | 2 Sec (Full Power) | | Color Temperature | 5600K ± 200K | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Bowens S Type | | | | Type | Tungsten | | Wattage | 60 W | | Control Modes | Full On, Proportional | | | | Sync Type | Button, Cable, Optical | | Sync Voltage | 4.3 V | | | | AC Input Voltage | 110to120 VAC, 60 Hz | | Circuit Protection | Fuse | | Fuse | 6 A | | | | Display | None | | Mount | 5/8" / 16 mm Receptacle | | Auto Dump | Yes | | Fan Cooled | No | | Dimensions | H: 8.4 x W: 6.1 x L: 11.6" / H: 21.3 x W: 15.5 x L: 29.5 cm, Including Reflector
H: 8.4 x W: 5.2 x L: 11.6" / H: 21.3 x W: 13.2 x L: 29.5 cm, Including Cap | | Weight | 3.5 lb / 1.58 kg | | | | Box Dimensions (LxWxH) | 21.7 x 10.5 x 6.8" | - 2 x Impact Softbox 24 x 32" (61 x 80cm)
| Size | 24 x 32" (60 x 80 cm) | | Shape | Rectangle | | Compatibility | Current Bowens and Impact (except the 100EX) monolights | | Removable Face | Yes | | Removable Baffle | Yes | | Accepts Grids | No | | Requires Speed Ring | Bowens style - included
For other popular heads, see "Accessories" Tab | | | | Box Dimensions (LxWxH) | 28.0 x 10.0 x 3.0" | - 2 x Impact Air-Cushioned Light Stand (Black, 8')
| Maximum Load | 8 lb (3.6 kg) | | Leg Tip | 20 mm | | Attachment Size | 5/8" Stud with 1/4"-20 in threaded tip | | Accepts Wheels | Yes | | Air Cushioned | Yes | | Maximum Height | 96" (243.8 cm) | | Minimum Height | 34" (86.3 cm) | | Folded Height | 29.6 (75.2 cm) | | Footprint Diameter | 36" (91.4 cm) | | Weight | 2.05 lb (1 kg) | | | | Box Dimensions (LxWxH) | 29.75 x 3.2 x 3.15" |
