User manual
Angler Glamour Flash 160Ws 2-Monolight Kit

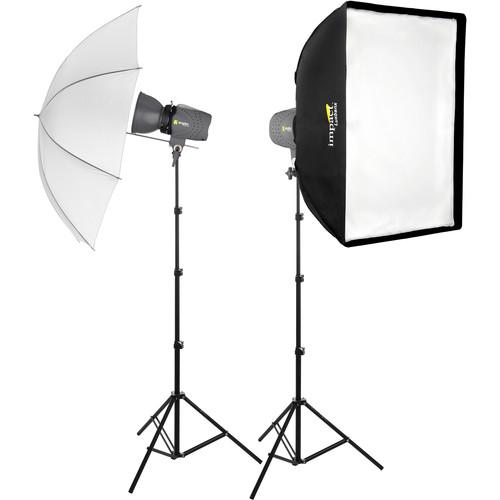

User Manual for Angler Glamour Flash 160Ws 2-Monolight Kit with Stands and Accessories

• Product category: Monolights Angler
• Brand: Angler
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Angler Monolights

Product description

• 2 x Angler Glamour Flash 160Ws Monolight The Glamour Flash 160Ws Monolight from Angler combines affordability with dependable basic functionality. Power is adjustable from 1/16 to Full power over four stops via touchpad buttons. Settings are displayed on the large LED screen. The 60W modeling lamp can be set from full power for maximum visibility to Proportional to simulate power adjustments to enable previewing of your shot. Recycling is a fast 2 seconds and far shorter at reduced power settings. The Glamour Flash has an industry standard 5/8" receiver that mounts to a wide variety of light stands while the housing is rubber-coated to provide a grippy surface and protection from impact damage. The flash head can be triggered with the head's test button, a built-in wireless optical slave or with the included sync cord. The Glamour Flash comes with a user-replaceable flash tube, power cord, 60W modeling lamp, 7" grid reflector and a protective cap.
  LED Screen
  • Highly visible LED screen makes the power setting adjustment easy even in dim light
  Adjustable Power
  • Power is adjustable from over 4 stops from 1/16 to Full power
  Touchpad Control
  • Easy to use touch pad instead of switches
  Modeling Lamp
  • Full on mode can be adjusted to proportional mode that automatically matches the flash power so you can preview your lighting
  Auto Dump
  • Flash automatically drains capacitors for accurate exposures when lowering the power
  Rubber Coating
  • Provides a grippy surface and helps protect the flash from impact damage
  Optical Slave
  • Good for multi-light setups, the built-in slave allows the flash to be wirelessly triggered from another flash
  Included Sync Cord
  • The 1/8" (3.5mm) mini-plug sync cord connects camera to flash or optional radio receiver
  UPC: 847628589230
• 2 x Impact Air-Cushioned Light Stand (Black, 8') This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
  Air Cushioned
  • Protects equipment from impact damage.
  Compact Design
  • Will fit easily into most location cases.
  Accepts Casters
  • Eases positioning of heavy lights.
  • Available as accessories.
  UPC: 847628012349
• Impact Luxbanx Medium Rectangular Softbox (24 x 32") The Luxbanx Medium Rectangular Softbox from Impact is an economical 24 x 32" light shaping tool for strobes that's ideal for small sets, single or dual portraits, half to three-quarter length fashion, and general product photography. The softbox features a soft white interior, removable front diffuser and removable inner baffle. The diffuser and baffle can be used together for maximum softening of the output. Removing the inner baffle will give you a more crisp light quality with higher contrast, while shedding the front and inner diffusers turns the Luxbanx into a large reflector with maximum brightness and contrast. The versatile Luxbanx has an additional control via an optional fabric grid which mounts to the recessed lip of the softbox with touch-fasteners. The grid narrows and concentrates the light's beam forward, controlling spill and adding directional control to the Luxbanx's attributes. Every Luxbanx comes with a carrying case and a spare Flex Rod. Separate purchase of a speed ring that matches your strobe's mount is required for use. Impact makes models to fit most popular brands. UPC: 847628561892
• Impact Speed Ring for Impact, Bowens S, Westcott & Aputure The Speed Ring for Impact, Bowens S, Westcott & Aputure from Impact features indexed flex rod holes that allow you to effortlessly mount any square, rectangular, strip, or octagonal Luxbanx softbox to Impact, Bowens S, Westcott, and Aputure heads. The ring will also fit most other brands of softbox. The sturdy all-metal ring rotates 360 degrees to facilitate orientation or to clear obstacles in tight quarters. It has 3/8"-16 taps on two sides to allow mounting directly to grip gear such as Impact's Swivel Umbrella Adapter, 3 Section Double Articulated Arm, Super Clamp, and more. UPC: 847628003309
• Impact White Translucent Umbrella (43") Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.This Impact 43" White Translucent Umbrella is suggested for use in mid-length portraits for one or two persons. UPC: 847628013292

• 2 x Glamour Flash 160Ws Monolight dyrauytx
• Modeling Light (60W)
• Grid Reflector (7")
• Mini to PC Sync Cord
• Protective Cap
• User Manual
• Limited 1-Year Warranty

• 2 x Impact - Air-Cushioned Light Stand (Black, 8') dyrauytx

• Impact - Luxbanx Medium Rectangular Softbox (24 x 32")

• Impact - Speed Ring for Impact, Bowens S, Westcott & Aputure

• Impact - Umbrella - White Translucent (43")

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Angler Glamour Flash 160Ws Monolight

  Maximum Power	160 Ws
  Power Control	4 Stops in 1/10-Stop Increments
  Guide Number	131.2' / 40 m at 6.56' / 2 m, ISO100 with Reflector
  Flash Duration	1/2000 to 1/1000 Sec
  Recycle Time	2 Sec (Full Power)
  Color Temperature	5600K ± 200K
  Flash Ready Indicator	Audio, Visual
  Reflector	Changeable
  Accessory Fitting Type	Bowens S Type

  Type	Tungsten
  Wattage	60 W
  Control Modes	Full On, Proportional

  Sync Type	Button, Cable, Optical
  Sync Voltage	4.3 V

  AC Input Voltage	110to120 VAC, 60 Hz
  Circuit Protection	Fuse
  Fuse	6 A

  Display	None
  Mount	5/8" / 16 mm Receptacle
  Auto Dump	Yes
  Fan Cooled	No
  Dimensions	H: 8.4 x W: 6.1 x L: 11.6" / H: 21.3 x W: 15.5 x L: 29.5 cm, Including Reflector H: 8.4 x W: 5.2 x L: 11.6" / H: 21.3 x W: 13.2 x L: 29.5 cm, Including Cap
  Weight	3.5 lb / 1.58 kg

  Box Dimensions (LxWxH)	21.7 x 10.5 x 6.8"

• 2 x Impact Air-Cushioned Light Stand (Black, 8')

  Maximum Load	8 lb (3.6 kg)
  Leg Tip	20 mm
  Attachment Size	5/8" Stud with 1/4"-20 in threaded tip
  Accepts Wheels	Yes
  Air Cushioned	Yes
  Maximum Height	96" (243.8 cm)
  Minimum Height	34" (86.3 cm)
  Folded Height	29.6 (75.2 cm)
  Footprint Diameter	36" (91.4 cm)
  Weight	2.05 lb (1 kg)

  Box Dimensions (LxWxH)	29.75 x 3.2 x 3.15"

• Impact Luxbanx Medium Rectangular Softbox (24 x 32")

  Shape	Rectangular
  Interior	White
  Requires Speed Ring	Yes, Not Included
  Accepts Grids	Yes
  Maximum Wattage	250 W
  Removable Front Face	Yes
  Removable Interior Baffle	Yes
  Rectangular Dimensions	W: 24.0 x H: 32.0 x D: 20.0" / W: 61.0 x H: 81.3 x D: 50.8 cm
  Weight	2 lb / 907 g

  Box Dimensions (LxWxH)	26.0 x 11.0 x 1.0"

• Impact Speed Ring for Impact, Bowens S, Westcott & Aputure

  Compatible Lighting	Aputure Bowens S Mount Impact Wescott
  Compatible Softbox Shape	Strip
  Number of Mounting Holes	10
  Material	Aluminum

  Box Dimensions (LxWxH)	7.95 x 7.85 x 2.45"

• Impact White Translucent Umbrella (43")

  Size	43.0" / 109.2 cm
  Interior	White (Translucent)
  Shaft Diameter	8 mm
  Folded Size	L: 28.3" / L: 71.8 cm

  Box Dimensions (LxWxH)	29.0 x 2.7 x 1.65"
