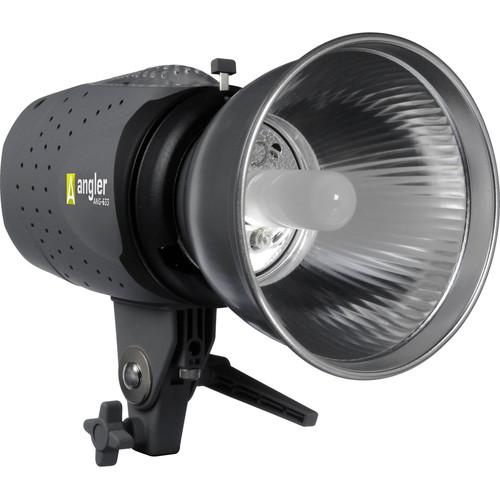

User Manual for Angler Glamour Flash 300Ws Monolight Click to enlarge the picture
Contents of the user manual for the Angler Glamour Flash 300Ws Monolight
- Product category: Monolights Angler
- Brand: Angler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Angler Monolights
 |
User manual for the Angler Glamour Flash 300Ws Monolight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Angler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Angler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Angler product will considerably shorten its lifespan!
|

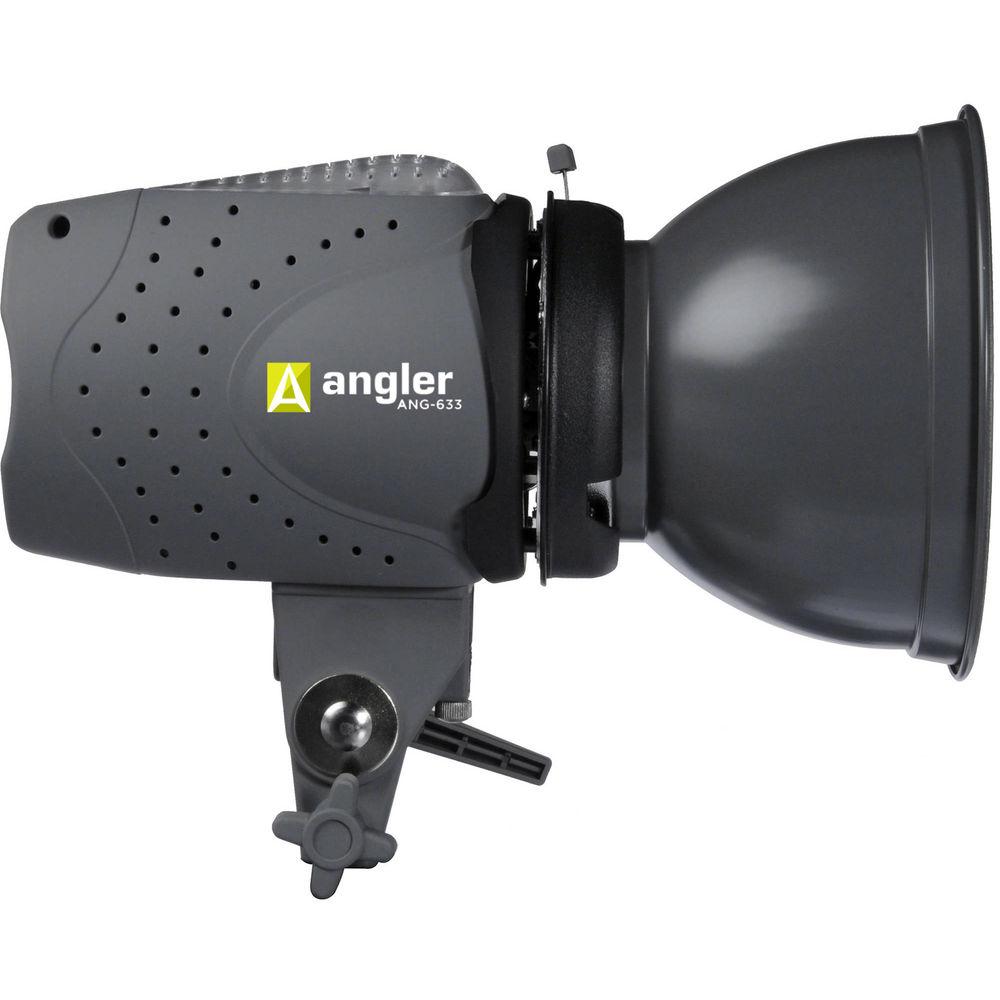

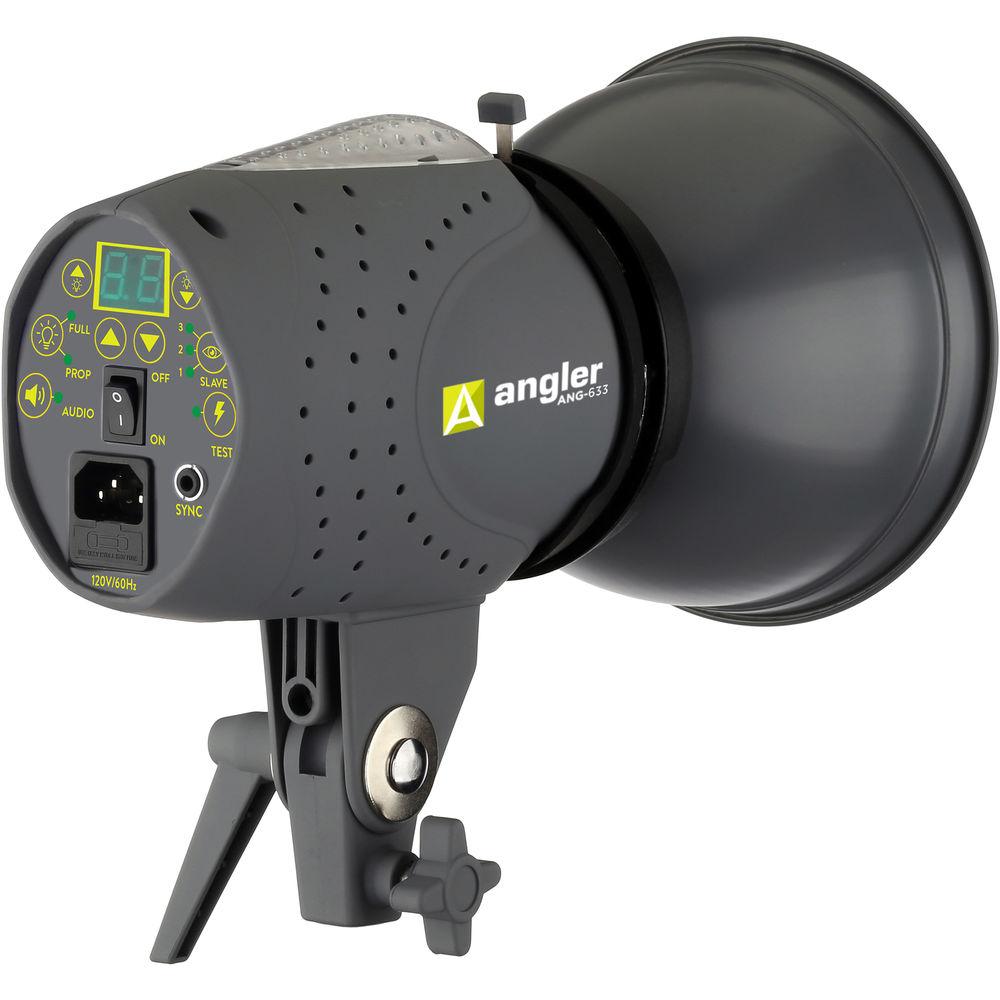

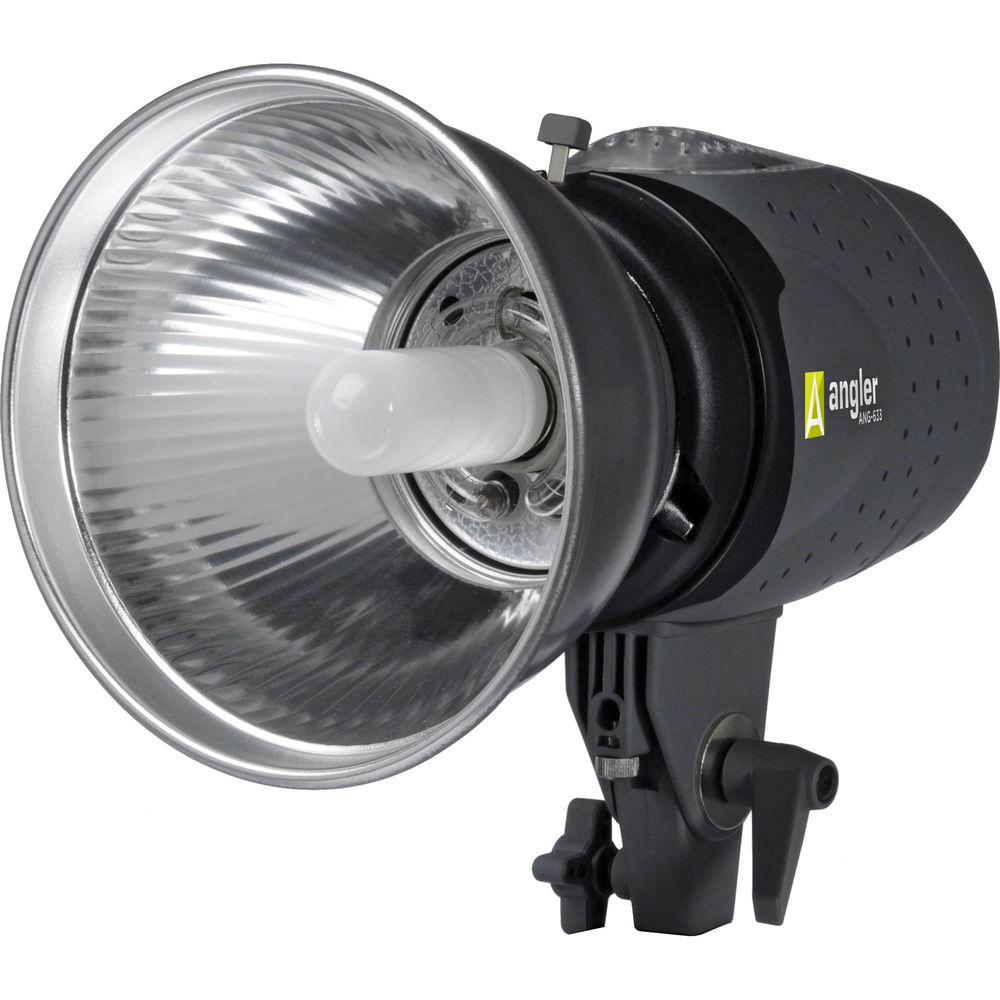

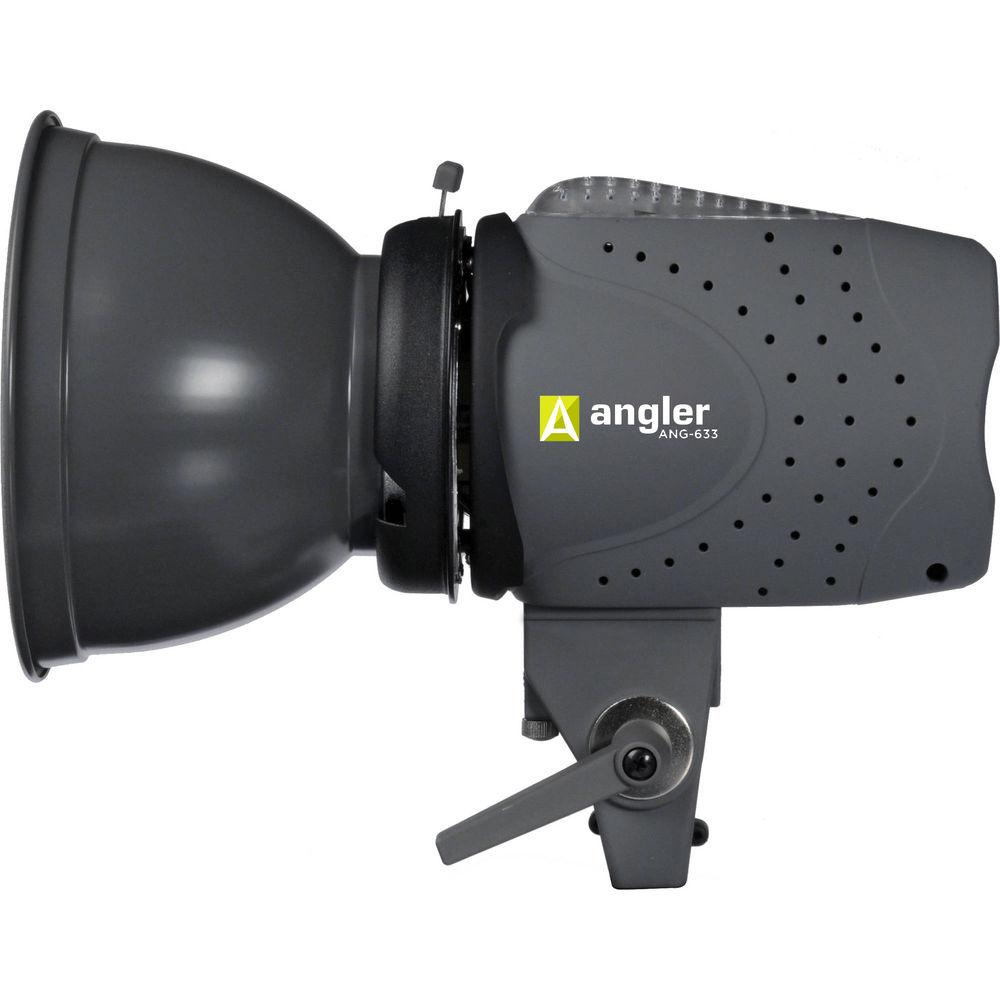

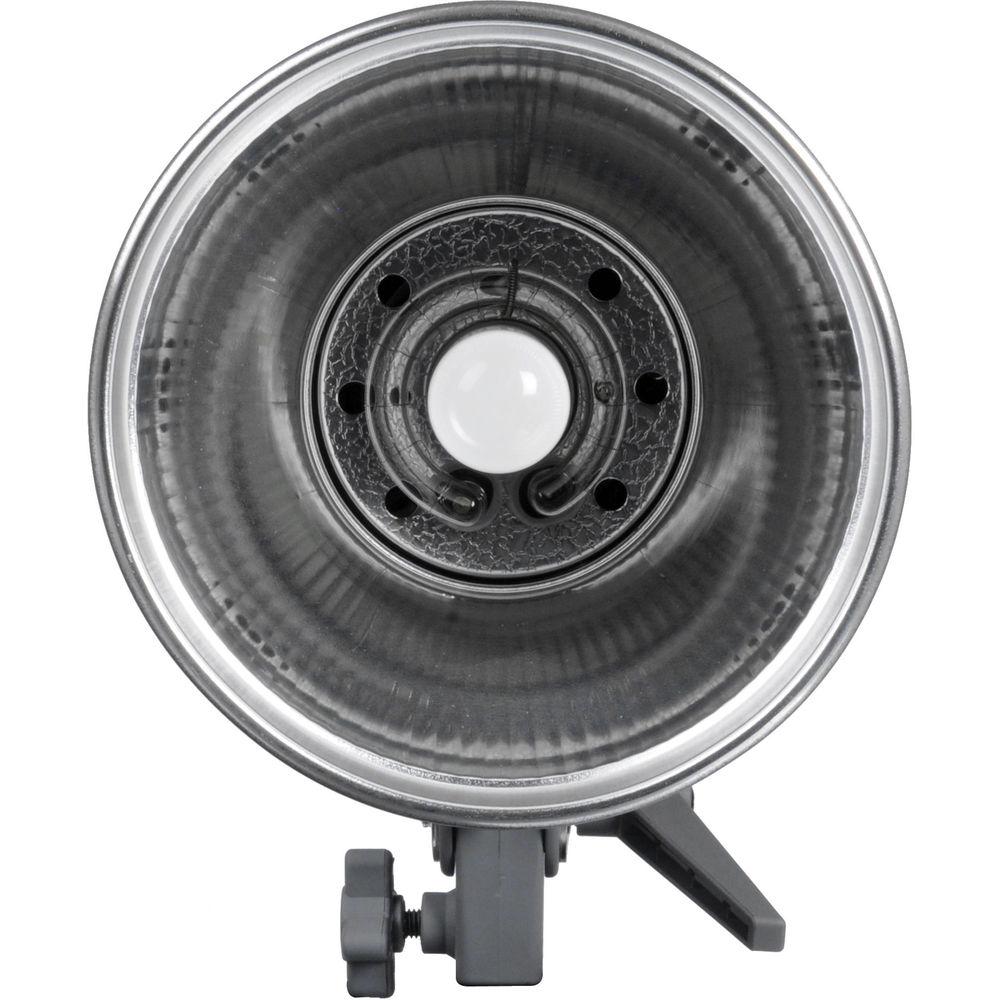

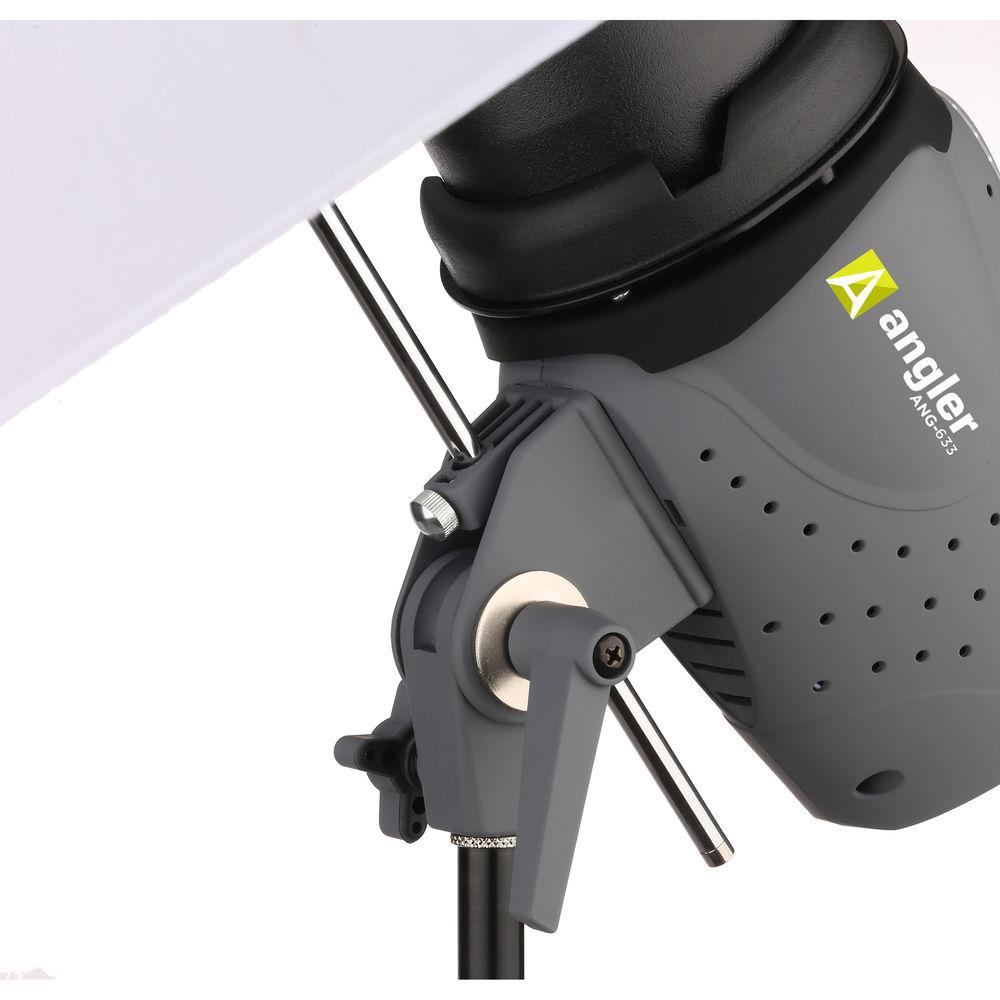

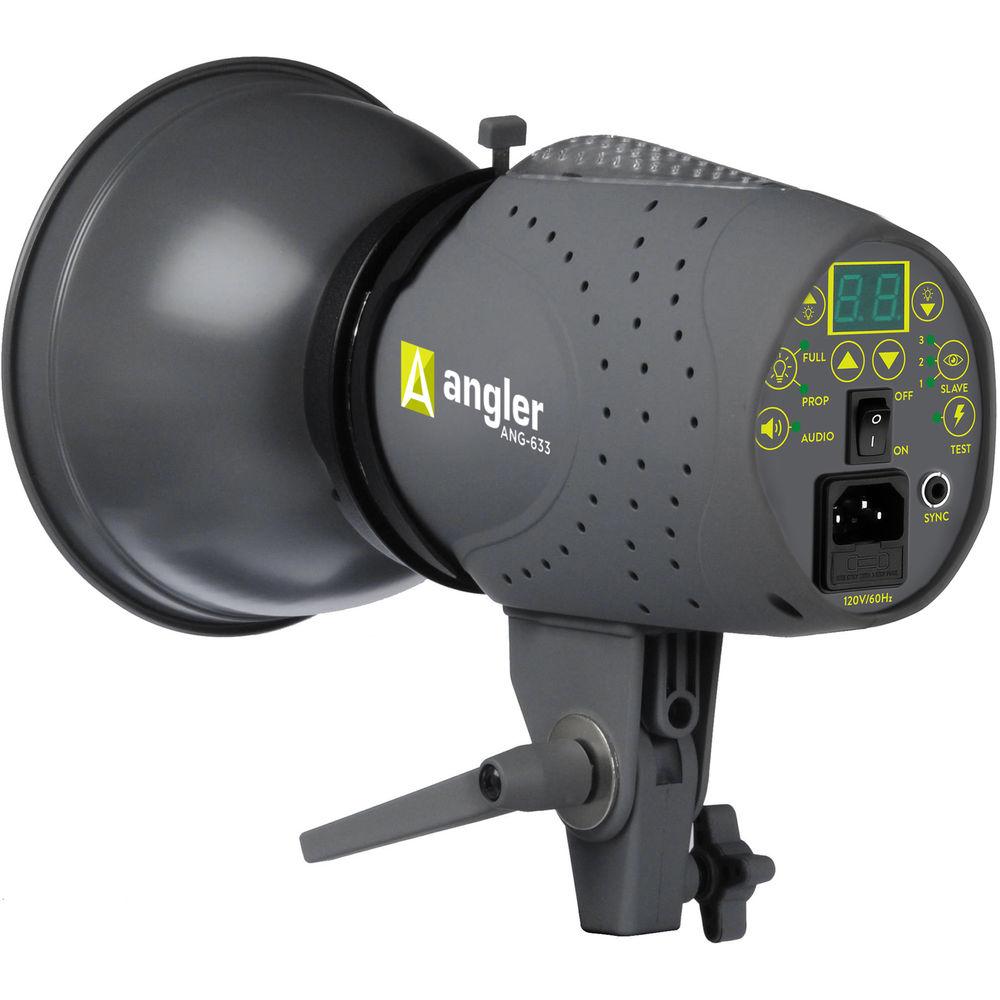

Product description The Glamour Flash 300Ws Monolight from Angler combines affordability with dependable basic functionality. Power is adjustable from 1/16 to Full power over four stops via touchpad buttons. Settings are displayed on the large LED screen. The 100W modeling lamp can be set from full power for maximum visibility to Proportional to simulate power adjustments to enable previewing of your shot. Recycling is a fast 2 seconds and far shorter at reduced power settings. The Glamour Flash has an industry standard 5/8" receiver that mounts to a wide variety of light stands while the housing is rubber-coated to provide a grippy surface and protection from impact damage. The flash head can be triggered with the head's test button, a built-in wireless optical slave or with the included sync cord. The Glamour Flash comes with a user-replaceable flash tube, power cord, 100W modeling lamp, 7" grid reflector and a protective cap. - LED Screen
- Highly visible LED screen makes the power setting adjustment easy even in dim light
- Adjustable Power
- Power is adjustable from over 4 stops from 1/16 to Full power

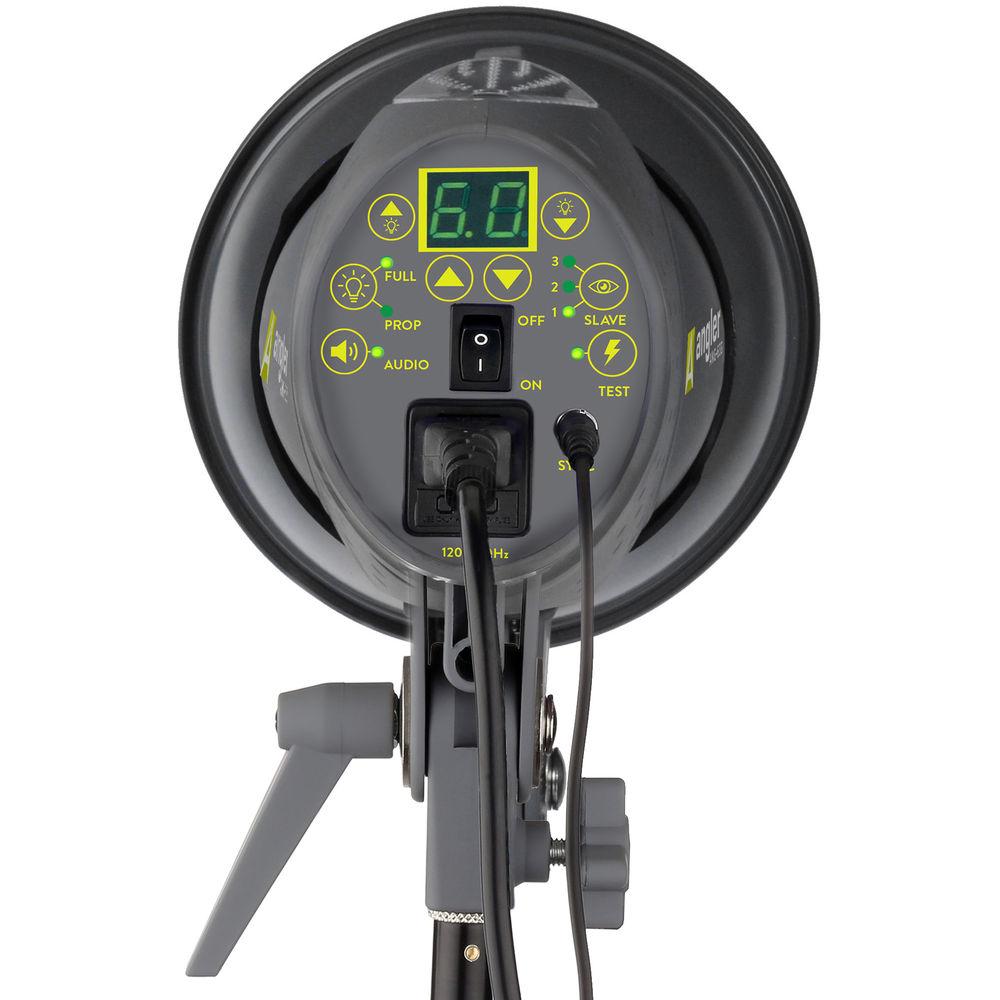

- Touchpad Control
- Easy to use touch pad instead of switches
- Modeling Lamp
- Full on mode can be adjusted to proportional mode that automatically matches the flash power so you can preview your lighting
- Auto Dump
- Flash automatically drains capacitors for accurate exposures when lowering the power
- Rubber Coating
- Provides a grippy surface and helps protect the flash from impact damage
- Optical Slave
- Good for multi-light setups, the built-in slave allows the flash to be wirelessly triggered from another flash
- Included Sync Cord
- The 1/8" (3.5mm) mini-plug sync cord connects camera to flash or optional radio receiver

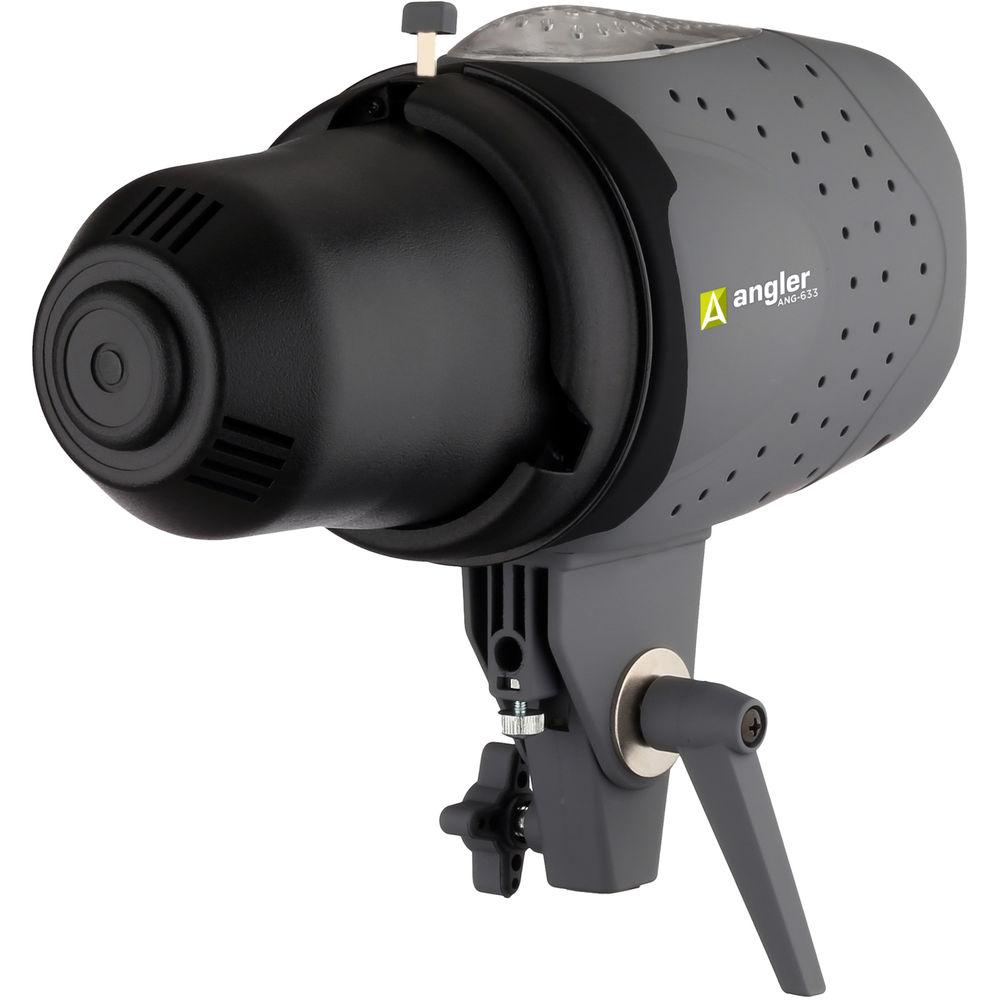

UPC: 847628589247 In the Box Angler Glamour Flash 300Ws Monolight Modeling Light (100W) Grid Reflector (7") Mini to PC Sync Cord Protective Cap User Manual Limited 1-Year Warranty User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Angler Glamour Flash 300Ws Monolight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAngler Glamour Flash 300Ws Specs | | | Maximum Power | 300 Ws | | Power Control | 4 Stops in 1/10-Stop Increments | | Guide Number | 180.4' / 55 m at 6.56' / 2 m, ISO100 with Reflector | | Flash Duration | 1/1800 to 1/800 Sec | | Recycle Time | 2 Sec (Full Power) | | Color Temperature | 5600K ± 200K | | Flash Ready Indicator | Audio, Visual | | Reflector | Changeable | | Accessory Fitting Type | Bowens S Type | | | | Type | Tungsten | | Wattage | 100 W | | Control Modes | Full On, Proportional | | | | Sync Type | Button, Cable, Optical | | Sync Voltage | 4.3 V | | | | AC Input Voltage | 110to120 VAC, 60 Hz | | Circuit Protection | Fuse | | Fuse | 6 A | | | | Display | None | | Mount | 5/8" / 16 mm Receptacle | | Auto Dump | Yes | | Fan Cooled | No | | Dimensions | H: 8.4 x W: 6.1 x L: 11.6" / H: 21.3 x W: 15.5 x L: 29.5 cm, Including Reflector
H: 8.4 x W: 5.2 x L: 11.6" / H: 21.3 x W: 13.2 x L: 29.5 cm, Including Cap | | Weight | 3.5 lb / 1.58 kg | | | | Package Weight | 7.7 lb | | Box Dimensions (LxWxH) | 21.5 x 10.5 x 6.5" |
