Product description

• 2 x Angler Glamour Flash 160Ws Monolight The Glamour Flash 160Ws Monolight from Angler combines affordability with dependable basic functionality. Power is adjustable from 1/16 to Full power over four stops via touchpad buttons. Settings are displayed on the large LED screen. The 60W modeling lamp can be set from full power for maximum visibility to Proportional to simulate power adjustments to enable previewing of your shot. Recycling is a fast 2 seconds and far shorter at reduced power settings. The Glamour Flash has an industry standard 5/8" receiver that mounts to a wide variety of light stands while the housing is rubber-coated to provide a grippy surface and protection from impact damage. The flash head can be triggered with the head's test button, a built-in wireless optical slave or with the included sync cord. The Glamour Flash comes with a user-replaceable flash tube, power cord, 60W modeling lamp, 7" grid reflector and a protective cap.
  LED Screen
  • Highly visible LED screen makes the power setting adjustment easy even in dim light
  Adjustable Power
  • Power is adjustable from over 4 stops from 1/16 to Full power
  Touchpad Control
  • Easy to use touch pad instead of switches
  Modeling Lamp
  • Full on mode can be adjusted to proportional mode that automatically matches the flash power so you can preview your lighting
  Auto Dump
  • Flash automatically drains capacitors for accurate exposures when lowering the power
  Rubber Coating
  • Provides a grippy surface and helps protect the flash from impact damage
  Optical Slave
  • Good for multi-light setups, the built-in slave allows the flash to be wirelessly triggered from another flash
  Included Sync Cord
  • The 1/8" (3.5mm) mini-plug sync cord connects camera to flash or optional radio receiver
  UPC: 847628589230
• 2 x Impact Air-Cushioned Light Stand (Black, 10') This Impact Air-Cushioned Light Stand is a black anodized aluminum support that rises to a height of 10' and folds down to 33.5" for storage and transport. The stand will handle up to 8.5 lb and is topped with a 5/8" stud with 1/4"-20 threads. It has a wide footprint of 38" for greater stability. Air cushioning gently lowers the light when making height adjustments to protect equipment and fingers.
  Air-Cushioned
  • Protects equipment and fingers from damage
  Compact Design
  • Will fit easily into most location cases
  Accepts Casters
  • For easy positioning of lights
  UPC: 847628030626
• Impact PowerSync16 Transmitter The Impact PowerSync16 Transmitter is one-half of the PowerSync16 radio slave system for triggering flash units up to 590' (180 m) away indoors, or 200' (60 m) outdoors using the AC receiver or the DC receiver (both available separately). PowerSync16 has 16 digitally coded channels available so you can even work at events with other photographers without flash or radio interference. You can trigger as many flashes or cameras as you like from this one transmitter, as long as they're all on the same frequency and have a PowerSync16 receiver. Flash sync speeds of up to 1/250 second are possible with PowerSync16. The transmitter features a hot shoe mount and can be triggered directly from the camera. In addition, a PC sync cord is included, which allows the transmitter to be positioned off-camera to be triggered via the camera's PC socket. The transmitter operates on one 3V CR2450 battery. The PowerSync system is not designed to perform in TTL mode with flash units - camera and flash must be set to Manual Mode. Note: This remote does not provide high-voltage sync protection, and is not recommended for use with flash units that have a trigger voltage of more than 6V.
  16 Reliable Channels
  • Digitally coded at 2.4 GHz for multiple set-ups; work at events with other photographers without the worry of flash or radio interference.
  Extensive Range of Reliable Performance
  • 590' (180 m) indoors; 200'+ (60+ m) outdoors. An above-average range for the most demanding situations (radio interference and low battery strength will lower your effective range).
  Fast Sync Speeds
  • Compatible with most cameras, offering a maximum sync speed of 1/250 second; allows the user to capture most studio and event scenes.
  UPC: 847628012431
• Impact PowerSync16 DC Receiver The Impact PowerSync16 DC Receiver (100-240VAC) is one-half of the PowerSync 16 radio slave system for triggering flash and camera units up to 590' (180 m) away indoors, or 200' (60 m) outdoors using the PowerSync16 Transmitter (available separately). PowerSync16 has 16 digitally coded channels available so you can even work at events with other photographers without flash or radio interference. You can trigger as many flashes or cameras as you like from a single transmitter, as long as they're all on the same frequency and have this PowerSync16 DC receiver or the optional AC receiver. Flash sync speeds of up to 1/250 second are possible with PowerSync16. Combine this receiver with a camera release cable to match your particular camera model and you can use the PowerSync16 system as a wireless camera remote control. This receiver operates on 2x AA batteries. The PowerSync system is not designed to perform in TTL mode with flash units - the flash must be set to Manual Mode. Note: This remote does not provide high-voltage sync protection, and is not recommended for use with flash units that have a trigger voltage of more than 6V.
  16 Reliable Channels
  • Digitally coded at 2.4 GHz for multiple set-ups; work at events with other photographers without the worry of flash or radio interference.
  Extensive Range of Reliable Performance
  • 590' (180 m) indoors; 200'+ (60+ m) outdoors. An above-average range for the most demanding situations (radio interference and low battery strength will lower your effective range).
  Fast Sync Speeds
  • Compatible with most cameras, offering a maximum sync speed of 1/250 second; allows the user to capture most studio and event scenes.
  Multipurpose Hot-Shoe Mount
  • This receiver is equipped with a multipurpose hot-shoe mount for use with on-camera or remote portable flash. Tests have established that the mount works with the hot-shoes of most major brands.
  Convenient Mounting
  • The receiver features a 1/4"-20 threads, for convenient mounting on any 1/4"-20 mounting screw. For added convenience, it also features an eyelet designed to accept a lanyard.
  Convert to Universal Voltage
  • By adding the optional AC adapter (Impact# 9031520) you can convert this DC unit to be used as an AC unit. Besides for eliminating the need of batteries, this will also provide you with the ease and convenience of global voltage (100-240V). With the adapter attached, the receiver utilizes current from a host flash lighting unit. Operate your receiver without the hassle of replacing batteries.
  UPC: 847628012424
• Impact 30" Convertible Umbrella This is an Impact 30" white satin umbrella with removable black backing. Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a softbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.This size is perfect for a 1 person head shot, or a 2x3 ft product setup.
  • Backing may be removed half way, providing a unique combination of light bounced from different surfaces.
  UPC: 847628013223
• Impact Speed Ring for Impact, Bowens S, Westcott & Aputure The Speed Ring for Impact, Bowens S, Westcott & Aputure from Impact features indexed flex rod holes that allow you to effortlessly mount any square, rectangular, strip, or octagonal Luxbanx softbox to Impact, Bowens S, Westcott, and Aputure heads. The ring will also fit most other brands of softbox. The sturdy all-metal ring rotates 360 degrees to facilitate orientation or to clear obstacles in tight quarters. It has 3/8"-16 taps on two sides to allow mounting directly to grip gear such as Impact's Swivel Umbrella Adapter, 3 Section Double Articulated Arm, Super Clamp, and more. UPC: 847628003309
• Impact Luxbanx Small Octagonal Softbox (36") The Luxbanx Small Octagonal Softbox from Impact is a highly versatile tool for strobes, LEDs, and fluorescents. This 36" diameter softbox is large enough to exhibit the wrap-around light quality that this octagonal shape is known for, yet small enough to use in tight spaces. The softbox features a soft white interior, removable front diffuser and removable inner baffle. The diffuser and baffle can be used together for maximum softening of the output. Removing the inner baffle will give you a more crisp light quality with higher contrast, while shedding the front and inner diffusers turns the Luxbanx into a large reflector with maximum brightness and contrast. The octa Luxbanx has an additional control via the optional fabric grid which mounts to the recessed lip of the softbox with touch-fasteners. The grid narrows and concentrates the light's beam forward, controlling spill and adding directional control to the Luxbanx's attributes. The large surface area of this octagonal-shaped softbox gives you a unique wrap-around quality of light that gains emphasis as you move it closer. Catchlights in the eyes of your subject are round and natural. Every Luxbanx comes with a carrying case and a spare Flex Rod. Separate purchase of a speed ring that matches your strobe's mount is required for use. Impact makes models to fit most popular brands. UPC: 847628564442
• Impact Background Support System - 12' Wide The Impact 12' Background Support System will support seamless paper up to 11' in width, as well as accommodate the 12' width of any brand of muslin background. Total weight distributed across the length of the crossbar should not exceed 20 lb. The system consists of 2 heavy-duty professional support stands with 3 positive locking knobs and tubular legs, a sturdy 4 piece crossbar that snaps together with positive button locking devices, and a heavy-duty canvas carry bag.It is suggested to secure the stands with gaffer tape, or weight bags when using any background setup where there are several people, or active children on the set.
  • Strong support for paper, or cloth backgrounds.
  • Crossbar may be used by combining some, or all the sections.
  UPC: 847628010772
• Impact Muslin Background - 10 x 12' (Black) This Impact Muslin Background is great for both studio and location work. Made from quality muslin, muslin backgrounds, available in a variety of colors, can transpose a simple portrait into a real serious image. Note: Colors depicted may vary slightly, due to differences in computer monitors, printed media, and variances in manufacturer's dyes or paints UPC: 847628010611

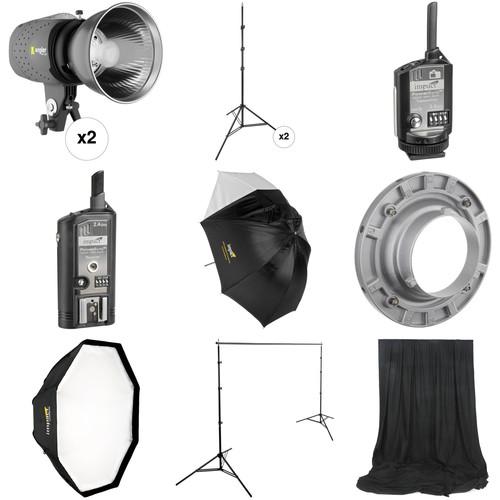

• 2 x Glamour Flash 160Ws Monolight dqxytwcxrswffbwctaaedqfuyzveyt
• Modeling Light (60W)
• Grid Reflector (7")
• Mini to PC Sync Cord
• Protective Cap
• User Manual
• Limited 1-Year Warranty

• 2 x Impact - Air-Cushioned Light Stand (Black, 10')

• Impact - PowerSync16 Transmitter

• Impact - PowerSync16 DC Receiver

• Impact - Convertible Umbrella - White Satin with Removable Black Backing - 30"

• Impact - Speed Ring for Impact, Bowens S, Westcott & Aputure

• Impact - Luxbanx Small Octagonal Softbox (36")

• Impact - Background Support System - 12' Wide

• Impact - Muslin Background - 10 x 12' (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 2 x Angler Glamour Flash 160Ws Monolight

  Maximum Power	160 Ws
  Power Control	4 Stops in 1/10-Stop Increments
  Guide Number	131.2' / 40 m at 6.56' / 2 m, ISO100 with Reflector
  Flash Duration	1/2000 to 1/1000 Sec
  Recycle Time	2 Sec (Full Power)
  Color Temperature	5600K ± 200K
  Flash Ready Indicator	Audio, Visual
  Reflector	Changeable
  Accessory Fitting Type	Bowens S Type

  Type	Tungsten
  Wattage	60 W
  Control Modes	Full On, Proportional

  Sync Type	Button, Cable, Optical
  Sync Voltage	4.3 V

  AC Input Voltage	110to120 VAC, 60 Hz
  Circuit Protection	Fuse
  Fuse	6 A

  Display	None
  Mount	5/8" / 16 mm Receptacle
  Auto Dump	Yes
  Fan Cooled	No
  Dimensions	H: 8.4 x W: 6.1 x L: 11.6" / H: 21.3 x W: 15.5 x L: 29.5 cm, Including Reflector H: 8.4 x W: 5.2 x L: 11.6" / H: 21.3 x W: 13.2 x L: 29.5 cm, Including Cap
  Weight	3.5 lb / 1.58 kg

  Box Dimensions (LxWxH)	21.7 x 10.5 x 6.8"

• 2 x Impact Air-Cushioned Light Stand (Black, 10')

  Maximum Load	8.5 lb (3.8 kg)
  Maximum Height	121.5" (308.6 cm)
  Minimum Height	40.5" (102.9 cm)
  Closed Length	33.5" (85 cm)
  Footprint Diameter	38" (96.5 cm)
  Leg Tip	0.8" (20 mm)
  Attachment Size	5/8" (16 mm) stud with 1/4"-20 male threads
  Accepts Wheels	Yes, casters
  Air Cushioned	Yes
  Weight	2.4 lb (1.1 kg)

  Box Dimensions (LxWxH)	34.0 x 3.0 x 3.0"

• Impact PowerSync16 Transmitter

  Channels	16
  Wireless Range	200 to 590' / 60 to 180 m
  Radio Frequency	2.4 GHz

  Sync Speed	1/250 Sec

  Ports	1 x 2.5 mm (Flash)

  Battery Type	1 x CR2450

  Dimensions	1.2 x 1 x 3.2" / 31 x 26 x 80 mm (Transmitter)

  Box Dimensions (LxWxH)	4.6 x 3.8 x 1.35"

• Impact PowerSync16 DC Receiver

  Channels	16
  Wireless Range	200 to 590' / 60 to 180 m
  Radio Frequency	2.4 GHz

  Sync Speed	1/250 Sec

  Ports	1 x 3.5 mm (Flash)

  Bottom Mount	1/4"-20 Thread
  Top Mount	Hot Shoe

  Battery Type	2 x AA

  Dimensions	1.7 x 1 x 4.3" / 43 x 25 x 110 mm (Receiver)
  Weight	1.7 oz / 49 g

  Box Dimensions (LxWxH)	5.75 x 5.1 x 1.5"

• Impact 30" Convertible Umbrella

  Size	30.0" / 76.2 cm
  Interior	White
  Exterior	Black
  Shaft Diameter	8 mm
  Folded Size	L: 20.5" / L: 52.0 cm

  Box Dimensions (LxWxH)	21.5 x 2.0 x 1.0"

• Impact Speed Ring for Impact, Bowens S, Westcott & Aputure

  Compatible Lighting	Aputure Bowens S Mount Impact Wescott
  Compatible Softbox Shape	Strip
  Number of Mounting Holes	10
  Material	Aluminum

  Box Dimensions (LxWxH)	7.95 x 7.85 x 2.45"

• Impact Luxbanx Small Octagonal Softbox (36")

  Shape	Octagon
  Interior	White
  Requires Speed Ring	Yes, Not Included
  Accepts Grids	Yes
  Maximum Wattage	250 W
  Removable Front Face	Yes
  Removable Interior Baffle	Yes
