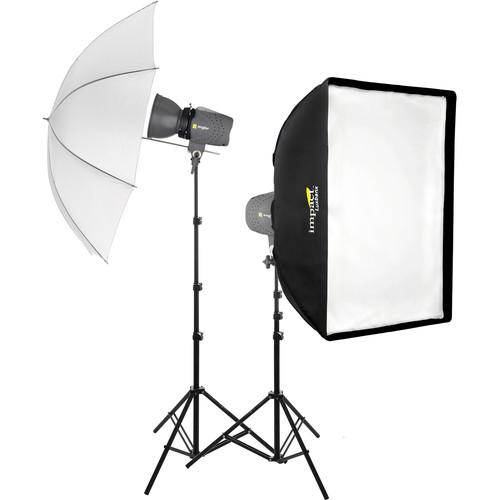

User Manual for Angler Two Monolight Umbrella and Softbox Kit Click to enlarge the picture
Contents of the user manual for the Angler Two Monolight Umbrella and Softbox
- Product category: Monolights Angler
- Brand: Angler
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Angler Monolights
|
User manual for the Angler Two Monolight Umbrella and Softbox contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Angler product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Angler user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Angler product will considerably shorten its lifespan!
|
Product description has put together this Angler Two Monolight Umbrella and Softbox Kit for photographers who require a core kit with a soft quality of light and manageable contrast for portraiture, fashion or product work. The kit contains two 300Ws Angler Glamour Flash Monolights, each with a 7" grid reflector and an 8' air-cushioned light stand. The kit's soft light modifiers include a 24 x 32" softbox with speed ring, and a 43" White Translucent Umbrella. - 2 x Angler Glamour Flash 300Ws Monolight The Glamour Flash 300Ws Monolight from Angler combines affordability with dependable basic functionality. Power is adjustable from 1/16 to Full power over four stops via touchpad buttons. Settings are displayed on the large LED screen. The 100W modeling lamp can be set from full power for maximum visibility to Proportional to simulate power adjustments to enable previewing of your shot. Recycling is a fast 2 seconds and far shorter at reduced power settings. The Glamour Flash has an industry standard 5/8" receiver that mounts to a wide variety of light stands while the housing is rubber-coated to provide a grippy surface and protection from impact damage. The flash head can be triggered with the head's test button, a built-in wireless optical slave or with the included sync cord. The Glamour Flash comes with a user-replaceable flash tube, power cord, 100W modeling lamp, 7" grid reflector and a protective cap.
- LED Screen
- Highly visible LED screen makes the power setting adjustment easy even in dim light
- Adjustable Power
- Power is adjustable from over 4 stops from 1/16 to Full power
- Touchpad Control
- Easy to use touch pad instead of switches
- Modeling Lamp
- Full on mode can be adjusted to proportional mode that automatically matches the flash power so you can preview your lighting
- Auto Dump
- Flash automatically drains capacitors for accurate exposures when lowering the power
- Rubber Coating
- Provides a grippy surface and helps protect the flash from impact damage
- Optical Slave
- Good for multi-light setups, the built-in slave allows the flash to be wirelessly triggered from another flash
- Included Sync Cord
- The 1/8" (3.5mm) mini-plug sync cord connects camera to flash or optional radio receiver
UPC: 847628589247 - Impact White Translucent Umbrella (43") Umbrellas soften, broaden, and diminish the light output of any flash light source. Umbrellas with a white interior will soften and weaken light more than an umbrella with a silver lining. A white umbrella without a black backing may also be used as a makeshift softbox, although the use of the light will not be as efficient as with a lightbox.Choosing umbrella size is determined by the size of the subject, and the strength of the light supply being used. Choosing an umbrella surface is as subjective as choosing a paint and brush.This Impact 43" White Translucent Umbrella is suggested for use in mid-length portraits for one or two persons. UPC: 847628013292
- Impact Luxbanx Medium Rectangular Softbox (24 x 32") The Luxbanx Medium Rectangular Softbox from Impact is an economical 24 x 32" light shaping tool for strobes that's ideal for small sets, single or dual portraits, half to three-quarter length fashion, and general product photography. The softbox features a soft white interior, removable front diffuser and removable inner baffle. The diffuser and baffle can be used together for maximum softening of the output. Removing the inner baffle will give you a more crisp light quality with higher contrast, while shedding the front and inner diffusers turns the Luxbanx into a large reflector with maximum brightness and contrast. The versatile Luxbanx has an additional control via an optional fabric grid which mounts to the recessed lip of the softbox with touch-fasteners. The grid narrows and concentrates the light's beam forward, controlling spill and adding directional control to the Luxbanx's attributes. Every Luxbanx comes with a carrying case and a spare Flex Rod. Separate purchase of a speed ring that matches your strobe's mount is required for use. Impact makes models to fit most popular brands. UPC: 847628561892
- Angler Speed Ring for Bowens S, Impact, Westcott, and Aputure The Speed Ring for Bowens S, Impact, Westcott Strobes, and Aputure Lights from Angler features indexed flex rod holes that allow you to effortlessly mount any square, rectangular, strip, or octagonal Luxbanx softbox to Impact, Bowens S, Westcott, and Aputure heads. The ring will also fit most other brands of softbox. The sturdy all-metal ring rotates 360 degrees to facilitate orientation or to clear obstacles in tight quarters. It has 3/8"-16 taps on two sides to allow mounting directly to grip gear such as Impact's Swivel Umbrella Adapter, 3 Section Double Articulated Arm, Super Clamp, and more. UPC: 847628008588
- 2 x Impact Air-Cushioned Light Stand (Black, 8') This aluminum Impact Air-Cushioned Light Stand rises to a height of 8' and folds down to 29.6". The stand has sure-twist section locks and 4 sections and will support up to 8 lb. If you forget to tighten any section with your light mounted, the light slowly descends, thanks to the air-cushioned action. This useful feature saves equipment and fingers from harm during busy photo sessions.
- Air Cushioned
- Protects equipment from impact damage.
- Compact Design
- Will fit easily into most location cases.
- Accepts Casters
-
- Eases positioning of heavy lights.
- Available as accessories.
UPC: 847628012349 In the Box - 2 x Glamour Flash 300Ws Monolight ruaxdytqxz
- Modeling Light (100W)
- Grid Reflector (7")
- Mini to PC Sync Cord
- Protective Cap
- User Manual
- Limited 1-Year Warranty
- Impact - Umbrella - White Translucent (43")
- Impact - Luxbanx Medium Rectangular Softbox (24 x 32")
- Speed Ring for Bowens S, Impact, Westcott, and Aputure
- 2 x Impact - Air-Cushioned Light Stand (Black, 8')
Table of Contents
|
Upload User Manual
Have you got an user manual for the Angler Two Monolight Umbrella and Softbox Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2 x Angler Glamour Flash 300Ws Monolight
| Maximum Power | 300 Ws | Power Control | 4 Stops in 1/10-Stop Increments | Guide Number | 180.4' / 55 m at 6.56' / 2 m, ISO100 with Reflector | Flash Duration | 1/1800 to 1/800 Sec | Recycle Time | 2 Sec (Full Power) | Color Temperature | 5600K ± 200K | Flash Ready Indicator | Audio, Visual | Reflector | Changeable | Accessory Fitting Type | Bowens S Type | | Type | Tungsten | Wattage | 100 W | Control Modes | Full On, Proportional | | Sync Type | Button, Cable, Optical | Sync Voltage | 4.3 V | | AC Input Voltage | 110to120 VAC, 60 Hz | Circuit Protection | Fuse | Fuse | 6 A | | Display | None | Mount | 5/8" / 16 mm Receptacle | Auto Dump | Yes | Fan Cooled | No | Dimensions | H: 8.4 x W: 6.1 x L: 11.6" / H: 21.3 x W: 15.5 x L: 29.5 cm, Including Reflector H: 8.4 x W: 5.2 x L: 11.6" / H: 21.3 x W: 13.2 x L: 29.5 cm, Including Cap | Weight | 3.5 lb / 1.58 kg | | Box Dimensions (LxWxH) | 21.5 x 10.5 x 6.5" | - Impact White Translucent Umbrella (43")
Size | 43.0" / 109.2 cm | Interior | White (Translucent) | Shaft Diameter | 8 mm | Folded Size | L: 28.3" / L: 71.8 cm | | Box Dimensions (LxWxH) | 29.0 x 2.7 x 1.65" | - Impact Luxbanx Medium Rectangular Softbox (24 x 32")
Shape | Rectangular | Interior | White | Requires Speed Ring | Yes, Not Included | Accepts Grids | Yes | Maximum Wattage | 250 W | Removable Front Face | Yes | Removable Interior Baffle | Yes | Rectangular Dimensions | W: 24.0 x H: 32.0 x D: 20.0" / W: 61.0 x H: 81.3 x D: 50.8 cm | Weight | 2 lb / 907 g | | Box Dimensions (LxWxH) | 26.0 x 11.0 x 1.0" | - Angler Speed Ring for Bowens S, Impact, Westcott, and Aputure
Compatible Lighting | Bowens S Mount | Compatible Softbox Shape | Strip | Number of Mounting Holes | 10 | Material | Aluminum | Weight | 1.1 lb / 0.5 kg | | Box Dimensions (LxWxH) | 8.0 x 7.85 x 2.35" | - 2 x Impact Air-Cushioned Light Stand (Black, 8')
Maximum Load | 8 lb (3.6 kg) | Leg Tip | 20 mm | Attachment Size | 5/8" Stud with 1/4"-20 in threaded tip | Accepts Wheels | Yes | Air Cushioned | Yes | Maximum Height | 96" (243.8 cm) | Minimum Height | 34" (86.3 cm) | Folded Height | 29.6 (75.2 cm) | Footprint Diameter | 36" (91.4 cm) | Weight | 2.05 lb (1 kg) | | Box Dimensions (LxWxH) | 29.75 x 3.2 x 3.15" |
