User Manual for Ansmann Energy 8 Plus Charger and maxE PRO AA NiMH Battery Kit Click to enlarge the picture
Contents of the user manual for the Ansmann Energy 8 Plus Charger and
- Product category: Universal Batteries & Chargers Ansmann
- Brand: Ansmann
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Ansmann Universal Batteries & Chargers
 |
User manual for the Ansmann Energy 8 Plus Charger and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Ansmann product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Ansmann user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Ansmann product will considerably shorten its lifespan!
|

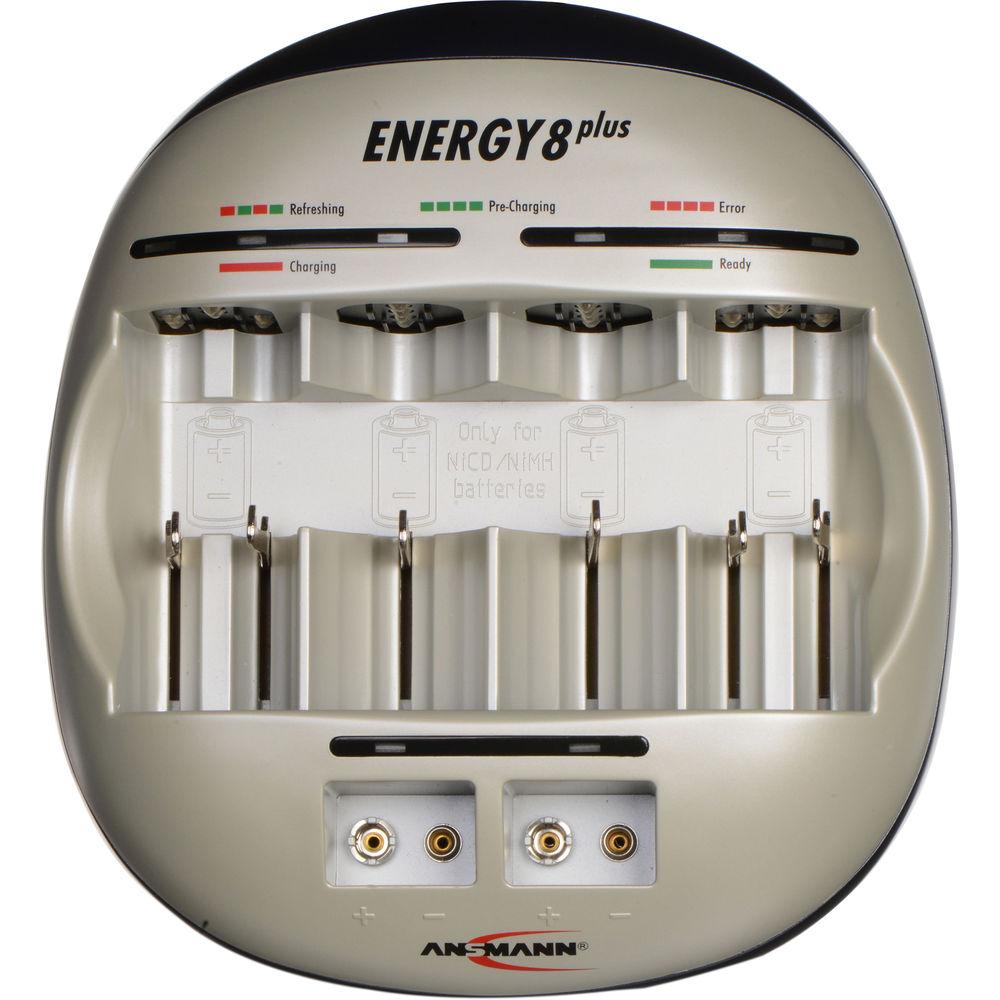

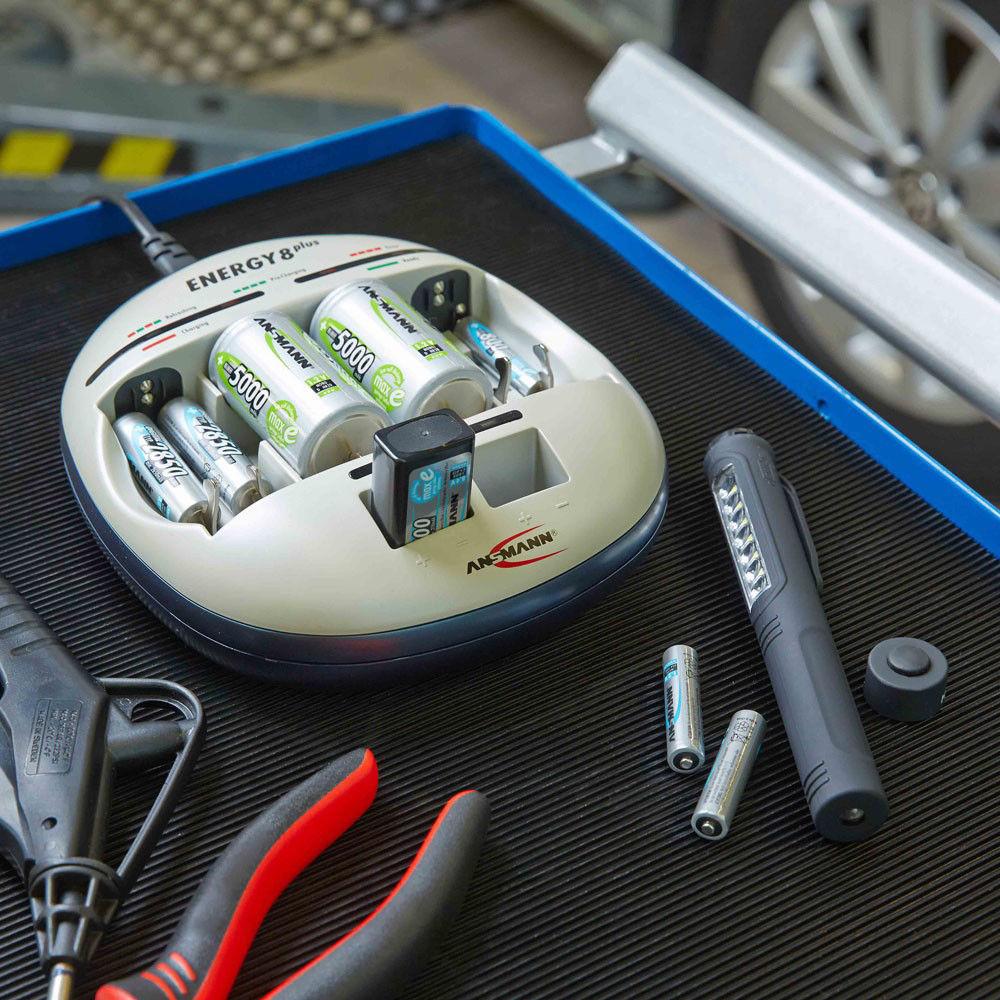

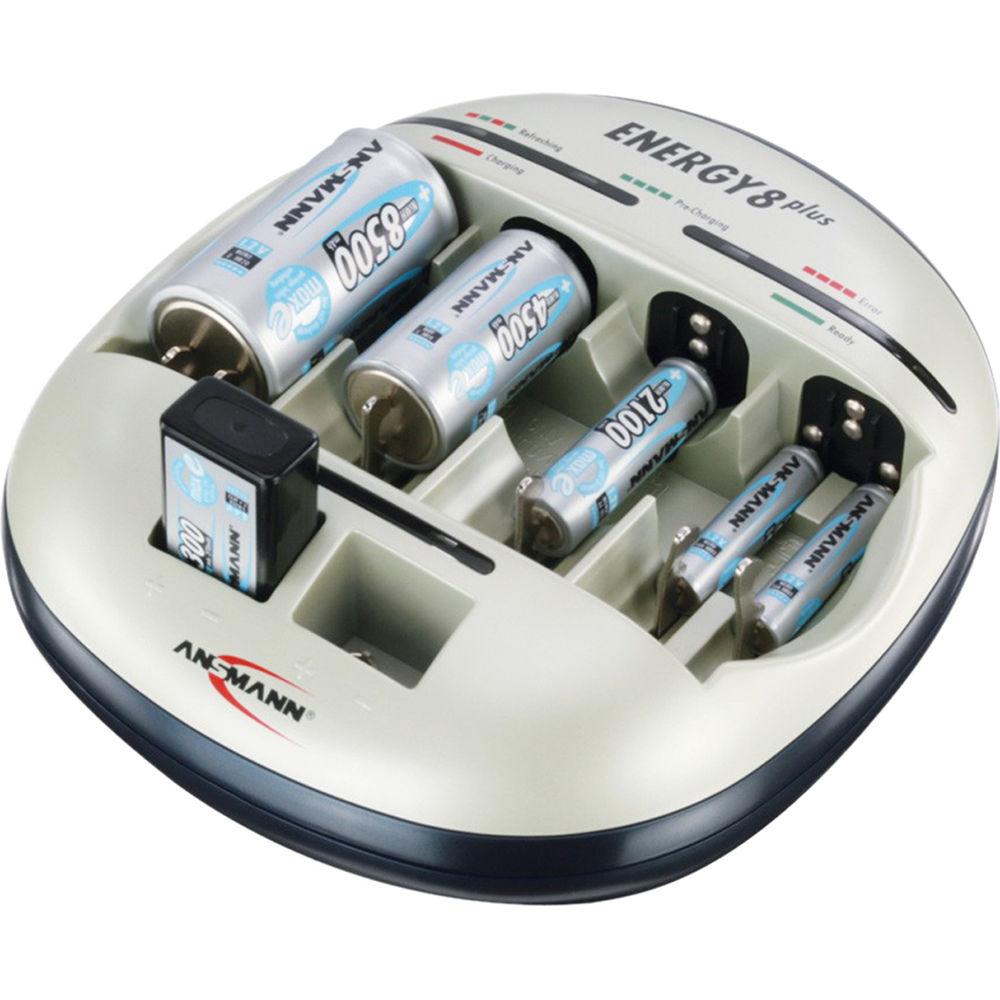

Product description Power a wide range of electronic devices, and replenish that power when you need to, with the Energy 8 Plus Charger and maxE PRO AA NiMH Battery Kit from Ansmann. This bundle combines the 100-240 VAC, microprocessor-controlled charger with 4 maxE Pro rechargeable AA NiMH cells, each of which has 1.2V of output power, a 1900-2000mAh capacity, and a 2.28-2.4Wh rating. - Energy 8 Plus Battery Charger (100-240V) The Energy-8 Desktop Charger from Ansmann is suitable for NiCd and NiMH rechargeable batteries where each cell is charged independently. It can handle 1-6 AAA or AA cells, 1-4 C or D cells in addition to 1- 2 9V E-block batteries. You can also charge different size batteries at the same time. The unit features an auto-diagnosis system of the inserted cells with automatic start of a refreshing process and/or pre-charging process. Over charge protection is provided in addition to a faulty cell detection system. You can full or trickle charge your batteries as desired. The unit is dual voltage and can be used worldwide.
- Charges all NiCd/NiMH cells - AAA, AA, C, D, 9V
- Charging currents: 1000mA for AA, C and D cells, 400mA for AAA cells and 60mA for 9V blocks
- Individual supervision of each cell position
- Auto-diagnosis of the inserted cells with automatic start of a refreshing process and/or pre-charging process, if required
- Alkaline battery detection
- Switch mode power supply for worldwide use (100-240V wide range input)
- Damaged cells will be detected and discharged before fast charging
- Progress indicator lights for each cell
- Automatically switches to trickle charge as each cells reaches full charge

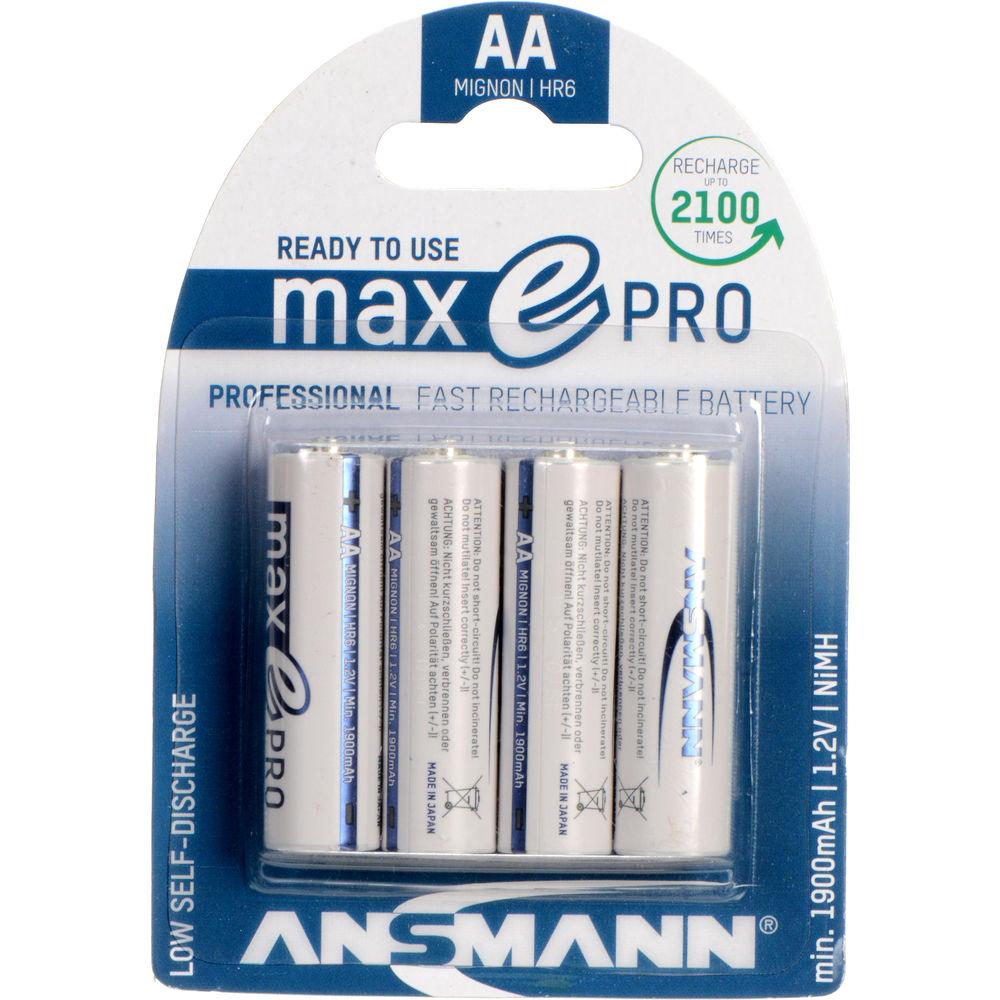

- Rechargeable maxE PRO AA NiMH Batteries (1.2V, 2000mAh, 4-Pack) Power digital cameras, video game controllers, flashlights, and many more portable electronics with this 4-pack of 1.2V Rechargeable maxE PRO AA NiMH Batteries from Ansmann. Each has a capacity of 2000mAh and comes pre-charged. Additionally, the batteries are virtually free of memory effect, so the full capacity will continue to be usable after each charge cycle.
The maxE PRO AAs can be charged safely at a high current, which significantly speeds up the charging process. Thanks to a separator that greatly reduces unwanted internal current flow, the cells have a very low self-discharge rate that is just a tenth of the rate seen in many other NiMH batteries. As a result, they will still hold about 80% of their initial charge after a year in storage. In the Box Bundle Items Energy 8 Plus Battery Charger (100-240V) Rechargeable maxE PRO AA NiMH Batteries (1.2V, 2000mAh, 4-Pack) Table of Contents
|
Upload User Manual
Have you got an user manual for the Ansmann Energy 8 Plus Charger and maxE PRO AA NiMH Battery Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Energy 8 Plus Battery Charger (100-240V)
| Chemistry | NiCd, NiMH | | Capacity | - 1-6 AAA or AA cells
- 1-4 C or D cells
- 1- 2 9V
| | Output Voltage | Not Specified by Manufacturer | | Dimensions | Not Specified by Manufacturer | | Weight | Not Specified by Manufacturer | | | | Box Dimensions (LxWxH) | 10.4 x 7.9 x 2.9" | - Rechargeable maxE PRO AA NiMH Batteries (1.2V, 2000mAh, 4-Pack)
| | | Battery Type | 4 x AA | | Battery Chemistry | NiMH | | Battery Voltage | 1.2 V | | Capacity (mAh) | 2000 mAh | | Maximum Recharge Cycles | 2100 | | | | Operating Temperature | -4 to 122°F / -20 to 50°C | | | | Box Dimensions (LxWxH) | 4.1 x 2.8 x 0.3" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 53 owners. Add your rating and experience with the product.
