User Manual for Antec EDGE 650 Power Supply Click to enlarge the picture
Contents of the user manual for the Antec EDGE 650 Power Supply
- Product category: Power Supplies Antec
- Brand: Antec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Antec Power Supplies
 |
User manual for the Antec EDGE 650 Power Supply contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Antec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Antec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Antec product will considerably shorten its lifespan!
|

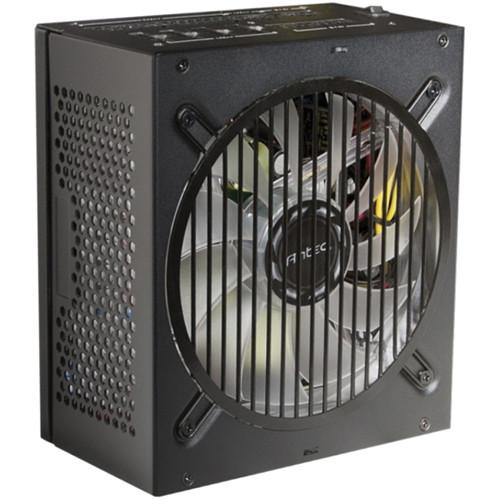

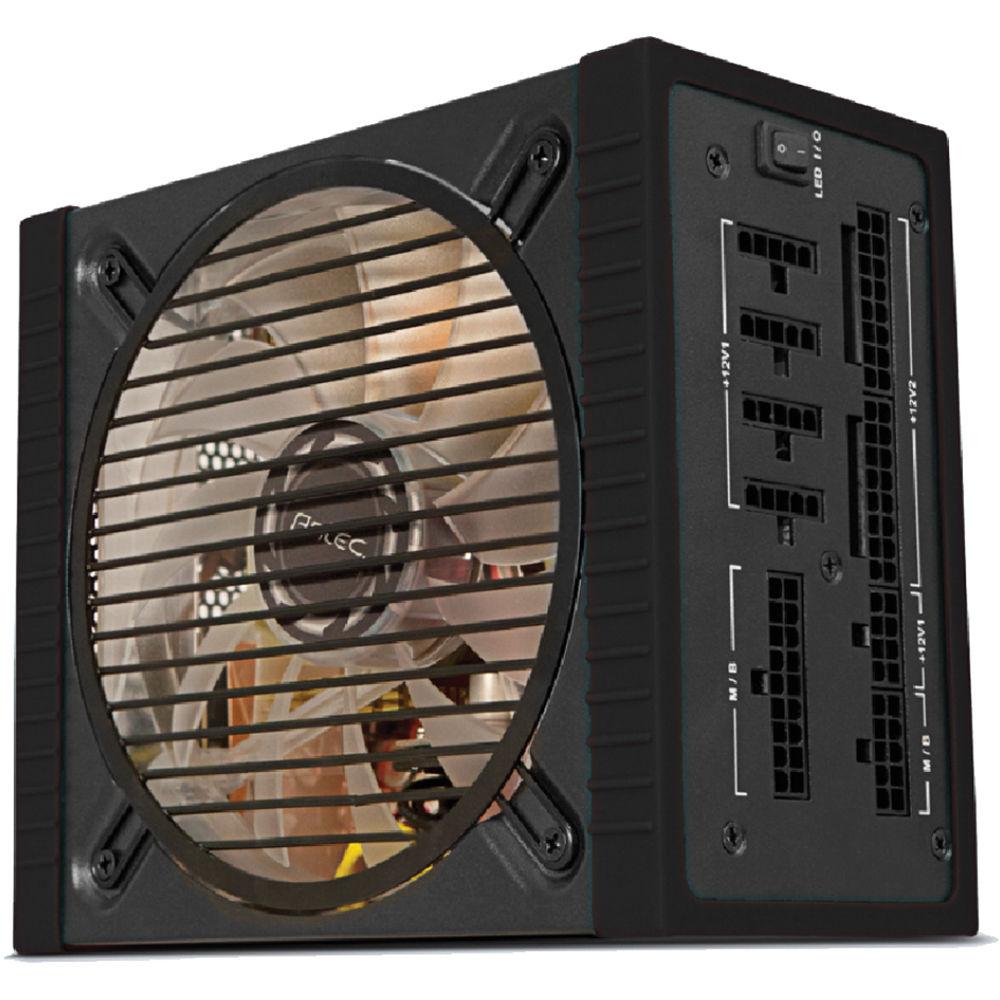

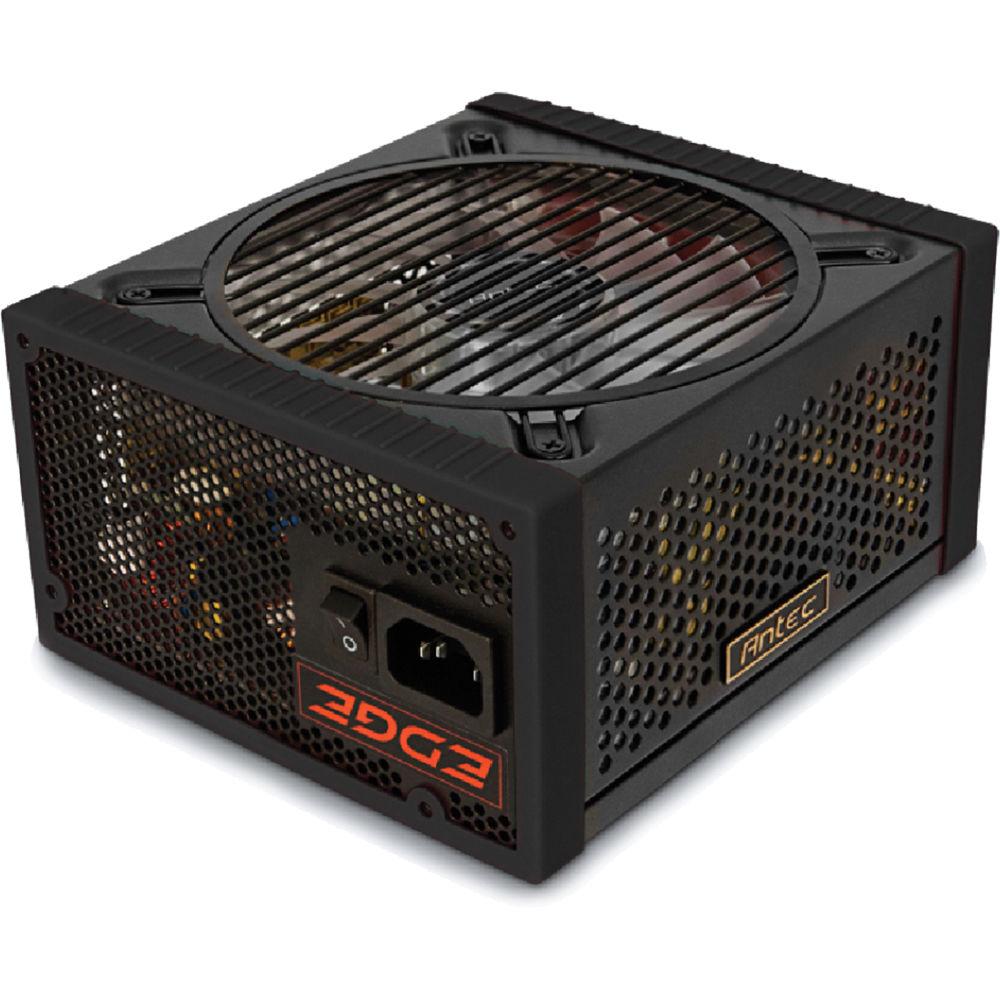

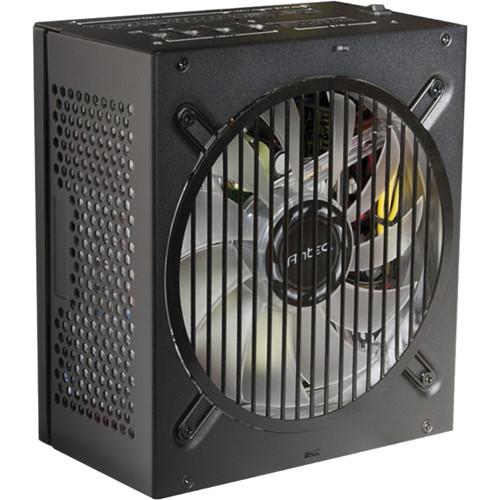

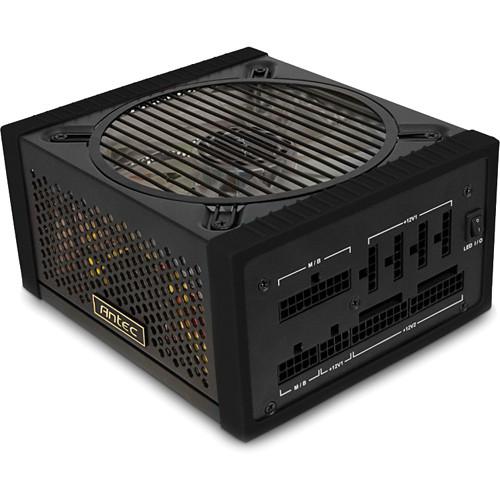

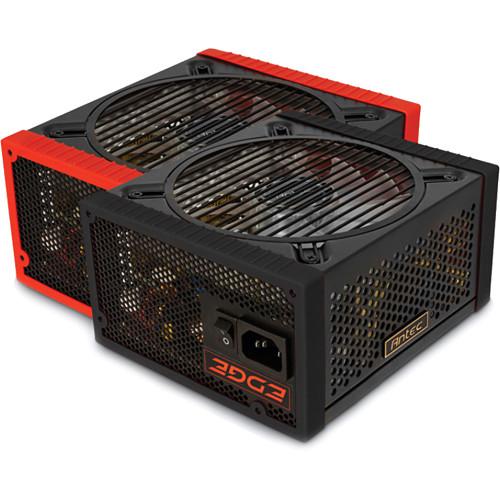

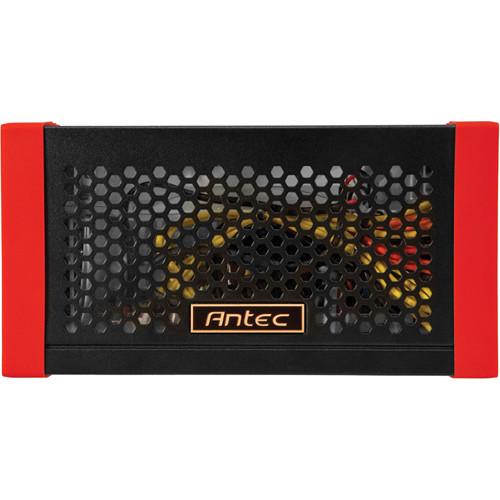

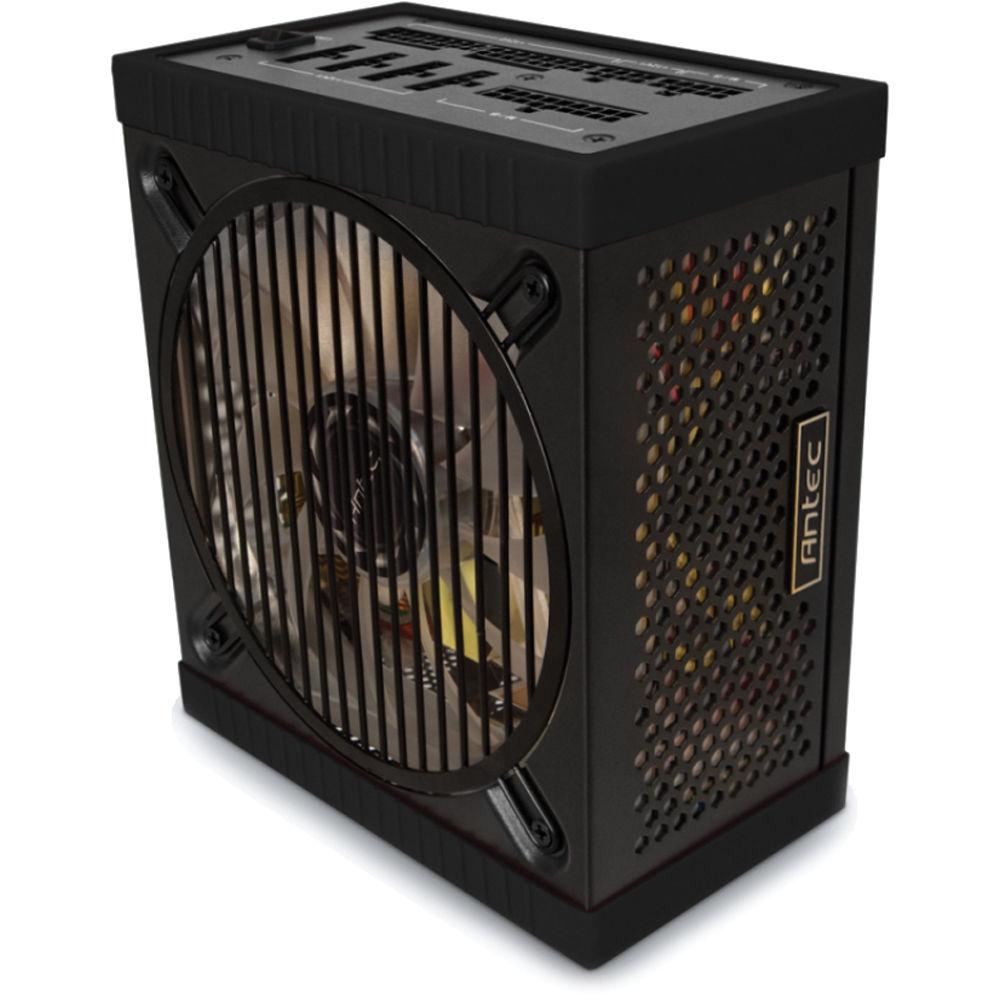

Product description The EDGE 650 Power Supply from Antec is an efficient power supply unit with an 80 PLUS Gold rating. It achieves up to 92% efficiency and can reduce your electricity bill by up to 20%. The 80 PLUS Gold certified power supply unit delivers power and reduces the rate of energy turning into excess heat within the power supply unit. Its 16-pin sockets provide flexibility by doubling the modular connectivity and by supporting two different 8-pin connectors, and even connectors with 10, 12, 14 or 16-pins. CircuitShield makes it safe and reliable in any environment with its 7 industrial-grade protections. - 650W Continuous Power
- The power supply unit provides guaranteed 550/650/750W of continuous power
- 28 (18+10)- Pin MBU Socket
- It can be used for possible future MBU connectors
- LED FDB Silence
- Whisper-quiet, LED, fluid-dynamic bearing fan
- Thermal Manager
- The power supply unit has an advanced low-voltage fan control for optimal heat and noise management
- High Current Rails
- The power supply unit also features 2 +12V rails with high load capabilities, ensuring maximum CPU and GPU compatibility
- 99.7% +12V Output
- The power supply unit also features 99.7% +12V output for maximum CPU and GPU support
- Japanese Heavy-Duty Caps
- High-performance Japanese capacitors ensure tightest DC stability and regulation
- Flat Stealth Wires
- Flat and darkened wires can be used for minimal visibility in chassis (except MBU cable)
- ATX12V 2.4 Power Supply Unit Specification
- It is designed according to the power supply unit guideline and is also compatible with CPU generation
UPC: 761345256506 In the Box Antec EDGE 650 Power Supply Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Antec EDGE 650 Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

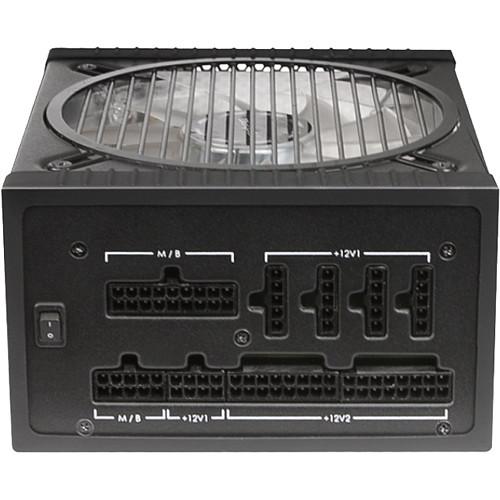

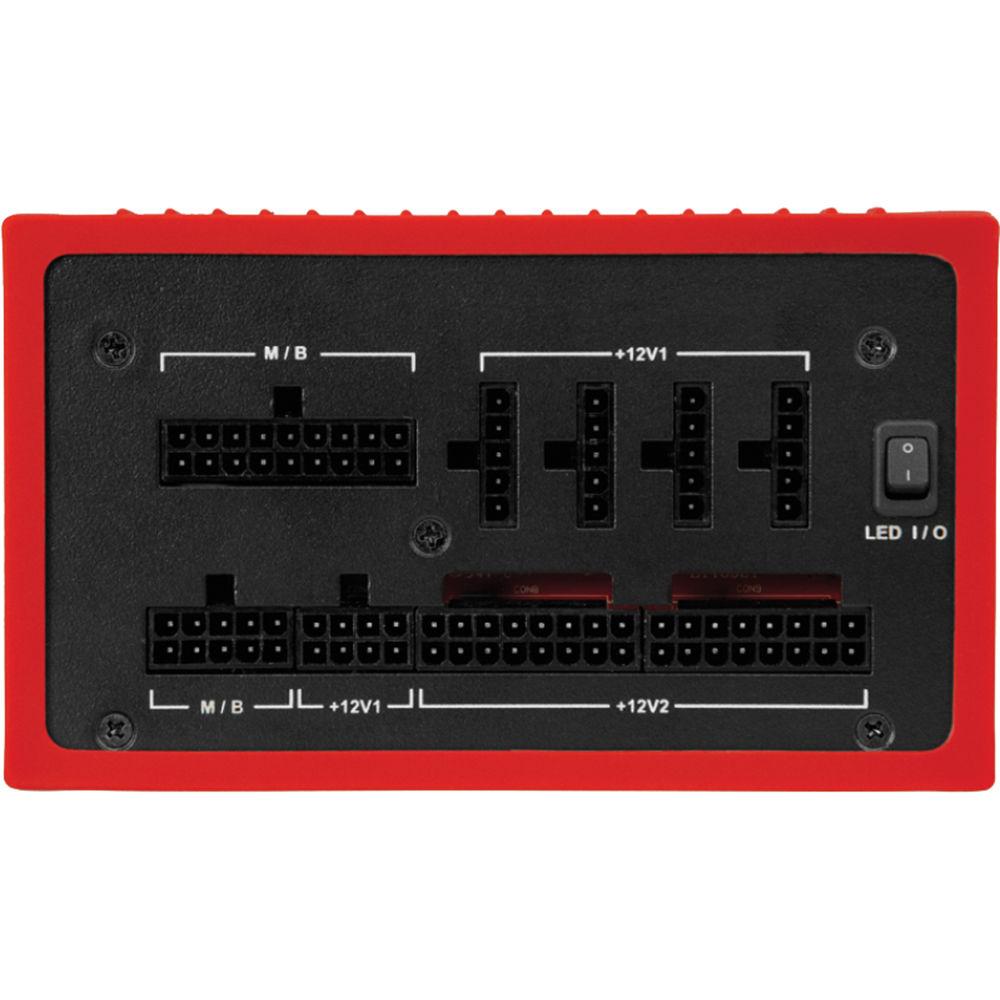

Technical parametersAntec EDG650 Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin EPS
4 x 6+2-Pin PCIe
9 x 15-Pin SATA
6 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | | | Total Wattage | 650 W | | Number of +12 V Rails | 2 | | Combined Power for +12 V | 648 W | | Max Load for +12 V | 35 A (Per Rail) | | Combined Power for +3.3/+5 V | 100 W | | Max Load for +3.3 V | 20 A | | Max Load for +5 V | 20 A | | Max Power for +5 Vsb | 12.5 W | | Max Load for +5 Vsb | 2.5 A | | Max Power for -12 V | 3.6 W | | Max Load for -12 V | 0.3 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4.5 A | | | | Efficiency Rating | 80 PLUS Gold | | Efficiency | 92% | | | | Compliance | ATX 12 V v2.4 | | Protection | No Load Operation, Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Surge and Inrush Protection | | Dimensions | 5.9 x 3.4 x 6.7" / 150.0 x 86.0 x 170.0 mm | | Weight | 4.0 lb / 1.8 kg | | | | Package Weight | 7.35 lb | | Box Dimensions (LxWxH) | 12.1 x 7.6 x 4.8" |
