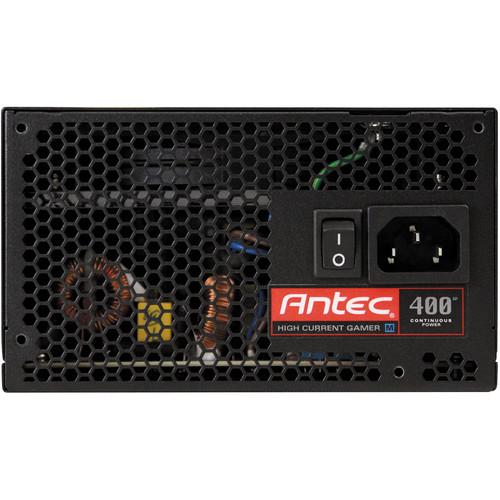

User Manual for Antec HCG-400M 400 W Power Supply Unit Click to enlarge the picture
Contents of the user manual for the Antec HCG-400M 400 W Power Supply
- Product category: Power Supplies Antec
- Brand: Antec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Antec Power Supplies
|
User manual for the Antec HCG-400M 400 W Power Supply contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Antec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Antec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Antec product will considerably shorten its lifespan!
|
Product description The HCG-400M 400 W Power Supply Unit from Antec is the perfect combination of power and efficiency. It features special heavy-duty high current connectors and cabling that supply extreme levels of power and superb efficiency. It features 80 PLUS Bronze certification and Active PFC. This PSU has highest-quality connectors, Japanese-brand capacitors and a quiet 5.31" (135mm) double ball bearing fan. The PSU features high current cable management and 10-pin modular connectors. The power supply unit can be used for high-end gaming computers. - 400 W Continuous Power
- The HCG-400M Power Supply Unit provides 400 W of continuous power
- 80 PLUS Bronze Certified
- This PSU is up to 87% efficient
- High Current Hybrid Cable Management
- It features special 10-pin and 5-pin modular connectors for high current rail
- Fan
- The PSU has quiet 5.31" (135mm) double ball bearing cooling fan. It has an advanced low voltage fan control for optimal heat and noise management
- High Current Rails
- Up to 90% power is available on +12 V rail
- Compliant
- It is complaint with ATX12V version 2.32 and EPS12V version 2.92
- Heavy-Duty Protection Circuitry on All Rails
- Heavy-duty protection circuitry on all rails prevents damage from a variety of dangers:
- Over Current Protection (OCP)
- Over Voltage Protection (OVP)
- Under Voltage Protection (UVP)
- Short Circuit Protection (SCP)
- Over Power Protection (OPP)
- Surge & Inrush Protection (SIP)
In the Box Antec HCG-400M 400 W Power Supply Unit 24 (20+4)-Pin 8 (4+4)-Pin ATX12V/EPS12V 8 (6+2)-Pin PCIe 5 x SATA 4 x Molex Floppy 5 Year Parts and Labor Warranty Brochure PDF 675.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Antec HCG-400M 400 W Power Supply Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAntec HCG-400M Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin EPS
2 x 6+2-Pin PCIe
5 x 15-Pin SATA
4 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | | | Total Wattage | 400 W | | Combined Power for +12 V | 360 W | | Max Load for +12 V | 30 A | | Combined Power for +3.3/+5 V | 120 W | | Max Load for +3.3 V | 20 A | | Max Load for +5 V | 20 A | | Max Load for +5 Vsb | 2.5 A | | Max Load for -12 V | 0.8 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 3.5 to 9 A | | | | Efficiency Rating | 80 PLUS Bronze | | Efficiency | 87% | | | | Fan Size | 135 mm | | Bearing Type | Ball | | | | Certifications | RoHS, as per Manufacturer | | Mean Time Between Failures (MTBF) | 100,000 Hours | | Dimensions | 3.4 x 5.9 x 6.3" / 86.0 x 150.0 x 160.0 mm | | Weight | 4.0 lb / 1.8 kg |
