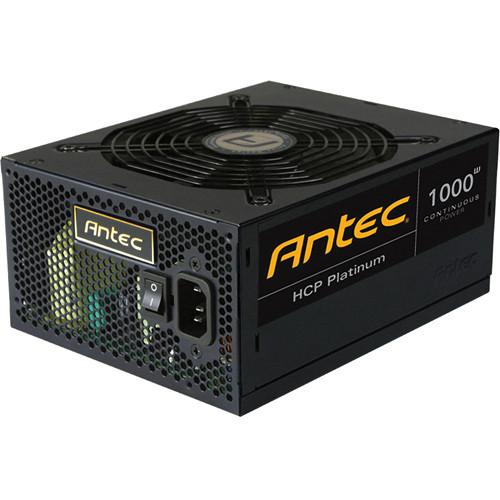

User Manual for Antec HCP-1000 Platinum 1000 W Power Supply Unit Click to enlarge the picture
Contents of the user manual for the Antec HCP-1000 Platinum 1000 W Power
- Product category: Power Supplies Antec
- Brand: Antec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Antec Power Supplies
|
User manual for the Antec HCP-1000 Platinum 1000 W Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Antec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Antec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Antec product will considerably shorten its lifespan!
|
Product description The HCP-1000 Platinum 1000 W Power Supply Unit from Antec is fully modular with a revolutionary 20+8-pin MBU socket for future needs. It is 80 PLUS Platinum and ErP Lot 6: 2013 certified. The PSU achieves up to 94% operating efficiency that reduces your electricity bill by up to 25%. Its 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pin connectors and even future connectors of 10, 12, 14 or 16-pins. The power supply unit can be used for high-end gaming computers. - 1000 W Continuous Power
- The Power Supply Unit provides guaranteed 1000 W of continuous power
- 80 PLUS Platinum Certified
- The PSU is up to 94% efficient, to reduce your electricity bill
- 16-Pin Socket
- The 16-pin sockets double the modular connectivity by supporting 2 different 8-pin cables per socket and allow for future connector changes
- 28 (20+8)-Pin MBU Socket
- It can be used for possible future MBU connectors
- Thermal Manager
- The PSU features 5.31" (135mm) whisper-quiet high-quality with double ball bearing fan. It has an advanced low voltage fan control for optimal heat and noise management
- High Current Rails
- This PSU also features 4 high current +12 V rails with high load capabilities that ensure maximum CPU and GPU compatibility
- Multi PCIe
- This PSU has 6 PCIe connectors for multiple GPU support
- 100% +12V
- The output supports for maximum CPU & GPU
- ErP Lot 6: 2013
- It is compliant to the toughest energy standard available
- PhaseWave Design
- A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
UPC: 761345239127 In the Box Antec HCP-1000 Platinum 1000 W Power Supply Unit 24 (20+4)-Pin 8 Pin EPS 12V 6 x 8 (6+2)-Pin PCIe 9 x SATA 6 x Molex Floppy 8 (4+4)-Pin ATX/EPS 7 Year Warranty Brochure PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Antec HCP-1000 Platinum 1000 W Power Supply Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAntec HCP-1000 PLATINUM Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin EPS
1 x 8-Pin EPS
6 x 6+2-Pin PCIe
9 x 15-Pin SATA
6 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | | | Total Wattage | 1000 W | | Number of +12 V Rails | 4 | | | | Efficiency Rating | 80 PLUS Platinum | | | | Protection | Brown-Out Protection, No Load Operation, Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Surge and Inrush Protection, Under-Voltage Protection | | Certifications | RoHS, as per Manufacturer | | | | Package Weight | 8.95 lb | | Box Dimensions (LxWxH) | 12.6 x 9.7 x 5.6" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 81 owners. Add your rating and experience with the product.
