User Manual for Antec HCP Platinum 850W Power Supply Unit Click to enlarge the picture
Contents of the user manual for the Antec HCP Platinum 850W Power Supply
- Product category: Power Supplies Antec
- Brand: Antec
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Antec Power Supplies
|
User manual for the Antec HCP Platinum 850W Power Supply contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Antec product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Antec user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Antec product will considerably shorten its lifespan!
|

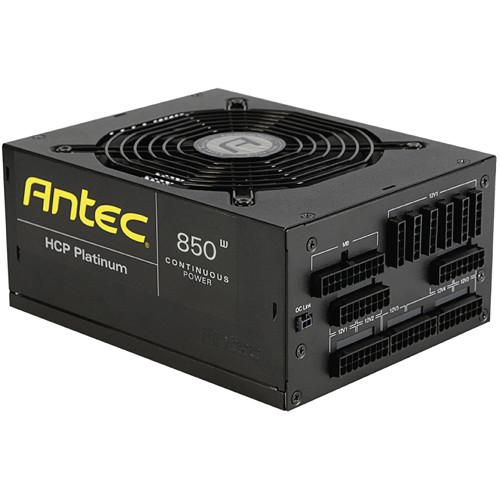

Product description The HCP Platinum 850W Power Supply Unit from Antec features innovative 16-pin sockets to provide high flexibility by doubling the modular connectivity. It supports 2 different 8-pin connectors and even future connectors of 10, 12, 14, or 16-pins. The unit also features a 135mm whisper-quiet, high-quality double ball bearing fan with long lifetime. With 80 PLUS Platinum certification, the power supply is up to 94% efficient and helps reduce your electricity bill by 25%. - 80 PLUS Platinum Certified and 850W Continuous Power
- The power supply is 80 PLUS Platinum certified with up to 94% efficiency
- 16-Pin Socket
- Its 16-pin sockets double the modular connectivity by supporting two different 8-pin cables per socket and allow for future connector changes
- 135mm Double Ball Bearing (DBB) Silence
- The unit features a whisper-quiet, high-quality double ball bearing fan with long lifetime for cooling
- Thermal Manager
- Thermal Manager is an advanced low voltage fan control system for optimal cooling & noise management
- 28 (20+8)-pin MBU Socket
- The power supply also features an 8 (20+8)-pin MBU socket for possible future MBU connectors
- High Current Rails
- Provides 4 high current +12V rails with high load capabilities to ensure maximum CPU & GPU compatibility
- Multi PCIe Support
- It has 6 PCIe connectors for multiple GPU support
- CircuitShield Protection
- The unit offers a full suite of industrial grade protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Surge & Inrush Protection (SIP), No Load Operation (NLO) & Brown-Out Protection (BOP)
- OC Link
- OC Link allows 2 HCP Platinum power supply units to work in tandem to power the most demanding systems
- Japanese Heavy-Duty Capacitors
- High-performance Japanese capacitors ensure tight DC stability and regulation
- PhaseWave Design
- The power supply has a server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
- Stealthy Wires
- All wires are darkened for minimal visibility in chassis
UPC: 761345239103 In the Box Antec HCP Platinum 850W Power Supply Unit 7-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Antec HCP Platinum 850W Power Supply Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAntec HCP-850 PLATINUM Specs | | | Total Connectors | 1 x 24-Pin Motherboard
1 x 8-Pin EPS
1 x 4+4-Pin EPS
6 x 6+2-Pin PCIe
9 x 15-Pin SATA
6 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | | | Total Wattage | 850 W | | Number of +12 V Rails | 4 | | Combined Power for +12 V | 850 W | | Max Load for +12 V | 40 A (Per Rail) | | Combined Power for +3.3/+5 V | 130 W | | Max Load for +3.3 V | 25 A | | Max Load for +5 V | 25 A | | Max Power for +5 Vsb | 15 W | | Max Load for +5 Vsb | 3 A | | Max Power for -12 V | 6 W | | Max Load for -12 V | 0.5 A | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 5.5 to 12 A | | | | Efficiency Rating | 80 PLUS Platinum | | Efficiency | 94% | | | | Fan Size | 135 mm | | Bearing Type | Ball | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Protection | Brown-Out Protection, No Load Operation, Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Surge and Inrush Protection, Under-Voltage Protection | | Certifications | ErP Lot 6, as per Manufacturer | | Dimensions | 5.9 x 3.4 x 7.5" / 149.6 x 86.3 x 185.4 mm | | Weight | 4.7 lb / 2.1 kg | | | | Package Weight | 8.9 lb | | Box Dimensions (LxWxH) | 12.8 x 9.7 x 5.2" |
