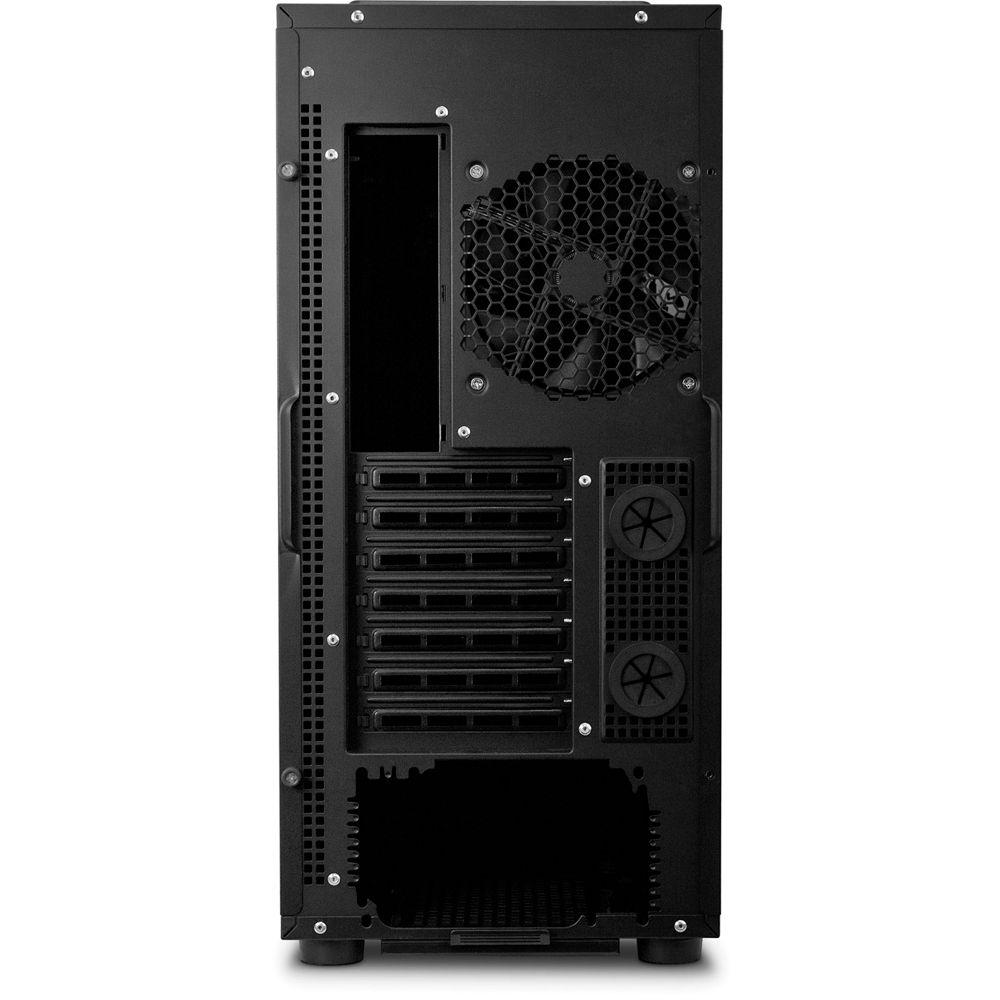

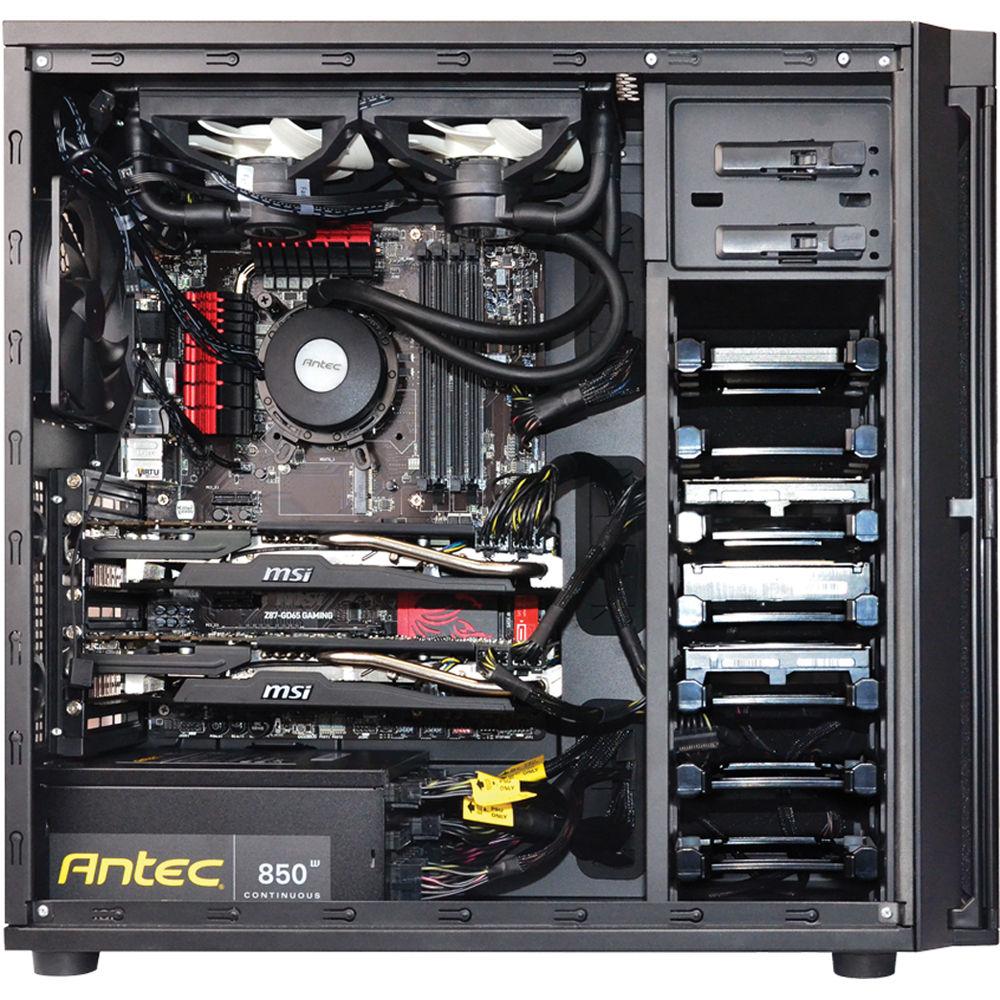

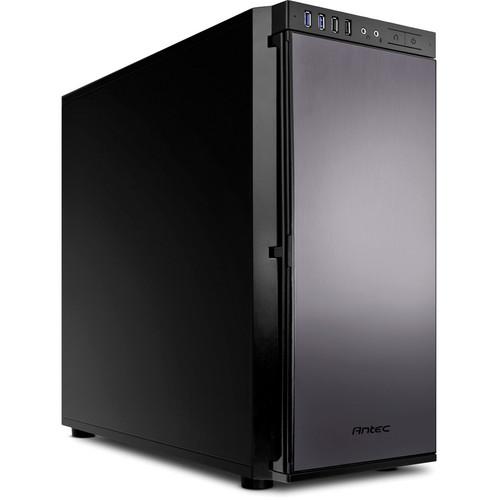

Product description The black P100 ATX Chassis from Antec is a ATX case that supports Mini-ITX, Micro ATX, and Standard ATX motherboards. Its interior is able to support up to 7 x 3.25" / 2.5" drives and 2 x 5.25" drives. It also has 2 x USB 3.0 ports, 2 x USB 2.0 ports, 7 x expansion slots, 1 x 120mm front intake fan, and 1 x 120mm rear exhaust fan. Its maximum supported CPU cooler height is 170mm, its maximum supported video card height is 317.5mm, and it supports a standard ATX PSU mount. - Compatible with up to 3-way NVIDIA SLI / AMD CrossFireX
- Advanced cooling system: includes 2 fans and 3 additional fan mounts

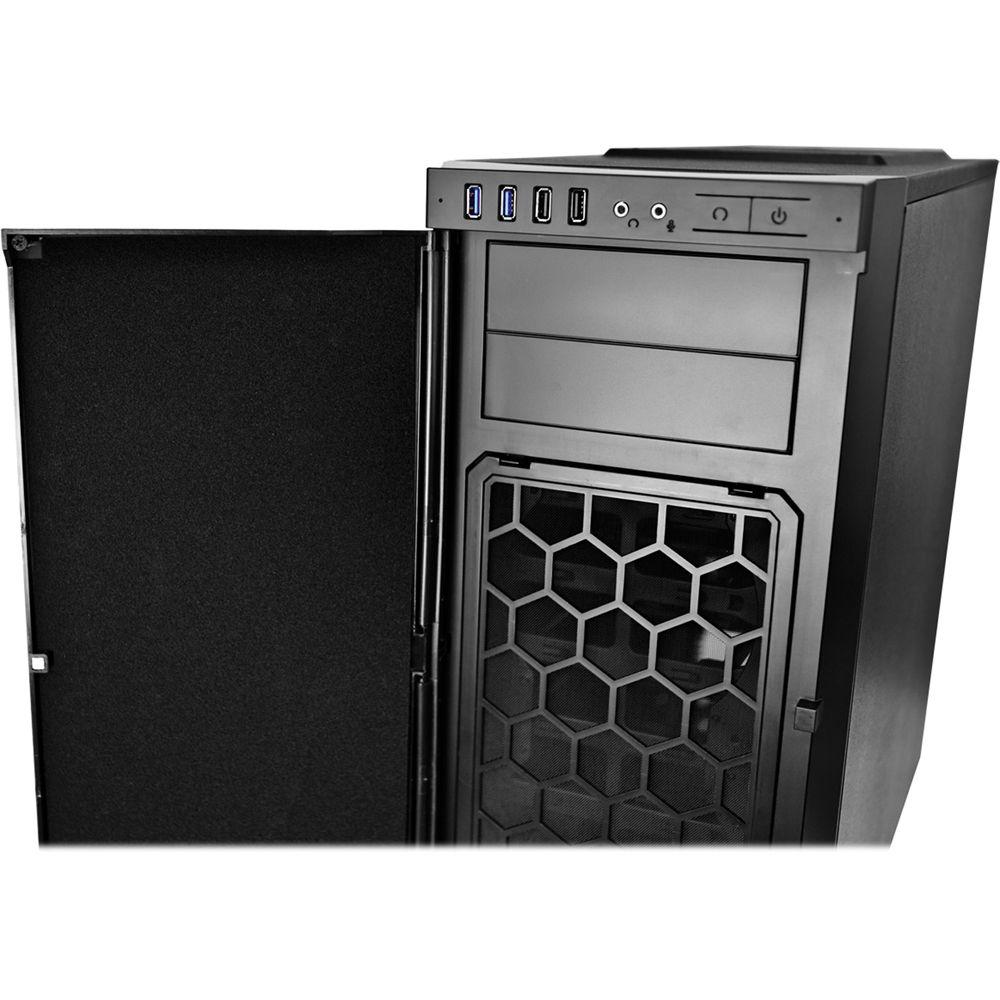

- Front bezel with a double-hinged door that opens up to 270°
- Complete dual-layer design: steel and foam panels deaden noise

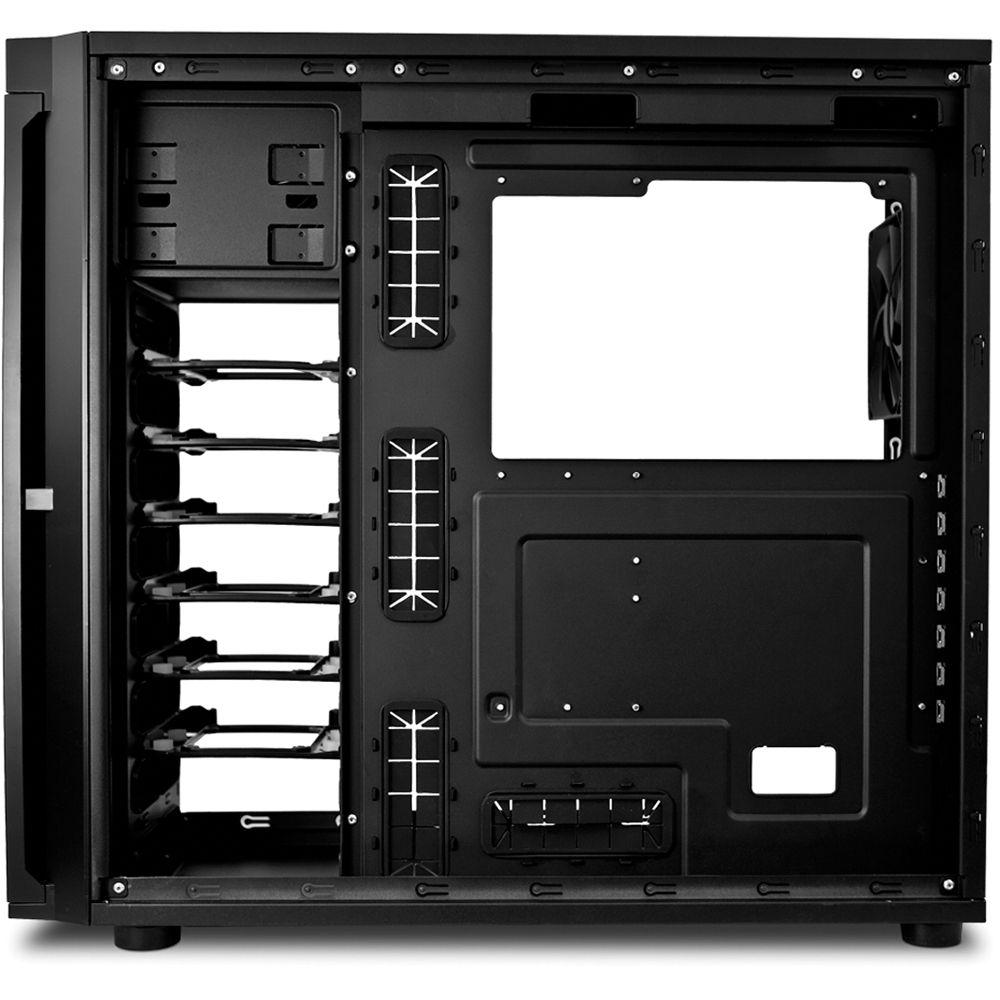

- Gromment-lined cable ro uting holes with 20mm of space behind the motherboard tray
- 2 front panel USB 3.0 ports

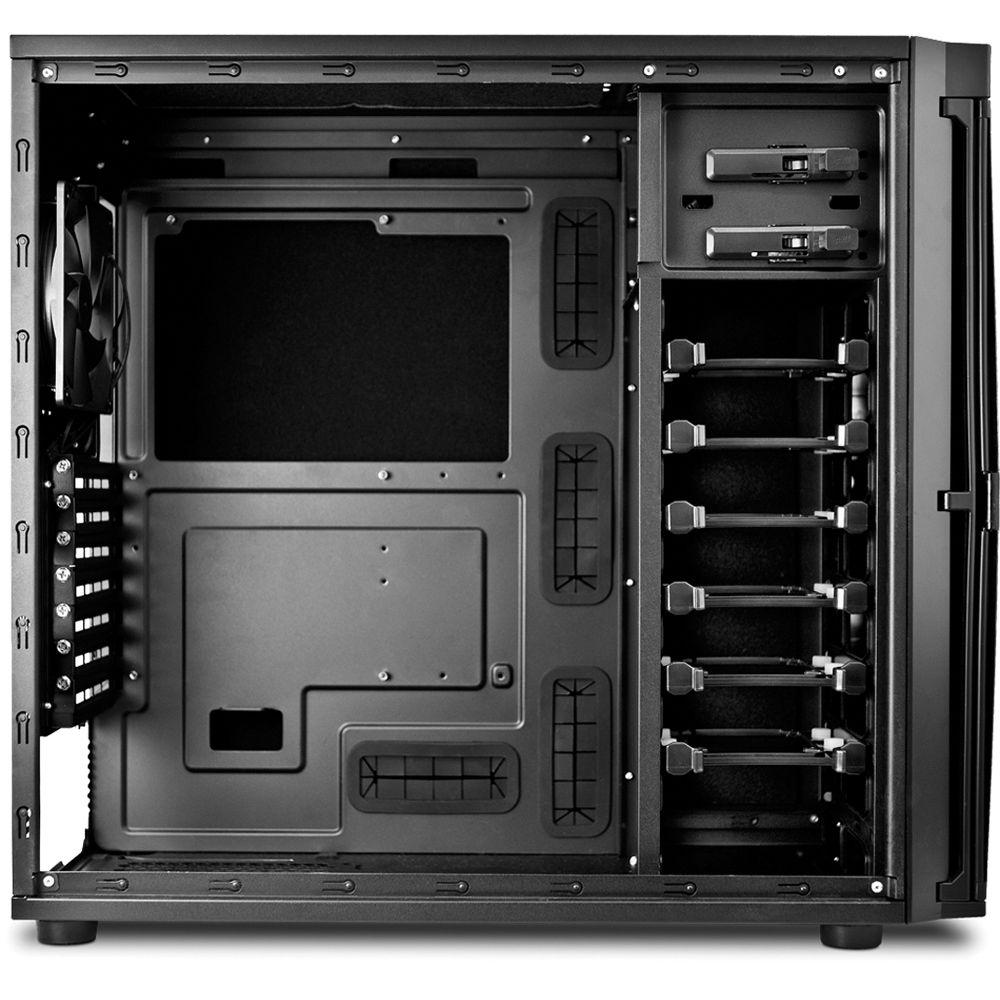

- 7 quiet 3.5" / 2.5" drive bays utilize trays with pre-installed silicone grommets
- 2 tool-less 5.25" drive bays
- Advanced cooling design with top fan mounts spaced for 240mm radiators
- Includes two silent 120mm fans with fluid dynamic bearings

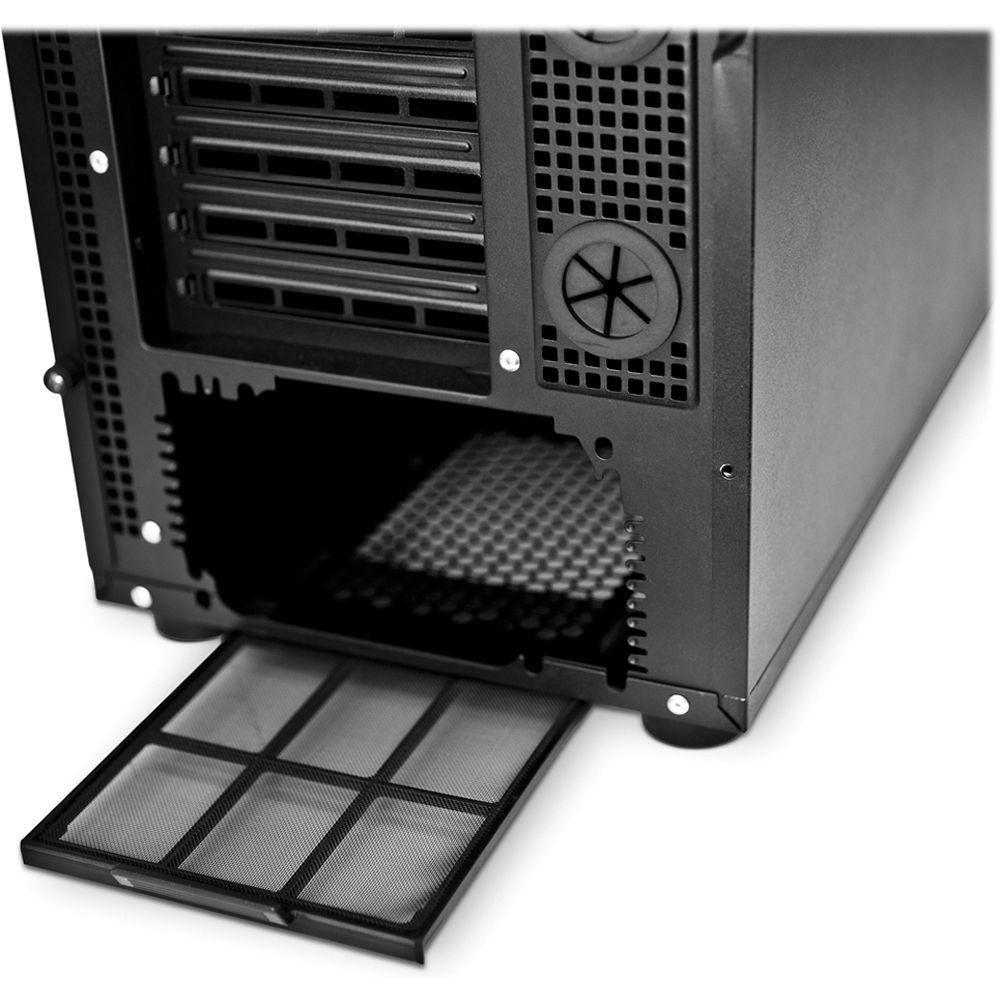

- PSU intake and front air filters
UPC: 761345811002 In the Box Antec P100 ATX Chassis Limited 3-Year Warranty Brochure PDF 2.2mbfzcqedrtatdxsswexbzvbqvvcvsuzarsrb Table of Contents
|
Upload User Manual
Have you got an user manual for the Antec P100 ATX Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAntec P100 Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | External Drive Bays | 2 x 5.25" | | Internal Drive Bays | 7 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 12.5" / 31.8 cm | | CPU Cooler Height | 6.7" / 16.9 cm | | Supported PSU Size | ATX | | | | Fan Mounting (Front) | 1 x 120 mm
Or
1 x 140 mm
| | Fan Mounting (Top) | 2 x 120 mm
Or
2 x 140 mm
| | Fans Included (Front) | 1 x 120 mm | | Fans Included (Rear) | 1 x 120 mm | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0)
2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Cable Management Space | None | | Dimensions (W x H x D) | 19.1 x 8.7 x 20.6" / 484.0 x 220.0 x 523.0 mm | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 24.0 x 21.0 x 12.0" |
