Product description - 10MX Rubidium Atomic Clock | Antelope Audio
- 10MX Rubidium Atomic Clock
- The Lord of the Rings in Concert with 10MX

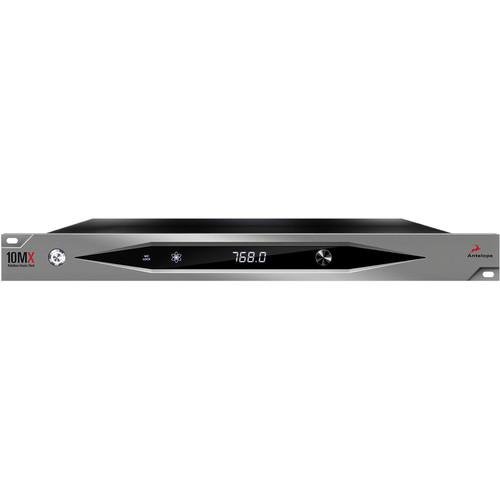

Part of the Isochrone family of products, the Antelope 10MX Rubidium Atomic Master Clock combines the atomic, audio-clocking precision of the original 10M with the sophisticated jitter-management algorithm of the Isochrone Trinity, in an elegant 1 RU chassis. It employs the company's industry-leading Rubidium Atomic Clock and 4th generation Acoustically Focused Clocking (AFC) technologies, to provide audio professionals with an exceptionally stable clocking reference that adds analog-like clarity, depth, and 3-dimensional imaging to their sound, for recording, mixing, mastering or live audio applications.The 10MX is equipped with ten BNC atomic clock outputs, generating a 10 MHz signal that allows you to clock up to 10 devices simultaneously. It can also be used as a master clock with four BNC wordclock outputs, supporting sampling rates at up to 768 kHz. Additionally, the unit provides two clock outputs for both AES/EBU and S/PDIF formats.All functions and controls are easily managed either from the front panel or, with the unit connected to a Mac/Windows computer via a USB port, by using the intuitive software control panel (available separately as a free download). Lightweight at 6.17 lb, the 10MX features a sturdy mechanical construction, which makes it safe and convenient to transport when working in multiple studios or on the road. -
- Rubidium core with accuracy of 0.05 ppb (parts per billion)
- Combines the atomic precision of the 10M and the sophisticated jitter-management algorithm of Trinity
- Adds analog-like clarity, depth, and 3D imaging to your sound
- Well-suited for recording, mixing, mastering or live sound applications
- 4th generation Acoustically Focused Clocking (AFC), employing 64-bit DDS
- 10 x 10 MHz atomic clock outputs allow up to 10 devices to be simultaneously clocked
- 4 x wordclock outputs supporting sampling rates at up to 768 kHz
- 2 x S/PDIF and 2 x AES/EBU master clocking outputs, at up to 192 kHz
- Atomic clocking compatible with any device that accepts 10 MHz reference
- Easy to operate, just connect it and power it on
- Managed via front-panel controls or via intuitive software control panel, for Mac/Windows
- USB port allows remote control and firmware upgrades
- Sturdy mechanical construction
- Housed in an elegant 1 RU chassis
UPC: 853744004311 In the Box Antelope 10MX Rubidium Atomic Master Clock USB Cable AC Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Antelope 10MX Rubidium Atomic Master Clock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAntelope 10 MX Specs | Wordclock Input | 1 x BNC, at 75 Ohms, 3 V p-p (44.1 to 384 kHz) | | Wordclock Outputs | 4 x BNC, at 75 Ohms, 3 V p-p (44.1 to 768 kHz, square-wave signal) | | Atomic Clock Outputs | 10 x BNC sinusoidal, 10 MHz, 75 Ohms, 1 V p-p typical (unload) | | Other Clock Outputs | AES/EBU: 2 x XLR
S/PDIF: 2 x RCA | | Sample Rates | 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 768 kHz | | Clocking System | 4th generation Acoustically Focused Clocking (AFC), 64-bit DDS
Oven Controlled Crystal Oscillator | | Clock Stability | < ±0.02 ppm, oven controlled at 148.1°F / 64.5°C | | Atomic Reference Type | Rubidium Ultra-Stable Resonance-Controlled Master Oscillator | | Wordclock | TTL Level, 75 Ohms output impedance | | Frequency | 10 MHz
Frequency Accuracy: Better than ±5E-11 at 25C (±0.05 ppb) | | Clock Aging | Daily: ±2.5E-11 (After 1 day of operation)
Monthly: ±1E-10 (After 1 month of operation)
Yearly: ±1E-9 | | Phase Noise | 1 Hz ≤ -70 dBc/Hz
10 Hz ≤ -87 dBc/Hz
100 Hz ≤ -114 dBc/Hz
1 kHz ≤ -130 dBc/Hz
10 kHz ≤ -140 dBc/Hz | | Short-Term Stability | t = 1 s ≤ 3E-11
t = 10 s ≤ 1.6E-11
t = 100 s ≤ 8E-12
(Time drift in a 24-hour period) | | USB | USB 2.0, Hi-Speed USB, USB Type-B, data stream up to 480 Mbits / 384 kHz (only for control) | | Warm-Up Time | 8 to 10 minutes (depending on ambient temperature) | | Maximum Shock Withstanding | Non-Operating, Flight-Case-Mounted:
100 m / s2 (approximately 10.2 g), 11 ms half-sine pulse per IEC 60068-2-27:2008
Non-Operating, In Original Packing:
300 m / s2 (approximately 30.6 g), 5 ms half-sine pulse per IEC 60068-2-27:2008
(g = gravitational acceleration) | | Windows Requirements | Windows 7, 8, 8.1, 10
CPU: Intel or AMD equivalent CPU with at least 2 GHz operating frequency
Memory (RAM): 4 GB minimum (8 GB or more recommended)
Disk Space: Minimum 512 MB
USB: 1 x USB 2.0 port
Required USB Bandwidth: 80% to 90% (for firmware update)
Internet connection required for product activation | | Mac Requirements | Mac OS X: 10.9, 10.10, 10.11, 10.12 (Sierra recommended)
CPU: Intel Core 2 Duo (minimum), Intel Core i3 or higher (recommended)
Memory(RAM): 4GB Minimum (8GB or more recommended)
Disk Space: Minimum 512 MB
USB: 1 x USB 2.0/3.0 port
Required USB Bandwidth: 80% - 90% (for firmware update)
Internet connection required for product activation | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Humidity | 30 to 80% RH, non-condensing | | Power | 100-240 VAC, 15 W | | Dimensions (W x D x H) | 19.00 x 9.00 x 1.73" / 482.60 x 228.00 x 44.00 mm | | Weight | 6.17 lb / 2.80 kg | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 25.3 x 13.5 x 4.5" |
