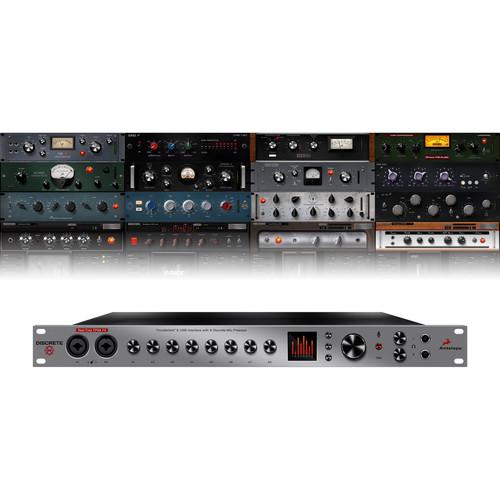

Product description The Antelope Discrete 8 with Basic FX Pack is a Thunderbolt/USB 26x32 audio interface designed to provide high-end tracking and monitoring functions, real-time effects, and remote control capabilities for musicians and engineers in personal, project, and commercial recording studios and rehearsal spaces. It features 26 inputs, 32 outputs, a host of real-time effects and models, support for sample rates up to 192 kHz, and host connectivity via Thunderbolt and USB 2.0.Eight XLR-1/4” combo jack inputs give you access to the eight discrete Accusonic microphone preamps. There are ADAT optical and S/PDIF coaxial digital inputs for accepting signal from devices such as digital mixers and A/D converters. Multiple 1/4" outputs include two independent front-panel headphone jacks, two balanced monitor outputs, and two reamp jacks. Additionally, there are eight line outputs on a DB25 connection, two ADAT optical output ports, and one S/PDIF coaxial 2-channel output.Over 50 real-time effects from guitar amps to vintage compressors can be used during tracking and mixing. Use up to two channel strips with four FX instances each within the Discrete 8 EasyPanel. The FPGA FX also allow you to change microphone and preamp models during mixdown. During tracking sessions, use the built-in talkback mic and convenient front-panel button to communicate with the artists, and control recording and monitoring levels via a downloadable app for iOS and Android smartphones or tablets. - Use Effects During Tracking and Mixing
-
- Antelope Audio FPGA technology powers over 50 real-time effects. Use up to two channel strips with four FX instances each within the Discrete 8 EasyPanel. These not only sound but respond just like real hardware thanks to the unit's component-based modeling platform.
- Plug in your guitar directly into one of the two hi-Z enabled inputs and instantly sculpt your tone with guitar amps and cabinet models. Add compression, EQ, and AuraVerb while playing through your preferred amp, cabinet, and microphone combination.
- Perform and record either with effects or your direct input and process later using the integrated guitar effects. The Discrete 8's two reamp outputs allow you to connect any of your effect pedals or outboard gear and record that sound back into your preferred DAW.
- Over 50 Effects Included
-

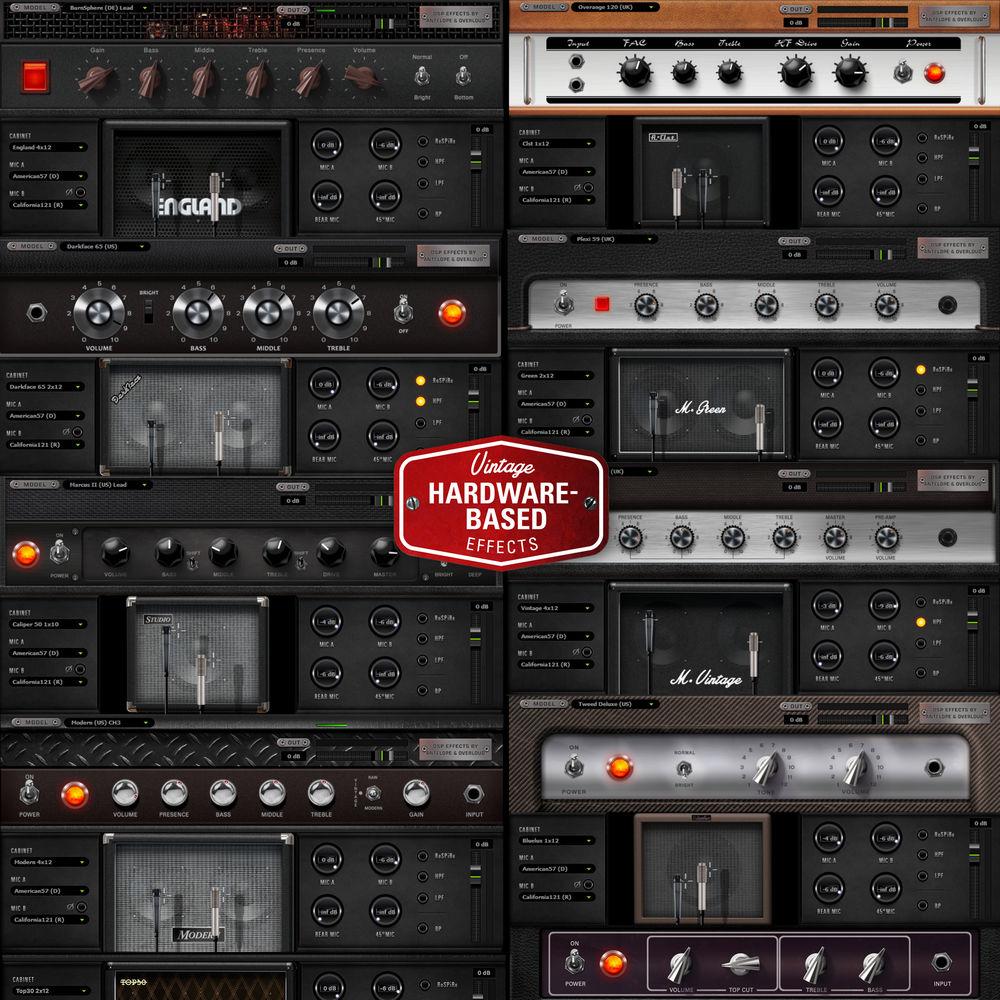

- Guitar Amps: Burnsphere (DE), Marcus II (US), Overange 120 (UK), Tweed Deluxe, Top30, Darkface, Modern, Plexi 59, Rock 75, Rock 22.10

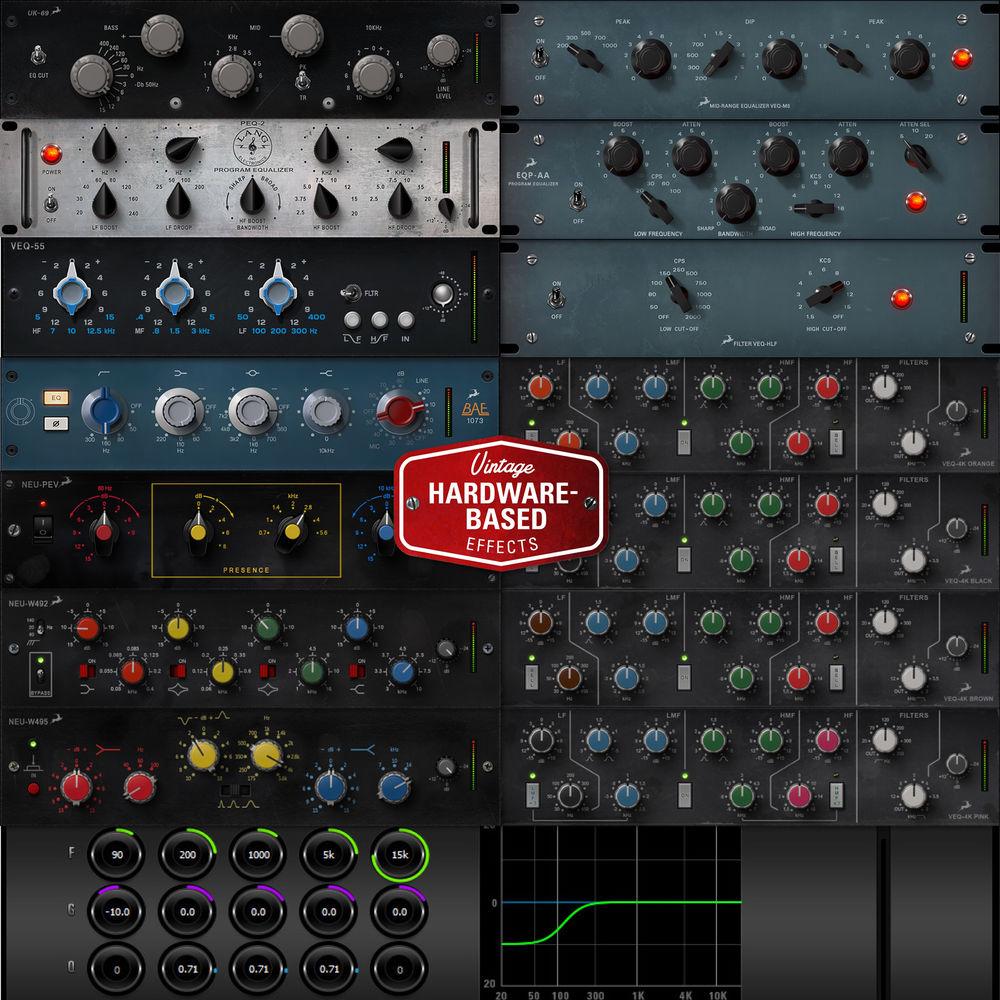

- EQ Legends: VEQ-55b, VEQ-STU 089, VEQ-STU 169, VEQ-STU 900, VEQ HA32C, BAE 1023, BAE 1084, NEU-W492, NEU-W495, NEU-PEV, VEQ-4K Black, VEQ-4K Brown, VEQ-4K Pink, VEQ-4K Orange, BAE 1073, VEQ-HLF, VEQ-1A, VMEQ-5, VEQ-55A, Lang PEQ2, UK-69, Parametric EQ

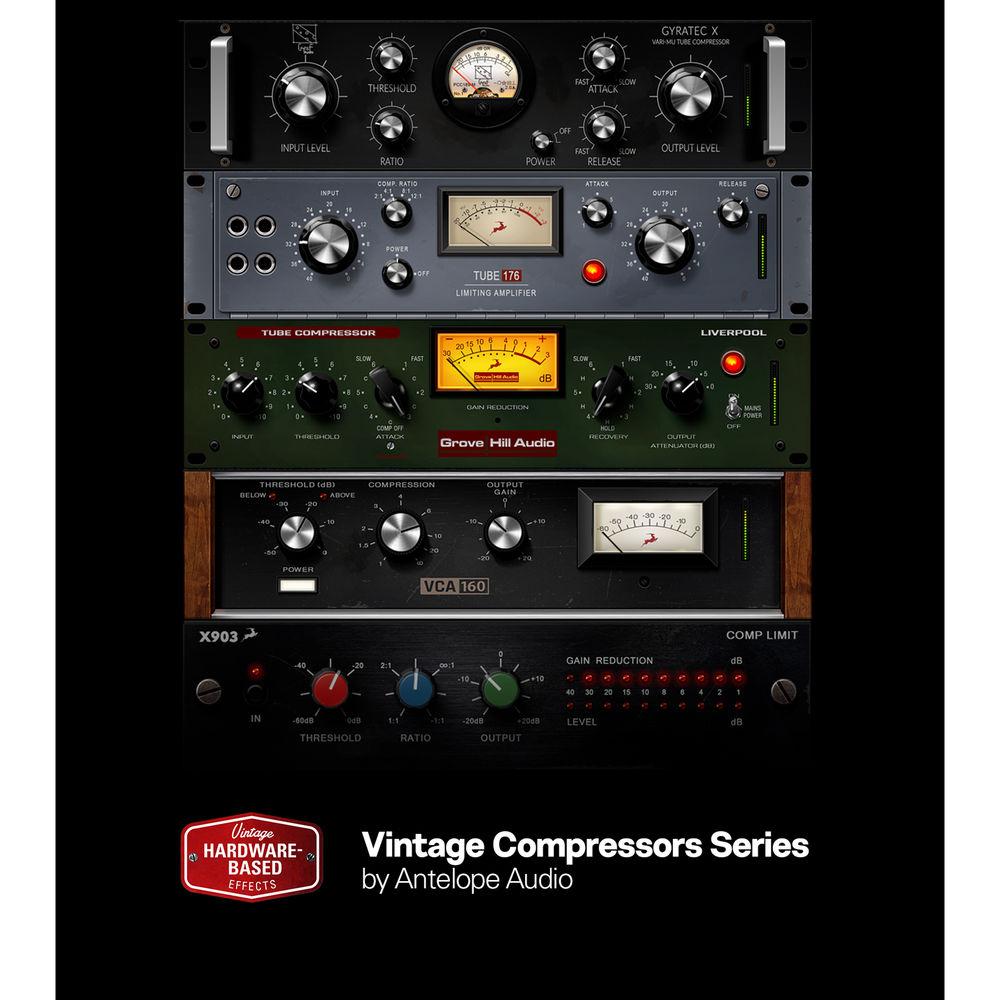

- Vintage Compressors: X903, VCA160, Gyraf Gyratec X, Tube176, Grove Hill Liverpool, FET-A76, FET-A78, ALT-436C, BA-6A, SMT-100A, Stay-Levin, Tubechild670, PowerGate, FeedForward Compressor
- Reverb: AuraVerb
- Customizable Signal Path
-
- The Discrete 8's console-grade and fully discrete preamps were designed to offer high-end, customizable sound. The powerful Antelope Audio FPGA engine can transform these Accusonic preamps into several classic-sounding units via models of circuitry based on tubes, transformers, and FETs.
- Both the engineer and the performer can instantly hear the blends of 10 different mic preamps without any latency or comb filtering. The microphone source can be recorded with and without Accusonic modeling. This allows the engineer to choose between preamp models during mixing. You can even load AFX presets from VIP Masters with their favorite combinations of FPGA FX that are used daily on their own award-winning mixes.
- Discrete Microphone Preamplifiers
-
- Traditionally, interface preamps are comprised of two transistors, which makes them a hybrid between transistors and IC chips. Antelope Audio incorporates a fully discrete design consisting of six accurately matched transistors. Field effect transistors add a touch of warmth to the sound and bipolar transistors keep THD and noise extremely low.
- Accurate Clocking
-
- The Discrete 8 features Antelope’s 4th generation 64-bit Acoustically Focused Clocking (AFC) technology from the acclaimed Trinity, OCX HD, LiveClock, Pure2, Goliath, Orion, and Zen products. Discrete 8 comes with a word clock input that can de-jitter and distribute an external clock signal. Three word clock outputs allow you to distribute clock signals to your other digital gear and to mic preamps in your setup connected via ADAT and S/PDIF.
- Versatile Monitoring
-
- Discrete 8 has a comprehensive and easy to configure monitoring and talkback section. A band can have up to four individual monitoring mixes with FPGA FX included sent to headphones or monitor outputs. The engineer can make custom headphone mixes for each performer. Effects can be included to allow artists to hear sound closer to what will be on the record.
- Users can create custom presets to easily set up various tracking scenarios in a snap. The front panel features a monitor volume knob and dedicated knobs for each headphone output. The Talkback mic is also built into the front panel right above the Talkback button. Additionally, Talkback can be engaged via the assignable footswitch on the back, in the EasyPanel software, or via the iOS/Android app. Metering is viewable on the front panel display, inside the EasyPanel, and via the remote App.
- Remote Control
-
- Use the Discrete 8 downloadable remote app to adjust all microphone input levels, talkback levels, and monitoring and headphone volumes remotely. Musicians can control their own headphone volume with their phones and the engineer can check input levels from the tracking room.
- Cross-Platform Compatibility
-
- The Discrete 8 can be connected via Thunderbolt or USB 2.0 and is compatible with Mac OS X and Windows systems
UPC: 853744004489 In the Box Antelope Discrete 8 Thunderbolt/USB 26x32 Audio Interface with Basic FX Pack 18V Power Supply Limited 2-Year Warranty User Manual PDF 556.1kbzfxrddubaxfszfba Table of Contents
|
Upload User Manual
Have you got an user manual for the Antelope Discrete 8 Thunderbolt USB 26x32 Audio Interface with Basic FX Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

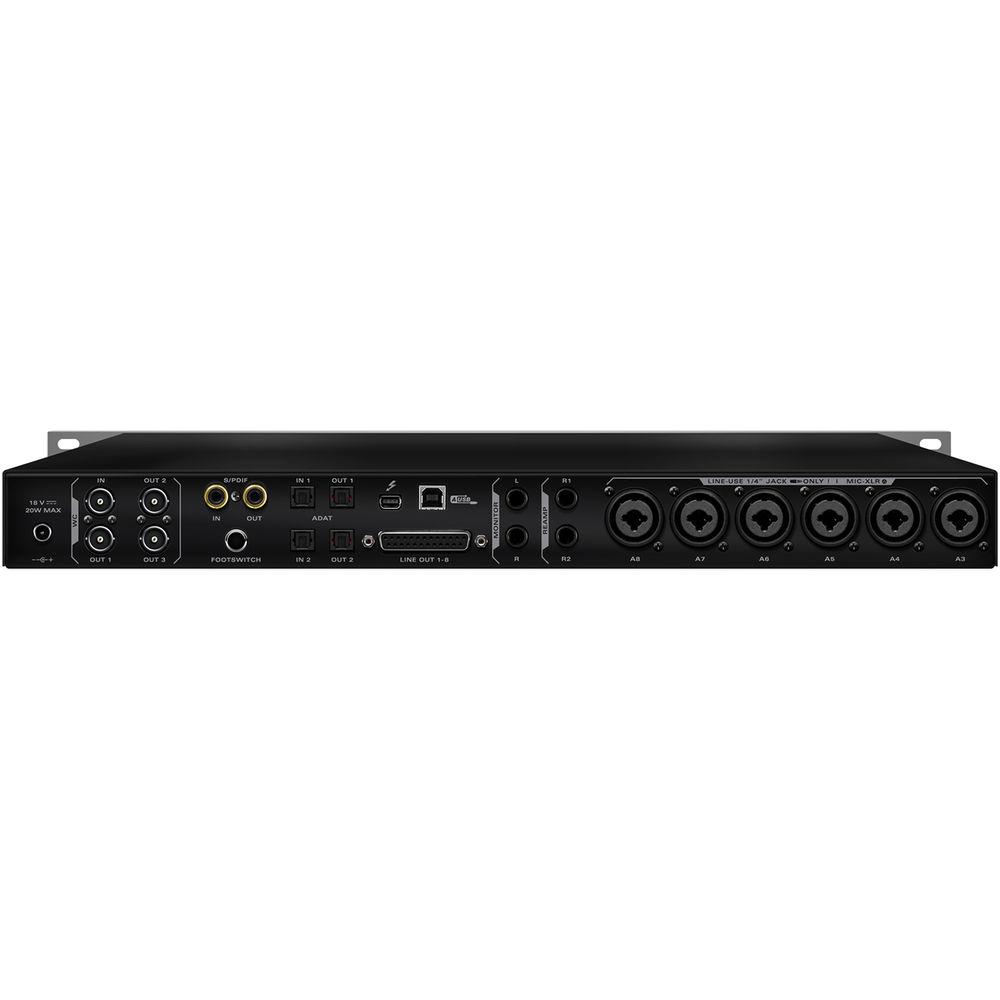

Technical parametersAntelope Discrete 8 Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | 1 x USB Type-B (USB 2.0)
1 x Thunderbolt (MDP) (Thunderbolt 2) | | Analog I/O | 1 x 1/4" (6.3 mm) Footswitch Input
8 x Combo XLR / 1/4" Input
2 x 1/4" (6.3 mm) TRS Headphone Output
2 x 1/4" (6.3 mm) TRS Monitor Output
2 x 1/4" (6.3 mm) TRS Re-Amp Output
1 x DB25 8-Channel Output | | Digital I/O | 2 x TOSLINK / ADAT Input
2 x TOSLINK / ADAT Output
1 x RCA Coaxial / S/PDIF Input
1 x RCA Coaxial / S/PDIF Output
1 x BNC (Word Clock) Input
3 x BNC (Word Clock) Output | | MIDI I/O | None | | | | Max Input Level | Inputs:
+18 dBu | | Max Output Level | Monitor/Line Outputs:
+20 dBu | | Dynamic Range | A/D Converters:
121 dB
Line Outputs:
121 dB
Monitor Outputs:
124 dB
Line Outputs:
121 dB
Mic Inputs:
121 dB | | Impedance | Word Clock:
75 Ohms | | THD+N | A/D Converters:
-112 dB
Line Outputs:
-100 dB
Monitor Outputs:
-101 dB
Mic Inputs:
-106 dB | | EIN | -128 dBu (A-Weighted) | | | | Sample Rates | Up to 192 kHz | | | | OS Compatibility | macOS 10.11
macOS 10.12
macOS 10.13
Windows 10 | | Processor Requirement | Mac:
Intel Core 2 Duo
PC:
2 GHz Intel
2 GHz AMD | | RAM Requirements | 4 GB (8 GB Recommended) | | Storage Requirements | 1 GB | | Required Hardware | Available Thunderbolt Port or USB 2.0 Port | | | | Power Requirements | AC/DC Power Adapter (Included) | | AC/DC Power Adapter | 18 V (Included) | | Power Consumption | 20 W | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Rackmount Size | 1RU | | Dimensions | 19 x 1.7 x 8.7" / 483 x 44 x 220 mm | | Weight | 6.6 lb / 3.0 kg | | | | Package Weight | 8.45 lb | | Box Dimensions (LxWxH) | 26.0 x 13.0 x 4.0" |
