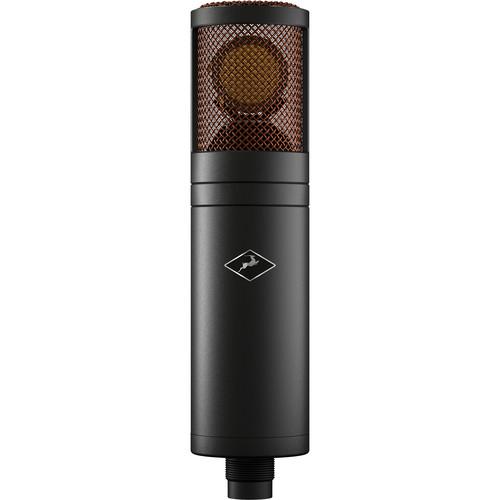

User Manual for Antelope Edge Duo Large-Diaphragm Condenser Modeling Microphone Click to enlarge the picture
Contents of the user manual for the Antelope Edge Duo Large-Diaphragm Condenser Modeling
- Product category: Large Diaphragm Condenser Antelope
- Brand: Antelope
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Antelope Large Diaphragm Condenser
|
User manual for the Antelope Edge Duo Large-Diaphragm Condenser Modeling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Antelope product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Antelope user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Antelope product will considerably shorten its lifespan!
|
Product description The Antelope Edge Duo is a dual-membrane, large-diaphragm condenser primarily designed to be used with Antelope's microphone modeling technology, which emulates the characteristics of various vintage and classic microphones. With its dual-membrane, dual-output construction, the microphone aims to facilitate an accurate on-axis and off-axis response, one that you can better tweak across two channels thanks to its multiple outputs. An included oxygen-free copper cable makes the connection from the mic's 5-pin output to two 3-pin XLR terminations.
The mic itself sports two 1.3" gold-sputtered membranes, about 6 microns thick, which give you multiple polar patterns. Omnidirectional, figure-8, cardioid, and everything in between are available, tweakable in the software world during—and even after—your recording. The Edge Duo captures frequencies between 20 Hz to 20 kHz, doing so transparently, thanks to its low-resonance construction.
The mic is designed to work with Antelope's interfaces, and as such, comes with the commensurate FPGA-based emulations. However, the mic also works with third-party interfaces, and that's why Antelope has included native plug-ins that work with Mac and Windows systems, so long as you have an iLok 2 or iLok 3.
Along with the aforementioned breakout Y-cable, the Edge Duo includes a shockmount and pop filter. A case with foam inserts is also included. - Single Capsule, Dual-Membrane Construction
- Housed in a specially designed low-resonance body with a sleek matte black finish, the Edge Duo features a 6-micron gold-sputtered dual-membrane capsule.
- Accurate Mic Modeling through Dual Outputs
- Edge Duo's dual-membrane capsule design feeds two separate XLR output channels via the included Y-cable. This stereosonic design allows the mic to accurately emulate the characteristic on- and off-axis responses of classic capsules, giving you a multi-dimensional mic-modeling experience.
- Included FPGA and Native Emulations
- The Edge emulations are designed to work hand-in-hand with Antelope's own precision mic preamps and converters. The Edge Duo can be used with any of Antelope Audio's mic preamp-equipped interfaces, whose built-in FPGA processing capabilities allow real-time vintage mic emulation.
However, the mic also includes Antelope's native mic emulation plug-ins, meaning you can use any third-party audio interface, and even change modeling settings after recording. Available in VST, AU, and AAX formats for both macOS and Windows, Antelope's native AFX plug-ins provide minimal latency, a high degree of oversampling, and precise floating-point calculations. An iLok is required for these emulations, and it is available separately. - Other Features at a Glance
-
- Switchable polar patterns, continuously variable
- Low-resonance head-basket and body construction
- Shockmount with pop filter
- Oxygen-free copper Y-cable
- Emulations Include:
-
- BERLIN 47 FT
- BERLIN 49T
- BERLIN 57
- BERLIN 87
- BERLIN 67
- BERLIN M103
- VIENNA 12
- VIENNA 414
- TOKYO 800T
- OXFORD 4038
- SACRAMENTO 121R
UPC: 853744004717 In the Box Antelope Edge Duo Large-Diaphragm Condenser Modeling Microphone Oxygen-Free Breakout Y-Cable (16.4' / 5m) Shock Absorber Mount with Pop Filter Road Case with Handle and Custom-Fit Foam Inserts Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Antelope Edge Duo Large-Diaphragm Condenser Modeling Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAntelope Edge Duo Specs | | | Sound Field | Mono dual-membrane, dual-output condenser microphone for modeling of mono microphones | | Transducer | Condenser | | Diaphragm | 1.34" / 34 mm (Condenser) | | Tube | No | | Polar Pattern | Cardioid, Figure-8, Omnidirectional | | Pattern Selection | Continuously Variable Continuously variable via software | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | Cardioid: 75 dB A-Weighted
Figure 8: 75 dB A-Weighted
Omnidirectional: 75 dB A-Weighted | | Impedance | Cardioid: 50 Ohms @ 1 kHz
Figure 8: 50 Ohms @ 1 kHz
Omnidirectional: 50 Ohms @ 1 kHz | | Sensitivity | Cardioid: -35 dB
Figure 8: -35 dB
Omnidirectional: -35 dB | | | | Output Connectors | 1 x 5-Pin XLR | | Cable Length | 16.4' / 5.00 m Included breakout Y-cable, 5-pin XLR to 2 x 3-pin XLR | | Operating Voltage | 48 V | | Length | 8.6" / 218.44 mm | | Diameter | 2.1" / 53.34 mm | | Weight | 1.23 lb / 558 g | | | | Package Weight | 7.365 lb | | Box Dimensions (LxWxH) | 13.4 x 12.8 x 6.4" |
