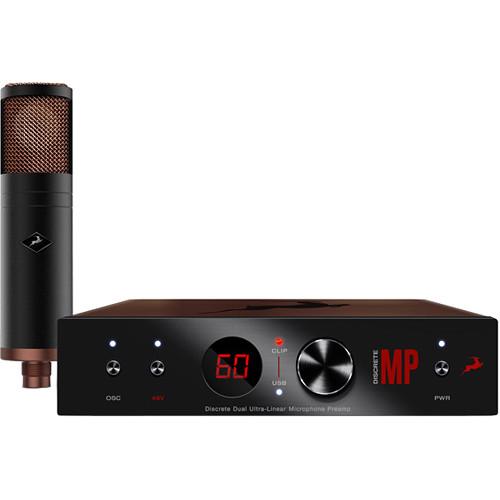

User Manual for Antelope Edge Strip Bundle with Modeling Microphone & Preamp Click to enlarge the picture
Contents of the user manual for the Antelope Edge Strip Bundle with Modeling
- Product category: Audio Interfaces & Systems Antelope
- Brand: Antelope
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Antelope Audio Interfaces & Systems
|
User manual for the Antelope Edge Strip Bundle with Modeling contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Antelope product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Antelope user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Antelope product will considerably shorten its lifespan!
|
Product description Designed to provide a mic locker's worth of sounds in a two-piece package, the Antelope Edge Strip Bundle comprises the Edge Modeling Microphone and the Discrete MP preamp. Also included are Antelope's AFX modeling plug-ins for transmuting the provided microphone into emulations of history's most venerable capsules. Indeed, with the microphone, the preamp, and the AFX plug-ins, the Edge Strip Bundle gives you the ability to recreate vintage tones.
The preamp utilizes USB 2.0 and provides two combination XLR-1/4" inputs and two 1/4" balanced line outputs. The gain range of this preamp is between 0 to 61 dB in 1 dB steps, giving you plenty of headroom. The preamp itself has been designed to complement the modeling microphone, sporting a linear, even frequency response up to 200 kHz.
With its dual-capsule design, the microphone can mimic not only the timbre of notable mics but also polar patterns to boot. Therefore, the Edge Modeling Mic plugs into the MP with an XLR Y-cable, taking up both inputs. With this mic, you can recreate classic 47s, 87s, 67s, and more. This bundle works with both Mac and Windows computers. - AFX Plug-In Pack
-
- Mic Emulations: Berlin 47 FT, Berlin 87, Berlin 67, Tokyo 800T, and Antelope Edge modeling
- Preamp Emulations: BAE 1073 MP, Gyraf Gyratec G9, and Antelope V76
- Compressors and EQs: Stay Levin Compressor/Limiter, and a BAE 1073 EQ
- Edge Modeling Microphone Features
-
- Large-diaphragm condenser microphone with accurate transient response
- Hand-selected, dual edge-terminated capsules for a smooth, natural sound
- Metal enclosure
- Fully discrete electronic components
- Multiple polar pattern switching
- Mic Emulation FX offers a growing collection of classic microphones
- Discrete MP Features
-
- Designed to complement the Antelope Audio Edge modeling microphone
- Two-channel microphone preamp with discrete circuitry
- Remotely controlled, digitally adjustable gain from 0 to 61 dB
- Two combination XLR-1/4" TRS connectors for mic/line signals
- Two 1/4"" balanced line outputs
- Calibration oscillator of 1 kHz / 0 dBu for accurate gain calibration
- 48 VDC phantom power
- Software control panel for Mac & Windows
In the Box Antelope Edge Strip Bundle with Modeling Microphone & Preamp Edge Large-Diaphragm Condenser Modeling Microphone ewztwqwcaz Microphone Cable (5-Pin to 2 x 3-Pin XLR) Shockmount Pop Filter Power Supply USB Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Antelope Edge Strip Bundle with Modeling Microphone & Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAntelope Edge Strip Specs | | | Analog Inputs | 2 x combination XLR-1/4" inputs
Mic (XLR Only): 20 dBu maximum, balanced
Mic Input Impedance: 1.2 kOhms
Line (1/4" or TRS): 29 dBu maximum, balanced
Line Input Impedance: 21 kOhms | | Analog Outputs | 2 x 1/4", TRS (22 dBu, maximum)
Output Impedance: 56 Ohms | | Digital Connectivity | USB 2.0 I/O with Type B connector (only used for remote control) | | Gain Range | 0 dB to 61 dB in 1 dB steps | | Phantom Power | 48 V Phantom Power | | Calibration | Calibration oscillator of 6 dBu at 1 kHz for accurate gain calibration | | THD + N | -106.0 dB at 10 dBu, 1 kHz sine, 50-Ohm balanced input | | EIN | -128 dBu, A-weighted | | Frequency Response | 10 Hz to 200 kHz (-3 dB at 200 kHz) | | Dynamic Range | -126 dBu | | Power | 5 W | | Dimensions (W x H x D) | 7.5 x 1.8 x 6.2" / 190.0 x 46.5 x 157.0 mm | | Weight | Unit: 33.5 oz / 950.0 g
Adapter: 6.3 oz / 180.0 g
Weight: 39.9 oz / 1130.0 g | | | | General Requirements | USB 2.0 connection
Core 2 Duo minimum (Core i3/i5/i7/Xeon recommended)
4 GB RAM minimum (8 GB RAM recommended) | | Operating System | OS X 10.11 (El Capitan) or later
Windows 10 |
