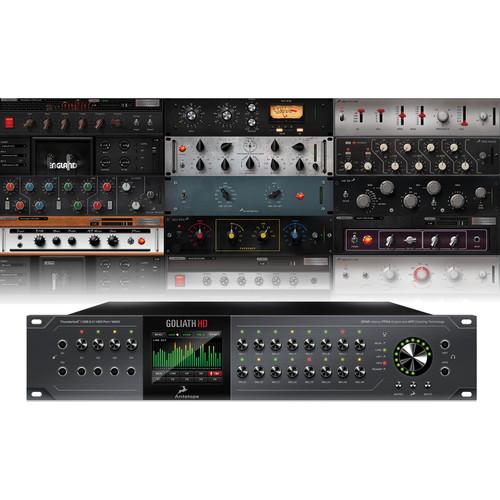

User Manual for Antelope Goliath HD - HDX USB 3.1 Gen 1 Thunderbolt MADI Audio Interface Click to enlarge the picture
Contents of the user manual for the Antelope Goliath HD - HDX USB
- Product category: Audio Interfaces & Systems Antelope
- Brand: Antelope
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Antelope Audio Interfaces & Systems
 |
User manual for the Antelope Goliath HD - HDX USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Antelope product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Antelope user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Antelope product will considerably shorten its lifespan!
|
Product description - Introducing Goliath HD | Antelope Audio
- Goliath ThunderboltTM, USB and MADI Audio Interface with 16 Mic Pres
- Getting Started with Goliath | Antelope Audio
With 16 Class-A mic preamps, extensive analog & digital connectivity and an array of integrated hardware-based FPGA effects, the Goliath HD from Antelope is an HDX, Thunderbolt, USB 3.0, and MADI audio interface designed to function as the hub of your studio or live recording setup. The I/O offers up to 64 channels (32 analog inputs and outputs) of I/O, 24-bit/192 kHz AD/DA conversion, a mastering-grade monitor output with an impressive 132 dB of dynamic range, and additional connectivity via ADAT, S/PDIF, AES/EBU, and DB25 connectors.The Goliath HD allows engineers to accommodate producers who come to the session with their laptop, by integrating their projects into the studio's existing HD setup with simultaneous streaming of audio via HDX and low-latency Thunderbolt Gen2 or USB 3.0 modes. It also features proprietary HDX Delay Compensation technology, which ensures analog and digital sources are sample-accurate when they arrive in Pro Tools HD's timeline. Precise clocking is provided by Antelope's 64-bit Acoustically Focused Clocking (AFC) technology which provides for low jitter, natural and detailed sound, and 129 dB of dynamic range.The Goliath HD is equipped with a Field-Programmable Gate Array (FPGA) chip, which allows for the creation of low-latency mixes, routing, and FX modeling. The unit comes with a library of classic hardware EQs, compressors, and the AuraVerb reverb. It opens a variety of creative options such as monitor-mixing with reverb, tracking through modeled vintage EQ & compression and routing to external gear in real time.Other features include two independent headphone outputs, four instrument DI inputs, two transformer reamp outputs, a mute button, a mono button, and a talkback button. All functions on the unit can be accessed from a high-resolution touchscreen control display, with multichannel metering, easy access to preferences, presets, and clocking modes. The interface is fully controllable via an intuitive OS X- and Windows-compatible desktop app or from a smartphone or tablet via the iOS and Android apps. For complex and large-scale setups, all features are also accessible from multiple computers in the same network.The Goliath HD features quiet operation. - Pro Tools HD Native Integration
-
- Simultaneous streaming of 24-bit/192 kHz audio via HDX, USB 3.0, Thunderbolt, MADI, ADAT, S/PDIF, AES/EBU
- Proprietary HDX Delay Compensation – any analog or digital source arrives sample-accurate in the Pro Tools HD's timeline
- Two HDX mini port for up to 64 channels of I/O
- USB 3.0 port for up to 64 channels of I/O
- Thunderbolt port for up to 64 channels of I/O
- Two MADI ports – compatible with MADI-to-Dante Bridge
- Two ADAT ports for up to 16 channels of I/O
- S/PDIF port for 2 channels of I/O
- AES/EBU port for 8 channels of I/O
- Analog I/O
-
- 16 x Accusonic, Class-A mic preamps with phantom power and dedicated volume knobs on front panel
- 32 x analog inputs with 124 dB dynamic range
- 32 x analog outputs with 129 dB dynamic range
- 4 x front-panel Hi-Z, instrument DI inputs
- 2 x front-panel reamp outputs
- 2 x insert points
- Mastering-grade monitor output DAC with 132 dB dynamic range
- Two headphone outs

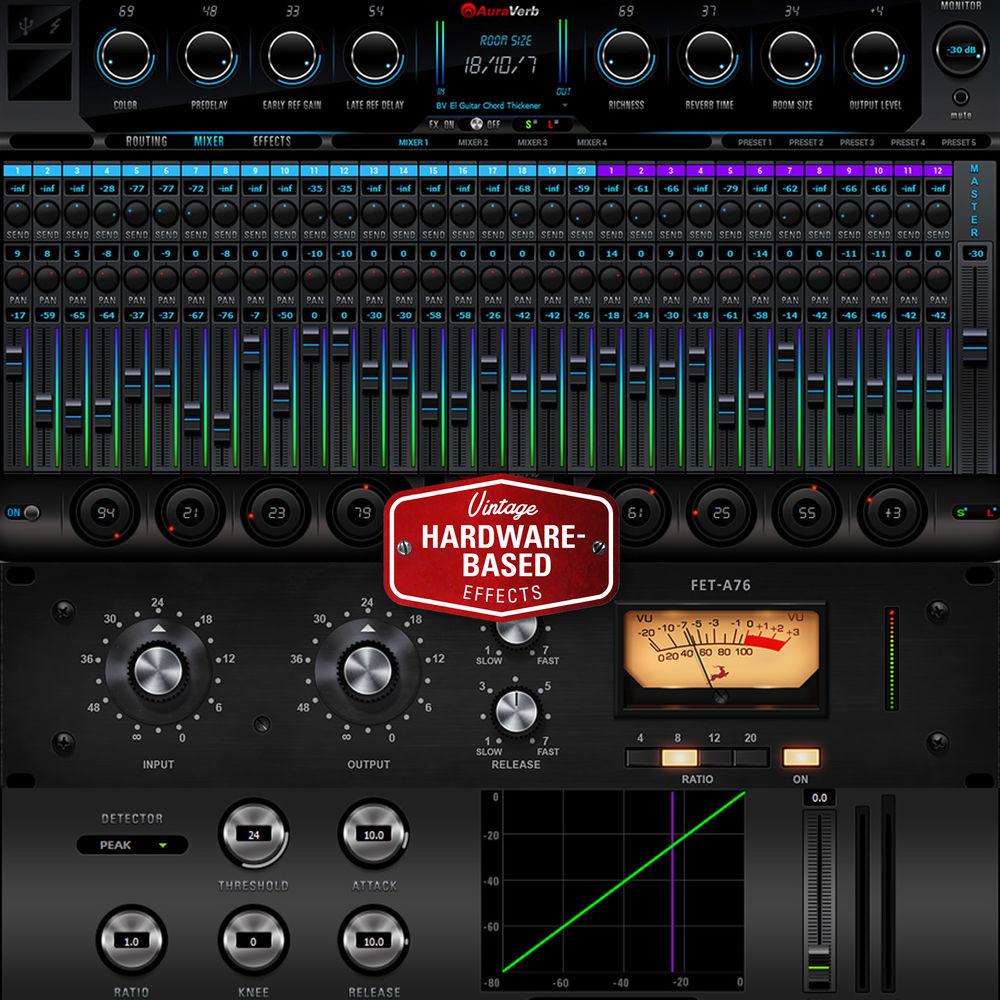

- Real-Time FPGA FX
-
- Field-Programmable Gate Array (FPGA) engine offers massive modeling capabilities that provides low-latency FX/mixes/routing

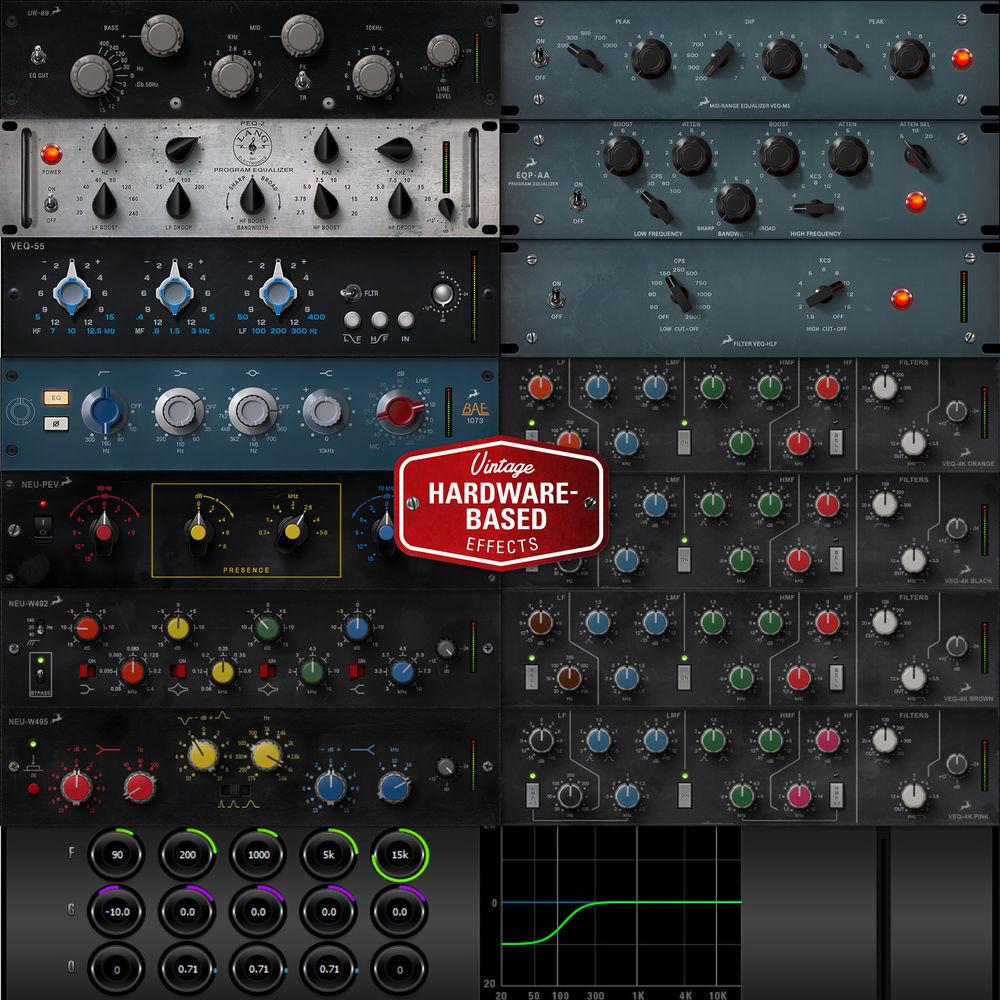

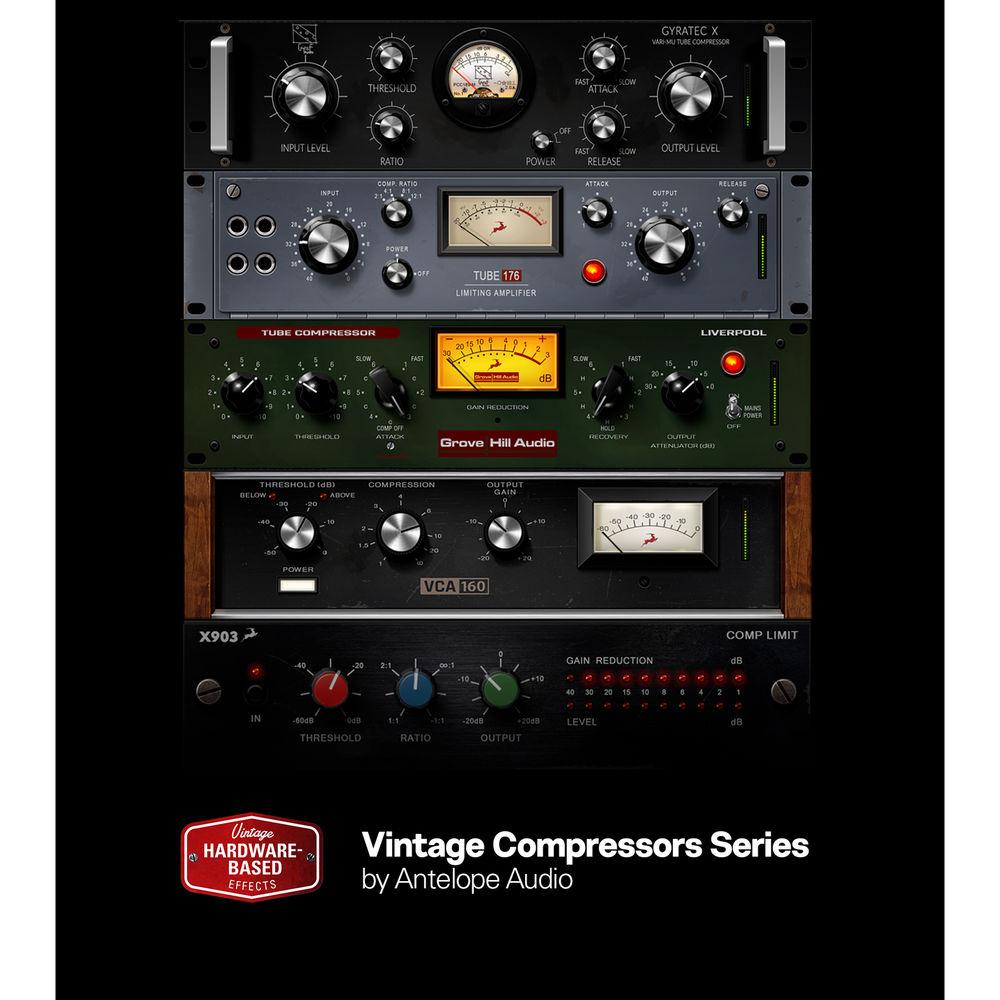

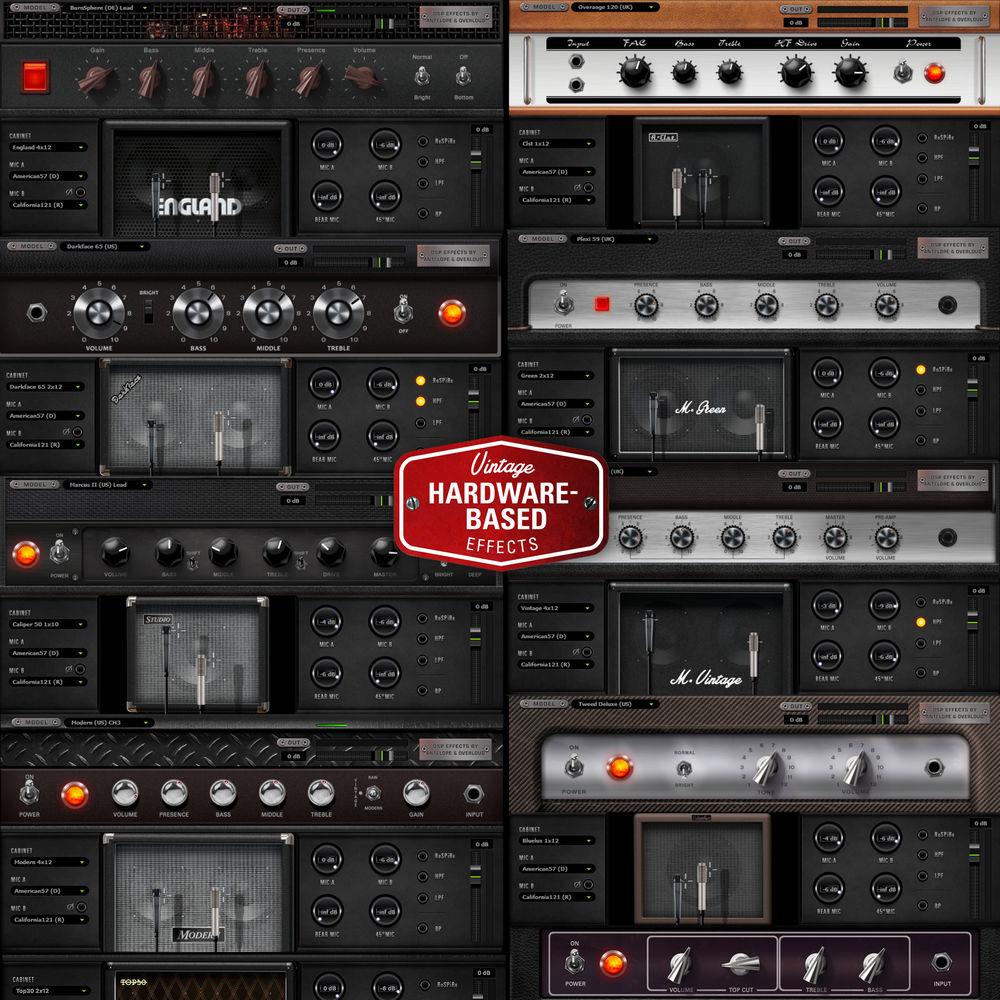

- Library of authentically modeled classic studio hardware, EQs, and compressors
- Includes AuraVerb reverb
- Pristine AD/DA Conversion
-
- ESS-powered audiophile-grade conversion – high-end converters allow dynamic range boosted up to 129 dB
- Accurate Clocking
-
- Powered by Antelope’s 64-bit Acoustically Focused Clocking (AFC) jitter-management technology
- Word clock input, atomic clock input, and two word clock outputs – supports loop sync
- Goliath HD can be used as a master clock for two other units via two word clock outs, and can be synched to Antelope's 10MX Rubidium Atomic Clock for optimum sound accuracy
- Other Features
-

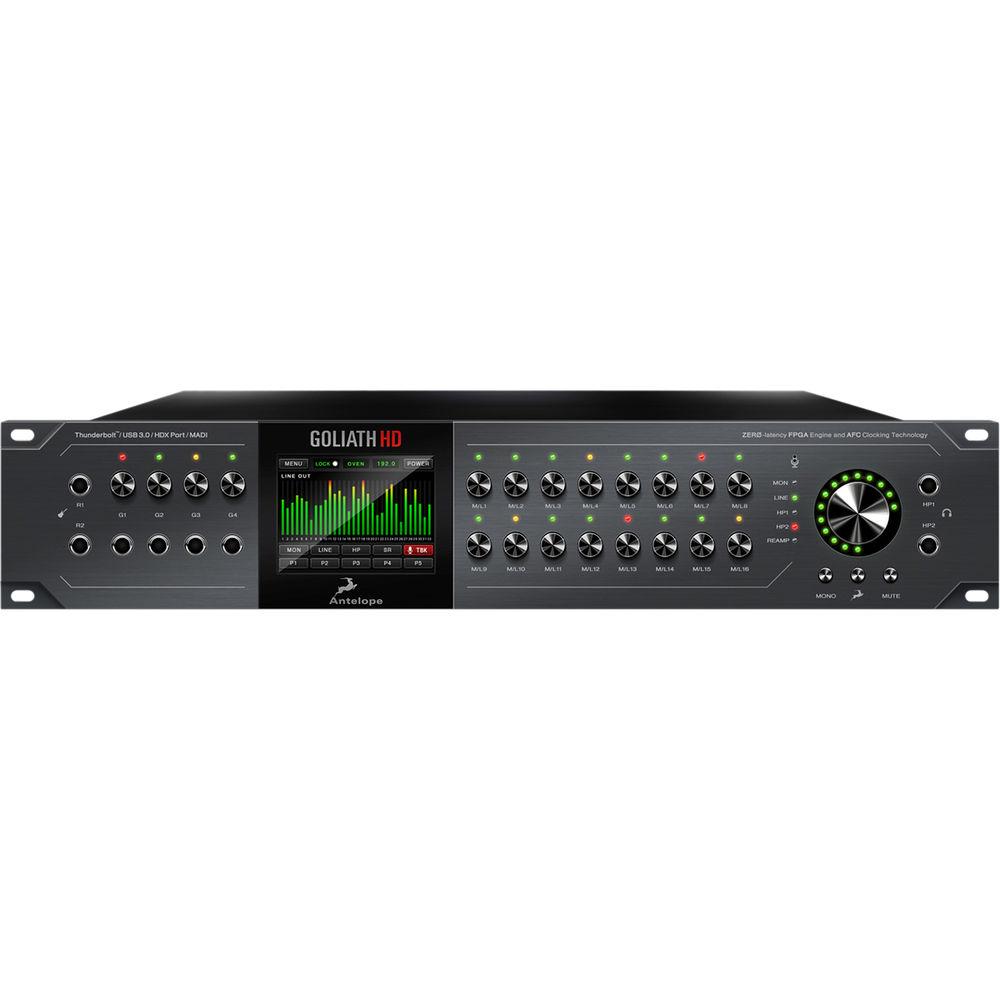

- Responsive touchscreen with enhanced monitor and level indicators offers multichannel metering, easy access to preferences, presets, and clocking modes, for HD Native interfacing
- Talkback button
- Full session saving presets let you quickly save, load, and share any routing, monitoring, and FX settings
- Quiet operation
- Software Control
-
- Fully controllable routing, mixing, real-time effects processing via intuitive OS X- and Windows-compatible desktop app
- iOS / Android mobile app gives you full control of mic preamps from a smartphone or tablet
- Goliath HD allows for fast device control via multiple computers in complex and large-scale setups
UPC: 853744004441 In the Box Antelope Goliath HD - HDX USB 3.1 Gen 1 Thunderbolt MADI Audio Interface AEC Power Cord USB Cable Cleaning Cloth Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Antelope Goliath HD - HDX USB 3.1 Gen 1 Thunderbolt MADI Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

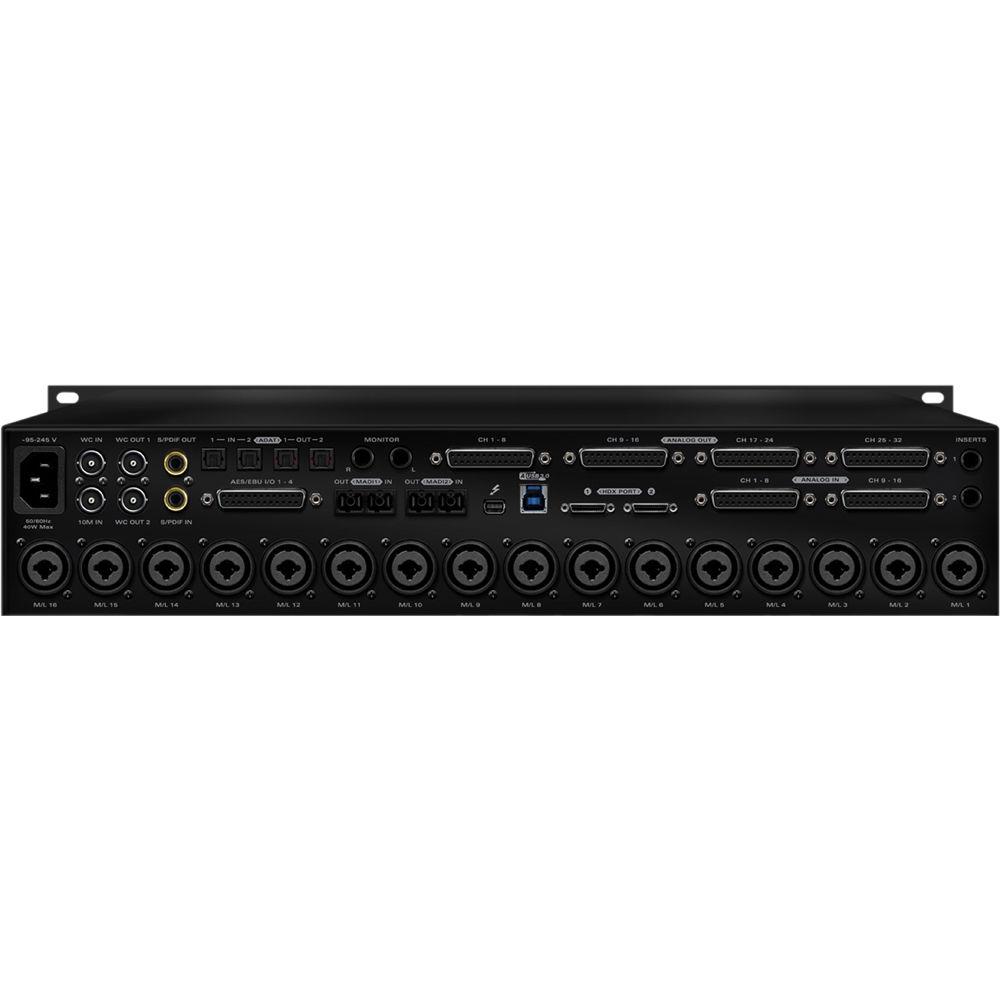

Technical parametersAntelope GOLIATH HD Specs | Analog Inputs | 16 × mic / line-level on XLR combos
2 x DB25 (16 channels)
4 x Hi-Z 1/4" TRS
2 x inserts on 1/4" TRS (dedicated for inputs 1, 2) | | Analog Outputs | 4 x DB25 (32 channels)
1 x 1/4" TRS stereo pair of monitor outputs
2 x 1/4" TRS stereo headphone outputs
2 x 1/4" TRS reamp outs | | Mic Preamps | Gain: 0, 10 to 65 dB
THD+N: -112 dB | | Digital Inputs | 2 × ADAT (16 channels)
1 x S/PDIF
1 × AES/EBU (8 channels)
2 × MADI | | Digital Outputs | 2 × ADAT (16 channels)
1 x S/PDIF
1 × AES/EBU
2 x MADI | | USB I/O | 1 x USB 3.0 Super-Speed, Type-B connector | | Thunderbolt I/O | 1 x Thunderbolt Gen2 | | HDX Connectivity | 2 x mini HDX connectors for direct Pro Tools connection
32 x channels I/O each (total of 64 channels) | | A/D and D/A Conversion | D/A Monitor Converter
Dynamic Range: 132 dB
THD+N: -108 dB
D/A Converters
Dynamic Range: 129 dB
THD+N: -120 dB
A/D Converter
Dynamic Range: 124 dB
THD+N: -112 dB | | Word Clock I/O | Word Clock Input
1 x BNC input at 75 Ohms, 3 V p-p
Atomic Clock Input
1 x 10M BNC input at 75 Ohms, 1 V p-p
Word Clock Outputs
2 x BNC outputs at 75 Ohms, 3 V p-p | | Clocking System | 4th generation acoustically focused clocking
64-bit DDS
Oven-controlled crystal oscillator | | Clocking Stability | < ± 0.02 ppm, oven controlled at 148.1°F / 64.5°C | | Clock Aging | < 1 ppm per year | | Clock Calibration | < ± 0.001 ppm | | Sample Rates | 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Power | AC universal input: 95 to 245 V | | Power Consumption | 50 W, maximum | | Windows System Requirements | Windows 7, 8, 8.1, 10
Intel or AMD equivalent CPU, 2.0 GHz (minimum)
4 GB RAM (8 GB or more recommended)
512 MB of drive space
1 x USB 3.0 port
Required USB bandwidth: 80% to 90%Internet connection required for product activation | | Mac System Requirements | OS X 10.9, 10.10, 10.11, 10.12 (Sierra recommended)
Intel Core 2 Duo (minimum), Intel Core i3 (recommended)
4 GB RAM (8 GB or more recommended)
512 MB of drive space
1 x USB 3.0 port
1 x Thunderbolt/USB Type-C portInternet connection required for product activation | | Dimensions (W x H x D) | 19 x 3.2 x 11" / 48.3 x 8.1 x 27.9 cm | | Weight | 15 lb / 6.8 kg (approximately) |
