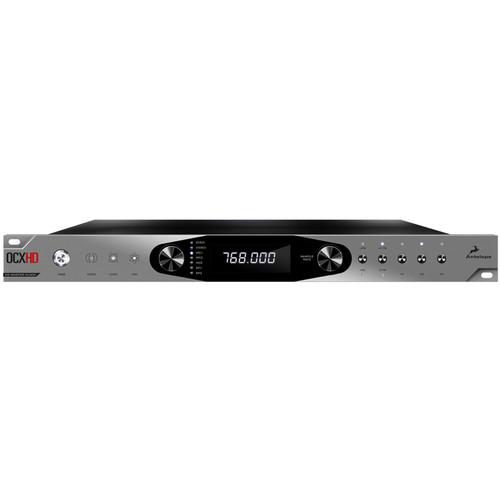

User Manual for Antelope Isochrone OCX HD Master Clock Click to enlarge the picture
Contents of the user manual for the Antelope Isochrone OCX HD Master Clock
- Product category: WordClock & Syncronization Antelope
- Brand: Antelope
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Antelope WordClock & Syncronization
|
User manual for the Antelope Isochrone OCX HD Master Clock contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Antelope product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Antelope user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Antelope product will considerably shorten its lifespan!
|
Product description Provided by third party: - Isochrone OCX HD Master Clock | Antelope Audio
The perfect solution for mastering, recording and project studios, film-scoring, post-production and live sound. For over a decade, Antelope's legendary OCX Master Clock has been a dominant force in the audio world. This legacy now continues with the newest master clock by Antelope Audio - Isochrone OCX HD.
- Key Features
-
- Vast choice of clocking options
- All that you love about Antelope's cult Trinity Master Clock now in just 1U
- Access all OCX HD features via Antelope Audio's flexible software control panel
- Vast choice of clocking options
- OCX HD raises the bar yet again, delivering sample rate support of up to 768 kHz, Antelope's 4th generation Acoustically Focused Clocking (AFC) jitter management algorithm and oven-controlled crystal oscillator. OCX HD Master Clock offers a great variety of clocking options - 10 configurable in pairs Word Clock Outputs on BNC, four AES/EBU Outputs and two more on S/PDIF. This vast assortment of connectivity makes the OCX HD the most versatile audio master clock on the market, while proven, proprietary clocking technology delivers the most musical and reliable audio sync generation on the market.
- All that you love about Antelope's cult Trinity Master Clock now in just 1U
- Additionally, OCX HD offers two Word Clock Inputs and a Video Sync Input, which can resolve to a huge variety of SD and HD formats, as well as clock distribution with gear-boxing, and pull-up and pull-down rates, as featured in the triple clock powerhouse, Trinity Master Clock. A 10 MHz Input allows for syncing with Antelope's newest Atomic Clock - 10MX.
- Access all OCX HD features via Antelope Audio's flexible software control panel
- Antelope's latest master clock benefits from flexible firmware update functionality, as featured in all modern Antelope products, allowing for fast and easy firmware updates on the user-friendly software control panel, available for both OS X and Windows. The desktop app provides convenient remote control to simplify project workflow. The device is also easily configurable from an elegant front panel, which will add a futuristic aesthetic to any gear rack.
UPC: 853744004342 Table of Contents
|
Upload User Manual
Have you got an user manual for the Antelope Isochrone OCX HD Master Clock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAntelope OCXHD Specs | | | Type | Master clock | | Width | 19 in | | Depth | 9.1 in | | Height | 1.7 in | | Weight | 5.84 lbs | | | | Nominal Voltage | AC 120/230 V | | Frequency | 50/60 Hz | | Max Power Consumption | 20 W | | | | Terminals | (2) x wordclock input - BNC
(1) x composite video input - BNC
(1) x atomic clock input - BNC
(2) x SPDIF input - RCA
(1) x AES / EBU input - XLR
(10) x wordclock output - BNC
(4) x AES / EBU output - XLR
(2) x SPDIF output - RCA
(1) x USB - 4 pin USB type A | | | | Min Operating Temperature | 32
