User Manual for Antelope LiveClock - 192 kHz Live Master Clock Click to enlarge the picture
Contents of the user manual for the Antelope LiveClock - 192 kHz Live
- Product category: WordClock & Syncronization Antelope
- Brand: Antelope
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Antelope WordClock & Syncronization
 |
User manual for the Antelope LiveClock - 192 kHz Live contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Antelope product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Antelope user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Antelope product will considerably shorten its lifespan!
|
Product description - Antelope Audio introducing the new LiveClock
The LiveClock from Antelope is a master clock intended for use in live-sound applications. Featuring a lockable touchscreen, this device offers a 64-bit jitter management algorithm at sample rates of up to 192 kHz, allowing front-of-house mixers and monitoring engineers to sync their sources together, and thus producing precise stereo image and depth-of-field on stage—a truly accurate sonic picture free of the clicks and pops often associated with incorrectly coordinated digital devices.

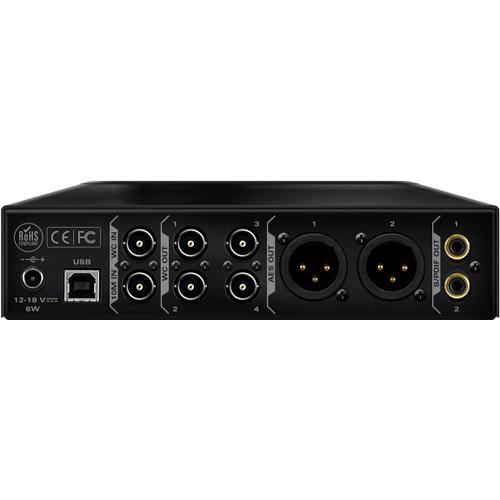

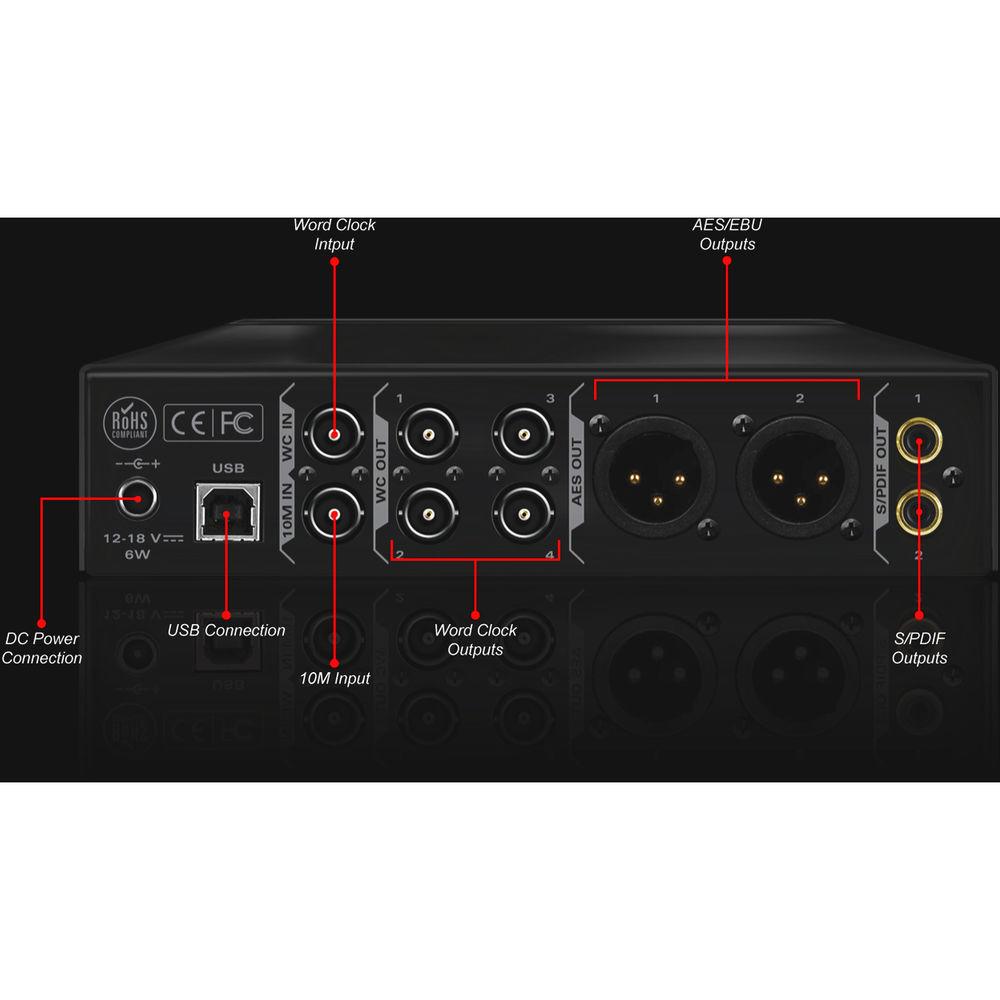

The device itself offers four BNC word clock outputs for use with other devices, as well as a pair of AES/EBU and S/PDIF connection points. The LiveClock also has a USB 2.0 output. You can also slave it to other devices via two BNC inputs, one of which operates at 10 MHz for interfacing with Antelope's 10MX and 10M systems.

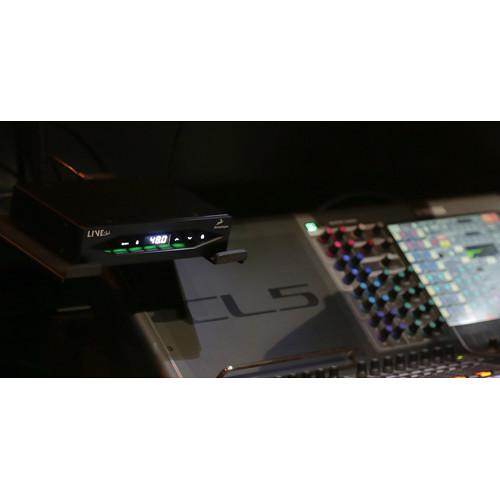

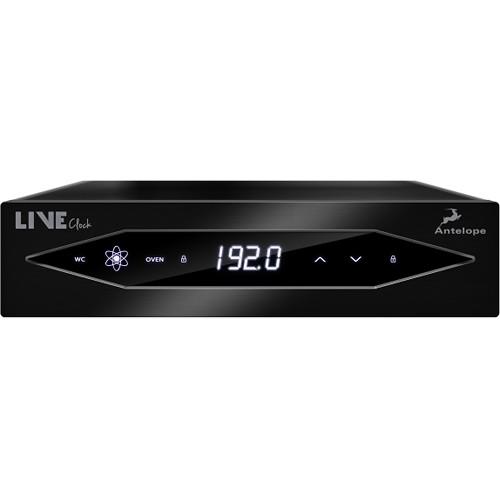

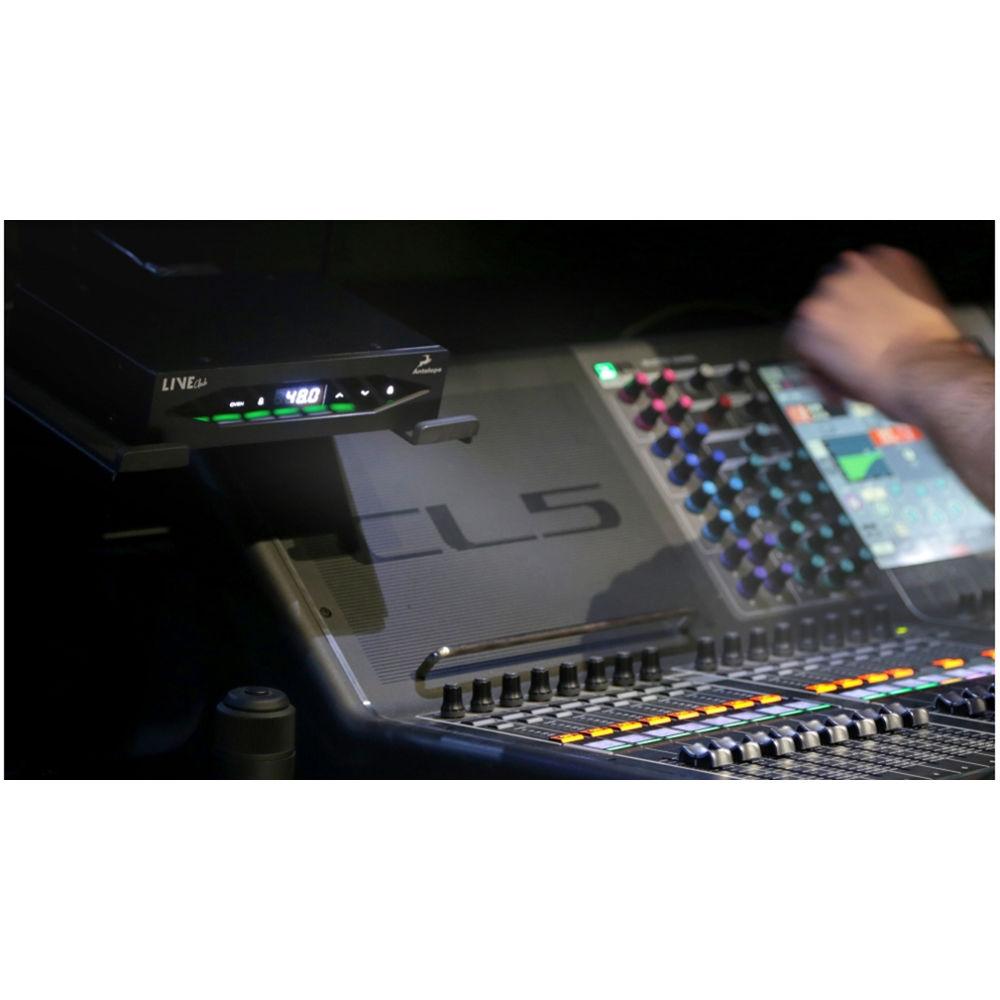

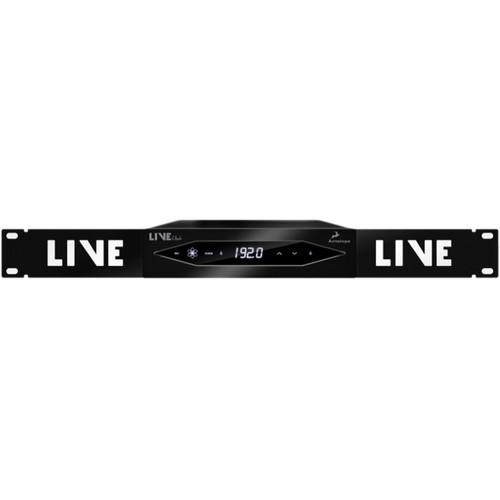

To suit the purposes of touring, the LiveClock takes up only 1 RU of space when mounted with its additional rack-ears, and can fit directly into a FOH console dog-house. Touch-buttons on the front panel provide convenient setups, which can be locked to prevent sample-rate changes during a session or live show. An included software compatible with Mac and Windows operating systems allows for internal control over all aspects of the LiveClock. UPC: 853744004366 In the Box Antelope LiveClock - 192 kHz Live Master Clock Wall Wart Power Supply Unit USB Cable Rackmount Kit Dog-House Mounting Kit Set of Fasteners Cleaning Cloth Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Antelope LiveClock - 192 kHz Live Master Clock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAntelope LIVE Specs | Sample Rate | Up to 192 kHz | | Inputs | 1 x BNC (word clock)
1 x BNC (10 MHz) | | Output | 4 x BNC
2 x Balanced XLR for AES/EBU
2 x S/PDIF
1 x USB 2.0 | | Mac System Requirements | Windows 7, 8, 8.1, 10
Intel or AMD equivalent CPU, 2 GHz
4 GB RAM
512 MB free drive space | | Mac System Requirements | OS X 10.9, 10.10, 10.11
Intel Core 2 Duo
4 GB RAM
512 MB free drive space | | Dimensions (W × H × D) | 7.5 x 1.8 x 5.4" / 19.1 x 4.7 x 13.6 cm | | Weight | 1.3 lb / 580.0 g | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 13.8 x 11.7 x 3.6" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 16 owners. Add your rating and experience with the product.
