Product description - Antelope Audio MP32 - 32 Channel Mic Preamp
- MP32 32-Channel Microphone Preamp

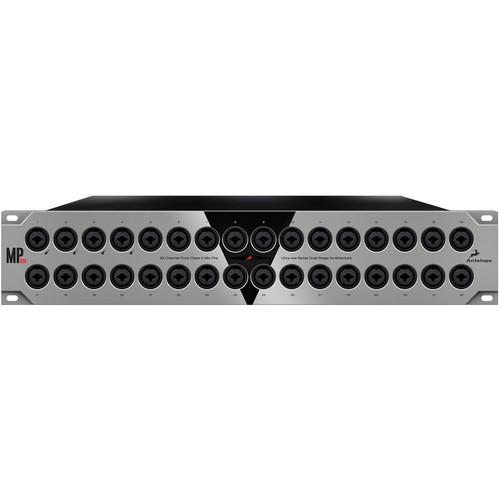

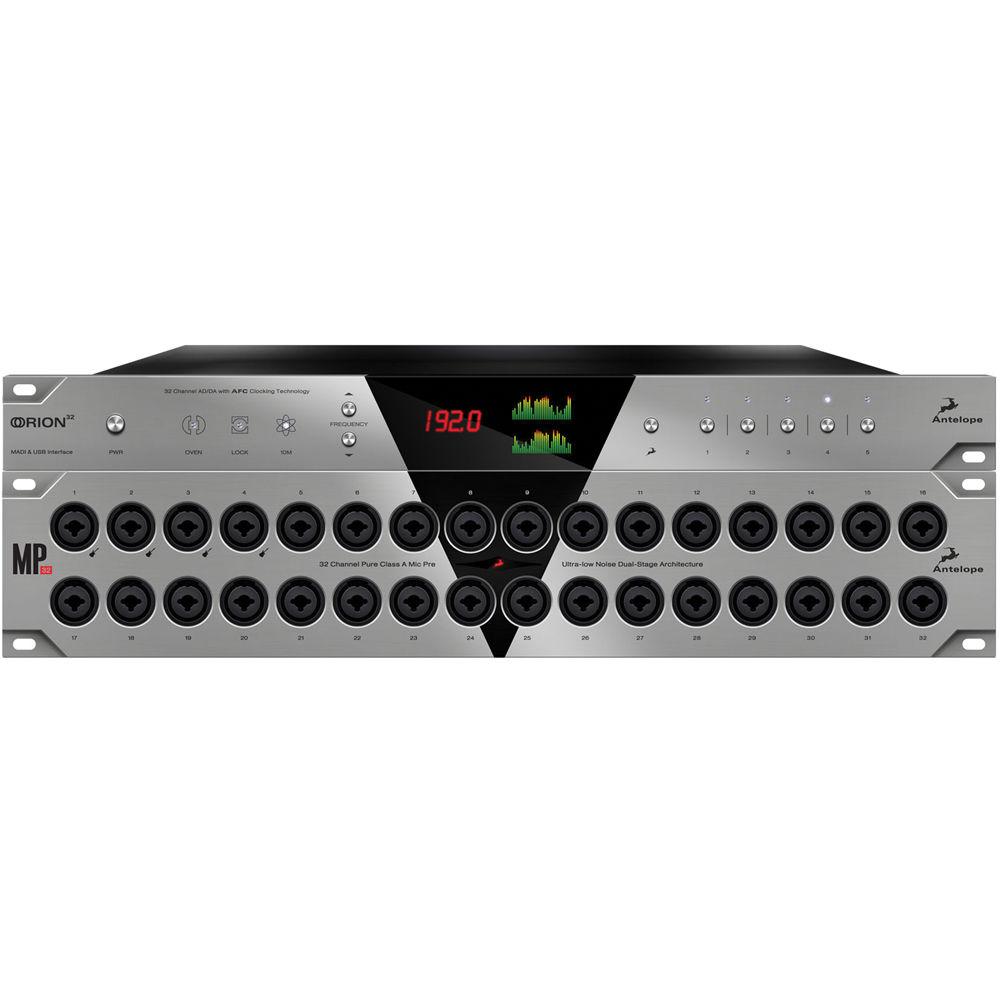

Designed to provide console-grade transparent microphone preamplification for their Orion32 audio interface as well as other systems, the MP32 32-Channel Microphone Preamp from Antelope provides 32 channels of software-controllable analog microphone and line level amplification in a 2U rackmount package. It features 32 combo XLR/TRS inputs on its front panel, each of which accepts both microphone or line-level inputs, with channels 1 to 4 also accepting Hi-Z instrument level sources. Each channel boasts a low THD + N level of -110.5 dB and provides up to 68 dB of gain in 1 dB steps and independently assignable 48V phantom power.

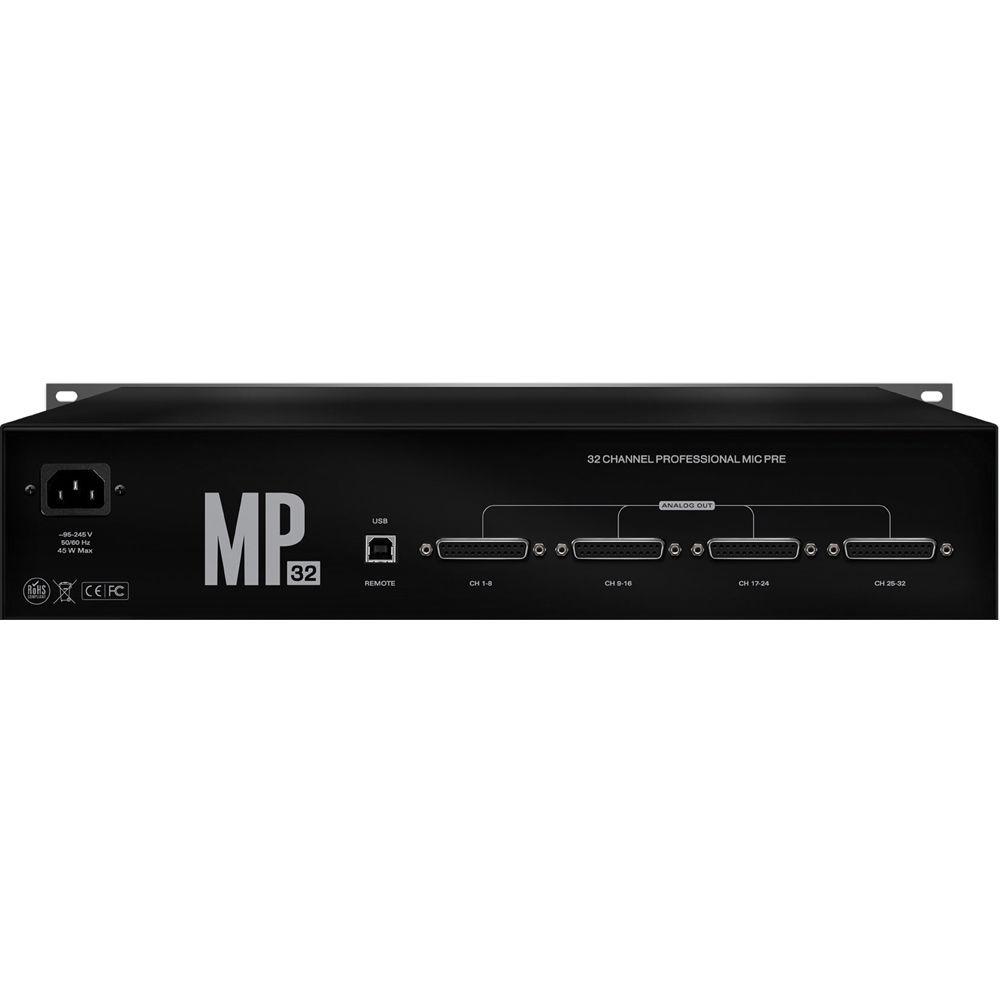

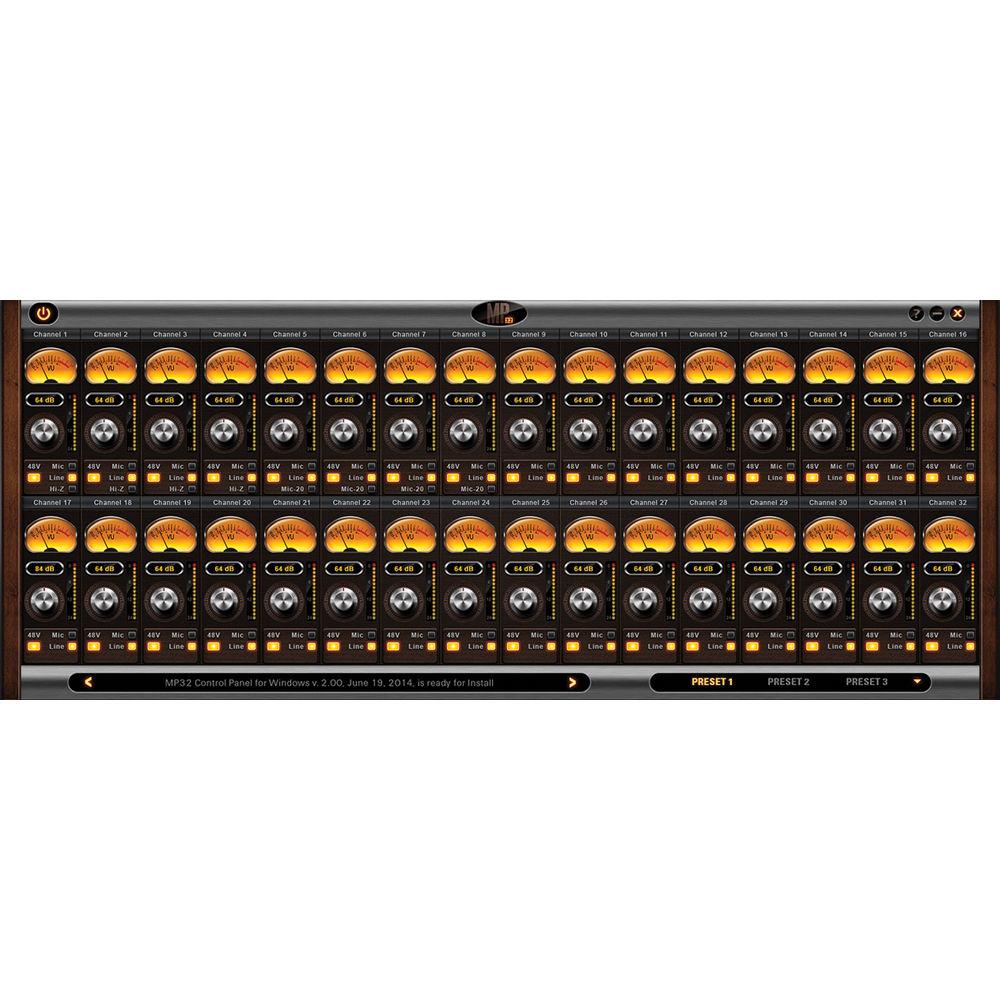

All of the MP32's parameters are controllable via their control panel software for Mac or Windows computers, which also provides individual VU style metering for the unit. The preamp's 32 line-level outputs are on 4 D-Sub 25 connectors. - 32-channel console-grade mic pres at line dual stage amplifier input
- Channels 1 to 4 can function as Hi-Z inputs
- Independently assignable phantom power
- 4x D-SUB-25 connector (32-channel outs)
- USB Full Speed interface for software control panel
- Control Panel software for Windows and OS X, which provides mic pre level adjustment of +/-1 dB, 4 channel Hi-Z control, phantom power control (+48V), and allows you to switch mic pre / line amplifier range +/-1 dB
UPC: 853744004274 In the Box Antelope MP32 32-Channel Microphone Preamp Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Antelope MP32 32-Channel Microphone Preamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAntelope MP32 Specs | | | Analog Inputs | 32x Mic/line-level XLR/TRS combo inputs
4x Hi-Z inputs (channels 1 - 4)
XLR Input: +21 dBu Max, balanced
1/4" TRS Line/Hi-Z Input: +45 dBu Max, balanced | | | | Analog Outputs | 32x Line-level outputs on 4 D-SUB 25 connectors
+27 dBu Max
50 ohms | | USB | Full-Speed; Data stream of 12 mbps, control panel only, Type B | | | | Gain | Mic Pre/Line: Programmable gain, +15 to 68 dB in 1 dB steps
Line: Programmable gain, +15 to 45 dB in 1 dB steps | | THD + N | -110.5 dB | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Power Supply | Nominal 100 - 120 / 220 - 240 V AC, 50 or 60 Hz
Actual 95 - 264 V AC, 50 or 60 Hz | | Dimensions (W x H x D) | 19 x 3.5 x 8.3" (482 x 88 x 210 mm), approximate
2U | | Weight | 9 lb (4.25 kg), approximate | | | | Package Weight | 14.5 lb | | Box Dimensions (LxWxH) | 25.1 x 13.5 x 6.0" |
