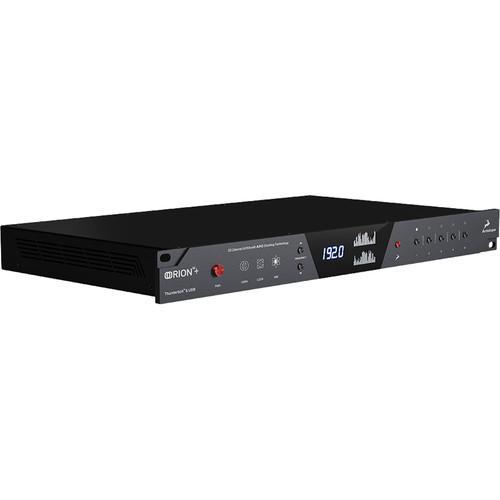

User Manual for Antelope Orion 32 Gen 3 32-Channel AD DA Thunderbolt USB Audio Interface Click to enlarge the picture
Contents of the user manual for the Antelope Orion 32 Gen 3 32-Channel
- Product category: Audio Interfaces & Systems Antelope
- Brand: Antelope
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Antelope Audio Interfaces & Systems
 |
User manual for the Antelope Orion 32 Gen 3 32-Channel contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Antelope product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Antelope user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Antelope product will considerably shorten its lifespan!
|

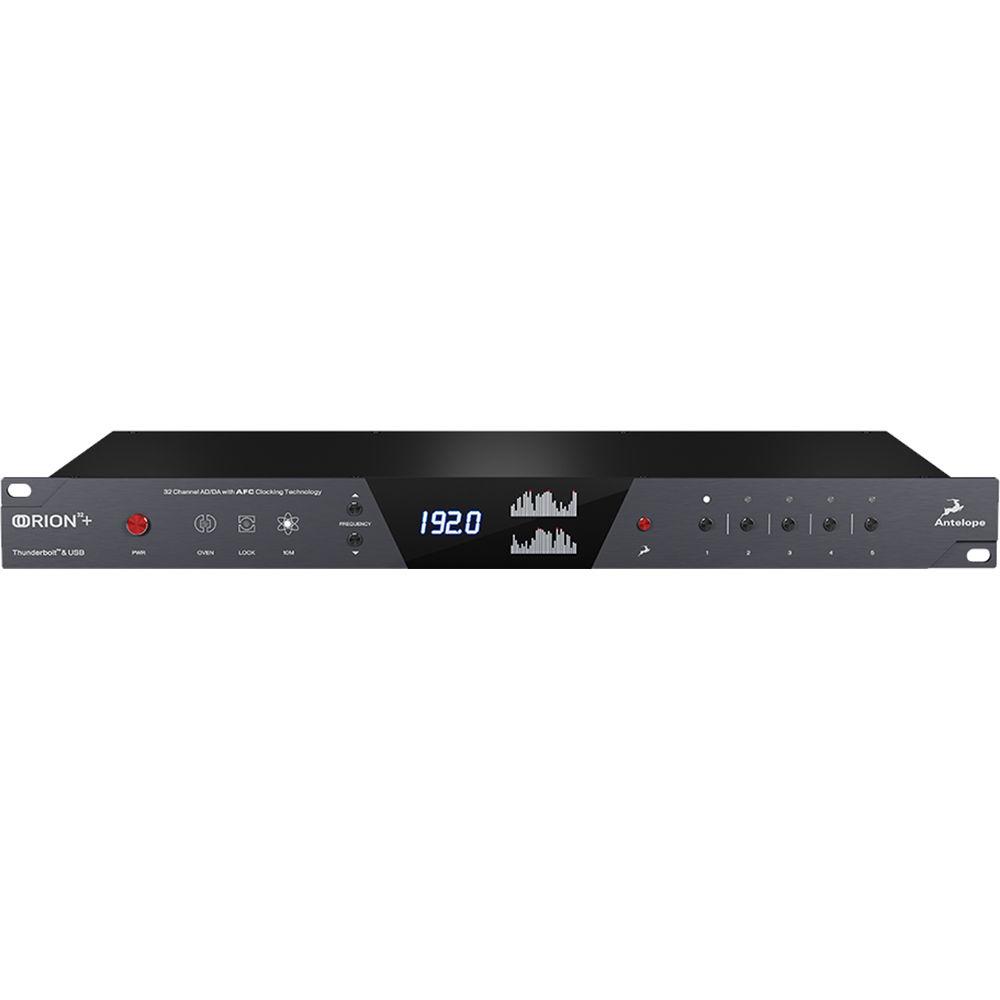

Product description The Antelope Orion32+ | Gen 3 is a Thunderbolt/USB audio interface offering 32 channels of AD/DA conversion and upgraded performance for audio engineers in recording studios and live stage applications. With a redesigned look, expanded dynamic range, and lower THD+N values, the Orion32+ | Gen 3 is designed to visually and aurally enhance your setup. It supports 64 channels of 24-bit / 192 kHz high-resolution audio via Thunderbolt, or 32 channels over USB. In addition to 32 channels of analog I/O via DB25 connectors, this interface features powerful digital I/O including fiber-optic MADI, ADAT, and S/PDIF. The dedicated 1/4" monitor outputs are ideal for hooking up a pair of active monitors or a monitor controller.The Orion32+ | Gen 3 also functions as a master clock, providing the same clarity and precision synonymous with Antelope, along with 64-bit AFC (Acoustically Focused Clocking) technology to handle jitter. Two wordclock outputs, a wordclock input, and a 10 MHz atomic clock input allow proper synchronization with a variety of digital equipment.Configure the interface via the front-panel display and buttons; five presets are provided for easy store/recall operations. Alternatively, use the macOS- and Windows-compatible desktop app for access to comprehensive routing, mixing, effects chaining, and more. The Orion 32+ Gen 3 includes a bundle of Antelope's FPGA-based FX, which model heralded audio hardware. - High Channel Counts at 24-Bit / 192 kHz
- Stream 64 channels via Thunderbolt (32 channels via USB) at up to 24-bit / 192 kHz resolution
- Precision AD/DA and Master Clock
- Take advantage of 32 channels of AD/DA conversion regulated by Antelope clocking, including 64-bit AFC jitter-management technology, an oven-controlled crystal oscillator, and a complement of I/Os (two wordclock outputs, one wordclock input, and one atomic clock input)
- Connectivity Options

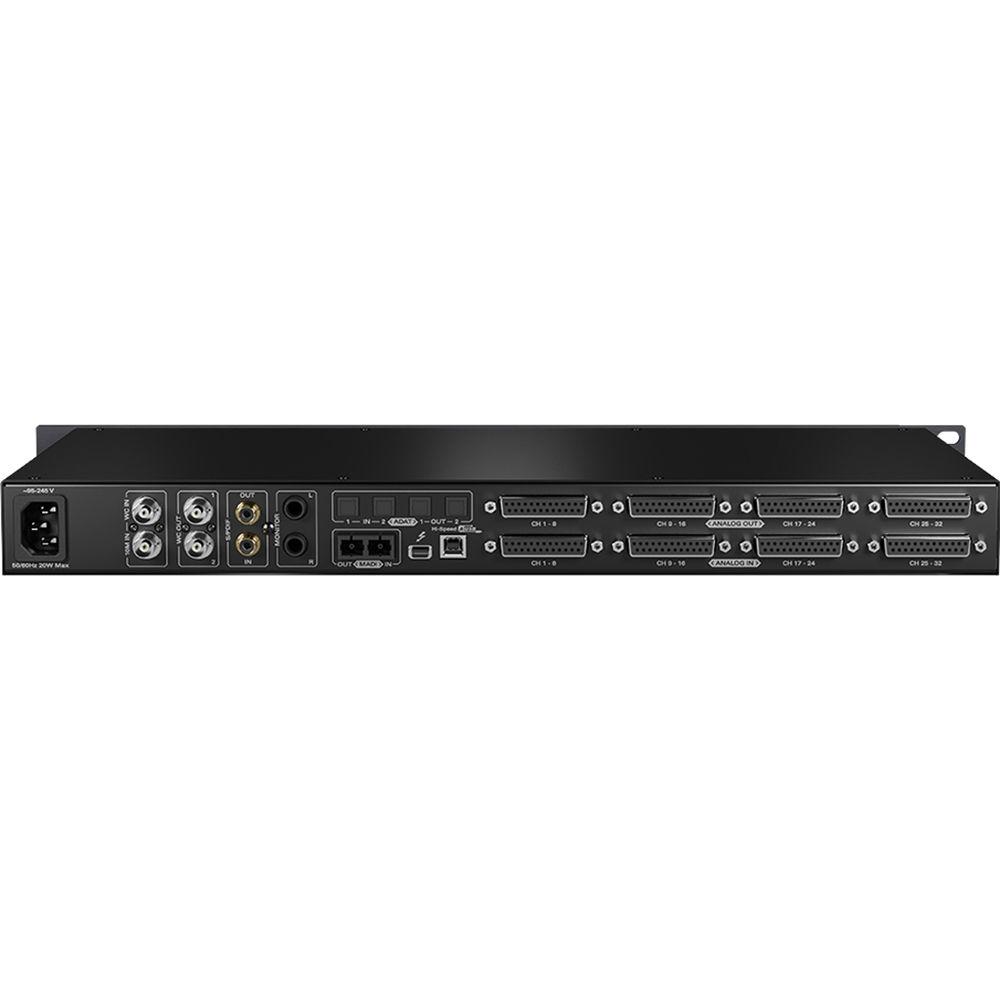

- Connect via Thunderbolt or USB to your host computer, interface digital equipment via MADI, ADAT, and S/PDIF, and hook up analog gear via DB25 line-level I/O
- Software Control
- Access routing, mixing, zero-latency monitoring, and real-time effects processing from multiple computers on the same network via Antelope's macOS- and Windows-compatible desktop app
- FPGA FX Models
- The Orion 32+ Gen 3 features a suite of essential effects from Antelope Audio's vast library of FPGA FX models
- Expandable Software
- Purchase additional effects, and invest in the AFX2DAW software bridge, which enables onboard-processed, low-latency effects to be used as inserts in your digital audio workstation
- Ready for the Rack
- The rack-mountable Orion32+ | Gen 3 occupies just one 1 RU of rack space
UPC: 853744004779 In the Box Antelope Orion 32+ Gen 3 32-Channel AD/DA Thunderbolt/USB Audio Interface Power Cable USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Antelope Orion 32 Gen 3 32-Channel AD DA Thunderbolt USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAntelope ORION32+ Specs | | | Channels of I/O | Thunderbolt:
64 Inputs / 64 Outputs
USB:
32 Inputs / 32 Outputs
Analog:
32 Inputs / 32 Outputs
Digital:
64 Inputs / 64 Outputs | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | Display and Indicators | 3 x LEDs (Clock Source)
5 x LEDs (Multifunction)
1 x Multi-Segment LED Meter (Sample Rate)
1 x OLED (Multifunction) | | | | Host Connection | 1 x Thunderbolt (MDP) (Thunderbolt 2)
1 x USB Type-B (USB 2.0) | | Analog I/O | 4 x DB25 Balanced 8-Channel Input
4 x DB25 Balanced 8-Channel Output
2 x 1/4" TRS Balanced Monitor Output | | Phantom Power | None | | Digital I/O | 2 x TOSLINK / ADAT (I/O) Input
2 x TOSLINK / ADAT (I/O) Output
1 x RCA Coaxial / S/PDIF (I/O) Input
1 x RCA Coaxial / S/PDIF (I/O) Output
1 x SC-Plug / Optical MADI (I/O) Input
1 x SC-Plug / Optical MADI (I/O) Output
1 x BNC (Atomic Clock) Input
1 x BNC (Word Clock) Input
2 x BNC (Word Clock) Output | | MIDI I/O | None | | Memory Card Slot | None | | | | Max Input Level | Line Inputs:
+24 dBu | | Max Output Level | Line Outputs:
+24 dBu | | Dynamic Range | A/D Converters:
121 dB
D/A Converters:
120 dB
Monitor Outputs:
129 dB | | Impedance | Line Inputs:
11.2 kOhm (Balanced)
Line Outputs:
56 Ohm (Balanced) | | THD+N | A/D Converters:
-112 dB
D/A Converters:
-107 dB
Monitor Outputs:
-108 dB | | | | Sample Rates | Up to 192 kHz | | Bit Depth | Up to 24-Bit | | Sync Sources | ADAT, Atomic Clock, Internal, S/PDIF, Word Clock | | Word Clock Input Termination | 75 Ohms | | | | OS Compatibility | macOS 10.11 or Later
Windows 10 | | Processor Requirement | Mac:
Intel Core 2 Duo
PC:
2 GHz Intel
2 GHz AMD | | RAM Requirements | 4 GB (8 GB Recommended) | | Storage Requirements | 512 MB | | Required Hardware | Available Thunderbolt Port or USB Port
USB Cable (Included)
Thunderbolt Cable (Not Included) | | Internet Connection | Required for Registration | | | | Power Requirements | AC Input | | AC Input Power | 95 to 245 VAC at 50/60 Hz | | Power Consumption | 20 W (Maximum) | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | | | Anti-Theft Features | None | | Rackmount Size | 1 RU (With Included Hardware) | | Dimensions | 19 x 8.66 x 1.75" / 48.26 x 22 x 4.45 cm | | Weight | 6.6 lb / 3.0 kg | | | | Package Weight | 11.685 lb | | Box Dimensions (LxWxH) | 25.2 x 13.5 x 4.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
