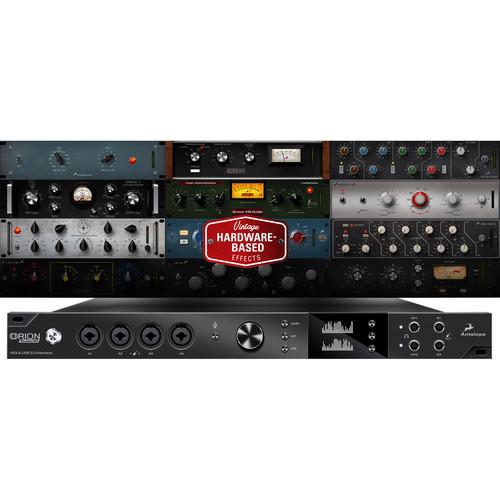

Product description - Orion Studio HD - USB 3.0 and HDX AD/DA Interface with 12 mic pres
The Antelope Orion Studio HD is a hybrid audio interface that offers HDX connectivity for Pro Tools HD, and low-latency USB 3.0 for native DAWs. Well suited for use in production facilities or live recording setups, it offers up to 64 channels of 24-bit/192 kHz I/O streaming, with pristine AD/DA conversion, 12 high-end, Class-A microphone preamps, and additional connectivity via ADAT, S/PDIF, and two DB25 connectors for analog audio.The Orion Studio HD provides efficient integration for digital sources to Pro Tools HD. It features the proprietary HDX Delay Compensation technology, which ensures that any analog or digital source is sample-accurate when it arrives in the Pro Tools HD timeline. In addition, HD and native DAWs can operate simultaneously, ideal for inter-app audio routing. The interface is powered with the company's 64-bit Acoustically Focused Clocking (AFC) technology which provides precise clocking, resulting in low jitter, natural and detailed sound, and 124 dB of dynamic range.The Studio HD is equipped with a Field-Programmable Gate Array (FPGA) chip which allows for the creation of zero-latency mixes, routing, and FX modeling. The unit comes packed with a full library of over 40, classic hardware EQs, compressors, guitar amps & cabs emulations, and the AuraVerb reverb. It opens a variety of creative options such as monitor-mixing with reverb, tracking through modeled vintage EQ & compression or routing to external gear, in real time.Other features include monitor switching using a pair of mastering-grade monitor D/A converters, two independently assignable headphone outputs, four instrument inputs, two transformer reamp outputs, and a talkback button.The interface is fully controllable via an intuitive OS X- and Windows-compatible desktop app and can be accessed from multiple computers on the same network.The Orion Studio HD is housed in a single-space rack. - Pro Tools HD and Native Integration
-
- Simultaneous streaming of 24-bit/192 kHz audio via HDX, USB 3.0, ADAT, S/PDIF
- Proprietary HDX Delay Compensation controls all audio (analog and digital sources) and ensures sample-accurate arrival in the Pro Tools HD timeline
- HDX port for up to 32-channel I/O
- USB 3.0 port for up to 64-channel I/O
- Class-A Mic Pres
-
- Twelve high-end, Class-A mic preamps – Hi-Z, mic/line-compatible preamps, with individual phantom power
- Additional Connectivity
-
- 16 x line outputs on two DB25 connectors
- 8 x channel I/O via ADAT
- 2 x channel I/O via S/PDIF
- Pristine AD/DA Conversion
-
- Enhanced conversion – high-end converters allow dynamic range boosted up to 124 dB
- Accurate Clocking
-
- Powered by Antelope’s 64-bit Acoustically Focused Clocking (AFC) jitter-management technology
- 1 x word clock I/O
- Real-Time FPGA FX
-
- Field-Programmable Gate Array (FPGA) device offers massive modeling capabilities that provides zero-latency FXs/mixes/routing

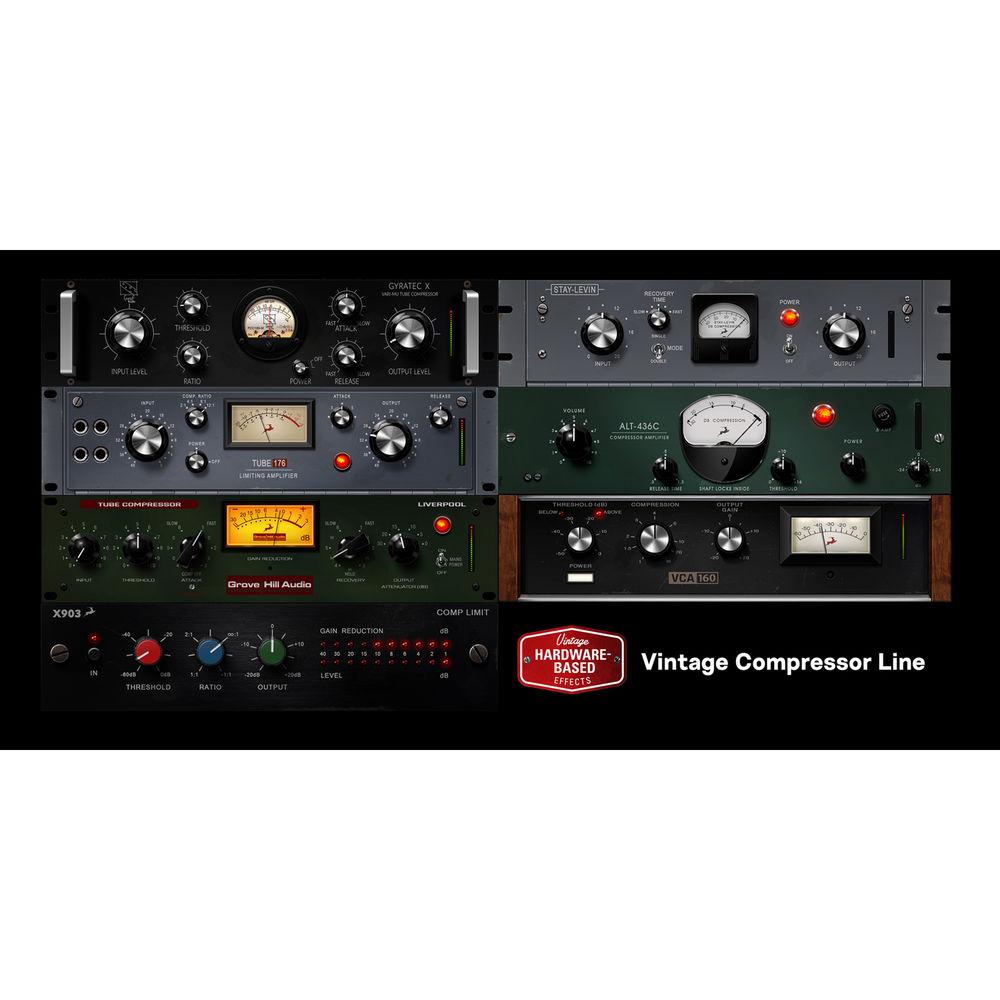

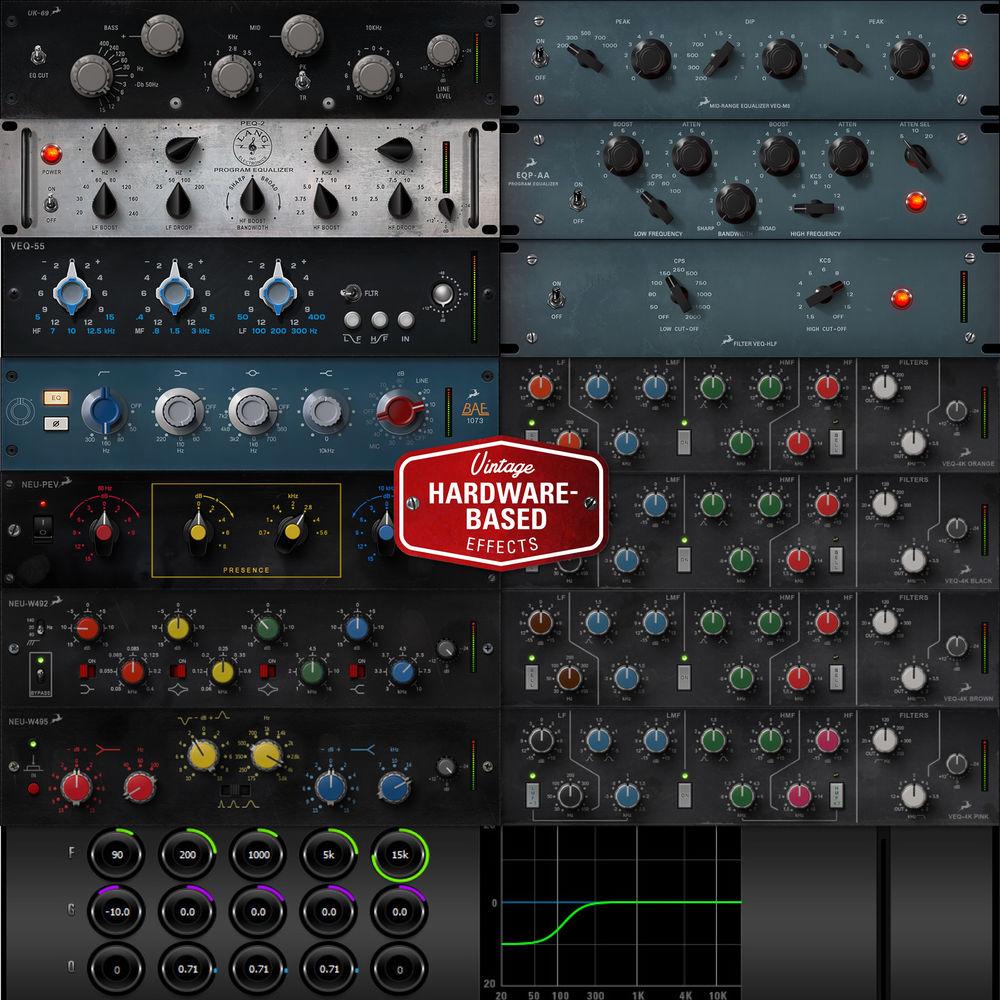

- Over 40 real-time FX models – full library of classic studio hardware, EQs, compressors, guitar amps & cabs
- Includes units from BAE, Grove Hill, Gyraf Audio, Lang, and more

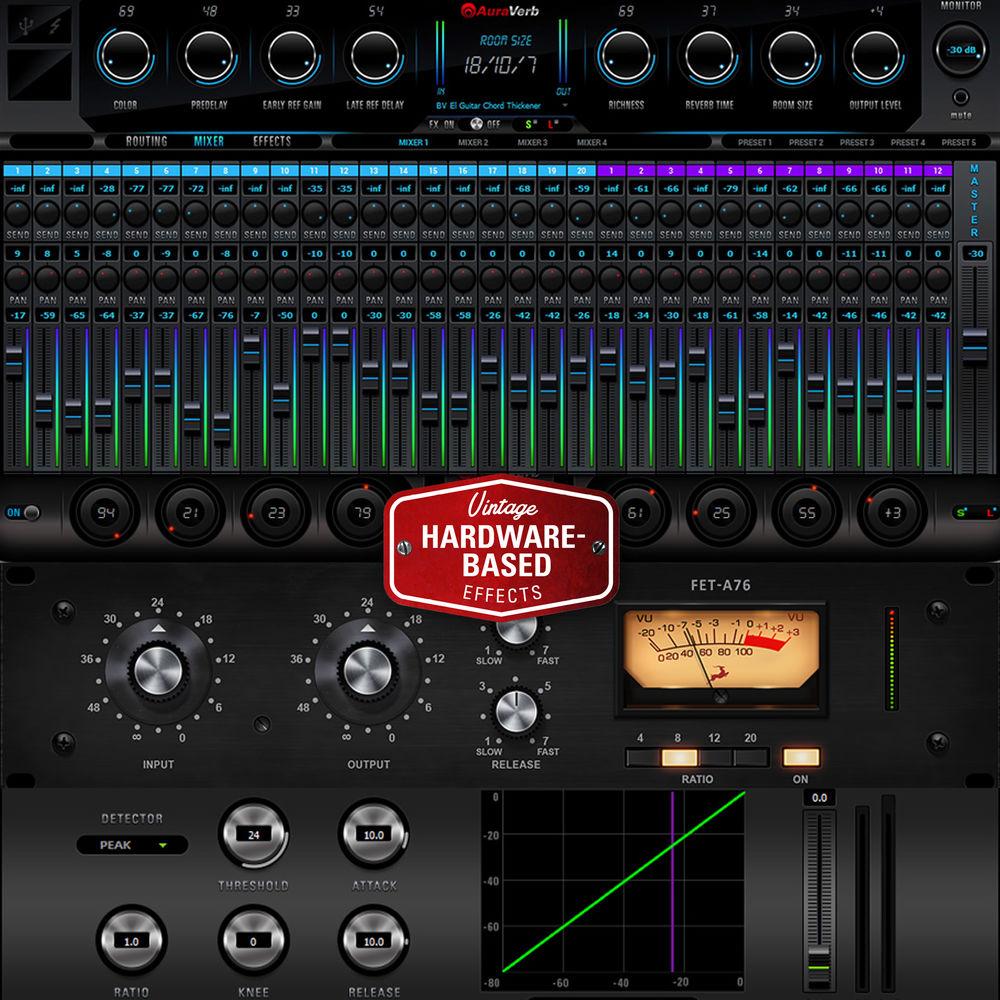

- Includes AuraVerb reverb
- Guitar Interface
-

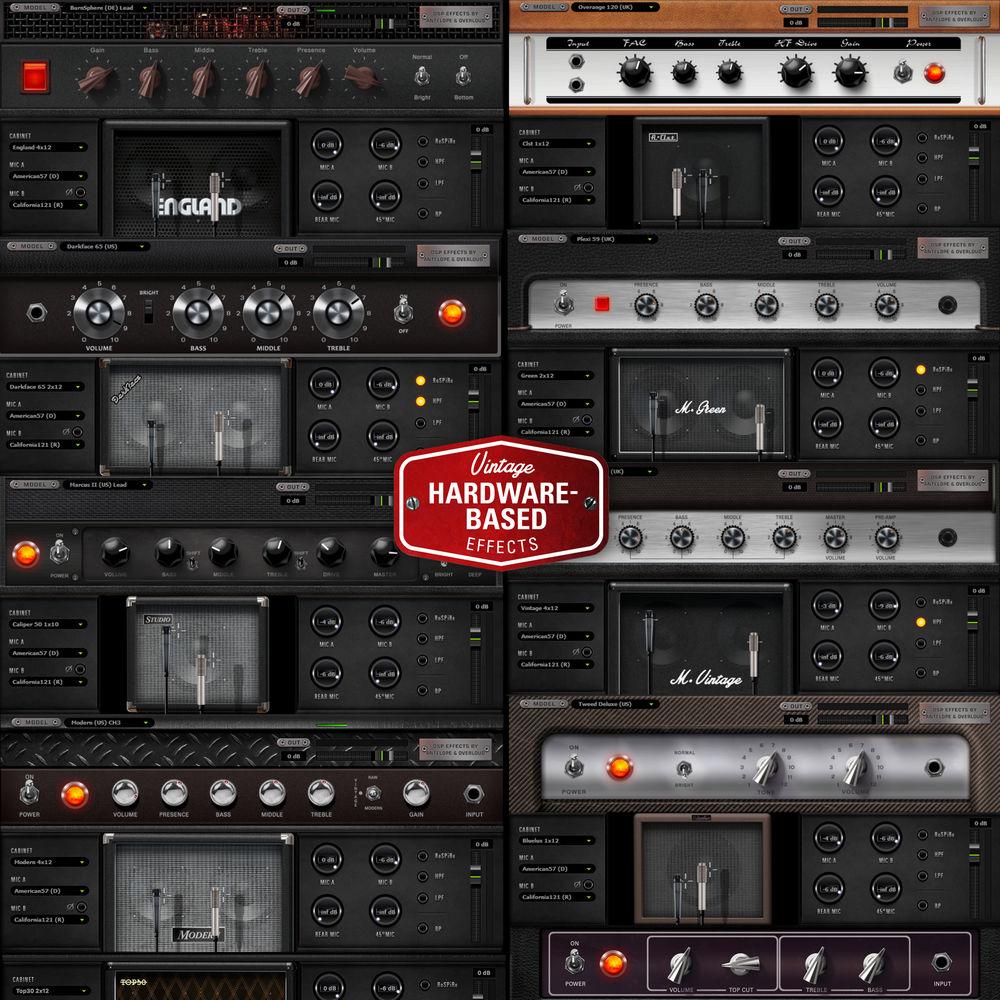

- In partnership with Overloud, the Orion Studio HD offers integrated amp and cabinet simulations both vintage and contemporary in sound
- FPGA effects allow guitarists to experiment with multiple speaker configurations, mic placement, and EQ settings, all in real time, with imperceptible latency
- Unit is equipped with four Hi-Z, instrument inputs and two transformer reamp outputs
- Other Features
-
- Monitor switching using a pair of mastering-grade monitor D/A converters (129 dB dynamic range)
- Talkback button
- Two headphone outs
- Full session saving presets let you quickly save, load, and share any routing, monitoring, and FX settings
- Lightweight, single-space rack design
- Quiet operation
- Software Control
-
- Fully controllable routing, mixing, real-time effects processing via OS X- and Windows-compatible desktop app
- iOS / Android mobile app gives you full control of mic preamps from a smartphone or tablet
- Orion Studio HD allows for fast device control via multiple computers
UPC: 853744004458 In the Box Antelope Orion Studio HD - HDX and USB 3.1 Gen 1 Audio Interface USB 3.0 Cable DC Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Antelope Orion Studio HD - HDX and USB 3.1 Gen 1 Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

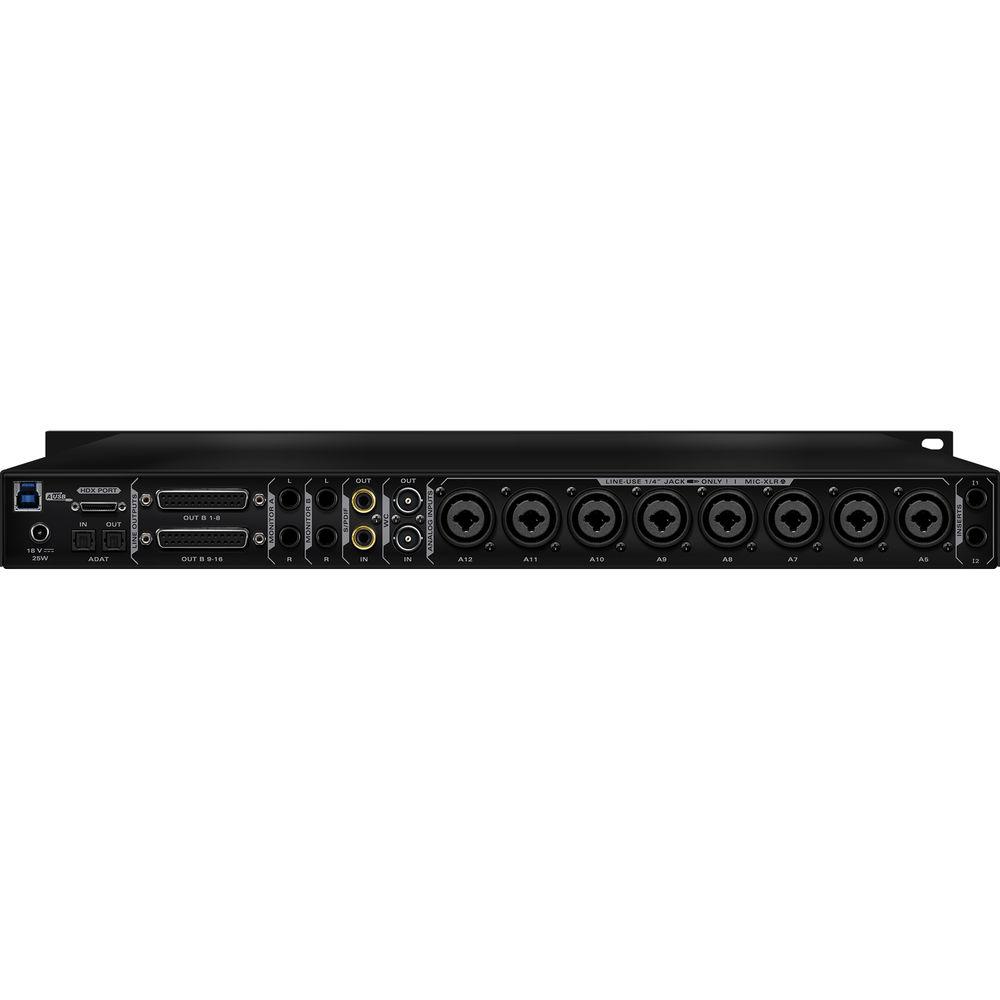

Technical parametersAntelope ORION STUDIO HD Specs | Analog Inputs | 4 x mic / line-instrument XLR combo inputs on front panel
8 x mic / line XLR combo inputs on rear panel
2 x 1/4" TRS inputs for inserts (inputs 1,2) | | Analog Outputs | 16 x channels on 2 x DB25
2 x stereo monitor outputs on 1/4" TRS (4 channels, only 1 pair active at a time)
2 x 1/4" TRS stereo headphone outputs (4 channels)
2 x 1/4" TRS outputs for instrument re-amping (2 channels) | | Mic Preamps | Gain: 0, 10 to 65 dB
THD+N: -108 dB | | Digital Inputs | 1 x ADAT (up to 8 channels)
1 x S/PDIF | | Digital Outputs | 1 x ADAT (up to 8 channels)
1 x S/PDIF | | USB I/O | 1 x USB 3.0 high-speed (32 to 192 kHz, 64 channels I/O, Type-B) | | HDX Connectivity | 1 x HDX, 32 channels I/O | | A/D and D/A Conversion | Monitor D/A
Dynamic Range: 129 dB
THD+N: -108 dB
D/A
Dynamic Range: 120 dB
THD+N: -107 dB
A/D
Dynamic Range: 124 dB
THD+N: -112 dB | | Wordclock I/O | 1 x BNC input, 75 Ohms, 3 V p-p, 32 to 192 kHz
1 x BNC output, 75 Ohms, 32 to 192 kHz | | Clocking System | 4th generation acoustically focused clocking
64-bit DDS
Oven-controlled crystal oscillator | | Clocking Stability | < ± 0.02 ppm, oven controlled at 148.1°F / 64.5°C | | Clock Aging | < 1 ppm per year | | Calibration | < ± 0.001 ppm | | Sample Rates | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | | Power | DC universal input: 18 V | | Power Consumption | 25 W, max | | Windows System Requirements | Windows 7, 8, 8.1, 10
Intel or AMD equivalent CPU, 2.0 GHz (minimum)
4 GB RAM (8 GB or more recommended)
512 MB of drive space
1 x USB 3.0 port
1 x HDX I/OInternet connection required for product activation | | Mac System Requirements | OS X 10.9, 10.10, 10.11, 10.12 (Sierra recommended)
Intel Core 2 Duo (minimum), Intel core i3 (recommended)
4 GB RAM (8 GB or more recommended)
512 MB of drive space
1 x USB 3.0 port
1 x HDX I/OInternet connection required for product activation | | Dimensions (W x H x D) | 19 x 1.7 x 8.6" / 48.3 x 4.4 x 22.0 cm | | | | Package Weight | 10.54 lb | | Box Dimensions (LxWxH) | 25.0 x 13.5 x 4.75" |
