Product description - Introducing Orion Studio - Revision 2017 | Antelope Audio

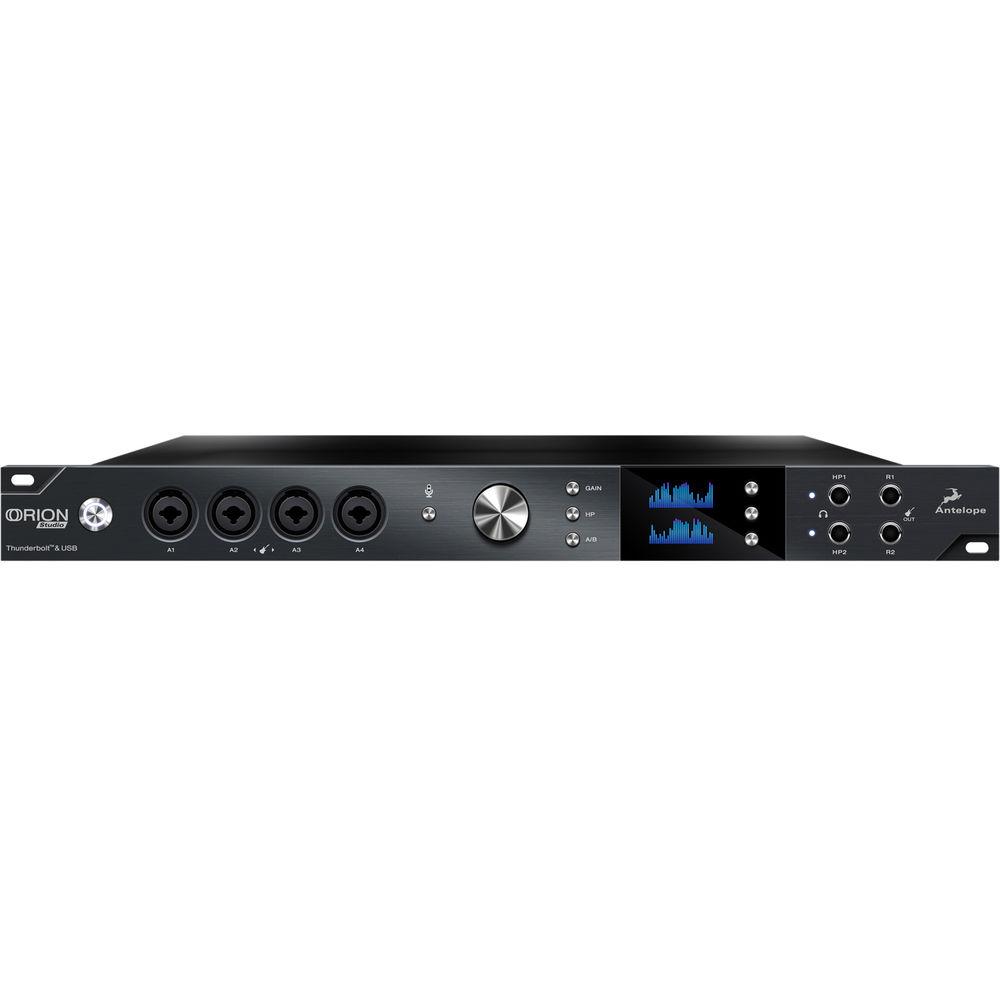

Featuring USB and Thunderbolt connections, twelve class-A mic preamps, and multiple output connection points, the 2015 iteration of the Orion Studio provided Antelope's signature conversion and clocking capabilities in interface form, and thus, allowed you to record and mix multi-channel audio either on the go or in your own studio; the Orion Studio Rev 2017 improves upon the original by increasing the dynamic range of the A/D while simultaneously decreasing the signal-to-noise ratio. Its latency has also been reduced.Hi-Z, mic, and line inputs abound, and the interface can facilitate 32 channels of conversion via Thunderbolt or 24 channels via USB—giving you low-latency audio in either case. The Orion Studio also features ADAT and S/PDIF digital connection points, as well as BNC jacks providing wordclock I/Os. Indeed, this unit offers Antelope-style clocking powered by 64-bit AFC technology to handle jitter.Turning your attention to its form-factor, notice how the Orion Studio fits all of these features into a single RU of rackspace. Additionally, the unit includes a digital control system; compatible with OS X and Windows operating systems, this software offers user-friendly manipulation over the interface's various controls. - Class-A Mic Pres
- The Orion Studio provides twelve Class-A Mic Pres, as well as combination jacks which handle both XLR and 1/4" sound sources.
- Guitar Interface

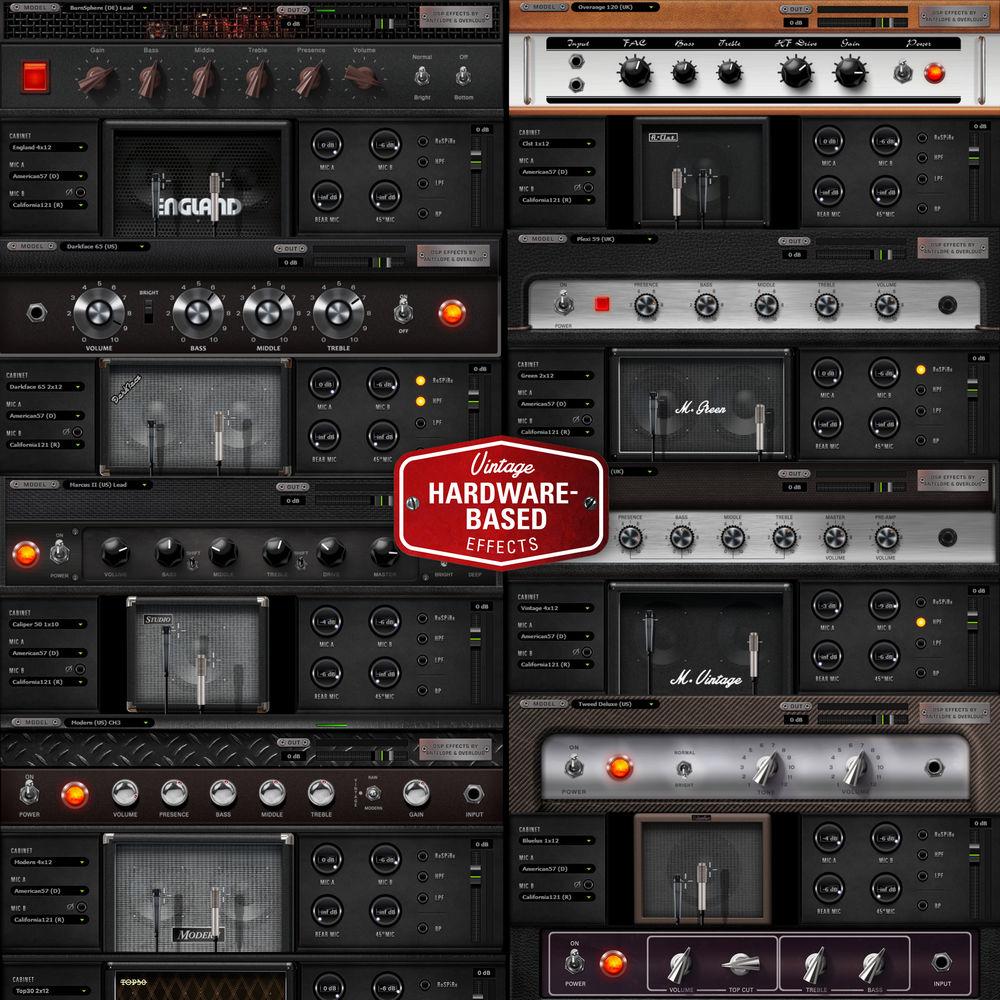

- In partnership with Overloud, the Orion Studio offers integrated amp and cabinet simulations both vintage and contemporary in sound. The hardware-based FPGA effects allow guitarists to experiment with multiple speaker configurations, mic placement and EQ settings—all with low-latency.
- Low Latency
- Orion Studio utilizes a Field-Programmable Gate Array (FPGA) device to offer parallel processing capabilities and providing low-latency possible whilst utilizing Antelope's included audio effects.
- Remote App Support
- Orion Studio provides an iOS / Android mobile app that can control the unit's mic pres and other parameters from a smartphone or tablet.

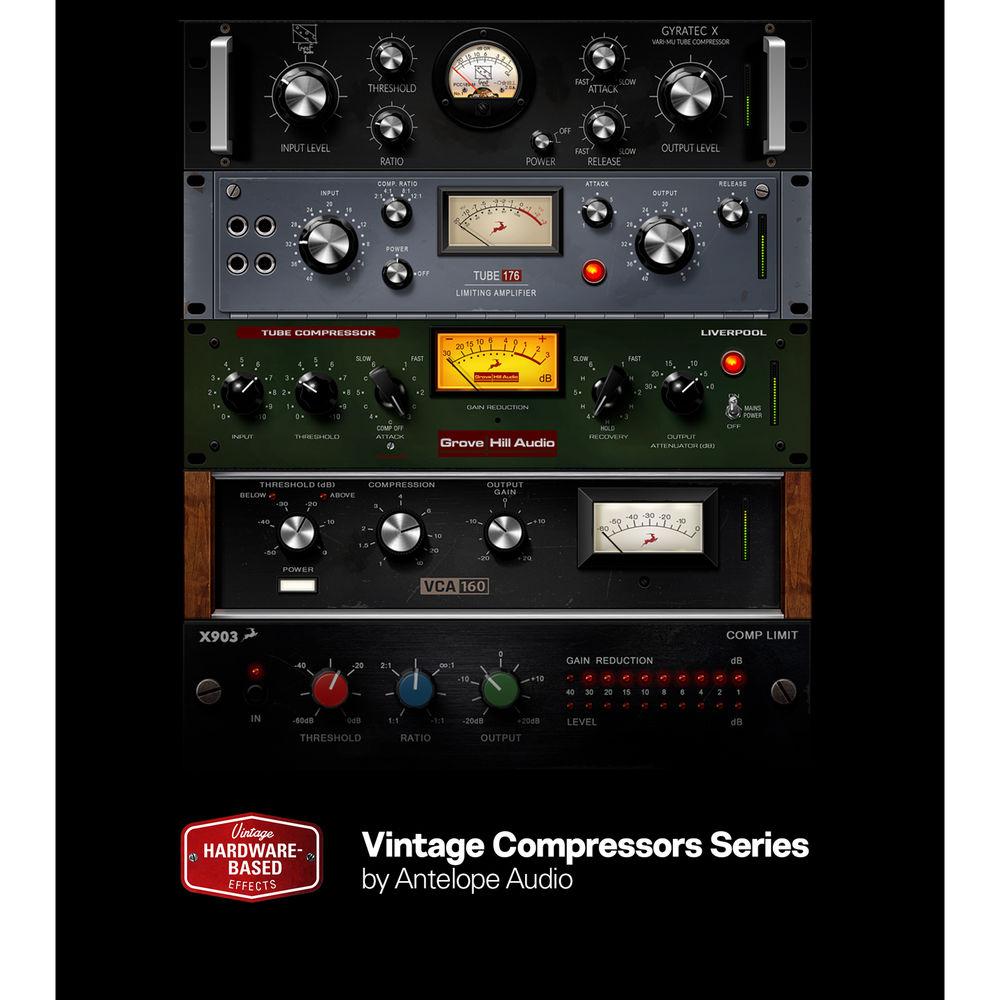

- Vintage FX Bundle

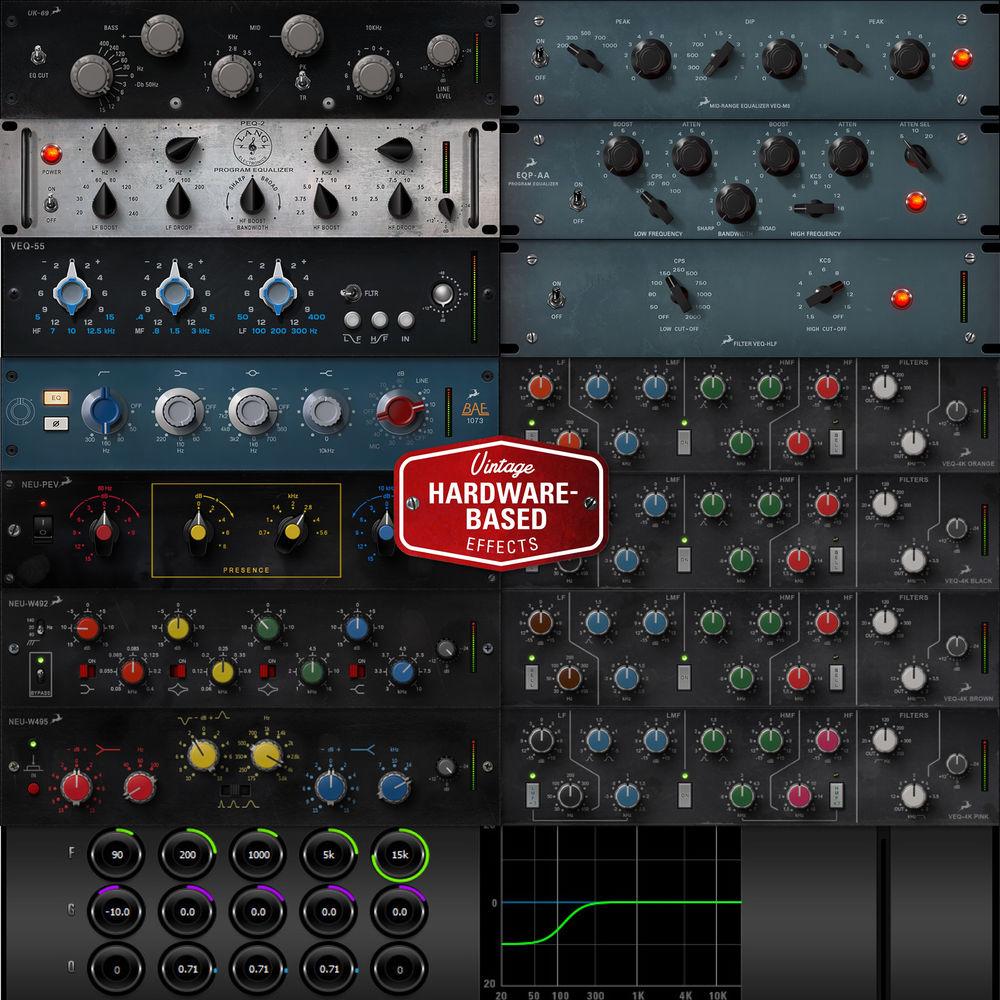

- The Orion Studio offers its own emulations of legendary hardware pieces, such as the Pultec EQ. An AuraVerb reverb module is also included.
- Monitoring Options

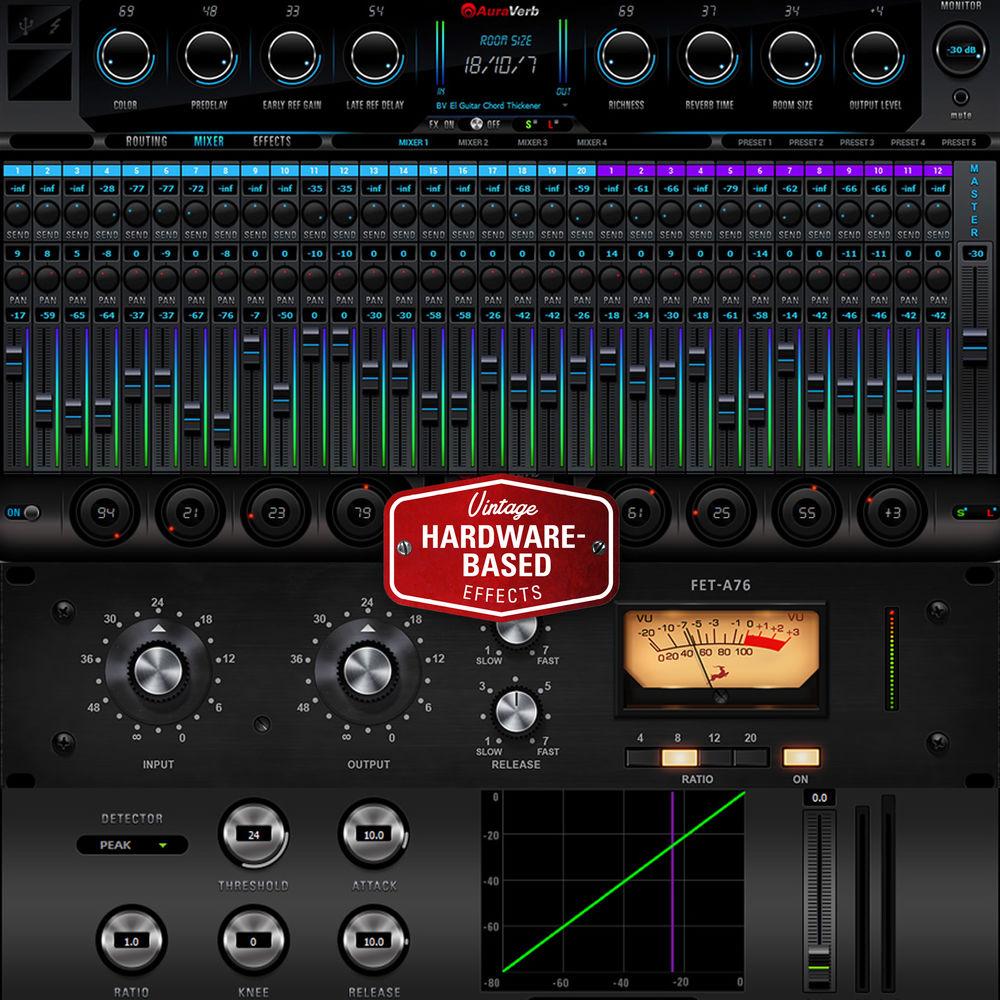

- Orion Studio can allow you to create up to four independent, zero-latency mixes. These can be assigned to any output—including the two separate headphone outs. With this interface, musicians and engineers alike can monitor a session in their preferred manner. Control and switching among two pairs of monitors and both headphone outputs is handled in the digital control panel.
- Full Complement of Connections

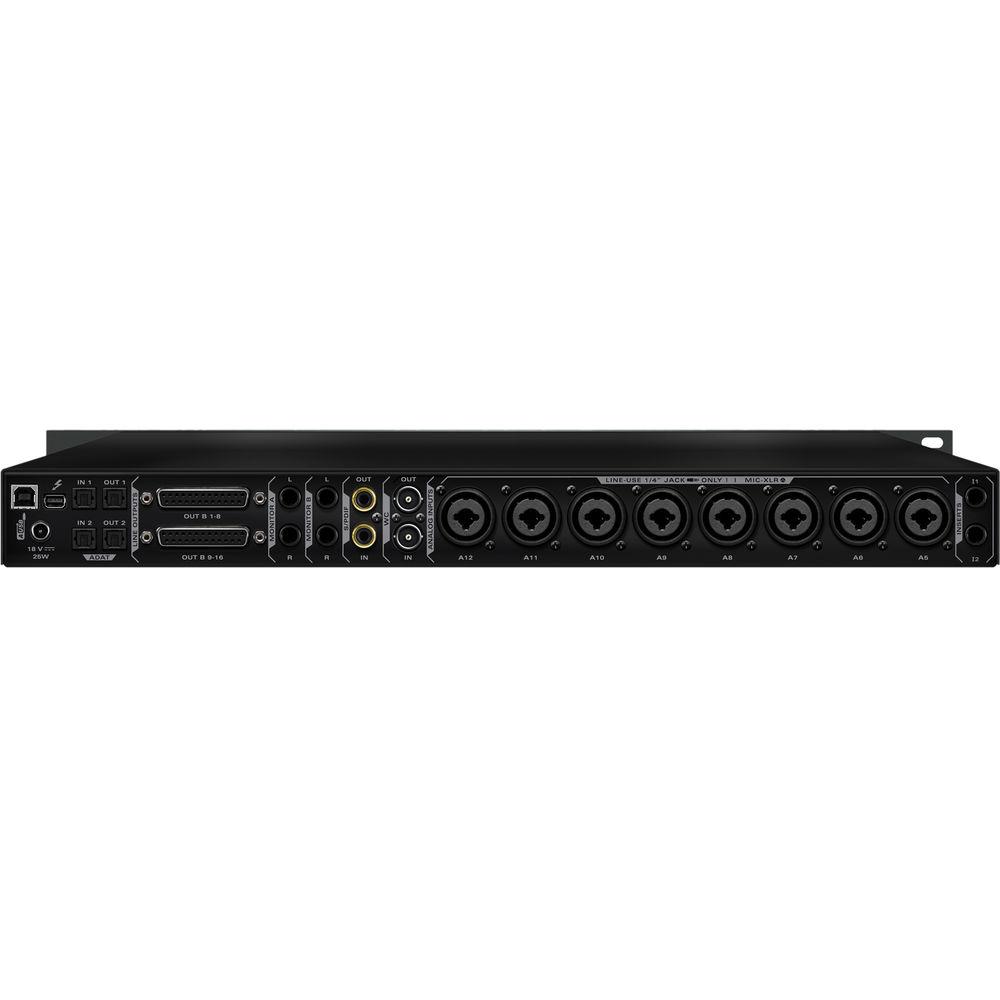

- This device, and its digital control panel, works with most DAWs, be they OS X- or Windows-based. A variety of digital and analog I/Os—combined with its routing matrix—render the device conveniently interconnectable with various kinds outboard gear. Orion Studio offers two pairs of monitoring outputs, 16 analog outs, two reamp outputs, plus 16 channels I/O via ADAT and 2 channels I/O on S/PDIF.
UPC: 853744004434 In the Box Antelope Orion Studio Rev 2017 Multichannel Interface DC Power Supply USB Cable Limited 1-Year Warranty User Manual PDF 6.2mbfbrzueufeedexcxtybvewbcw Table of Contents
|
Upload User Manual
Have you got an user manual for the Antelope Orion Studio Rev 2017 Multichannel Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAntelope Orion Studio Rev 2017 Specs | | | Max Sample Rate/Resolution | 192 kHz / 24-Bit | | | | Host Connection | USB Type-B (USB 2.0)
Thunderbolt (MDP) (Thunderbolt 1) | | Analog I/O | 4 x Combo XLR / 1/4" Mic/Line/Hi-Z Input
8 x Combo XLR / 1/4" Mic/Line Input
2 x 1/4" (6.3 mm) TRS Insert Input
2 x DB25 8-Channel Output
4 x 1/4" (6.3 mm) TRS Monitor Output
2 x 1/4" (6.3 mm) TRS Headphone Output
2 x 1/4" (6.3 mm) TRS Re-Amp Output | | Digital I/O | 1 x BNC (Word Clock) Input
1 x BNC (Word Clock) Output
2 x TOSLINK / ADAT Input
2 x TOSLINK / ADAT Output
1 x RCA Coaxial / S/PDIF Input
1 x RCA Coaxial / S/PDIF Output
1 x RCA Coaxial / S/PDIF Input | | MIDI I/O | None | | | | Gain Range | Mic Inputs:
0 to 65 dB | | Dynamic Range | A/D Converters:
124 dB
D/A Converters:
120 dB
Monitor Outputs:
129 dB | | Impedance | Word Clock:
75 Ohms | | THD+N | A/D Converters:
-112 dB
D/A Converters:
-107 dB
Mic Inputs:
-108 dB
Monitor Outputs:
-108 dB | | | | Sample Rates | 32, 44.1, 48, 88.2, 96, 176.4, and 192 kHz | | | | OS Compatibility | macOS 10.9
macOS 10.10
macOS 10.11
Windows 7
Windows 8
Windows 8.1
Windows 10 | | Processor Requirement | Mac:
Intel Core 2 Duo
PC:
2 GHz Intel | | RAM Requirements | 4 GB | | Storage Requirements | 512 MB | | | | AC/DC Power Adapter | 18 VDC (Included) | | Power Consumption | 25 W (Maximum) | | | | Dimensions | 19 x 1.7 x 8.6" / 48.3 x 4.4 x 22 cm | | | | Package Weight | 10.9 lb | | Box Dimensions (LxWxH) | 25.0 x 13.5 x 4.5" |
