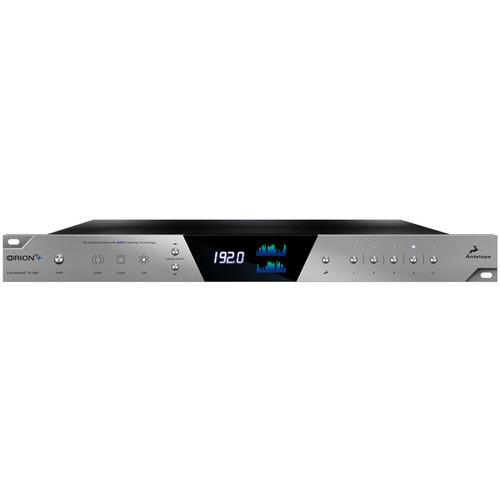

Product description - Antelope Audio presents Orion32+ | Thunderbolt meets Orion32

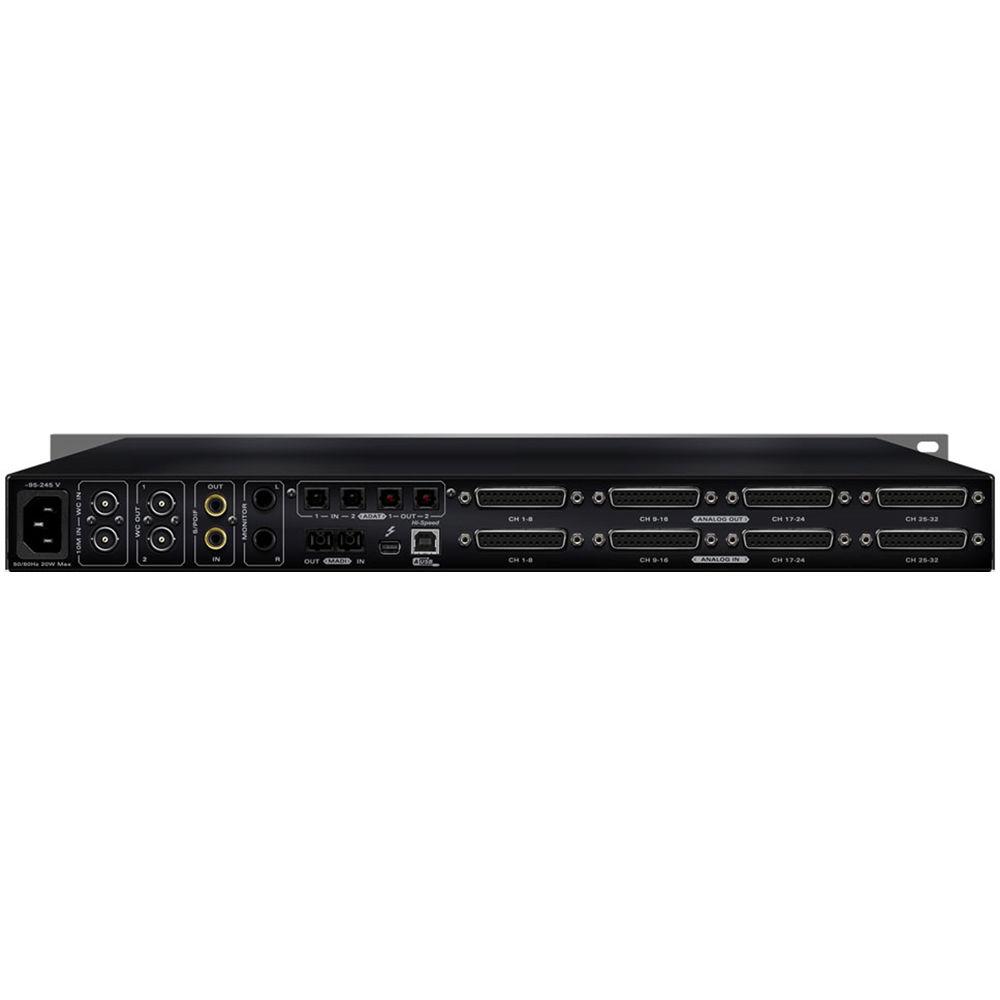

Featuring USB and Thunderbolt connections, the Orion 32+ AD/DA Converter from Antelope is designed to function as the central hub for any pro audio setup requiring 32 channels of AD/DA conversion—and even 64 channels of conversion via thunderbolt; whether you route audio in and out of your computer via USB or Thunderbolt, the Orion 32+ will allow you to convert at least 32 channels of 24-bit/192 kHz signal from the analog world to digital realm (and back again, if need be). The unit also features fiber-optic MADI I/Os for passing audio to external MADI gear, as well as ADAT inputs and outputs.
However, that's not all: this unit also functions as a master clock, providing the same clarity and precision synonymous with Antelope, along with 64-bit Acoustically Focused Clocking technology to handle jitter. The Orion 32+ offers two wordclock outputs, a wordclock input, and a 10 MHz atomic clock input, allowing you to connect to other, powerful clocks.
Turning your attention to its form-factor, notice how the Orion 32+ fits all of these features into a 1 RU space, while offering a sleek display, five preset buttons, and an included digital control panel. This software—compatible with OS X and Windows operating systems—aims to provide user-friendly manipulation over the Orion 32+'s various controls within your computer. - 32 Channels at up to 24-Bit / 192 kHz
- Simultaneous I/O streaming of 32 audio channels (64 over Thunderbolt)
- AD/DA and Clock in One
- AD/DA conversion powered by Antelope clocking, including 64-bit jitter-management algorithm, oven-controlled oscillator, and complement of I/Os (2 wordclock outputs, 1 wordclock input, and 1 atomic clock input)
- Connectivity Options
- Hook into or out of this system via Thunderbolt, MADI, USB, ADAT, S/PDIF, and multiple D-Sub 25 connection points
- Software Control
- Routing, mixing, real-time effects processing via included software (Windows and OS X compatible)
- Included Software EQ
- Purchase of an Orion 32+ gives you many EQ plugins, including the following:
- Helios 69
- Lang-PEQ2
- NEU-PEV
- NEU-W492
- NEU-W495
- VEQ-4K PINK
- VEQ-4K ORANGE
- VEQ-4K BLACK
- VEQ-4K BROWN
UPC: 853744004328 In the Box Antelope Orion32+ 64-Channel AD/DA with Thunderbolt and USB DC Power Supply USB Cable Software EQ Bundle Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Antelope Orion32 64-Channel AD DA with Thunderbolt and USB in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAntelope OR32+ Specs | | | Analog Inputs and Outputs | 4 x D-Sub 25, 32 channels, +20 dBu max, 11.2 KOhms | | Analog Outputs | 4 x D-Sub 25, 32 channels, +20 dBu max, 56 Ohms
2 x 1/4" TRS jacks (monitor out) | | Digital Inputs | 1 x fiber optic MADI
2 x ADAT
1 x S/PDIF | | Digital Outputs | 1 x fiber optic MADI
2 x fiber optic ADAT
1 x S/PDIF | | Thunderbolt Ports | 1 x thunderbolt, 64-channel I/O | | USB | USB 2.0
Data stream up to 480 Mb / 192 kHz
32-channel I/O
USB Type-B | | | | Word Clock I/O | 1 x BNC wordclock input, 75 Ohms, 3 V p-p, 32 to 192 kHz
1 x BNC atomic clock input, 75 Ohms, 3 V p-p, 10 MHz
2 x BNC outputs, 75 Ohms, 3 V p-p, 32 to 192 kHz | | Clocking System | 4th generation acoustically focused clocking
64-bit DDS
Oven-controlled crystal oscillator | | Clocking Stability | < ±0.02 ppm, oven controlled at 148°F/64.5°C | | Aging Time | < 1 ppm per year | | Calibration | < ±0.001 ppm | | Sample Rates | 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz | | | | D/A Monitor Converter | Dynamic Range: 127 dB
THD + N: -108 dB | | A/D Converter | Dynamic Range: 118 dB
THD + N: -105 dB | | D/A Converter | Dynamic Range: 118 dB
THD + N: -98 dB | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Input Voltage | 95 to 245 VAC | | Dimensions (H x W x D) | 19.0 x 1.8 x 8.7" / 48.3 x 4.4 x 22.0 cm | | Weight | 6.6 lb / 3.0 kg | | | | Package Weight | 11.3 lb | | Box Dimensions (LxWxH) | 25.0 x 13.5 x 4.3" |
