Product description - Antelope Audio Pure2 - 2 Channel AD/DA & Master Clock
Pure2 from Antelope is a two-channel, mastering-grade 24-bit/192 kHz analog-to digital/digital-to-analog converter and master clock utilizing the same technology found in the company's flagship Isochrone Trinity master clock and the Orion32 AD/DA. Acoustically Focused Clocking (AFC) technology is coupled with pristine analog circuitry and driven by a proprietary multi-stage linear power supply for digital clarity and analog realism.
To insure playback repeatability the unit features a relay-controlled analog volume attenuator. An intuitive software control panel for Mac or Windows provides the user with the ability to manage all facets of the unit's operation while also being configurable via the front panel using user-definable presets. - A/D Conversion
-
- Utilizes Burr-Brown (TI) A/D converter PCM4222
- Carefully optimized analog driver stage gently handles overloads, contributing to distinct analog sound and smoother clipping
- D/A Conversion
-
- Main D/A conversion designed with a dual DAC architecture, providing separate DAC chips for the left and the right channels.
- The design significantly enhances the signal-to-noise ratio and greatly improves stereo imaging
- Master Clock
-
- Conversion timing and the sync of all digital studio devices is kept stable by the 4th generation 64-bit AFC jitter management and oven-controlled crystal oscillator
- With several Wordclock outputs, Pure2 can function as the master clock for an entire studio and can also be locked to Antelope's 10M Atomic Clock for even greater clocking stability
- Headphone Amp
-
- High-end headphone amplifier powered by a dedicated D/A converter allows for greater convenience and better routing flexibility
- The separate DAC provides the option for monitoring a secondary source independent from the main outs
- Monitoring
-
- Analog volume control
- Stepped relay attenuator with 0.05 dB precision provides optimal monitoring transparency of the main outs
- User-Friendly Device Management
-

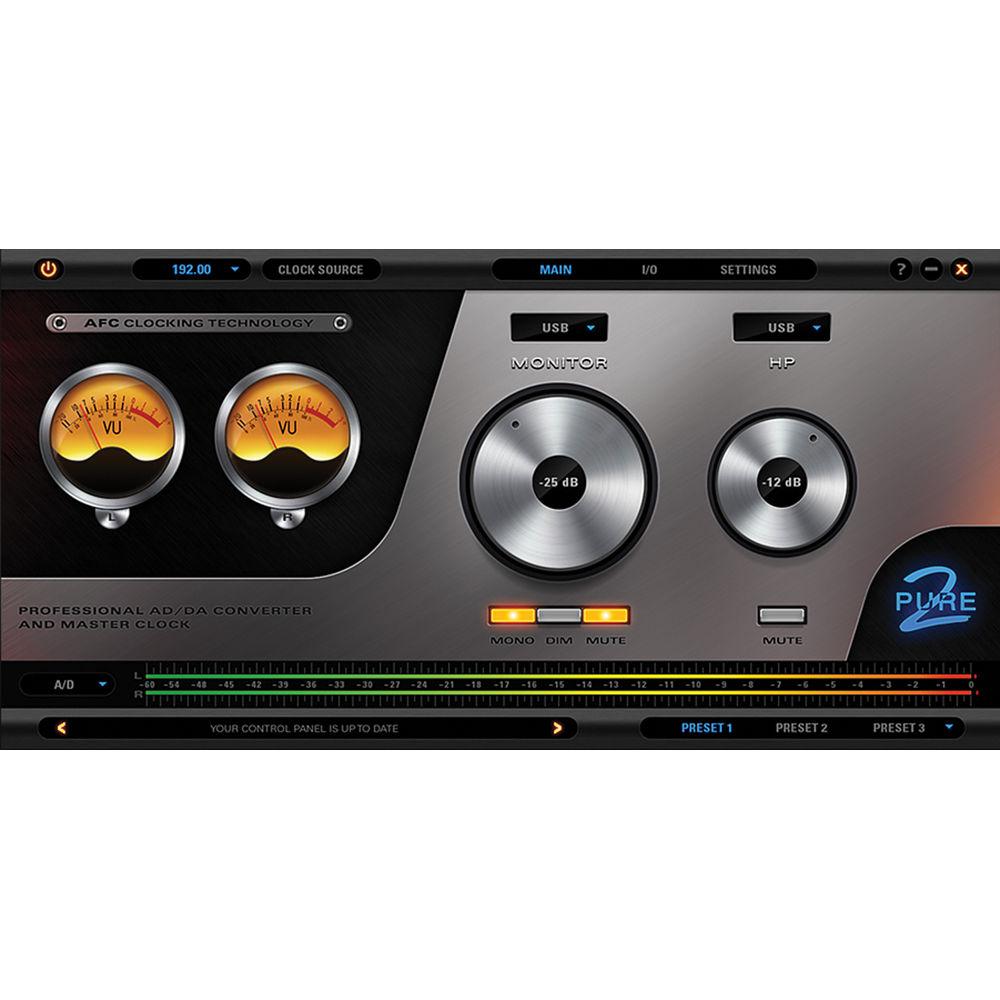

- Includes a highly intuitive software control panel (compatible with both Mac and PC) enabling users to manage all facets of its operation from a computer

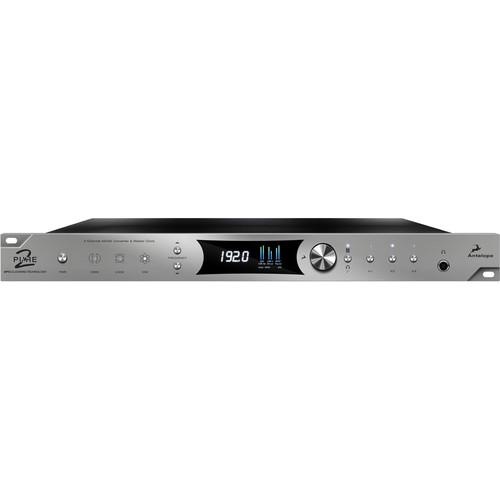

- The front panel also includes user-definable presets for added routing convenience and efficiency
UPC: 853744004281 In the Box Antelope Pure2 - Mastering AD/DA Converter and Master Clock AC Power Cable One (1) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Antelope Pure2 - Mastering AD DA Converter and Master Clock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

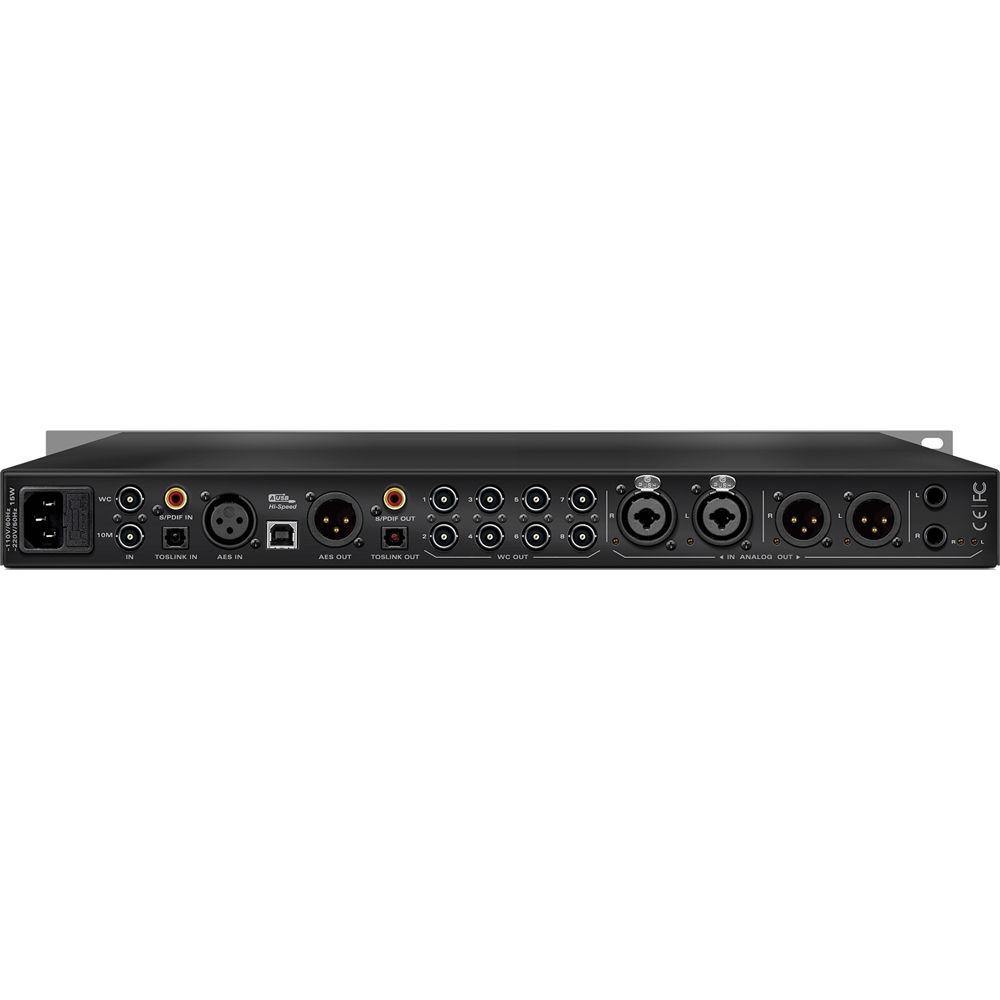

Technical parametersAntelope PURE2 Specs | Inputs | 1 x BNC Wordclock
1 x BNC 10 MHz Atomic Reference
1 x RCA coaxial S/PDIF
1 x TOSLink optical S/PDIF
1 x XLR AES/EBU
1 x USB 2.0 Type B (shared with output)
2 x XLR combo Analog (ADC) | | Outputs | 8 x BNC Wordclock
1 x RCA Coaxial S/PDIF
1 x TOSLink optical S/PDIF
1 x XLR AES/EBU
1 x USB 2.0 Type B (shared with input)
2 x XLR Analog Main (DAC 1 and DAC 2)
2 x 1/4" TRS Analog Monitor (DAC 1 and DAC 2)
1 x 1/4" TRS Headphone (DAC 3) | | Operating Temperature | 32 to 113ºF (0 to 45ºC) | | Power Requirements | Nominal: 100~120/220~240 VAC, 50 or 60 Hz
Actual: 95~264 VAC, 50 or 60 Hz | | Dimensions (WxDxH) | 19.00 x 13.80 x 1.75" (483 x 350 x 45 mm) | | Weight | 6.5 lb (3 kg) | | | | Package Weight | 13.15 lb | | Box Dimensions (LxWxH) | 25.5 x 13.6 x 4.3" |
