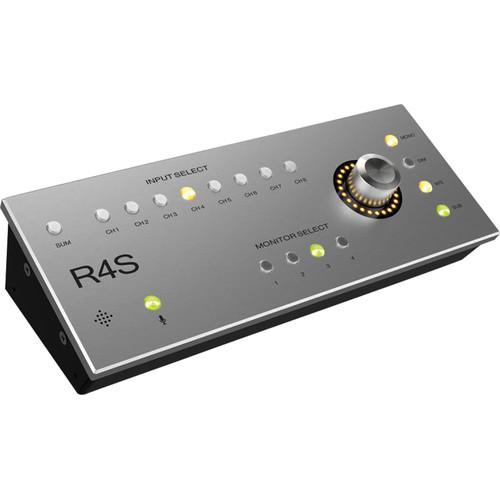

Product description The R4S from Antelope is a dedicated, tabletop remote control designed to completely replicate the front-panel functionality of the Satori analog monitoring system. Centered around an ergonomic and intuitive design, it allows engineers to select their monitoring options, directly from their listening sweet spot. Connected and powered via USB, the R4S gives you instant visual feedback of all your settings, while the large, stepped volume knob controls the relay attenuator in the main unit. Controls - Input Select Buttons, Channels 1-8
- Input Select allows you to switch between your desired input sources, which will be fed to your selected monitor output
- Monitor Select Buttons 1-4
- These allow you to select between the four monitor outputs — whatever source is selected will be fed to the selected monitor out
- Mono, Dim, Mute, M/S, Sub
- Pressing the Mono button sets the currently selected monitor output to mono
- Press the Dim button to activate the -20 dB attenuator
- Press and hold rotary control knob to mute
- When Mono is activated you also have the option to select M/S
- Pressing the M/S button selects either the sum or the difference between the left and the right channel
- Pressing the Sub button activates the low-frequency effects (LFE) channel output
- Trim Offset
- To access the Trim Offset feature, press and hold the desired Monitor (1, 2, 3 or 4) and Input (Ch 1, 2, 3, 4, 5, 6, 7 or 8) buttons
- Use the Rotary Control knob to trim (-6 to +6 dB in 1 dB steps) — double-click to set to 0 dB
- SUM Select Button
- The Sum Select button allows you to send your stereo sum to your selected monitor output
- Talkback Button
- Press the Talkback button to activate the on-board talkback microphone — this can be distributed to your selected headphones using the software control panel
- Rotary Control
- Large stepped relay attenuator for main monitor output
UPC: 853744004298 In the Box Antelope R4S Remote Control for Satori Analog Monitoring System Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Antelope R4S Remote Control for Satori Analog Monitoring System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAntelope R4S Specs | USB | USB 2.0, full-speed interface on Type-B connector
USB bus-powered | | Operating Temperature | 32 to 120°F / 0 to 50°C | | Dimensions (W x H x D) | 8.66 x 2.22 x 3.31" / 220 x 55 x 85 mm | | Weight | 1.57 lb / 710 g | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 12.5 x 6.1 x 3.9" |
