Product description Antelope Zen Tour Portable Thunderbolt/USB Audio Interface Read More - Antelope Audio presents the new Zen Tour portable interface

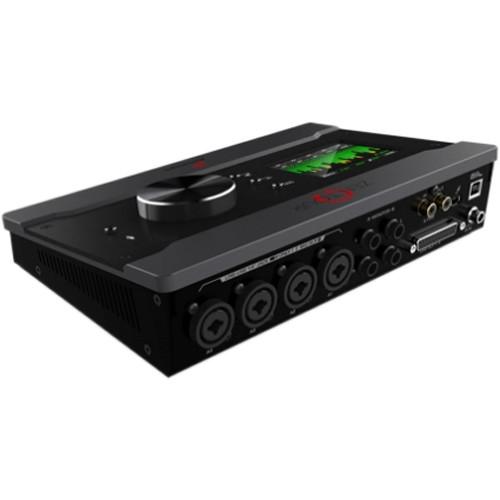

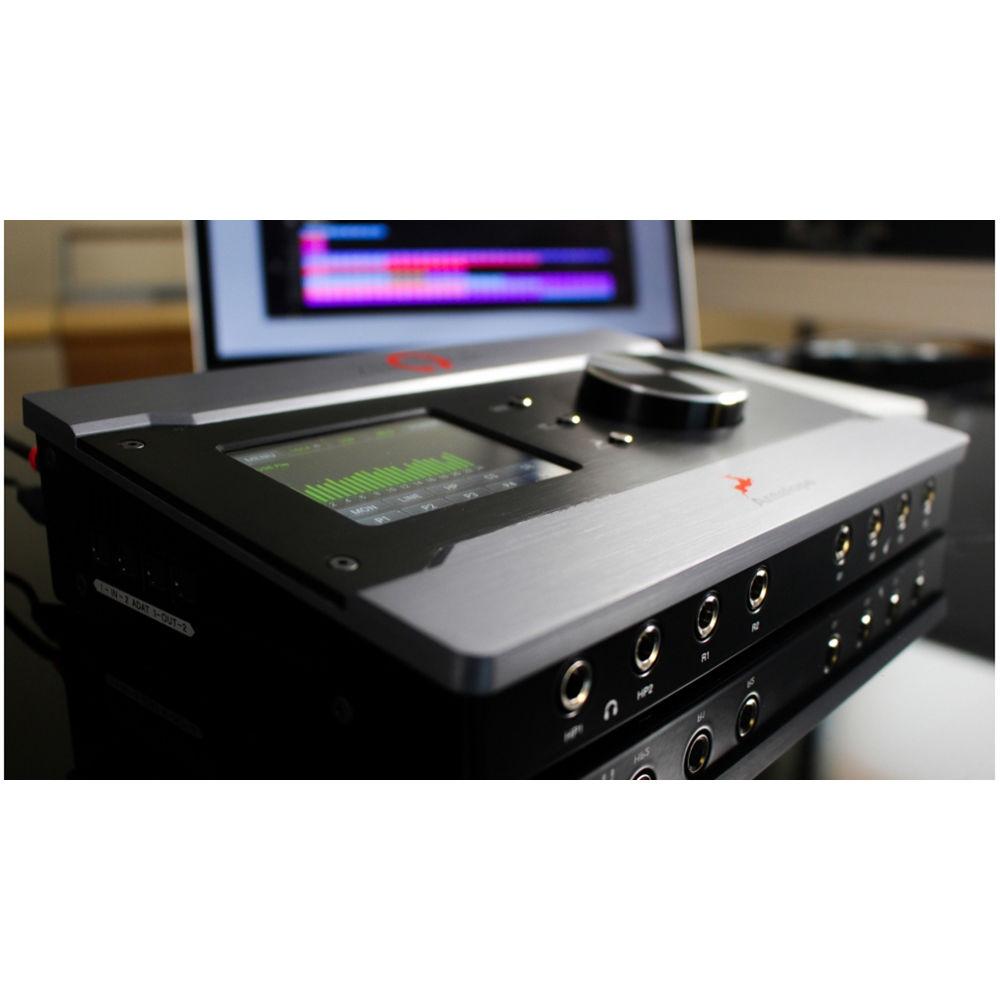

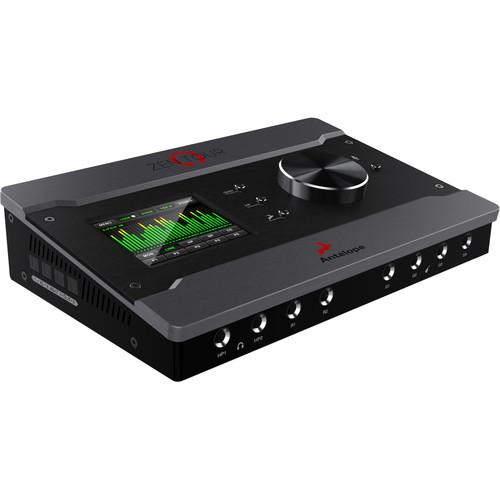

The Zen Tour Portable Thunderbolt from Antelope is an eight-channel table-top interface designed to allow multiple instruments and sound-sources to be recorded simultaneously in virtually any place with power. As such, it suits the needs of small bands, combos, or anyone else looking to record a group of instrumentalists on the go.

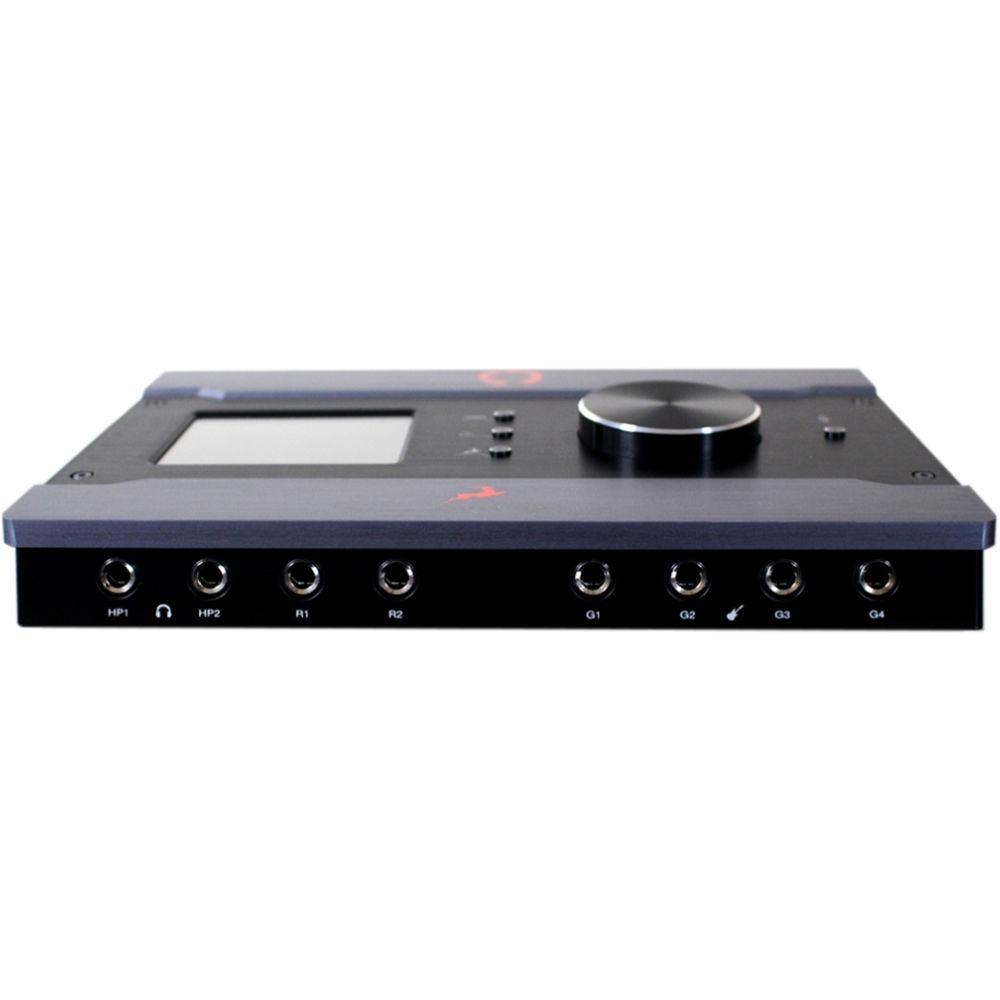

The unit sports four combination mic/line inputs, four line/Hi-Z inputs, two outputs specifically geared toward reamping instrument-level signals, two headphone outputs for private monitoring, and a host of digital connection options; whether you utilize USB, Thunderbolt, S/PDIF, or ADAT, the Zen Tour has you covered on the digital side. Other features abound, such as a touchscreen control display and a talkback button for communicating with those using the headphone outputs whilst recording. Furthermore, the unit can be controlled from various connection points, such as multiple computers, or mobile devices utilizing the appropriate apps. - Antelope Clocking
- The Zen Tour features the same 64-bit DDS acoustically-focused clocking found on other Antelope models, as well as wordclock I/Os.
- Low Latency
- The Zen Tour utilizes a Field-Programmable Gate Array (FPGA) to instantiate hefty parallel processing, allowing for low-latency operation.
- Included Vintage FX
- The Zen Tour offers Antelope's hardware-based guitar amp and cabinet simulations, as well as a Pultec-style EQ and the AuraVerb reverb module.
- Remote Connections

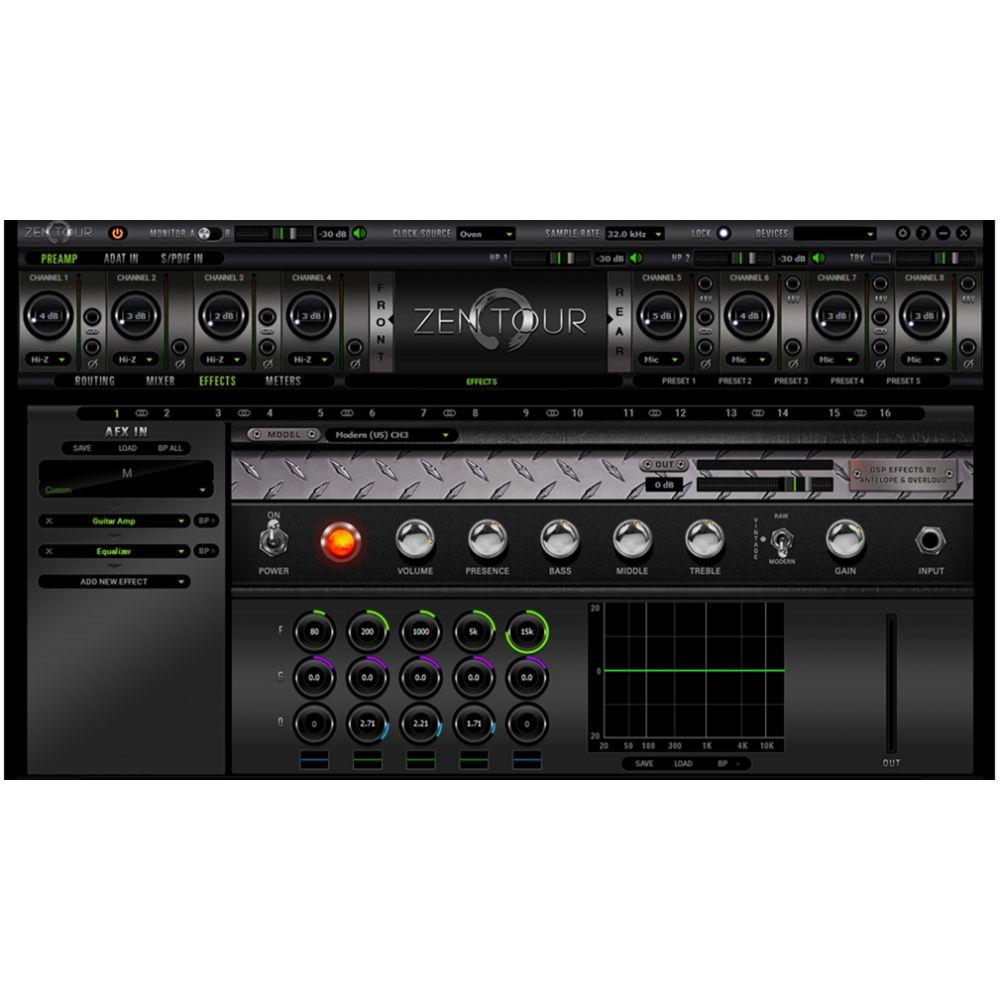

- An OS X- and Windows-compatible software control panel allows you to manage all Zen Tour features from multiple computers in the same network. This feature extends to tablets and smartphones as well.
UPC: 853744004373 In the Box Antelope Zen Tour Portable Thunderbolt/USB Audio Interface Power Supply USB Cable Limited 1-Year Warranty User Manual PDF 21mbstdfbcqxwesscactteyuq Table of Contents
|
Upload User Manual
Have you got an user manual for the Antelope Zen Tour Portable Thunderbolt USB Audio Interface in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

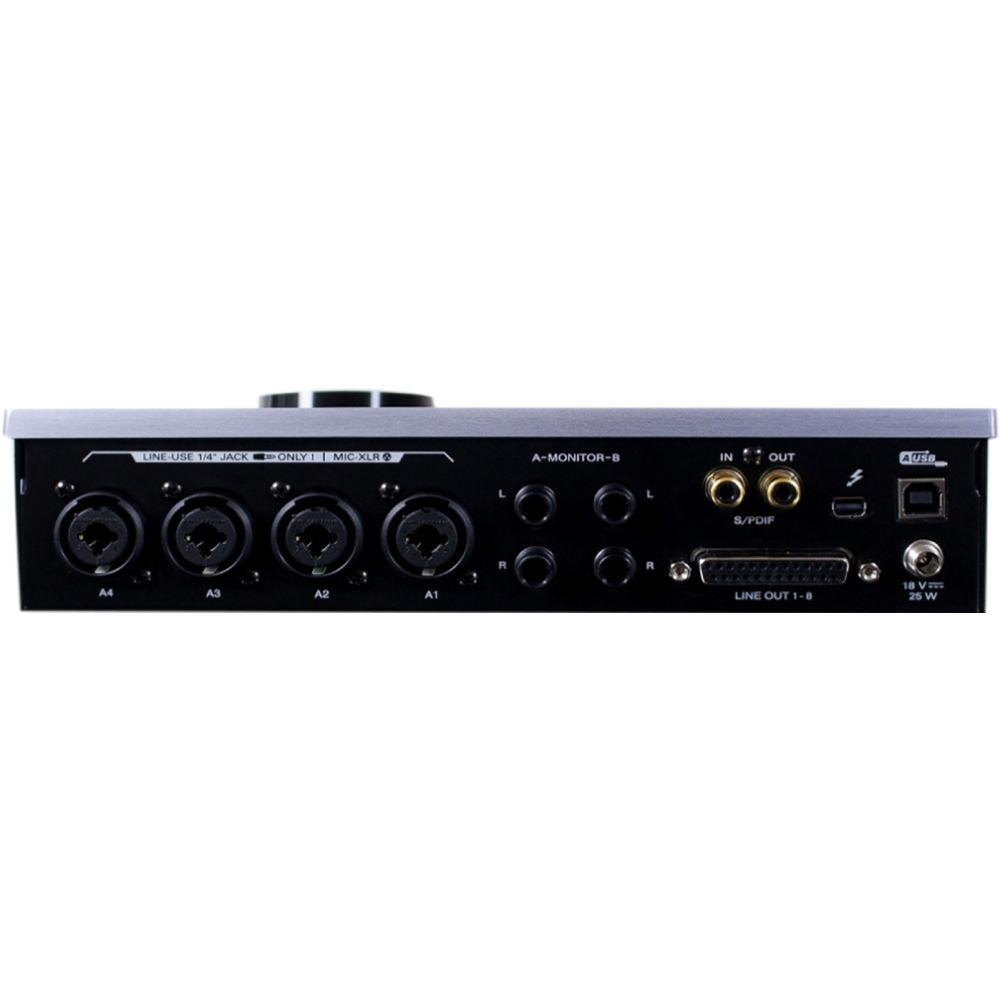

Technical parametersAntelope ZENT Specs | | | Host Connection | 1 x USB Type-B (USB 2.0)
1 x Thunderbolt (MDP) (Thunderbolt 2) | | Analog I/O | 4 x Combo XLR / 1/4" Mic/Line Input
4 x 1/4" (6.3 mm) TRS Line/Hi-Z Input
1 x DB25 Line Output
4 x 1/4" (6.3 mm) TRS Monitor Output
2 x 1/4" (6.3 mm) TRS Headphone Output
2 x 1/4" (6.3 mm) TRS Re-Amp Output | | Digital I/O | 2 x TOSLINK / ADAT Input
2 x TOSLINK / ADAT Output
1 x RCA Coaxial / S/PDIF Input
1 x RCA Coaxial / S/PDIF Output
1 x BNC (Word Clock) Input
1 x BNC (Word Clock) Output | | MIDI I/O | None | | | | Gain Range | Mic Inputs:
0 to 65 dB | | Dynamic Range | A/D Converters:
120 dB
D/A Converters:
120 dB
Monitor Outputs:
129 dB | | Impedance | Word Clock:
75 Ohms | | THD+N | A/D Converters:
-110 dB
Line Outputs:
-107 dB
Monitor Outputs:
-108 dB
Mic Inputs:
-108 dB | | | | Sample Rates | 32, 44.1, 48, 88.2, 96, 176.4, and 192 kHz | | | | AC/DC Power Adapter | 18 VDC (Included) | | Power Consumption | 25 W | | | | Dimensions | 10 x 6.5 x 2.4" / 25.5 x 16.6 x 5.9 cm | | Weight | 3.1 lb / 1.4 kg | | | | Package Weight | 6.85 lb | | Box Dimensions (LxWxH) | 12.9 x 12.5 x 6.1" |
