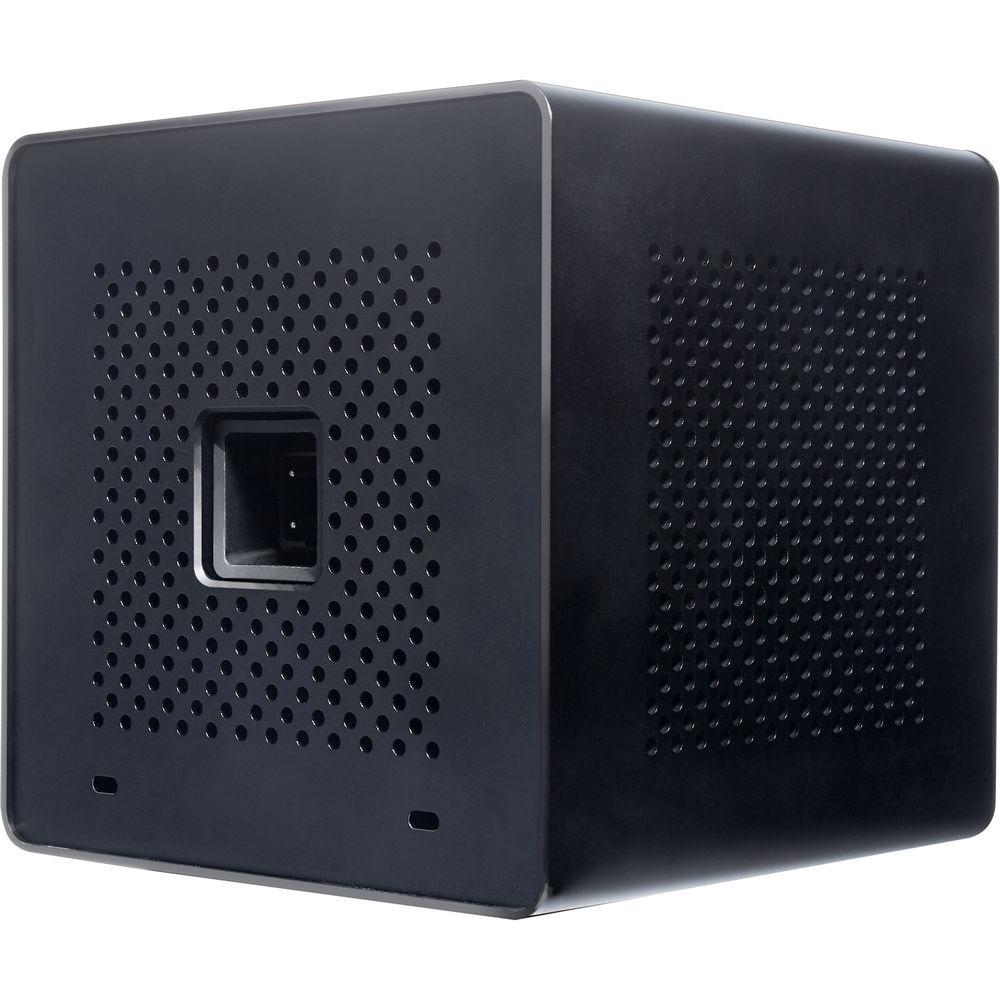

Product description The silver-finished LED Light with Power Plus AC/DC with Daylight Light Card from Anthem One is a unique, high-powered light source with a lithium-ion battery power source (in addition to AC power) that will give you three hours of run time at 100% power. This package includes the light head and AC/DC power supply. The included daylight-balanced (5600K) light card provides high color fidelity with a CRI rating of 92, as well as impressive brightness. Anthem One makes several cards for specific uses that can be easily swapped out. - LED Light with Anthem Power Plus AC/DC (Silver) The silver-finished LED Light with Power Plus AC/DC from Anthem One is a unique, high-powered light source with a lithium-ion battery power source (in addition to AC power) that will give you three hours of run time at 100% power. The Power Plus requires purchase of one of several optional color-balanced "light cards" that are actually the powered light source. The Interior Card has a 92 CRI rating, 3200K color temperature, and outputs approximately 21,000 lumens. As the name indicates, this is a good choice for locations dominated by tungsten or incandescent lighting. The Daylight Card has a 92 CRI rating, 5600K color temperature, outputs approximately 25,000 lumens, and is best used outdoors or in areas with large windows or HMI lighting. For the most precise color rendition choose the Ultra Color Card, with a very high CRI of 98 and an output of 20,000 lumens. The Ultra Bright Card is the one to use when output is of paramount importance and this card pumps out 30,000 lumens. There's a highly specialized Agricultural Full Spectrum card that outputs 80,000mW of Photosynthetically Active Radiation (PAR) in four specific wavelengths that feed carotenoids present in plant life, while Another highly specialized card is the the Military Grade IR Card, which emits 940nm that is invisible to the human eye and can covertly illuminate a target from a distance of 1.4 miles. The body of the Anthem Power Plus has slow moving fans that operate at the threshold of human hearing and keep the cards cool while maintaining a long usable life of approximately 50,000 hours. Beside battery power, the Anthem Power Plus is ready for worldwide use thanks to its 110-220 VAC power supply.
- Battery Powered
- Anthem Power Plus is equipped with a powerful lithium-ion battery capable of operating Anthem One for up to three continuous hours at 100% output or six continuous hours at 50% output. Anthem Power Plus' patent-pending lithium-ion battery is safe, reliable and easy to repair.
- Highly Mobile
- Anthem One's hidden neodymium magnets, 1/4"-20 bottom-socket, and dual Kensington ports allow you to mount, strap or lash Anthem One to bikes, cars, drones, stabilizers, rails, tracks and pipe.
Anthem LED Light Card Light Sources - Daylight Card
- Optimized for photo and video applications, the Daylight Anthem Light Card will deliver high color fidelity and excellent brightness along with a daylight-balanced color temperature of 5600K. The Daylight card boasts a CRI of 92 and is able to maintain a 25,000-lumen brightness. Also, it has a rated lifetime of 50,000 hours. For maximum longevity, Anthem includes a tube of thermal paste with every card that ensures proper heat dissipation during use.
- Interior Card
- The Interior Card will deliver high color fidelity and excellent brightness along with a tungsten-balanced color temperature of 3200K. The Interior Card boasts a CRI of 92 and is able to maintain a 21,000-lumen brightness. Also, it has a rated lifetime of 50,000 hours.
- Ultra Color Card
- The Ultra Color Card will deliver notably high color fidelity and excellent brightness along with a 4000K color temperature. The Ultra Color Card boasts a CRI of 98 and is able to maintain a 20,000-lumen brightness. Also, it has a rated lifetime of 50,000 hours before it drops to a 70% luminosity.
- Ultra Bright Card
- The Ultra Bright Card for the prioritizes brightness for working in low-light situations or other environments where light output is more valuable than light quality. This card delivers a 30,000-lumen brightness, CRI of 72, and is 5600K daylight-balanced. Also, it has a rated lifetime of 50,000 hours before it drops to a 70% luminosity. For maximum longevity, Anthem has included a tube of thermal paste for each card that will ensure proper heat dissipation during use.
- Agriculture Full Spectrum
- Optimized for agriculture and growing applications, the Agriculture Full Spectrum Anthem Light Card for the Anthem One LED Light prioritizes spectral quality and how different wavelength values benefit a variety of plant-life. This card outputs 80,000 mW of photosynthetically active radiation (PAR), which is split into four distinct wavelengths: 50% within the 660nm (red) band, 40% within the 450nm (blue) band), 5% within the 730nm (IR) band, and 5% of white 5600K visible spectrum light. The red and blue wavelengths specifically feed chlorophyll A and B, and the blue light also benefits carotenoids in plants; the IR light supports flowering in many commercially-grown plants; and the visible spectrum white light contributes greater electromagnetic radiation for commercial plants. The Light Card has a rated lifetime of 50,000 hours before it drops to a 70% luminosity.
- Military Grade IR Card
- The Military Grade IR Card outputs 35,000mW of 940nm infrared light. Unlike conventional 850nm IR light, the 940nm band is invisible to the human eye and does not produce a reddish glow. While invisible, the light can still cause severe eye damage and the use of IR goggles is recommended. This light card is ideal for covertly illuminating subjects up to 1.4 miles away and is well-suited to outdoor and venue surveillance and various inspection uses. The light card has a rated lifetime of 50,000 hours before it drops to a 70% luminosity.
- Modular
- Neodymium magnets are hidden throughout Anthem One. Snap two Anthem Ones together and you have a light source as powerful as an 800W HMI lamp. Four units output an impressive 120,000 lumens from a 11" square face.
- Silent Operation
- Anthem One's brushless, oversized, slow-moving fans silently push large volumes of air through a copper-and-aluminum heat sink. The fans operate at approximately 14.5 dBA which is the threshold of human hearing. At a distance of 3", Anthem One is absolutely silent making it suitable for professional media production.

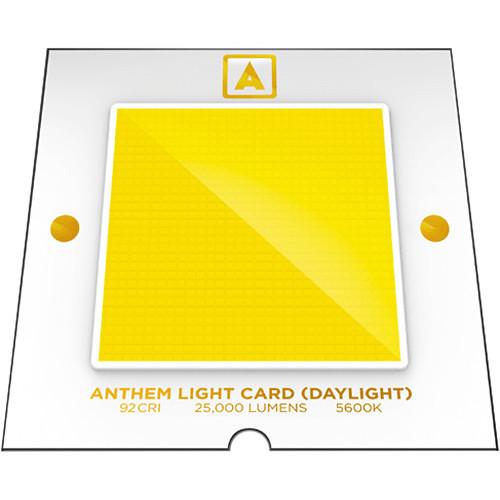

- Anthem Light Card (Daylight) Optimized for photo and video applications, the Daylight Anthem Light Card for the Anthem One LED Light will deliver high color fidelity and excellent brightness along with a daylight-balanced color temperature of 5600K. The Daylight card boasts a CRI of 92 and is able to maintain a 25,000-lumen brightness. Also, it has a rated lifetime of 50,000 hours before it drops to a 70% luminosity. For maximum longevity, Anthem has included a thermal paste that will ensure proper heat dissipation during use.

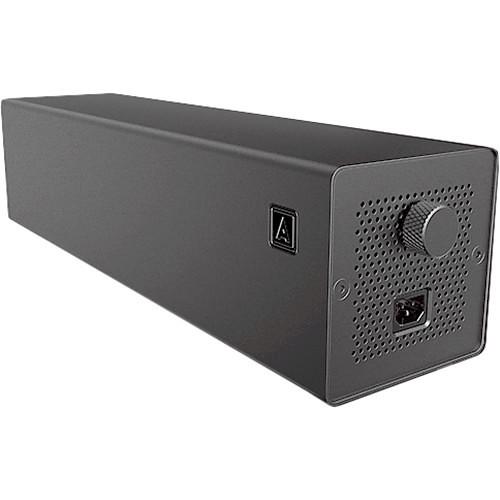

In the Box Bundle Items LED Light with Anthem Power Plus AC/DC (Silver) yatdqtrtzsaqczadrwaawadtyv - Anthem Power Plus Power Supply
- NEMA 5-15 Grounded AC-Out Cable
- Limited 2-Year Warranty on Battery
Anthem Light Card (Daylight) - Thermal Paste for Anthem One LED Light
Table of Contents
|
Upload User Manual
Have you got an user manual for the Anthem One LED Light with Anthem Power Plus AC DC with Daylight Light Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LED Light with Anthem Power Plus AC/DC (Silver)
| Beam Angle | 120° | Cooling System | Fan | Dimming | Yes, 0 to 100% | Fixture Dimensions | 5.5 x 5.5 x 5.5" / 14.0 x 14.0 x 14.0 cm | Fixture Weight | 7.6 lb / 3.45 kg | | Battery Plate | None | DMX Connector | None | | Fixture Mount | 1/4"-20 Female Thread | | AC Input Power | 110 to 220 VAC, 50 / 60 Hz | Power Source | AC Adapter, Integrated Battery | Max Power Consumption | 200 W | | Run Time | 3 Hours at Full Power | | Cable Length | 10' / 3.05 m | | Power Supply Output | 48 VDC, 4 A | Power Supply Dimensions | 5.5 x 5.5 x 21.5" / 14.0 x 14.0 x 54.6 cm | Power Supply Weight | 20 lb / 9.07 kg | - Anthem Light Card (Daylight)
Beam Angle | 120° | Color Temperature | 5600K | Lumens | 25000 | Color Accuracy Standard | CRI 92 at 5600K |
